Product Overview
Description
MACHINE DESCRIPTION
To produce home-used radial wire electric fan covers (fan guards), several fan cover machines are needed:
No. | Machine Name | Description |
1 | Round wire flattening machine | Producing flat wires for outer ring |
2 | Eccentric press + die | Punching holes on flat outer rings for clip mounting |
3 | Aluminum hoop forming machine | Forming hoops for clamping guards in round wire outer rings |
4 | Ring bending machine | Producing rings for outer ring and middle ring |
5 | Butt welding machine | Welding rings |
6 | Inner ring welding machine | Feeding, and welding radial wires to center ring / disk |
7 | Hydraulic press + die | Fan cover shape forming |
8 | Outer ring welding machine | Welding outer ring to shaped fan cover |
9 | Middle ring welding machine | Welding middle ring to fan cover |
10 | Edge trimming machine | Trimming fan cover edge |
11 | Spot welding machine for repairing | Repairing those miss-welded spots |
12 | Handle making machine | Producing handles for table fans |
13 | Spot welding machine for handles | Welding handles to fan cover |
14 | Riveting machine | Riveting clamps / clips to outer ring |
Production Flow: ring bending -- butt welding -- spoke wire welding -- shape forming -- outer ring welding -- middle ring welding -- edge trimming -- handle forming -- handle welding.

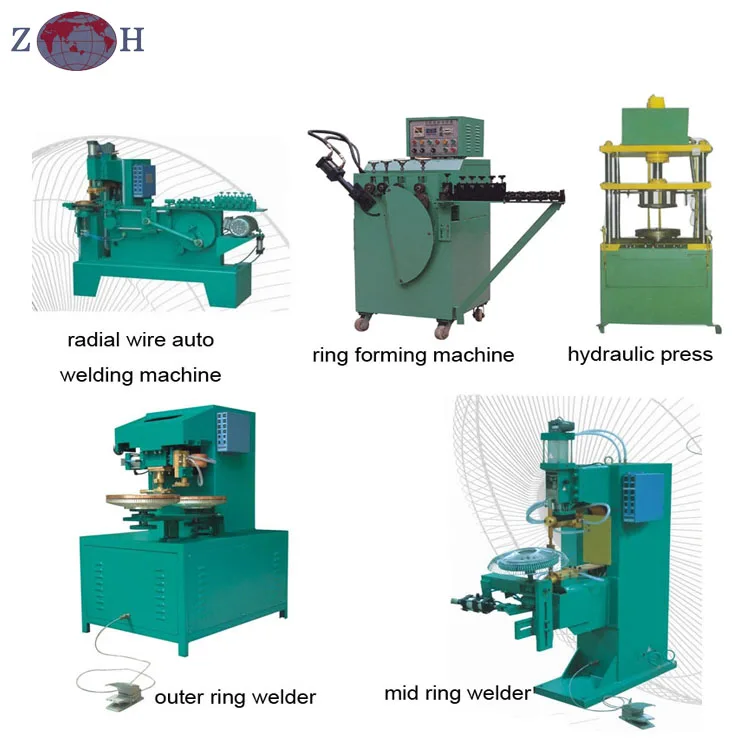

DESCRIPTION OF TYPICAL MACHINES
No.6 Inner Ring Welding Machine
Our inner ring spot welding machine can replace Taiwanese machine hundred percent, and even in higher production speed.
-- Applicable wire diameter: 1.0-1.8mm
-- Applicable fan guard size: 8”-22”
-- Applicable fan guard size: 8”-22”
-- Rated welding power: 16kVA
-- Spoke wire quantity changing method: both gear & servo indexing are available
-- Productivity: about 800-1000 pieces per 8 hours shift (16”, 120 pieces radial wires)
-- Productivity: about 800-1000 pieces per 8 hours shift (16”, 120 pieces radial wires)
Inner Ring Machine With Pneumatic Wire Feeder
electric fan cover machine
Inner Ring Machine With Auto Wire Feeder
electric fan cover machine
No. 8 Outer Ring Welding Machine
We have standard two-station outer ring welding machine and three-station outer ring welding machine with edge trimming function.
-- Applicable wire diameter of the outer ring: 3-4mm (flat or round)
-- Rated welding power: 40kVA
-- Applicable fan guard size: 8"-22"
-- Productivity: 1000-1500 pieces per 8 hours shift (16", 120 radial wires)
-- Rated welding power: 40kVA
-- Applicable fan guard size: 8"-22"
-- Productivity: 1000-1500 pieces per 8 hours shift (16", 120 radial wires)
Two-station Outer Ring Welding Machine
electric fan cover machine
Outer Ring Welding Machine with Edge Trimming
electric fan cover machine
No. 9 Middle Ring Welding Machine
We have standard pneumatic driving middle ring welding machine, servo driving middle ring welding machine and twin-head middle ring welding machine. Servo driving machine will have more reliable welding result and less noise level.
-- Applicable wire diameter for middle ring: 1.5-3mm
-- Rated welding power: 40KVA
-- Applicable fan guard size: 8”-22”
-- Productivity: 2000-3000 pieces per 8 hours shift (16”, 120 pieces radial wires)
-- Rated welding power: 40KVA
-- Applicable fan guard size: 8”-22”
-- Productivity: 2000-3000 pieces per 8 hours shift (16”, 120 pieces radial wires)
Pneumatic Middle Ring Welder
electric fan cover machine
Servo Middle Ring Welder
electric fan cover machine
Twin-head Middle Ring Welder
electric fan cover machine
No. 4 Ring Bending Machine
Our steel wire ring bending machine adopts servo feeding, hydraulic cutting, high precision and low noise level.
Our steel wire ring bending machine adopts servo feeding, hydraulic cutting, high precision and low noise level.
- Applicable wire diameter: 1.0-6.0mm
- Applicable ring diameter: 50-750mm
- Linear wire feeding speed: more than 40m/min
- Productivity: about 6000-8000 pieces per 8 hours shift
- Servo motor power: 1.5kW
- Applicable ring diameter: 50-750mm
- Linear wire feeding speed: more than 40m/min
- Productivity: about 6000-8000 pieces per 8 hours shift
- Servo motor power: 1.5kW
Except standard single ring bending machine, we also have automatic ring bending & welding machine, no operator!
Ring Bending Machine
electric fan cover machine
Butt Welding Machine
electric fan cover machine
Ring Bending & Welding Machine
electric fan cover machine

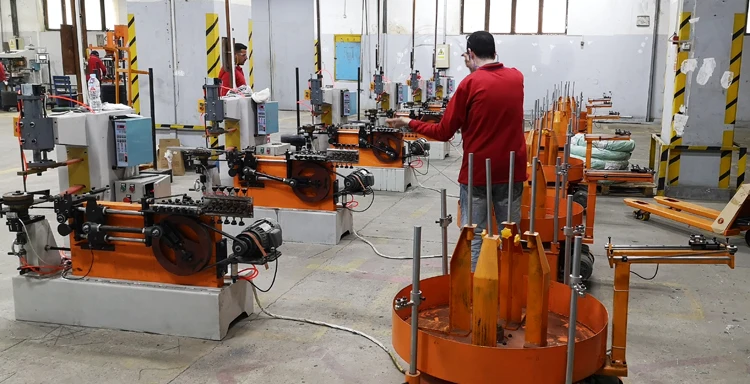

Our Workshop

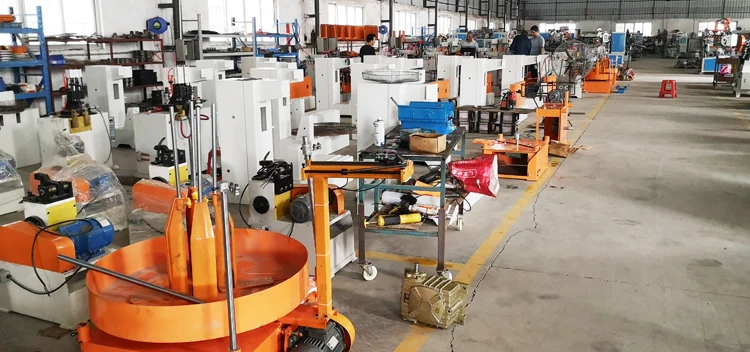

Our Client's Workshop
