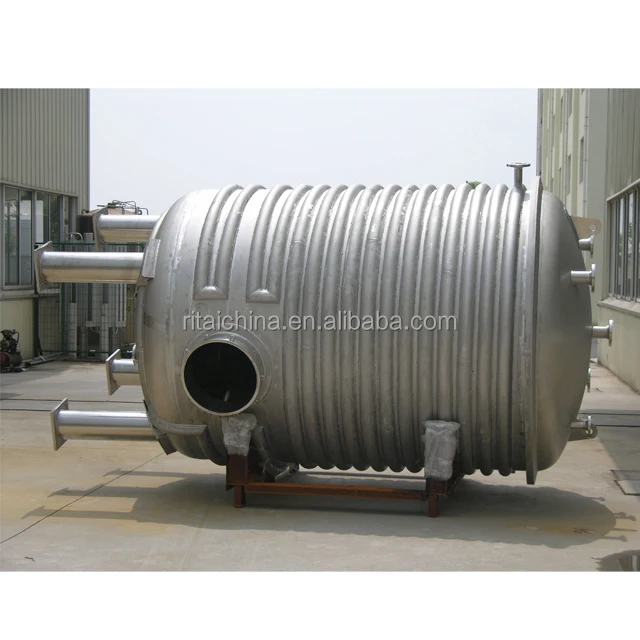

water storage tank
- Category: Environmental Machinery >>>
- Supplier: Shanghai Ritai Medicine Equipment Project Co. Ltd.
Share on (1900735152):
Product Overview
Description
Product Description

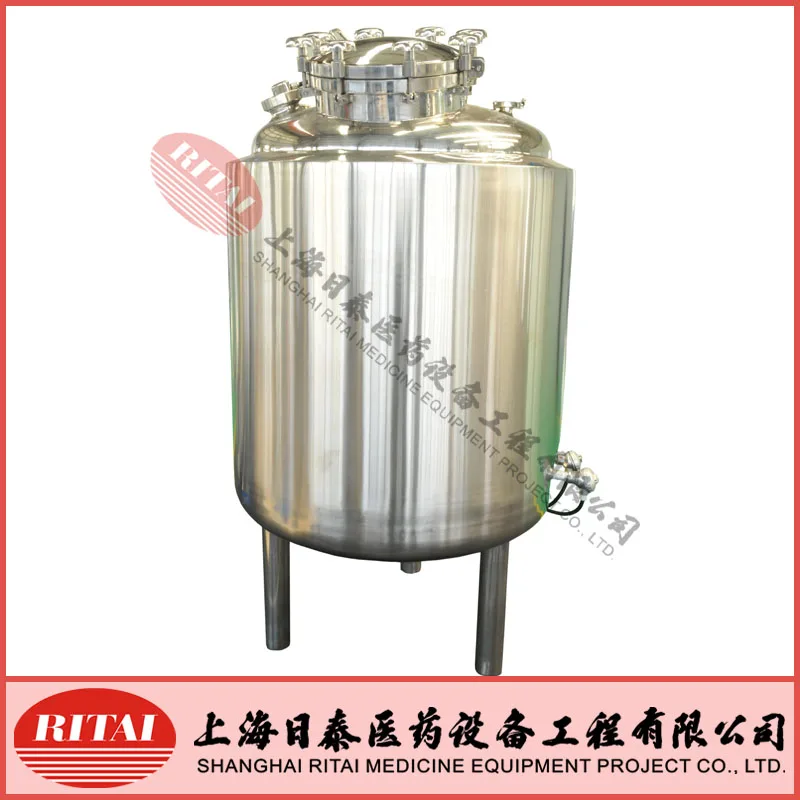

Name: Storage tank
Model: RTPW
Feature:
Feature: equipments are designed and manufactured fully according to the demand of GMP and to standards, such as
(steel pressure vessels) (GB150-2011), and (steel welded atmospheric pressure vessels) (JB/T4735-1997), etc.
Application:
It is applied to liquid preparation and various water treatment process in purgative area. It is most often used for storage WFI ,
PW and CIP system. At the sametime, we also design and manufacture various non-standard vessels.
Description:
Product technical description:
Specification: 5L~50000L
Material: SS316L or SS304
Surface finish: inside surface is Ra0.28~0.4μm by mechanical polish. (passivation or electropolish are optional). Outside surface is Ra0.6~0.8μm by satin finish.
Agitator: no or with agitator according to client detail requirement.
Pressure: ATM or pressure vessel (-0.1~1Mpa)
Structure: Single layer vessel, vessel with jacket, vessel with jacket and insulation
Insulation material: rock wool
Components: vent filter, temp. gauge, level gauge, manhole, sight glass with lamp and cleaning ball or according to client’s detail requirement.
Pressure Vessels can be made according to the standards: ASME, PED 97/23/EC, GB150-2011
Working volume | Inner diameter | Outer diameter | Vessel height | Total volume |
30L | 400mm | 500mm | 400mm | 44L |
50L | 400mm | 500mm | 600mm | 69L |
100L | 500mm | 600mm | 650mm | 130L |
200L | 600mm | 700mm | 1000mm | 250L |
300L | 700mm | 800mm | 1250mm | 370L |
500L | 900mm | 1050mm | 1150mm | 650L |
1000L | 1100mm | 1250mm | 1480mm | 1260L |
1500L | 1200mm | 1350nmm | 1700mm | 1780L |
2000L | 1300mm | 1500mm | 1980mm | 2200L |
3000L | 1500mm | 1700mm | 2150mm | 3400L |
4000L | 1600mm | 1750mm | 2630mm | 4000L |
8000L | 1900mm | 2100mm | 3200mm | 8300L |
The above dimension is only for reference, we can make up to 30000L , and we can make special dimension according to client specific requirement. | ||||
Packaging & Shipping
Packaging: wooden case Shipping: by sea or by air
Our Services
We offer design, customization, manufacture, installation, and maintenance services, etc.
Company Information
Shanghai Ritai Medicine Equipment Project Co., Ltd. mainly specializes in innovation and development of sanitary stainless steel pressure vessels, pressure vessels, fermenters, valves and piping system which are widely used in the following fields, such as pharmacy, biology, chemistry, food and drinks industry.
Shanghai Ritai is qualified to design and manufacture pressure vessels with the certificates of ASME, PED 97/23/EC, NB, and ISO 9001:2008.
