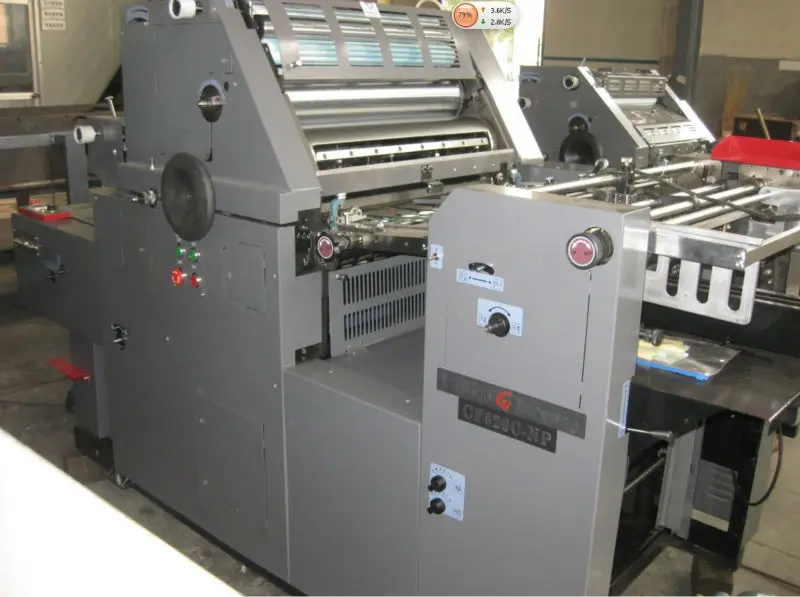

CF620C NP A2 size automatic single color offset press

Product Overview

Description

CF620C-NP A2 size single color offet printing press



A Main function :



     This is a multi-purpose large format offset press featuring simple operation,precise workmanship and beautiful printing effect.

In addition to all the functions of CF47II offset press,it uses independent air draft vacuum pump to suck pper,so that even thin paper can be orderly delivered, this will greatly increase the production efficiency of later procedures,thus it is an ideal offset press for book and workbook printing.

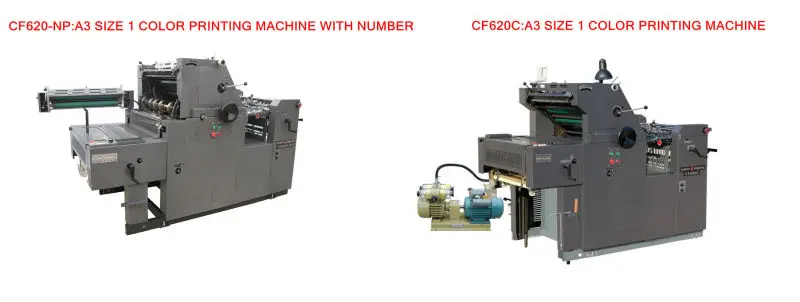

    about the A3 size prining machine ,we have two type ,one is the with the number and another is without the number :



we also have the A3 size priting machine with the number unit ,please check the pic :

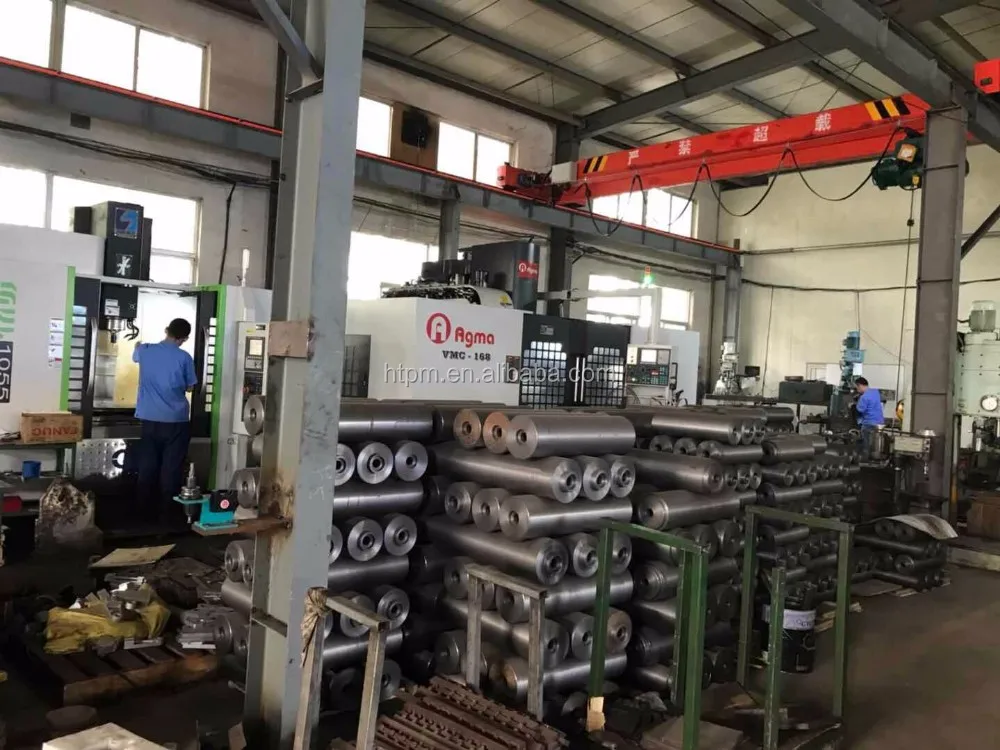

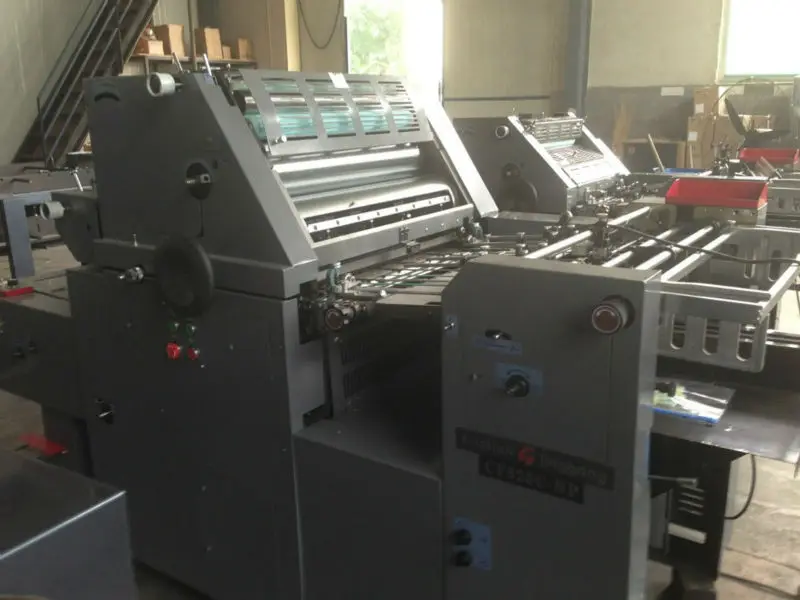

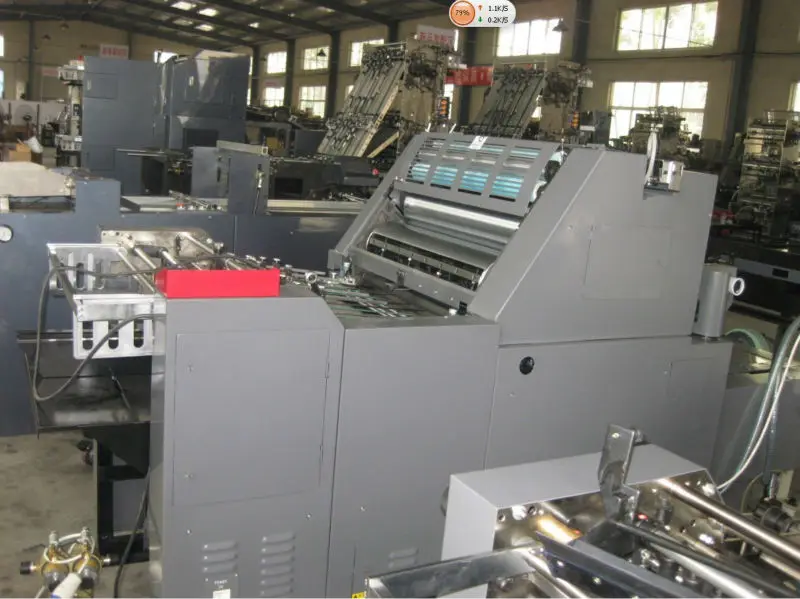

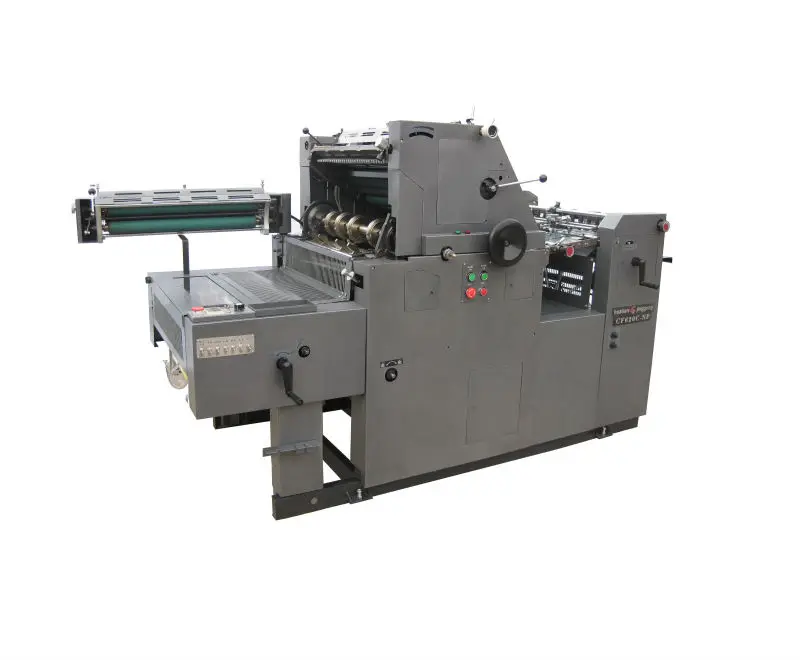

Machine pic in our factory :







B Technicial Parameter



Maximum printing area	605 x 440mm
Maximum paper size	620 x 450mm
Minimum paper size	180 x 260mm
Paper type	28-250g/
Number of ink rollers	16 pieces (3 form rollers)
Number of dampening rollers	5 pieces (2 form rollers)
Registration mechanism	Roller type side lays
Printing speed	2000-7500 sheets/hour
Motor power	Main motor: 0.75KW/380V×2	Air pump moto:1.5KW/380V
Machine size	1760L×960W×1204Hmm
Weight	950KG











 C Printed Sample :

     this A 3 size printing mahine could do the 1-4 color print work on the 17-250gsm paper .

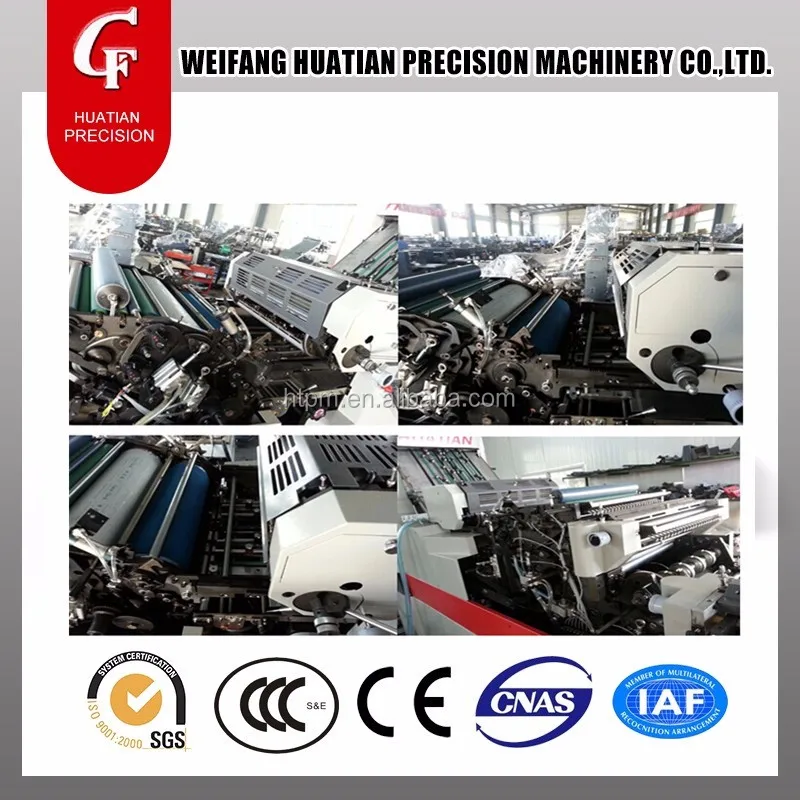

D Factory and delivery and guarantee





  1)it is 1 color offset press



  2)the max paper size is 620x450mm



  3)we will delivery the mahcine within 10- 20 days



  4)we accept T/T



  5) we provide 1 year guarantee







  F)Packaging & Shipping



1)Packaging: wooden box  with the water proof







 2)Package size :2960x1060x2320mm,







 3)Machine weight: 1500kgs







 4)CBM: 7.3CBM







 5)Shipping:we could delivery the machine within 10- 20 days to you .





 if you have any need for our machine ,please don`t hesitate to tell us ,contact  person:Niki Mob:0086-13793642280
