Aerator for fish farming pool aerator/aerator/fish pond aerator

Product Overview

Description



                                    Pool aerator /aerator/fish pond aerator





1,Structure and Function of fish pond aerator

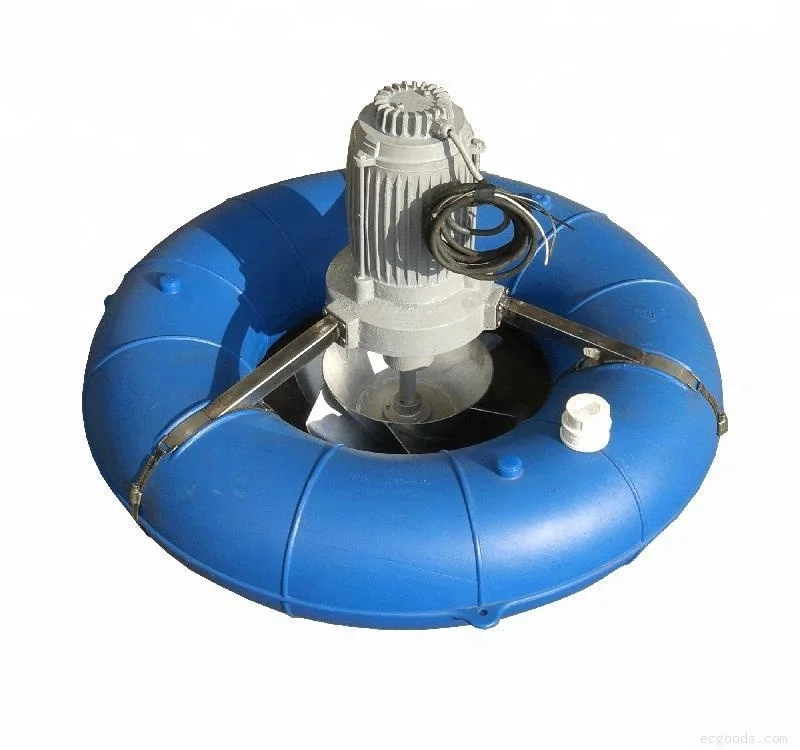

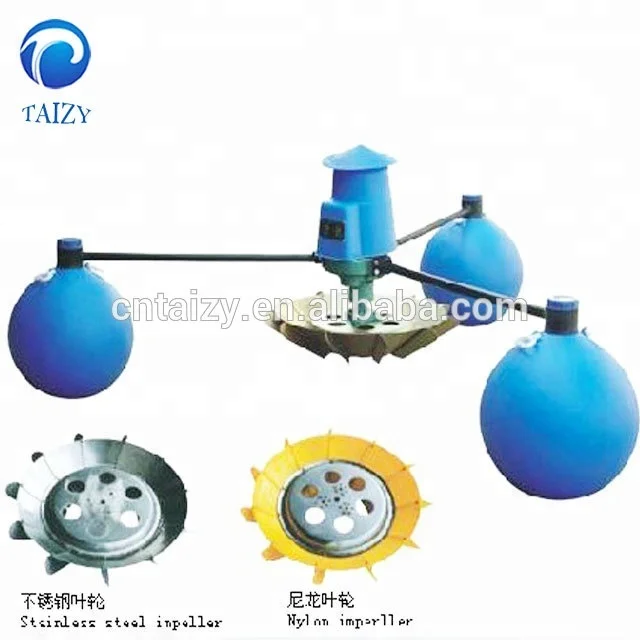

1, Impeller aerator mainly consists of motor, gear box , water wheel and float composition has been developed to form a product family , including 7.5kw, 5.5kw, 3.0kw, 1.5kw, 1.1kw, 0.75kw several models. 3.0kw, 1.5kw two kinds of impeller aerator most commonly used.

2,Impeller aerator using mechanical methods aerobics, water driven by an electric motor rotating impeller to stir the water , mixing gas and liquid film membrane , increasing the gas , liquid contact area to expand the oxygen concentration gradient in the water , improve oxygen in the air metastatic spread to the water speed .

3,The effect of the oxygen equipment is obvious, by using the impeller aerator , aerator can be formed as the center of a radius of about 10 meters in the water enriched circle . In the pond experiment, impeller aerator running about 80 minutes , and allows the water temperature and dissolved oxygen content of the water 1.5 meters deep in the upper consistent .Impeller aerator with high technical content , with physical , biological effects than other types of aerators .

 2,Basic functions of  fish pond aerator

 1,Aerobics . Impeller aerator power , high efficiency , per kilowatt / hour maximum oxygen 1800 g or more. In the case of oxygen-rich water , aquaculture can effectively inhibit the occurrence of bacterial , viral , aquaculture production increase is significant.

2,Carrying water and stir. Paddlewheel aerators can improve the bottom water to the surface water alternating with each other , and thus play to the effect of lower water aerobics , aerobics its depth more than 2 meters , suitable for high-yield deep water fish pond .

3,In addition to the exposure of harmful gases . Impeller aerator strong aeration function , water of harmful gases such as ammonia , hydrogen sulfide , methane, carbon monoxide exposure can effectively removed.

Technical parameters of  fish pond aerator

Model	Motor	Voltage	Power efficiency	Oxygen transfer rate	Active area
TZ-1.5	1.5KW	220V/380V	≥1.4kg/kw.h	2.25kg(O2)/h	4-8mu
TZ-2.2	2.2kw	380V	≥1.4kg/kw.h	3.37kg(O2)/h	5-10mu
TZ-3	3KW	380V	≥1.4kg/kw.h	4.5kg(O2)/h	7-12mu

1,Packaging:By wooden packing or customer need

2,Shipping:3-7days after payment



 Before sale: Help customers choose the most suitable equipments; provide advanced, energy-saving and practical flow chart as well as responsible for designing the site.

On sale: Inspect the product seriously before out of the factory; invite customer for commissioning in the spot and raising the objection; organize to delivery according to the contract.

After sale: Company can send technical datas for guiding to install debug the machine. We also can provide 24-hour telephone or message service.



Zhengzhou taizy trading co,.ltd product Catalog:

1,Wood working machinery

2,Briquette press machine

3,Farm machinery hay baling machine

4,Nut processing machinery

5,Fruit processing machinery

6,Animal feed machines

"Quality, Price, Time and Service" is the tenet of our business.

"Credit, Reposal, Negotiation and Cooperation" is our standard.
"Solidity, Creation, Factuality and Dedication" is the spirit of our company.

Trade & Market
Main Markets:	25.00% South Asia
	20.00% North America
	12.00% Southeast Asia
	10.00% Mid East
	10.00% South America
	8.00% Central America
	5.00% Eastern Europe
	3.00% Domestic Market
	2.00% Africa
	1.00% Western Europe
	1.00% Eastern Asia
	1.00% Southern Europe
	1.00% Northern Europe
	1.00% Oceania
Total Annual Sales Volume:	US$10 Million - US$50 Million
Export Percentage:	81% - 90%

Rational use of aerators should grasp the following principles:

Rainy days:

Because of its poor photosynthetic water ponds, mainly rely on oxygen to  maintain the pond aerator water dissolved oxygen, increase uptime, divided  6:00-9:00,16:00-20 :00,00:00-5: 00 boot several times, master boot time based on water temperature, water temperature should increase high uptime.

Rainy season:

The rainy season most prone floating head and turn the pond, due to the low  air pressure, oxygen in the air is difficult to dissolve into the water, then the aeration efficiency aerator is also the lowest, preferably 24 hours a day, to prevent the occurrence of hypoxia and turn the water pond
