Нагреватель отработанного масла горячим воздухом Kvh6000
- Category: Heating Equipment >>>
- Supplier: Qingdao Kingwei Energy Saving Equipment Co. Ltd.
Share on (1910052564):
Product Overview
Description

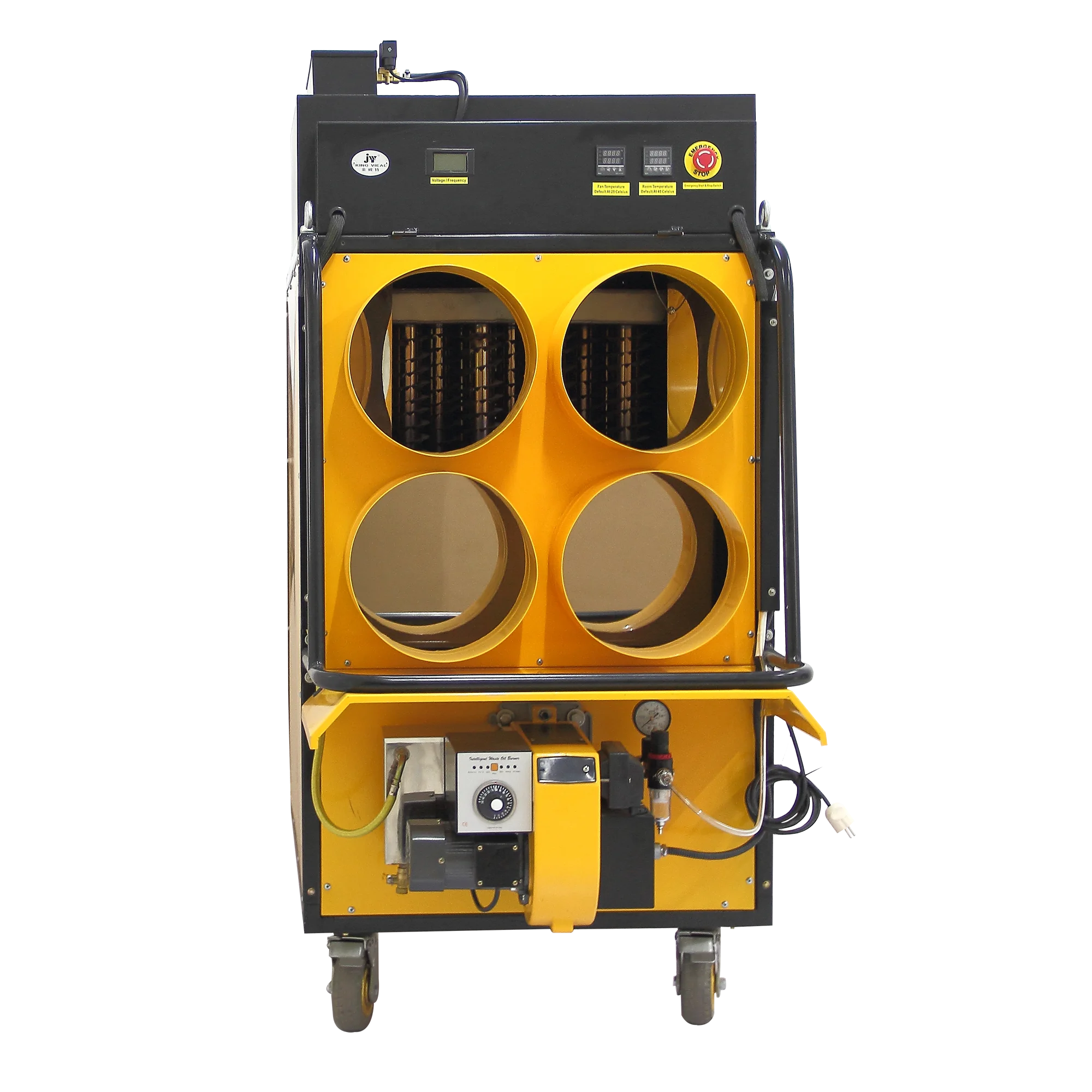

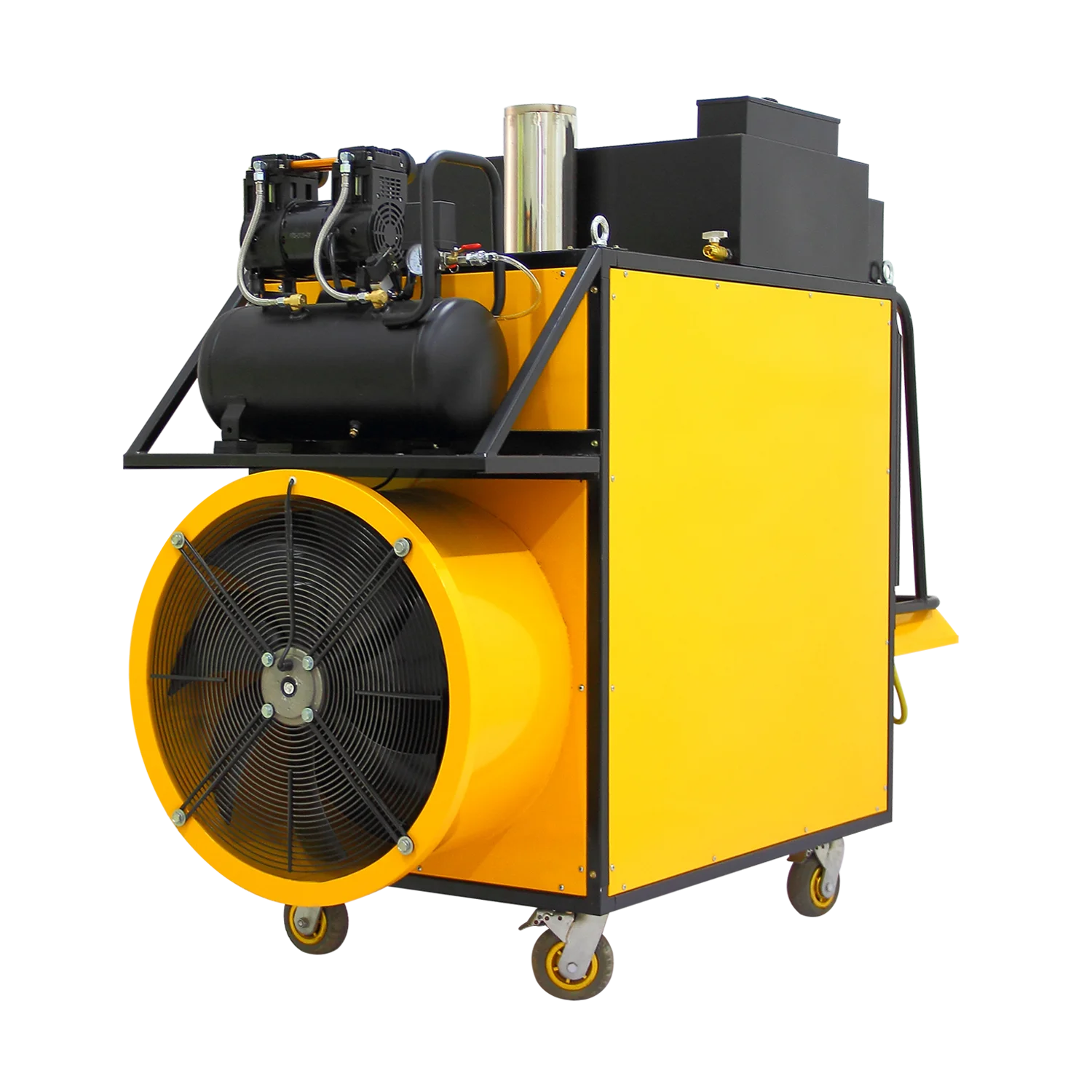

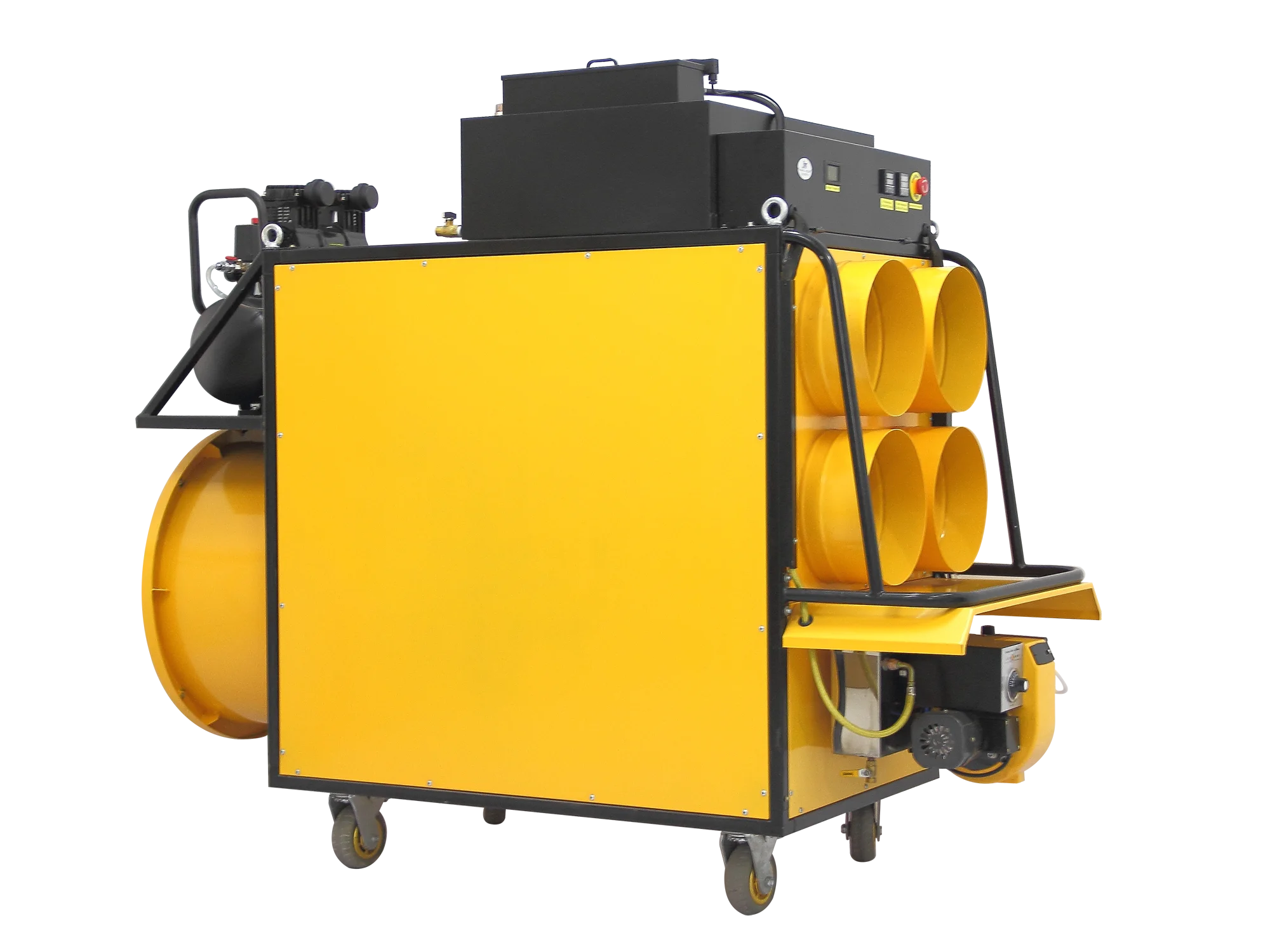

KVH6000 Details
Item | KVH6000 Oil Heater | ||||
Heat Supply Area | 800-1000sq.m (800-1000sq.ft) | ||||
Size(LxWxH) | 195x80x180cm | ||||
N.W | 370kg | ||||
Heat Exchanger | 304 ss combustion chamber | ||||
Draught Fan System | one 600mm(dia) YWF+one 300mm(dia) YWF | ||||
Oil Consumption | 6-8L/H | ||||
Output Power | 80-120KW | ||||
Max.Output Heat | 100,000Kcal/H(400,000Btu/H) | ||||
Air Output | 12000m3/h+1800m3/h | ||||
Air Output Exit Amount | 4x300(dia) | ||||
Fan Motor | 880w+115w | ||||
Chimney Diameter | 140mm | ||||
Power Supply | 220V 50HZ or 110V 60HZ | ||||
Working Pressure | 0.5bar(7PSI) Must work with external air compressor,smallest capacity is 90L/min | ||||
Fuel | all kinds of liquid oil | ||||
Application | Indoor: such as greenhouse, poultry farm, factory Outdoor: such as tunnel, stadium, snow melt, warm airplane engine | ||||
Available Fuel List | ||||||||
1) Waste car/engine oil from the car, truck, garage as well as motor oil, hydraulic oil | ||||||||
2) #2-#5 fuel oil | ||||||||
3) Vegetable oils, such as palm oil, soybean oil, used cooking oil from the restaurant as well as animal fat oil | ||||||||
4) mixed oil | ||||||||
5) diesel oil, light oil | ||||||||
Product Feature

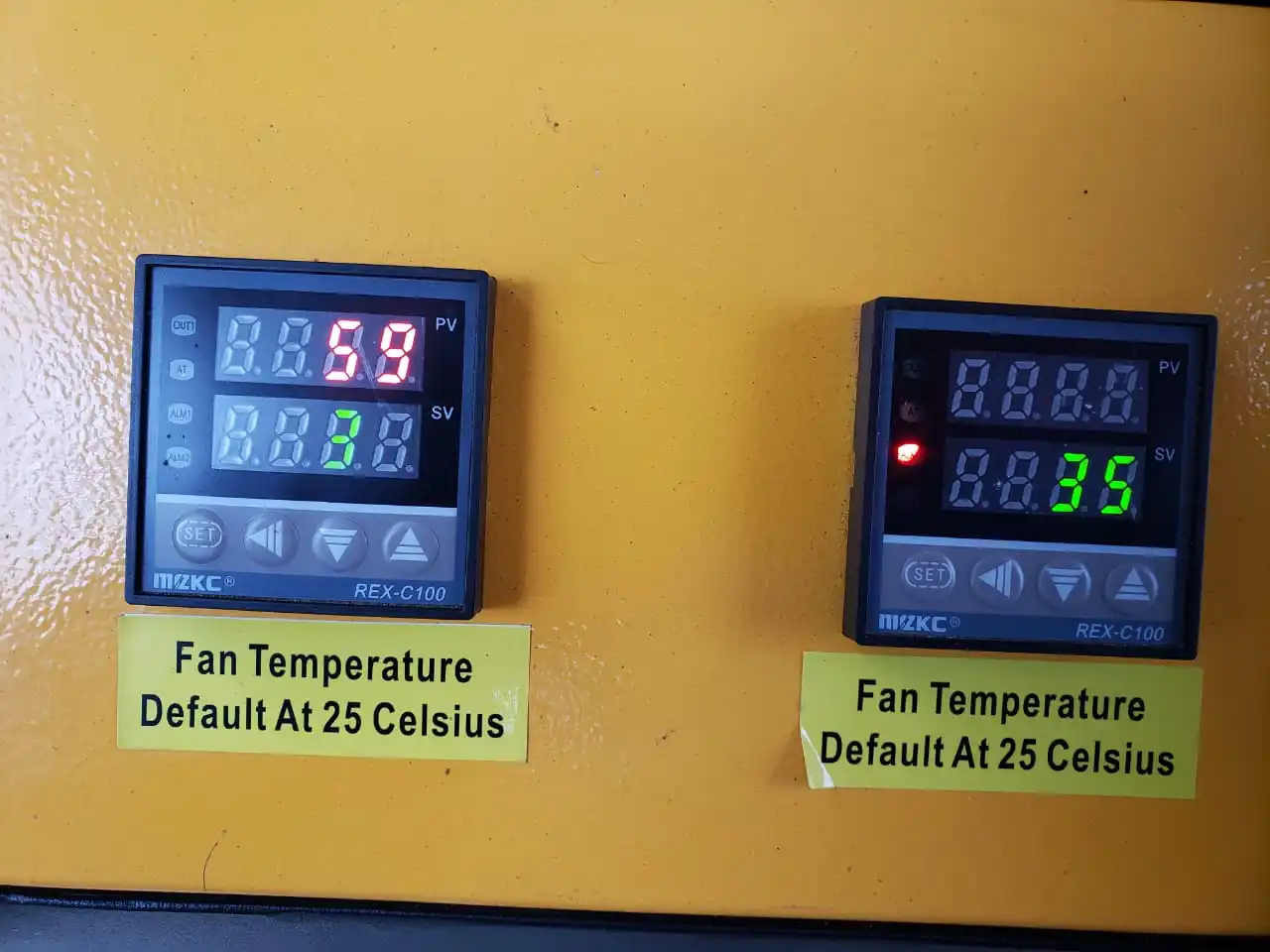

Strong & Protective Fan System
The fan sucks in cold air, via the inside heat exchanger, blows out warm/hot air. The outlet temperature rises from 27℃ to 40℃ takes 2 minutes, continues to rase up.
The fan also functions as the heat exchanger's protector. It keeps sucking in cold air until the exchanger's temperature drops to the setting. Drop from 54℃ to 40℃, takes 2 minutes 15 seconds.
Suck in cold air
blow out hot air
Original Heat Exchanger
The inside exchanger's material is 304 stainless steel; wholly sealed- safe and durable; the reference service time is five years.
How Long To Reach 100℃
The hot air outlet, raise from 26 to 100℃ takes 6 minutes 26 seconds
Long-Distance Heat Transfer
Four-pieces air hoses come with KVH6000 Oil Heater.
The temp from the end of the 3 meter hot air hose, raise from 29 to 48℃ takes 2 minutes, continues to rase up.
Waste Oil System
Integrated waste oil system- oil storage & heating tank, pump & filter system, burner, deodorization device are already on the heater.
Less oil consumption: KVH6000 heater consumes 6-7 Liter oil per hour.

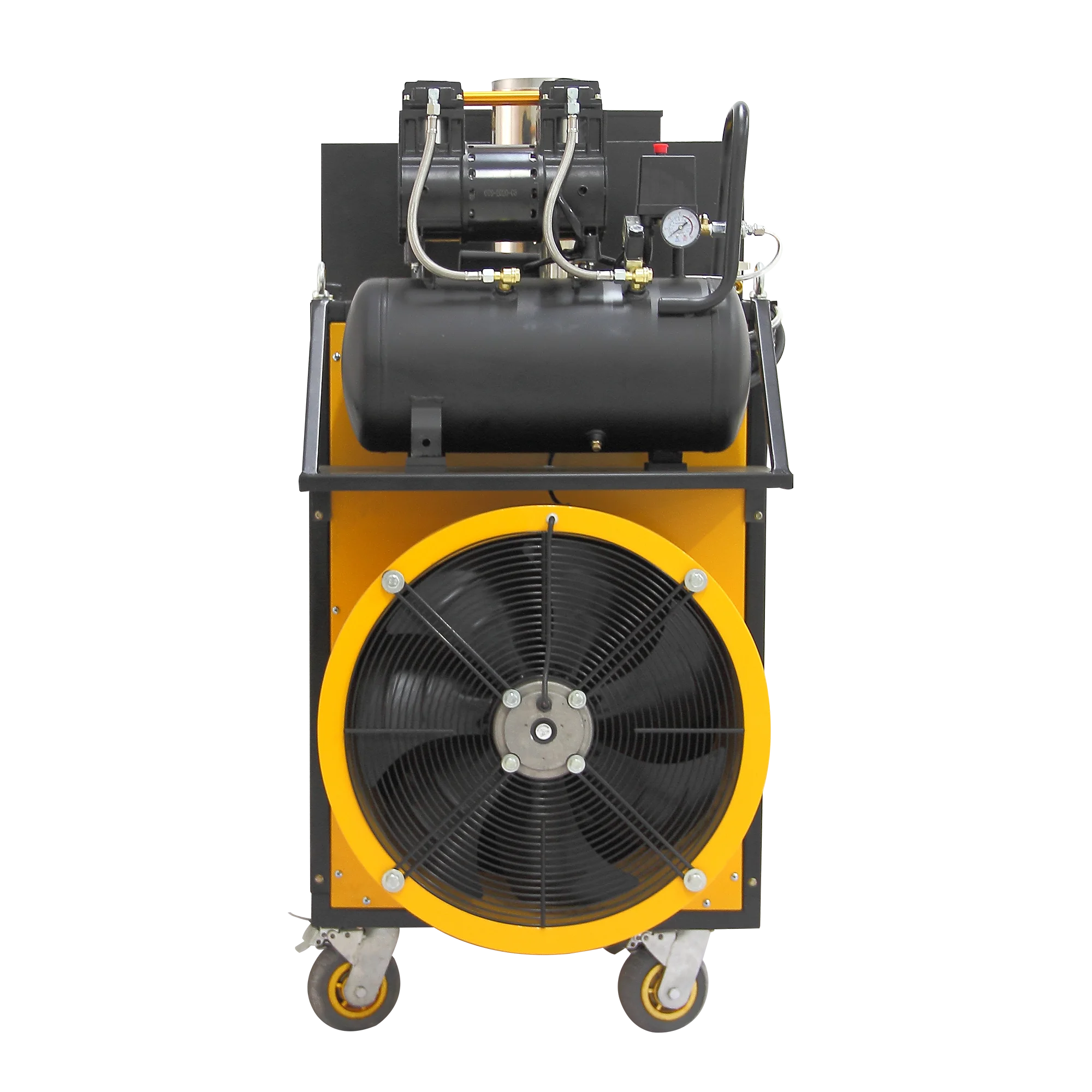

Air Compressor System
Each working period uses 2 bar compressed air, which takes one minute 30 seconds—thirty seconds to raise compressed air from 5-7 bar, the left one minutes for burner's consumption. After compressed air reduces to 5bar, the air compressor starts to work again.
How Long To Melt 200g Ice Block
The first three minutes
room’s temperature rases 6℃, from 19℃ to 35℃.
The ice block can still see its shape.
The ice block can still see its shape.
From the fourth minutes to the eighth minute
the room’s temperature rases 10℃, from 40 to 50℃.
The ice block still melts, sleeks, and becomes smaller.
The ice block still melts, sleeks, and becomes smaller.
From the ninth minutes to the final 14th minutes 30 seconds
room’s temperature rases 4℃, from 54℃ to 58℃.
The ice block can’t see its shape anymore and melt completely to water.
It takes 14 minutes 30 seconds to melt 200g ice block completely. Waste engine oil consumption is 1.75L.
What's The Smoke Temp
We first tested the smoke temperature on 30th April 2020. Four minutes the smoke temp rise from 31 to 260 Celsius. The rising speed is fast.
Video link, https://youtu.be/471Fv0ecTGI
We took this second video on 22nd March 2021, in which the heater has an updated smoke construction.
You can see that the smoke temp rises from 31 to only 140 Celsius in the same four minutes, which means smoke has a slower pass speed, which leads to less heat loss. The heater's current heat efficiency is around 90%.
Video link: https://youtu.be/k8quwdG2r9I
Video link, https://youtu.be/471Fv0ecTGI
We took this second video on 22nd March 2021, in which the heater has an updated smoke construction.
You can see that the smoke temp rises from 31 to only 140 Celsius in the same four minutes, which means smoke has a slower pass speed, which leads to less heat loss. The heater's current heat efficiency is around 90%.
Video link: https://youtu.be/k8quwdG2r9I
Test day weather: temp is 15-21℃, sunny, and windy.
Test data: 30th of April 2020, 13th of May 2020
Test room size: 34sq.m (6.1-meter length, 5.6-meter width), 3.4-meter height, not sealed
Test heater: Model KVH6000(400 000Btu)
Fuel: waste engine oil
Contact us to revise the test videos!
Contact us to revise the test videos!
ps: All the data will change in a different environment.
Drying Room Installation
Farm Installation
Workshop Installation
One Package Service
Machine Tool Workshop
Foundry Workshop
Finished Casing Frame
Assemble By Handwork
Burner's Fire Test,Troubleshoot
Heater's Programme Test
Transport
●By express,such as dhl
●By air
●By sea
●By land
●By air
●By sea
●By land
After-Sale Service
●spare parts for life time
●online support
●one year quality warranty
●online support
●one year quality warranty
Refund Guarantee
●Transcation via alibaba trade assurance order.if we fail to product quality and delivery time,alibaba will pay your loss.
