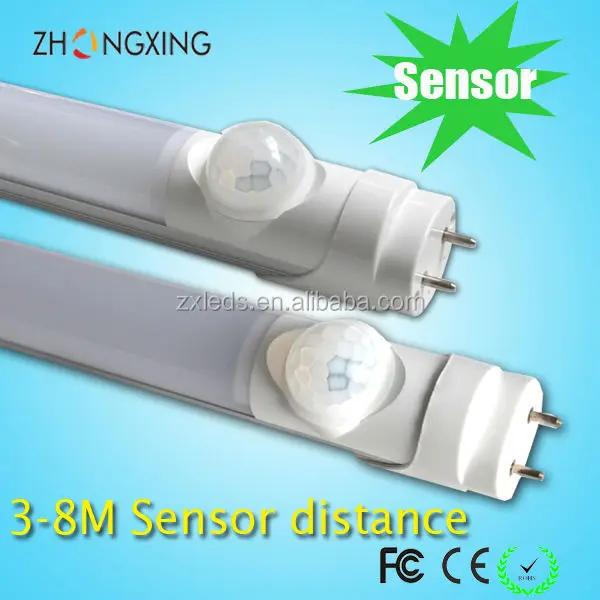

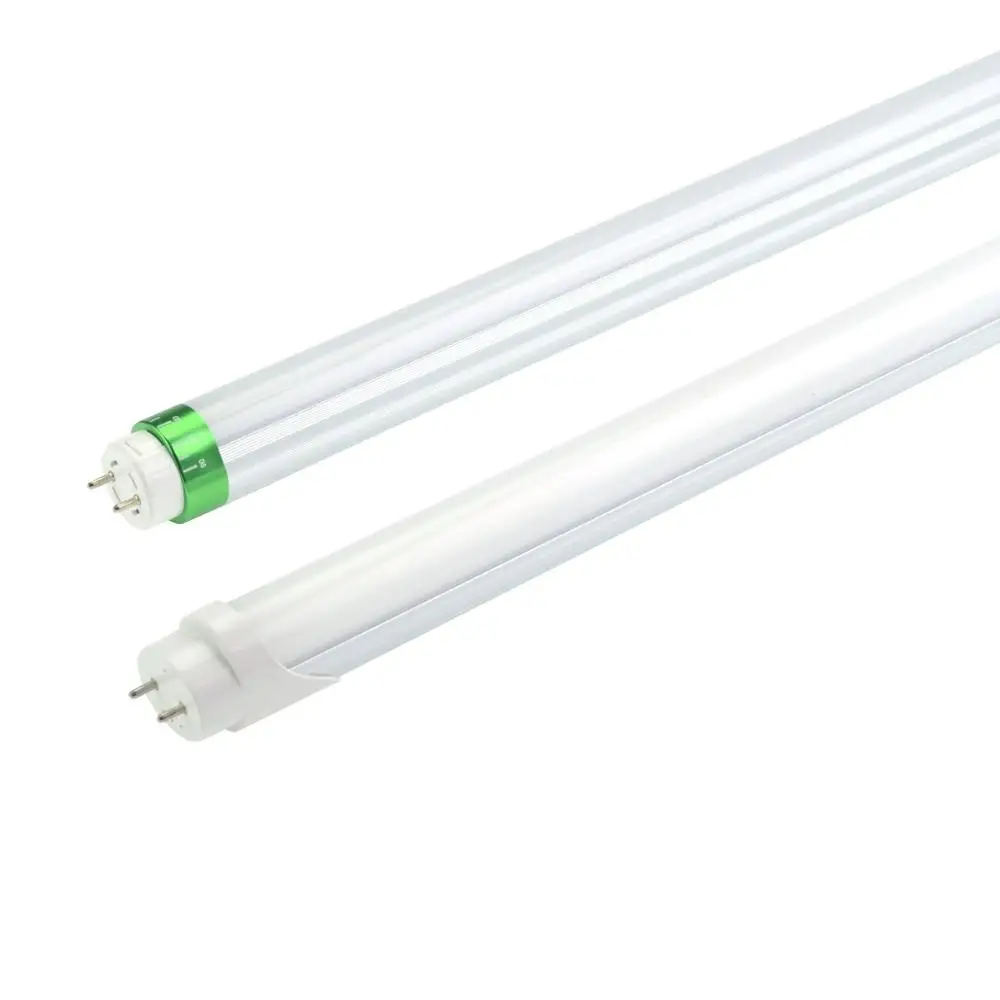

18w Motion sensor LED tube T8
G13 medium Bi-pin
more items and watts to choice
|Product Name||Led Qty||Power||Input Voltage||Color||Luminous Flux||power factor||Dimension (mm)||Base||Warranty|
|ZX-T8-GY10-600 2835||48Pcs||10±1W||AC100~240V 50~60Hz||2700-6500K||900lm±90lm (T) 850lm±85lm (S)||0.9||588||G13||3years|
|ZX-T8-GY12-900 2835||72Pcs||12±1W||AC100~240V 50~60Hz||2700-6500K||1100lm±100lm (T) 1000lm±100lm (S)||0.92||894||G13||3years|
|ZX-T8-GY18-1200 2835||96Pcs||18±1W||AC100~240V 50~60Hz||2700-6500K||1800lm±100lm (T) 1700lm±100lm (S)||0.95||1198||G13||3years|
|ZX-T8-GY24-1500 2835||120Pcs||24±1W||AC100~240V 50~60Hz||2700-6500K||2400lm±100lm (T) 2200lm±100lm (S)||0.95||1498||G13||3years|
|Sensor time||30S||sensor distance||3-6M||small power||3±1W|
|sensor bean angle||120°||bean angle||150°|
1.Residential Buildings, Home
2.Office, Meeting Room
9.Supermarket, Shopping mall,anywhere you want.
How to work ?
When the car(man) enters in the sensor area, the infrared LED tube will be full light,the power will be 18watts,then,lasting lighting for 30seconds,then,becoming dark,and the power will be 3watts after the car(man) is away from the sensor area.
Remark: motion sensor led tube is not workable in the fixture with Cover.
Warning :risk of electric shock! ensure that the power supply is off when wiring sections of this device.this device is to be installed by a qualified electrician or technician in accordance with all relevant local codes. please read this user guide completely prior to installation and please pre-plan the installation.
Note: please remove Bi-pin shipping protectors from end of tubes prior to installation
1. Unpack and carefully examine the product
2. Report any damage and save all packing materials if any part is damaged during transport
3. Do not attempt to use this apparatus if it is damaged
Before you start: Installation of your new LED tube is simple, but requires a basic knowledge of wiring(as shown below).if you do not feel comfortable with this type of wiring, Sanding LED would recommend consulting a qualified electrician.
Note:please ensure that power is disconnected from fitting before installing LED tube
For a single tube,the magnetic ballasts do not need to be removed,if the installation has multiple tubes,then the ballast must be removed,to maximum energy saving, it is recommended to always remove the ballast, the preheat/starter lamp should be removed when used with an LED tube
You should not use an LED tube with an electronic ballast.remove or bypass the electronic ballast prior to installation, to avoid damage to the LED tube.
