Steel plate profile pipe steel angle shot blasting machine

Product Overview

Description

1.Purpose

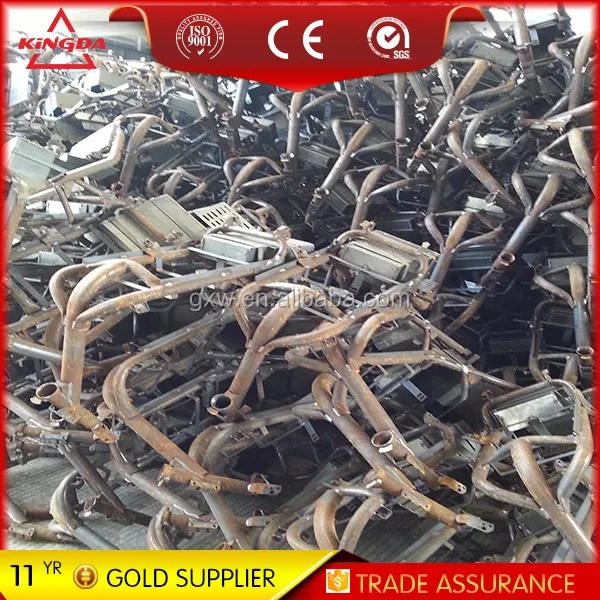

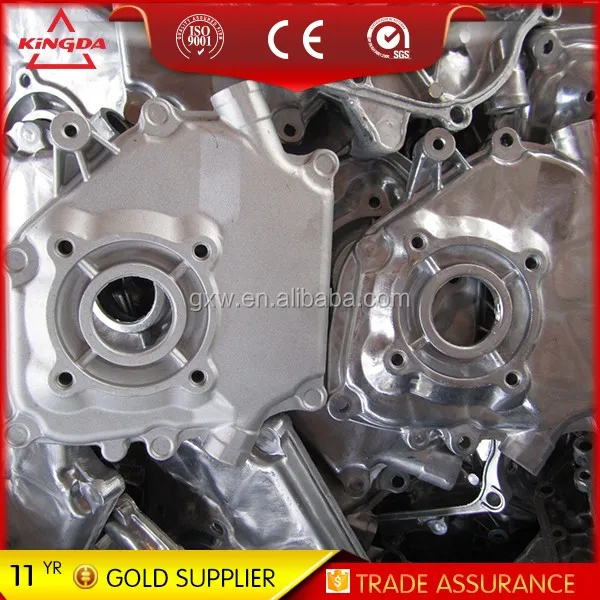

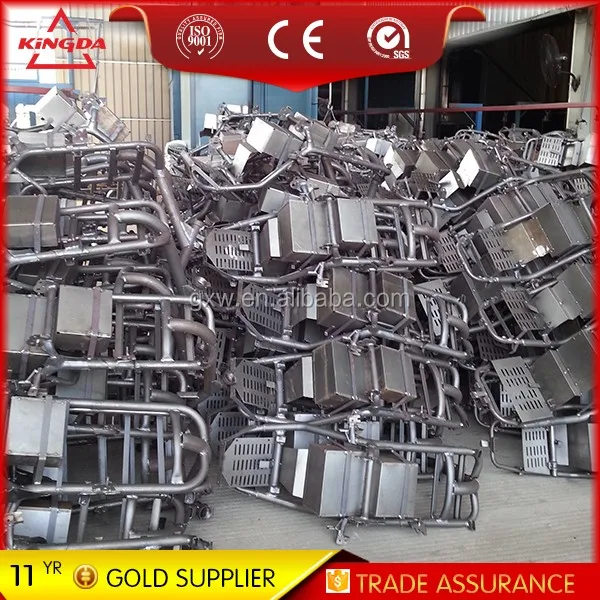

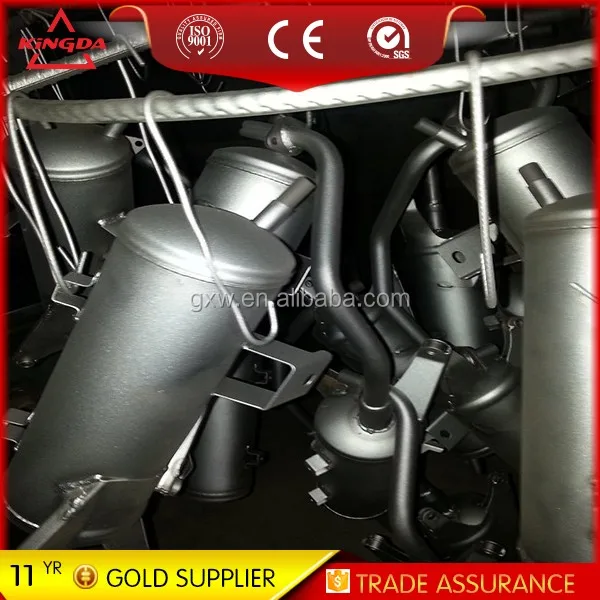

This hook shot blasting equipment applies to cleaning the surfaces of casting,forging,steel structure,car wheels and coloured metal workpieces etc.The machine mainly make use of the high-speed steel shots quantity that the high-efficiency mighty throwing the steel shots machine throws.Throwing and beating the surface and inner part of the circumgyrating workpieces,to clean the other viscous sand, rust layer, solder residues, oxide husk and etc, then the surface will be subtle and glabrous.It also can enhance the accreting power between the lacquer and the surface of the steel structures,at the same time,it can enhance the resist- fag intensity and resist- fretting ability, improve the steel structures inner quality and protract the using life-span



2.compose

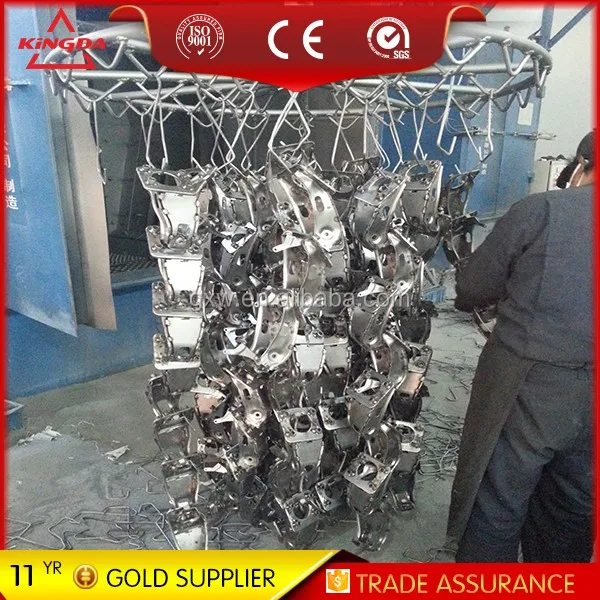

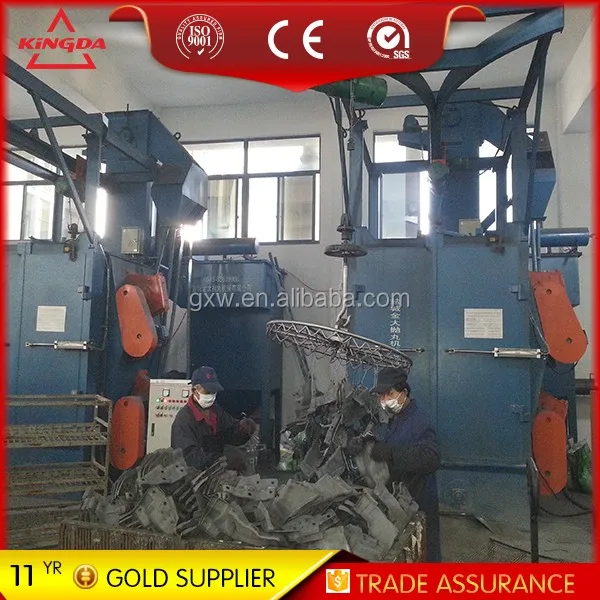

this hanger-type shot blasting machine is composed of cleaning room,blasting turbines,the bucket elevator, bottom screw helix conveyor,the steel shots seperator,dust catcher , track and hanger system and electrical control system

3.Technical parameters

Model	Q376	Q378	Q3710	Q3720	Q3730	Q3750	Q37100
Workpiece dimension(mm)	φ600*1200	φ800*1500	φ1000*1500	φ1200*2200	φ1500*2200	φ1800*3000	φ2000*3000
hoisting capacity(kg)	600	1000	1000	2000	3000	5000	10000
Shot blasting capacity(kg/min)	150*2	200*2	200*2	220*3	250*3	250*4	250*4
Lifting elevator capacity(t/h)	25	30	30	45	45	60	60
Separator capacity(t/h)	25	30	30	45	45	60	60
Ventilation(m³/h)	5000	5300	9600	15600	18500	22000	28000
Power not include dust remover(kw)	~23	~34	~48	~60	~67	~80	~90
