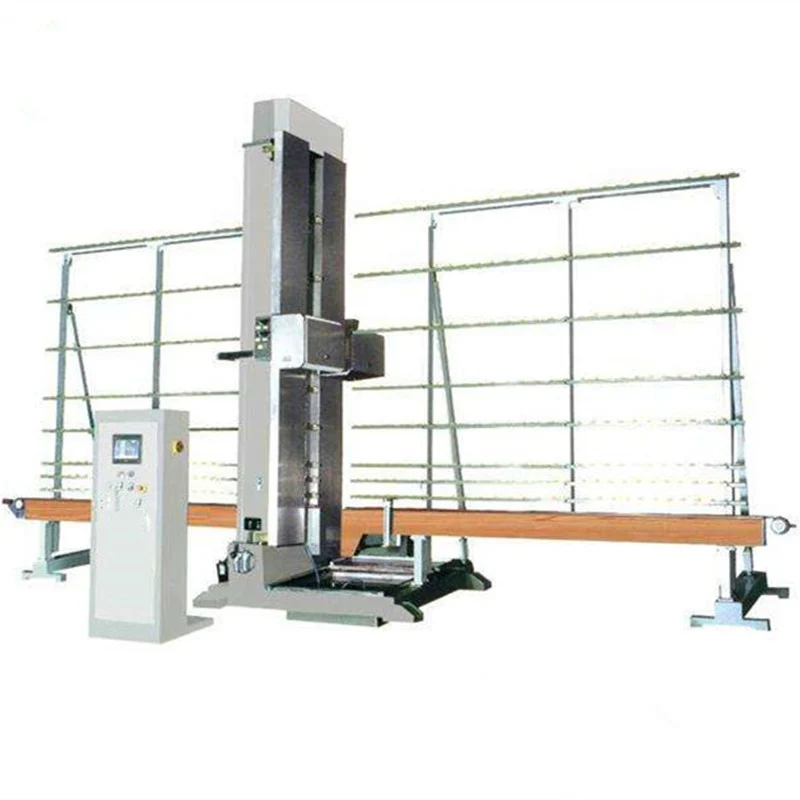

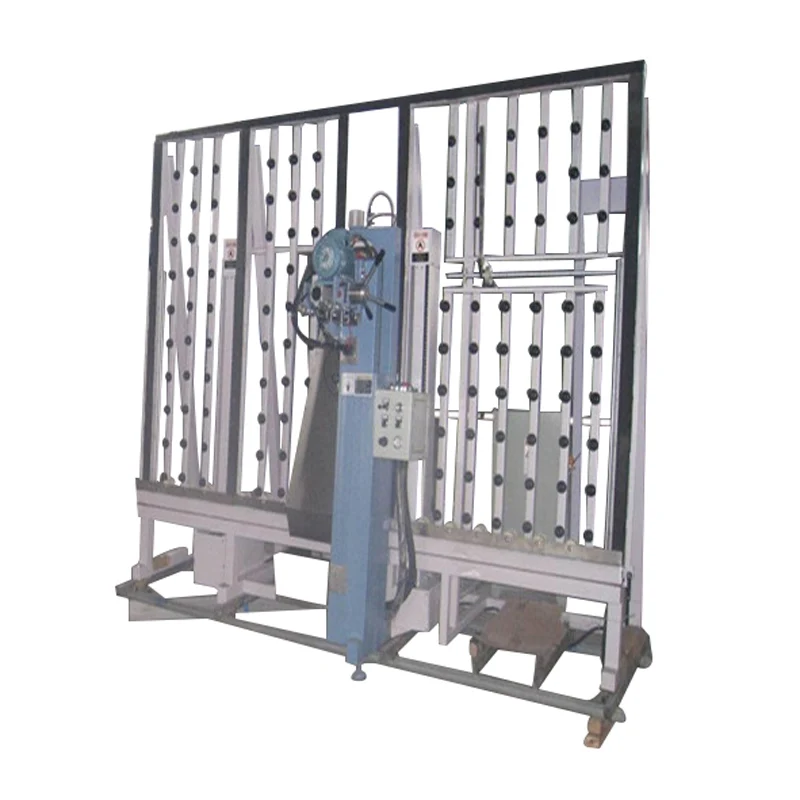

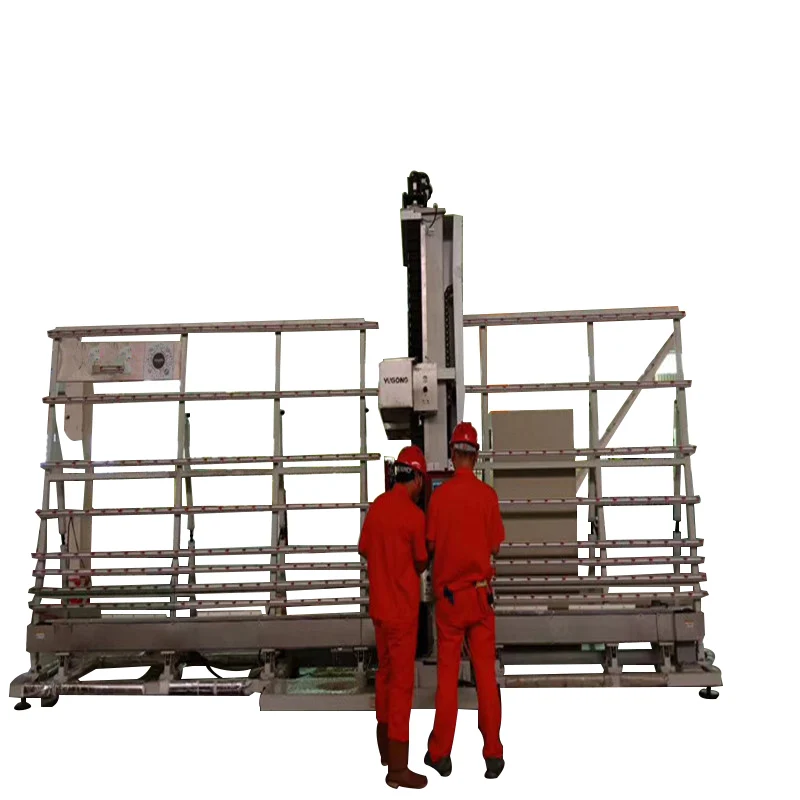

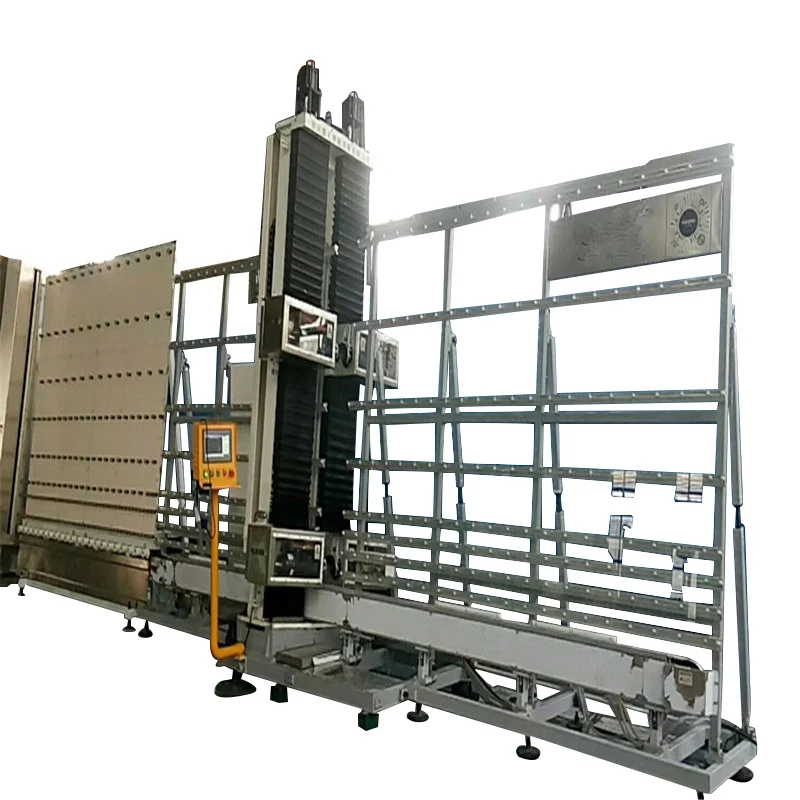

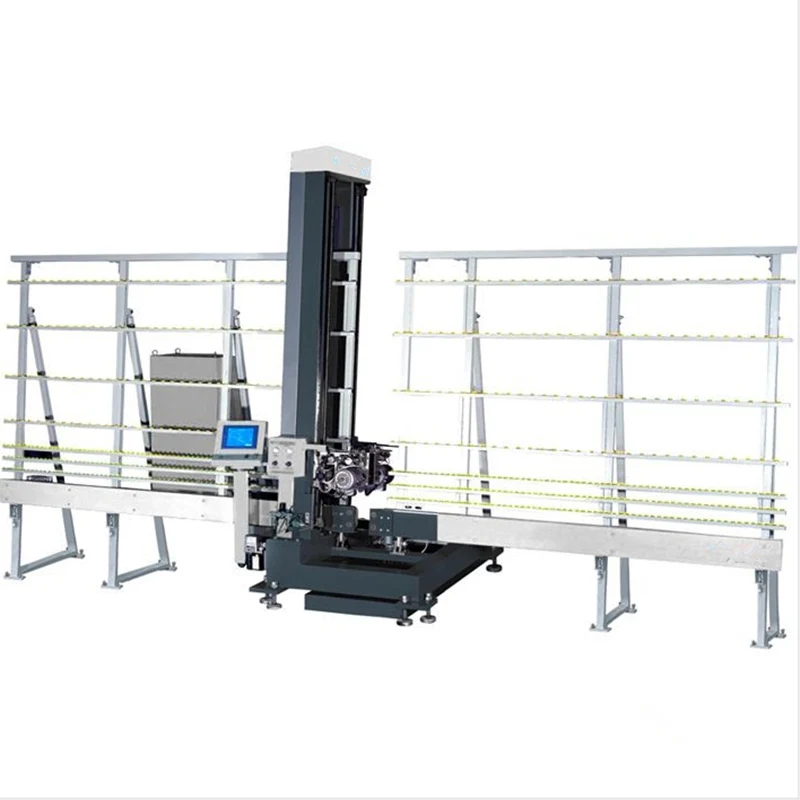

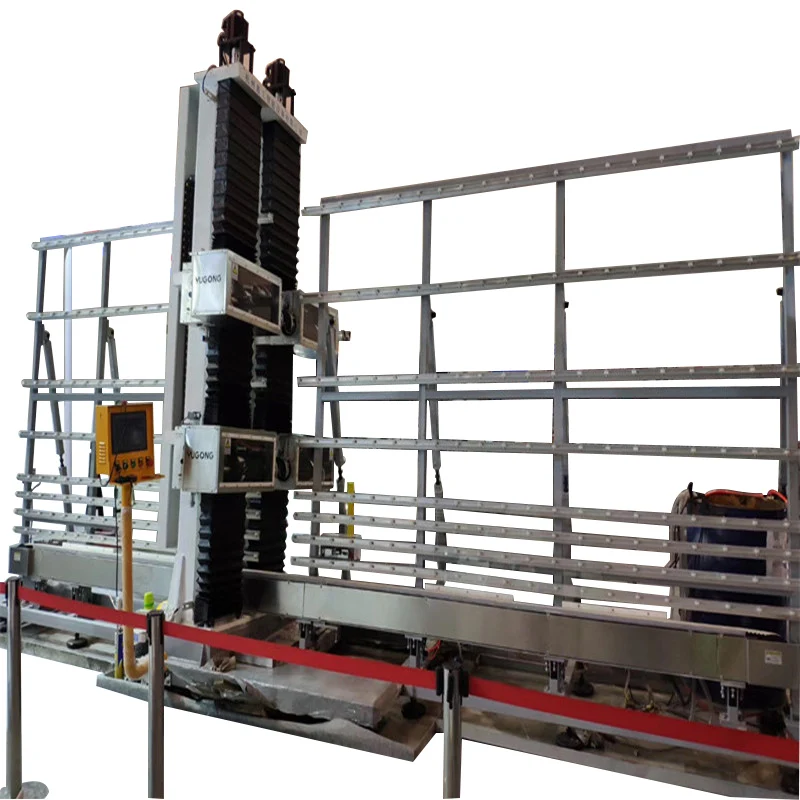

Factories for sale in china Vertical CNC digital table glass drilling machine small size

Product Overview

Description





Introduction:
Positioning and drilling by servo motor, which guarantee steady drilling and good
drilling performance. This machine don’t need regulate the feed depth depends
on the length of bit or thickness of glass. The machine can match corresponding bit
on rotating speed, feeding speed and linear speed. It only takes five minutes
changing the bit. One pairs bit can drill more than 10,000 holes and the failure rate
lower than 0.1%, and there no scratch on glass.



Technical Parameters:
Machine size: 6300*4100*1350mm
Glass Dimension: 300*400mm-2500*3700mm
Processing efficiency: 500-600 pcs/8 hrs
Positioning accuracy:≤0.25mm/m
Re-positioning accuracy:error≤0.5mm
Punching on centricity:error≤0.2mm
Location of hole:no limit for left and right side including drilling on edge.
Min 50mm from low side, min 600mm from up side is 600mm.
Main Features: (different from other Drilling Machine):
CAD graph edition: Software can get location, diameter of hole and glass
thickness with connection with ERP system.



Machine Feature:



Model	ZY-JL-2540-A2(building)
Max Glass size	2500*3700mm available for shape glass(ERP support)
Min Glass Size	300*400mm
X axis driving material	Timing   Belt   support   continuous   loading.   The   glass   can   be transported to the next  processing. X-axis is one way  running, no come and back.
Tools quantity	2 pairs ,the min processing diameter is 350mm
Main spindle structure	Water main spindle motor
Connection with ERP	The   machine   could    automatically   get   information   of    hole position, diameter  glass thickness and  etc. And  the machine will feedback  the finishes  back  to  the ERP  system,  without  manual reporting.
Input	Barcode scanning or manually input the order number
Processing diameter	φ4-φ50mm
Thickness of the glass	3-25mm
Processing position	Min distance from hole to bottom line is 50mm,Min pitch 600mm
X axis speed	24m/min
Y axis speed	8m/min
Z axis speed	2m/min
RPM	4500r/min, Automatic speed adjustment
Positioning accuracy	Error  ≤0.25mm/m
Repeat Positioning accuracy	Error≤0.5mm
Punching on centricity	±0.2mm
Voltage	Three-phase electric 380V,any one of the L wire to E wire 220V
Power	12kw
Machine size	6330×3770×1740 mm
Machine Weight	3500 kg
Loading height	600mm
Tools length measuring	Automatic measurement

Payment terms:

1.LC at sight;

2.TT(30% in advance,the balance before delivery)



Trade terms:
EXW or FOB or others by request.



Package:
Wooden box



Delivery:
Regular standard items delivery will be 10 days after deposit;
Customized items delivery will be depended on negotiation.



After-service:
7*24 hotline:+8615866605088;
Video solutions;
Technicians provided.



Guarantee:
12 months guarantee after items recieved,damaged parts changed for free within one year;
Service provided for whole servcie life,just pay the parts cost;
