57J1880EC-1000 Two phase Closed Loop Step Servo Motor
US $35.00-$38.00

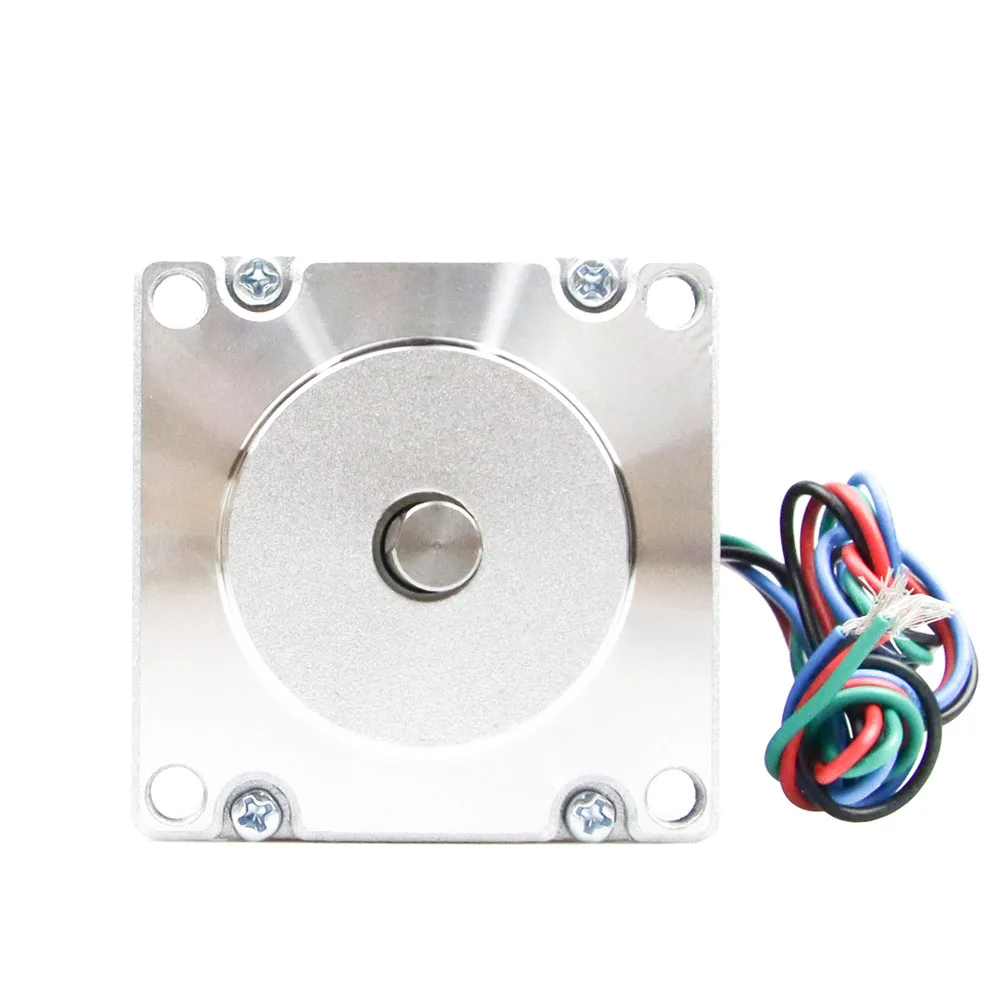

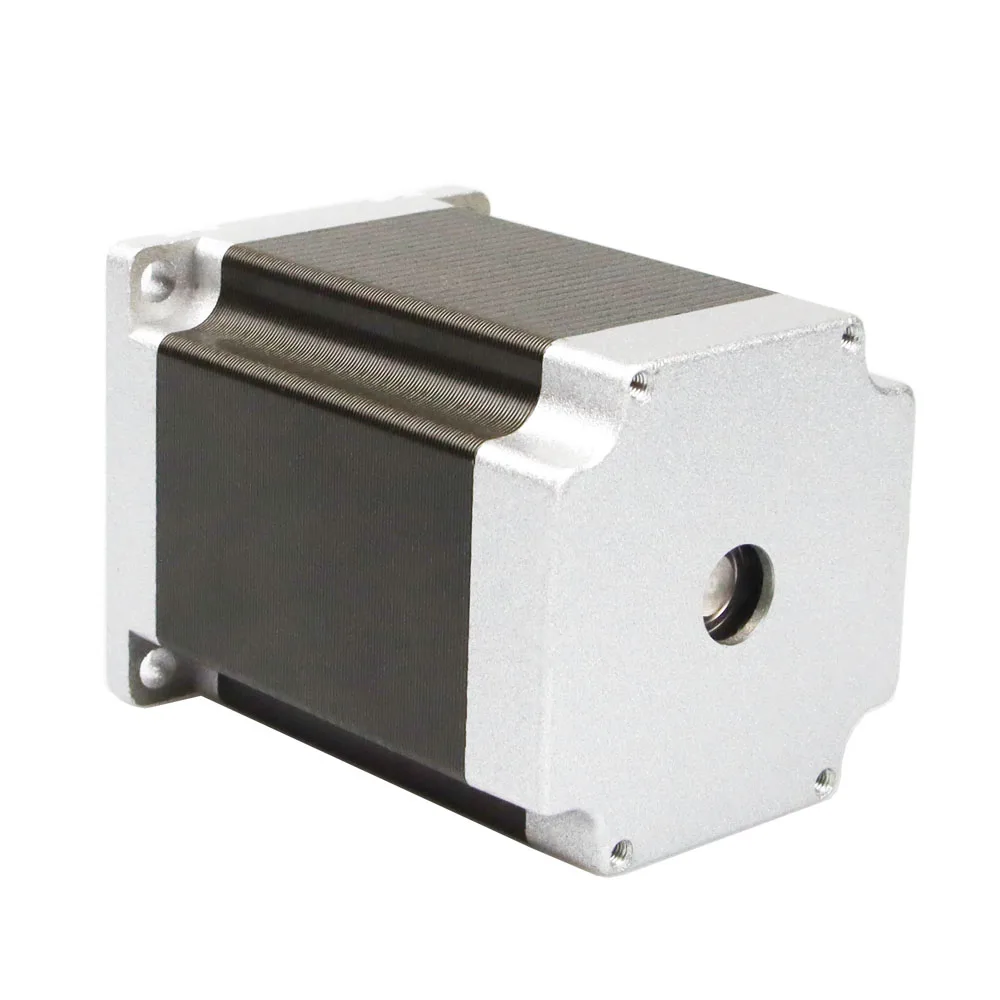

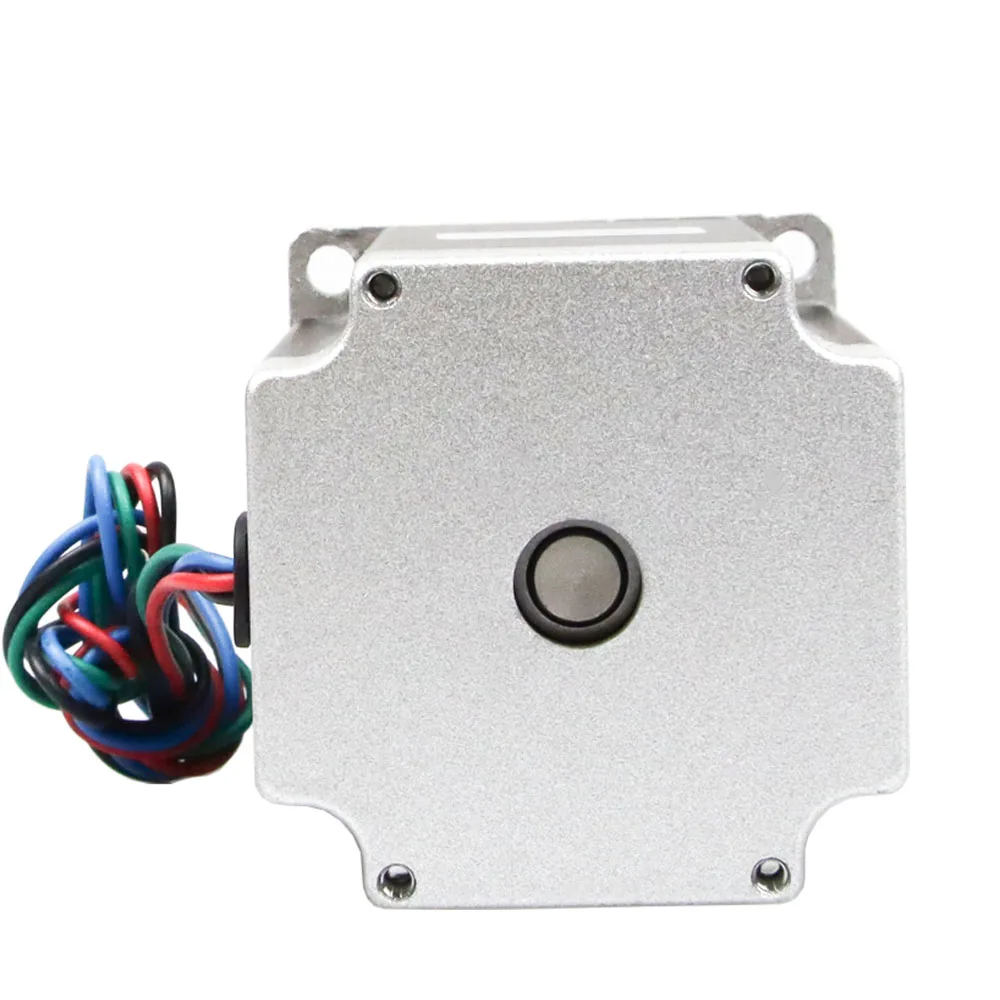

1.8 86mm (NEMA34)2 phase Big hybrid stepper motor JK86HS78 5504
- Category: Stepper Motor >>>
- Supplier: Changzhou,Jkongmotor,Co.,Ltd.
Share on:
Product Overview
Description
Specification
item | value |
Warranty | 3months-1year |
Place of Origin | China |
Jiangsu | |
Brand Name | JKM |
Model Number | 86HS78-5504 |
Phase | 2 |
Type | Hybrid |
Current / Phase | 5.5A |
Brand name | JKM |
Color | black & white |
Place of Origin | Changzhou, China |
Certification | CE, ROHS, ISO9001 |
Minimum Order Quantity | 1PCS~5PCS |
Packaging Details | export carton |
Leads | 4 |
Payment Terms | T/T, L/C, PAYPAL, Western union |
Supply Ability | 100000pcs/month |
lengh | 78mm |
Step angle:1.8° Temperature rise:below 80 ℃
Ambient temperature:-20 ℃ ~ + 50 ℃
Insulation resistance:minimum 100MΩ, 500VDC
Dielectric strength:500VAC for 1 minute
Shaft radial clearance 0.02 max (450 g load)
Shaft axial clearance:0.08Max. (450 g load)
Maximum radial force:220N (20mm from flange)
Maximum axial force:60N
Model Number: nema34 stepper motor
Phase: 2
Type: Hybrid
Holding Torque: 3.4N.m~13.0N.m
Current / Phase: 2.8A~6.0A
Motor length: 67mm~155mm
Leads: 4-leads or 8-leads
Detet Torque: 0.8g.cm~3.6kg.cm
Rotor Inertia: 1000g.cm2~4000g.cm2
Weight: 1.7kg~5.4kg
Ambient temperature:-20 ℃ ~ + 50 ℃
Insulation resistance:minimum 100MΩ, 500VDC
Dielectric strength:500VAC for 1 minute
Shaft radial clearance 0.02 max (450 g load)
Shaft axial clearance:0.08Max. (450 g load)
Maximum radial force:220N (20mm from flange)
Maximum axial force:60N
Model Number: nema34 stepper motor
Phase: 2
Type: Hybrid
Holding Torque: 3.4N.m~13.0N.m
Current / Phase: 2.8A~6.0A
Motor length: 67mm~155mm
Leads: 4-leads or 8-leads
Detet Torque: 0.8g.cm~3.6kg.cm
Rotor Inertia: 1000g.cm2~4000g.cm2
Weight: 1.7kg~5.4kg
Model No. | Motor length(mm) | Current(A) | Resistance(Ω) | Inductance(mH) | Holding torque (N.m) | Rotor inertia (g.cm2) | Leads | Weight (kg) | Step Angle(°) |
JK86HS68-5904 | 67 | 5.9 | 0.28 | 1.7 | 3.4 | 1000 | 4 | 1.7 | 1.8 |
JK86HS68-2808 | 67 | 2.8 | 1.4 | 3.9 | 3.4 | 1000 | 8 | 1.7 | 1.8 |
JK86HS78-5504 | 78 | 5.5 | 0.46 | 4.0 | 4.6 | 1400 | 4 | 2.3 | 1.8 |
JK86HS78-4208 | 78 | 4.2 | 0.75 | 3.4 | 4.6 | 1400 | 8 | 2.3 | 1.8 |
JK86HS97-4504 | 97 | 4.5 | 0.66 | 3.0 | 5.8 | 2100 | 4 | 3.0 | 1.8 |
JK86HS97-4008 | 97 | 4.0 | 0.98 | 4.1 | 4.7 | 2100 | 8 | 3.0 | 1.8 |
JK86HS100-6004 | 100 | 6.0 | 0.36 | 2.8 | 7.0 | 2200 | 4 | 3.1 | 1.8 |
JK86HS115-6004 | 115 | 6.0 | 0.6 | 6.5 | 8.7 | 2700 | 4 | 3.8 | 1.8 |
JK86HS115-4208 | 115 | 4.2 | 0.9 | 6.0 | 8.7 | 2700 | 8 | 3.8 | 1.8 |
JK86HS126-6004 | 126 | 6.0 | 0.58 | 6.5 | 6.3 | 3200 | 4 | 4.5 | 1.8 |
JK86HS155-6004 | 155 | 6.0 | 0.68 | 9.0 | 13.0 | 4000 | 4 | 5.4 | 1.8 |
JK86HS155-4208 | 155 | 4.2 | 1.25 | 8.0 | 12.2 | 4000 | 8 | 5.4 | 1.8 |

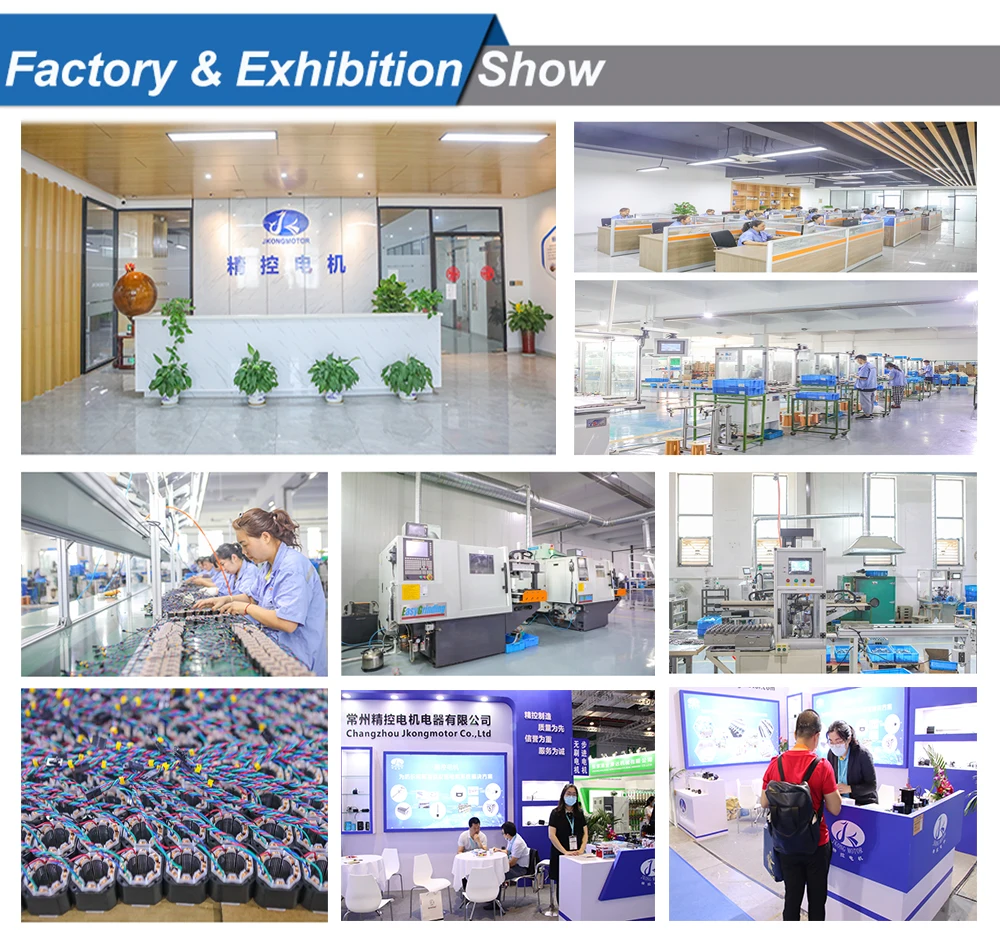

Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on.
JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.
1. Can you make the gearbox or gearmotor with custom specifications?
YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
2. Do you provide the samples?
YES. Our company can provide the samples to you
3.Do you provide technology support?
YES. Our company have strong R&D capability, we can provide technology support if you need.
4. why should you buy from us not from other suppliers?
Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.
5. How to ship to us?
We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.
6. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
