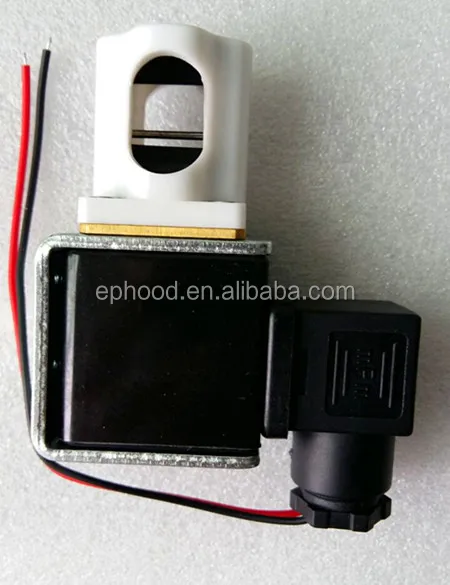

Big Size Two-way NC Type Solenoid Pinch Valve Tube Size I.D 9mm*O.D 12mm

Share on:


Price:$32.00 - $38.00
Price in USD:Details

Quantity:


Product Overview

Description



  • Product Details

    Solenoid Pinch Valve work by electromagnetic solenoid ,  squeezing or loosen the tube to Open and Close ,control the fluid flow. Because the  fluid only through from the tube, so other part of valve will not in touch with chemical corrosive fluid. With other Solenoid valve,Pinch valve work more economic and no cross contamination.

    Range of Application & Market Prospect

    Pinch valve suitable for chemical industry, medical, environmental protection, mainly used in biochemical, blood, urine, water quality analysis and emissions of waste liquid.

    With the development of modern micro fluid industry, pinch valve usage is becoming more and more widely.



    Long life cycle

    Each Solenoid Pinch Valve is guaranteed to have perfect close pressure when leaving the factory.Tube will not stick together even after long time closing as they can promise to be used constantly 500,000 times on and off.



    No resistance to flow

    The tube is positioned at the bottom of valve base fixedly even opening one port on the base. On opening condition, the valve produces no resistance to the flow rate.



    Various tube sizes and materials available

     I.D1.2mm*O.D3.6mm

     I.D3mm*O.D6mm

     I.D5mm*O.D7mm

     I.D6mm*O.D8mm

     I.D6mm*O.D9mm

     I.D9mm*O.D12mm.

    Please contact us if you have special needs of the tube material.



    Other advantage

    Enable fast, easy removal and replace

    Reliable















0.0187 s.
