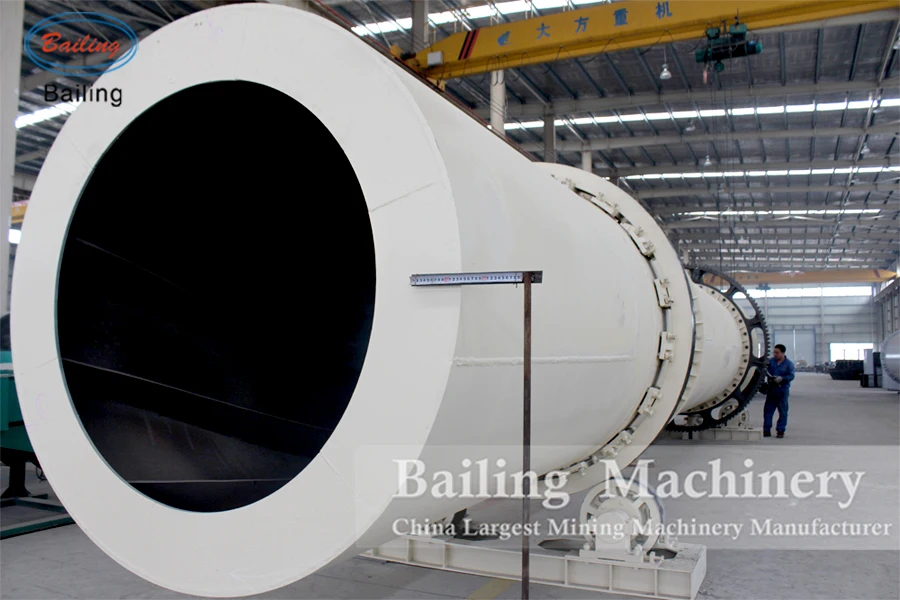

Lower consumption wood chips palm fiber rotary dryer
- Category: Drum Drying Equipment >>>
- Supplier: Henan Bailing Machinery Co. Ltd.
Share on (1930548678):
Product Overview
Description
Product Description

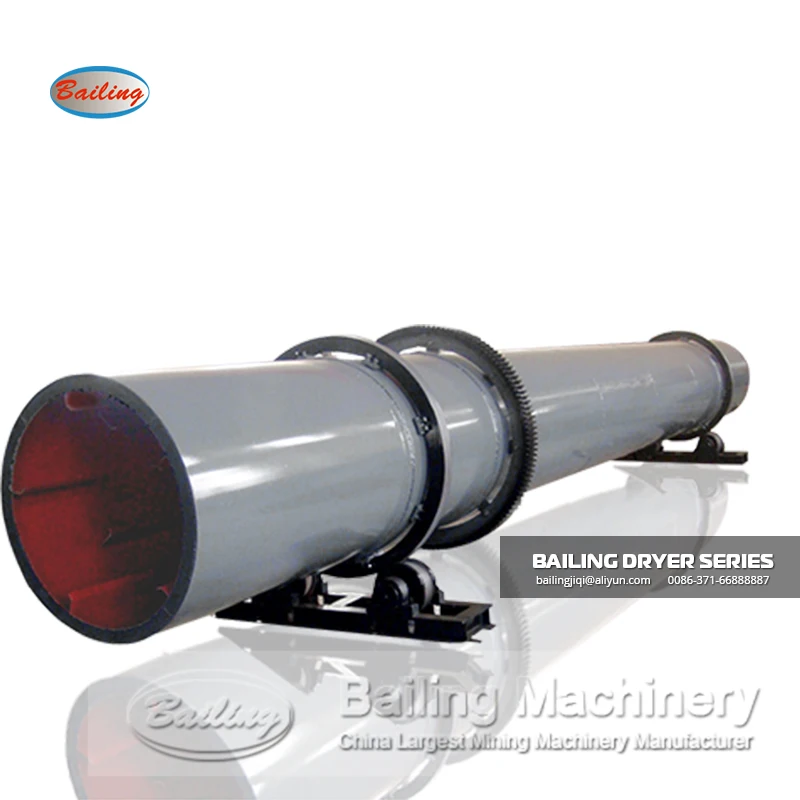

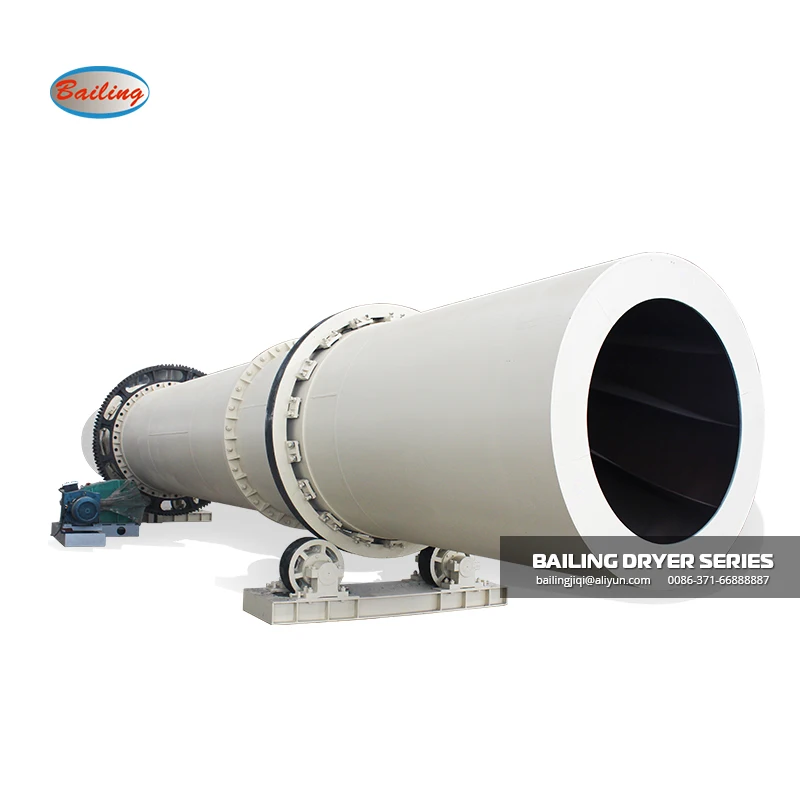

Low consumption wood chips palm fiber rotary dryer
Wood chips palm fiber rotary dryer Product Description |
Dryer is a kind of machine with a rotating cylinde which is a little bit incline.It
is widly used in building material, metallurgy, chemical industuy, cement to dry the slag, limestone, coal powder,clay,etc.

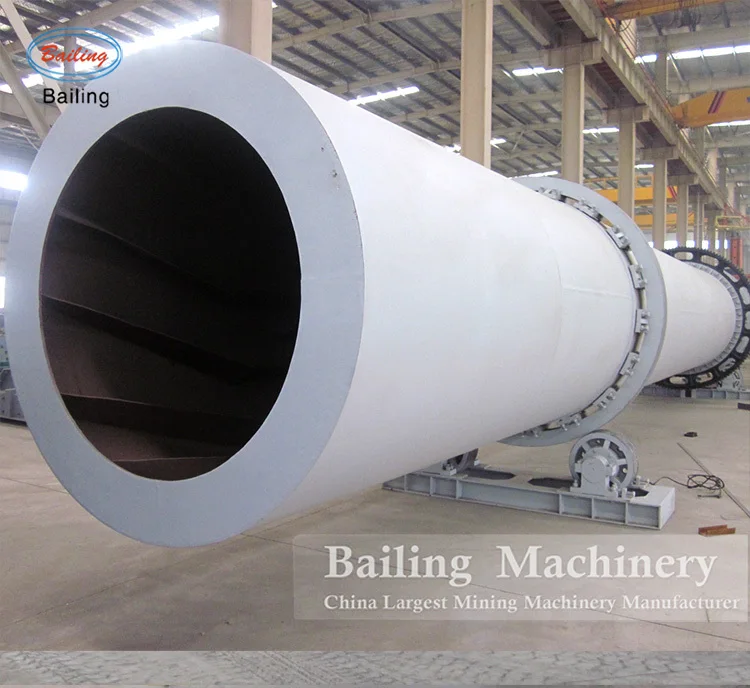

Wood chips palm fiber rotary dryer is mainly consist of rotary body, raw material feeding plate, driving and supporting device, etc.
Advantages of Wood chips palm fiber rotary dryer |
It is simply structure, polished manufacture, high capacity, low cinsumption, conveninent transportation and so on.
Wood chips palm fiber rotary dryer Working Principle |

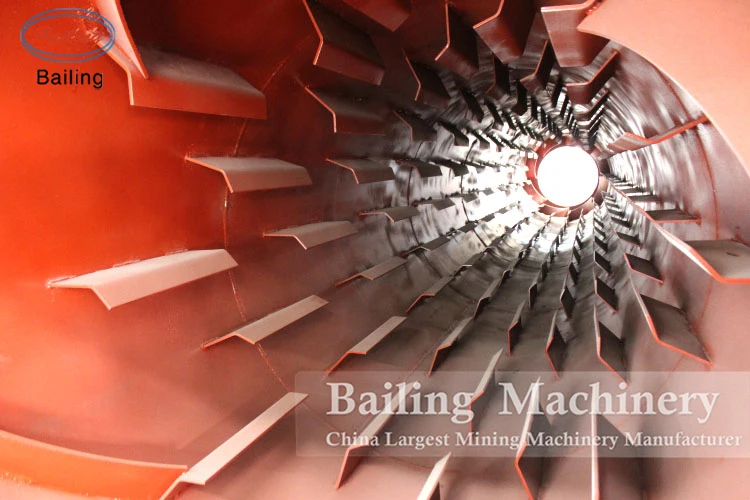

The raw material plate which is arranged reasonably with changeable angles in order, throws moisture materials into the rotary cylinder. Then water will be separated from the materials by hot air-flow and changed into vapour to be discharged into the atmosphere. Then the materials would be dryed. Rotary dryer is used to dry slag, clay, limestone, It is mainly used for cement, chemical, metallurgical, building materials industries. Its advantages are as follows: high dry capacity, smooth rotation, low energy consumption, easy operation, high output and so on.
Technical parameter of Wood chips palm fiber rotary dryer |
Main technical parameters of Rotary dryer:
model | The diameter | The length | Slope(°) | Speed | Power | Volume |
(mm) | (m) | (r/min) | (kw) | (m3) | ||
0.6×8-12 | 600 | 8-12 | 3-5 | 8 | 4 | 2.26 |
0.8×10-10 | 800 | 10-12 | 3-5 | 7.2 | 4 | 5.02 |
1.0×10-12 | 1000 | 10-12 | 3-5 | 6.73 | 5.5 | 7.85 |
1.2×12-18 | 1200 | 12-18 | 3-5 | 5.8 | 11-15 | 13.31 |
1.5×12-18 | 1500 | 12-18 | 3-5 | 4.8 | 15-22 | 21.2 |
1.8×12-18 | 1800 | 12-18 | 3-5 | 3.2 | 185-30 | 48.22 |
2.2×12-22 | 2200 | 12-22 | 3-5 | 3 | 22-30 | 70.43 |
2.8×15-24 | 2800 | 15-24 | 3-5 | 2.59 | 30-55 | 147.8 |

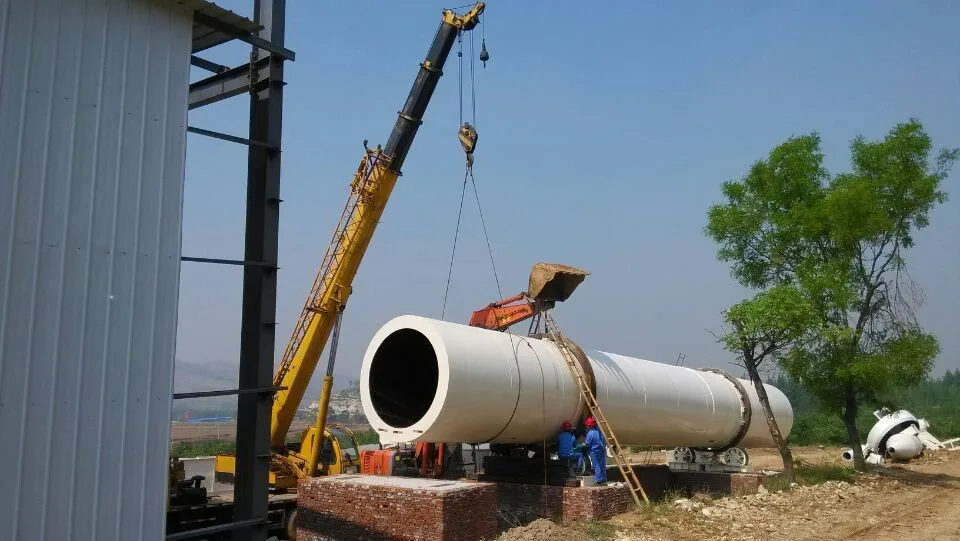

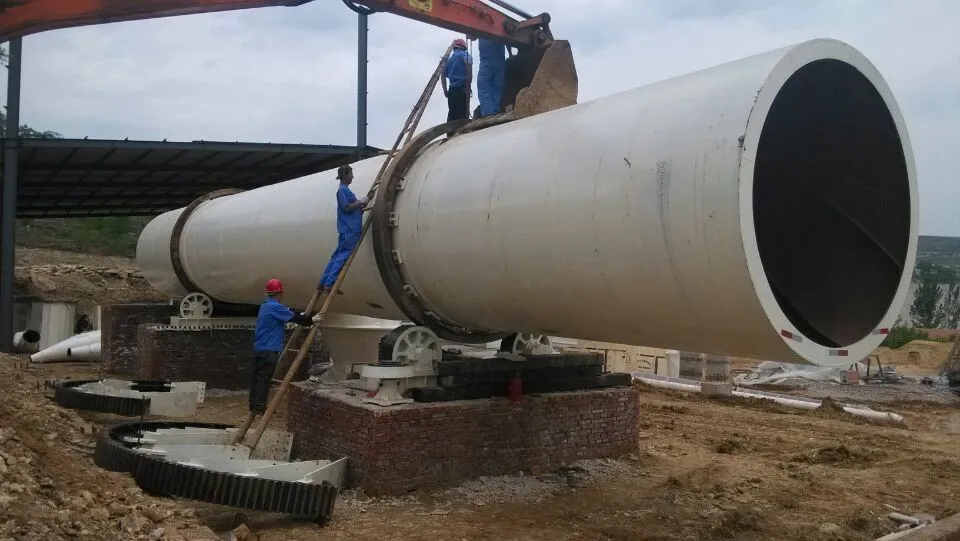

Wood chips palm fiber rotary dryer Customer Site |
Packaging & Shipping

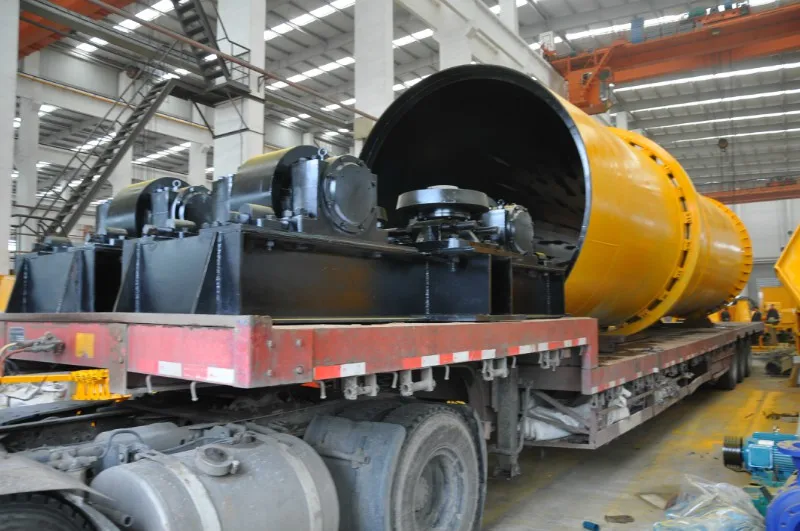

Wood chips palm fiber rotary dryer Packaging & Shipping
Wood chips palm fiber rotary dryer is processed to be rustproof and moisture proof before delivery. Large mainframes are in nude, while small spare parts and motors are in wooden boxes.
Our Services
7 x 24 h online service
1. Pre-sale services:
Act as a good adviser and assistant of clients
(1) Select equipment model;
(2) Design and manufacture products according to clients' special requirement;
(3) Train technical personnel for clients;
2.Services during the sale:
Respect clients; considering every aspect and details for our customers
(1) check products ahead of delivery;
(2)keep costumers informed about the delivery process
3. After-sale services
We promise excellent after-sale service!
(1) Assist clients to prepare for the first construction scheme;
(2) Install and debug the equipment;
(3) Train the first-line operators on site;
(4)Take initiative to eliminate the troubles rapidly at site;
(5)Provide maintenance for big items.
And other rational requirement brought up by our clients.
Company Information
FAQ
If you are interested rotary dryer , pls kindly inform the following info:
1. what is the material that you are going to dry?
2. what is the capacity?
3. what is the moisture content both before and after drying process?
4. what is the heat source?
Such info would help our engineer choose suitable model of equipment for you. Thank you and looking forward to your inquiry.
