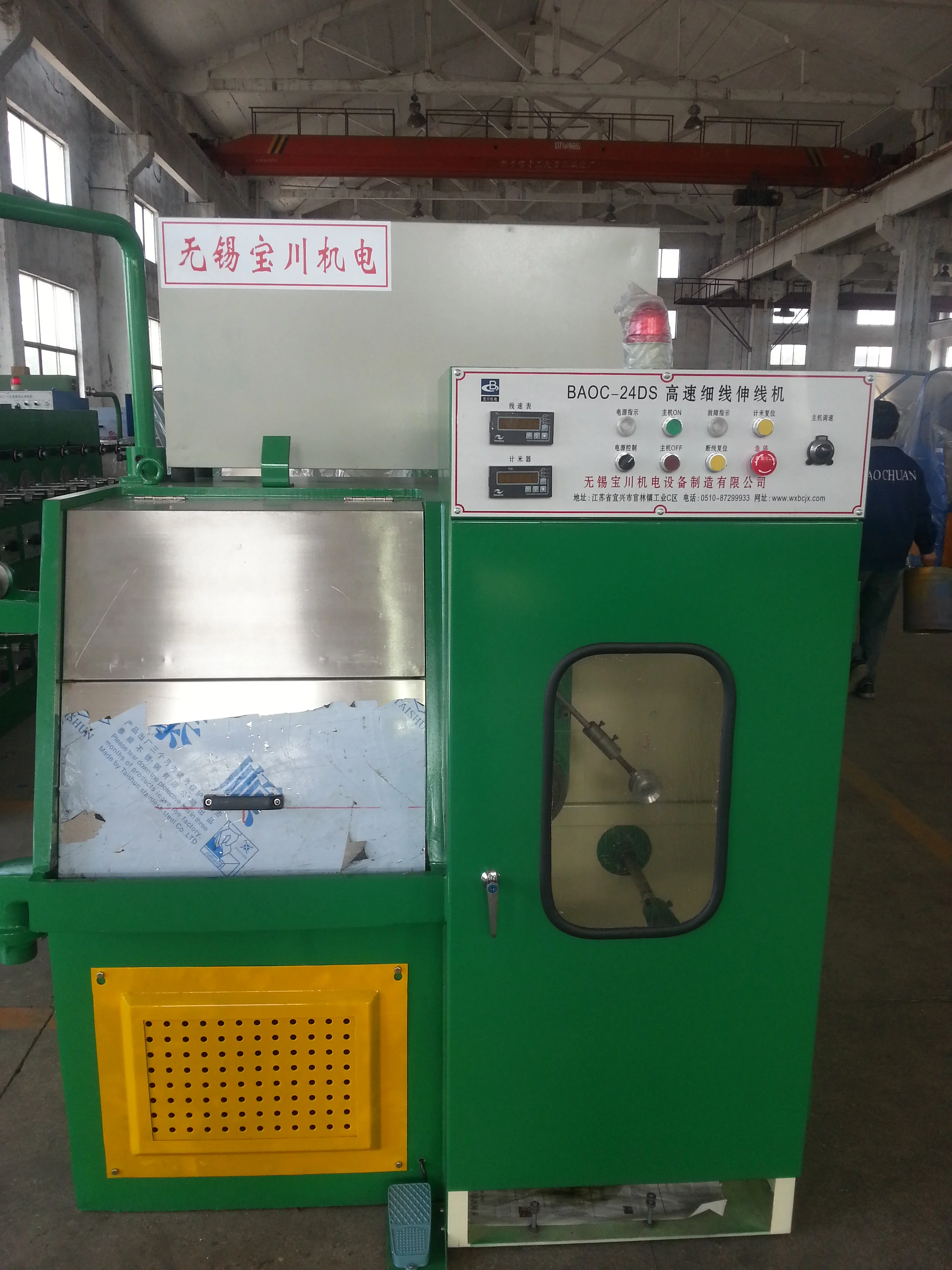

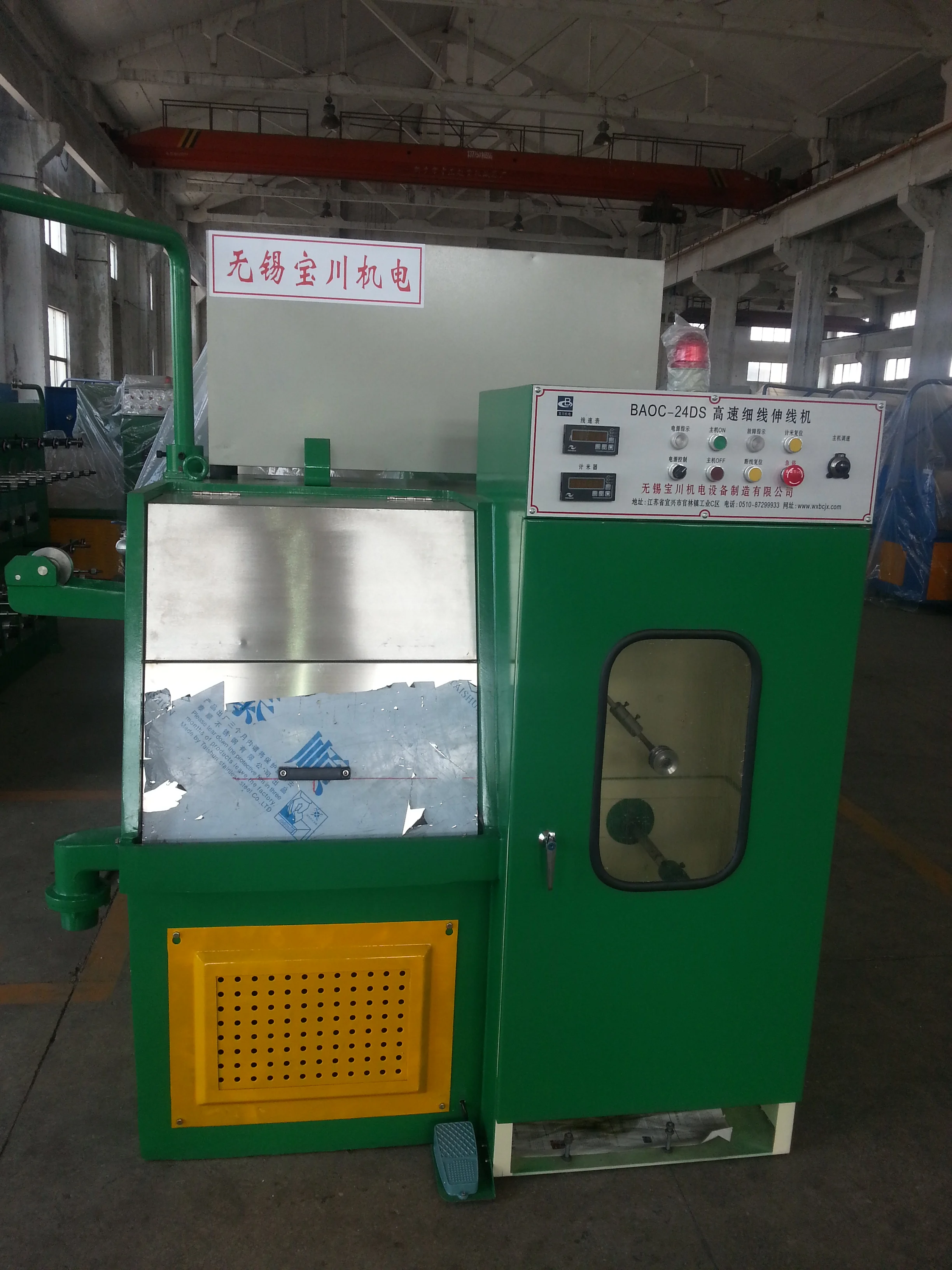

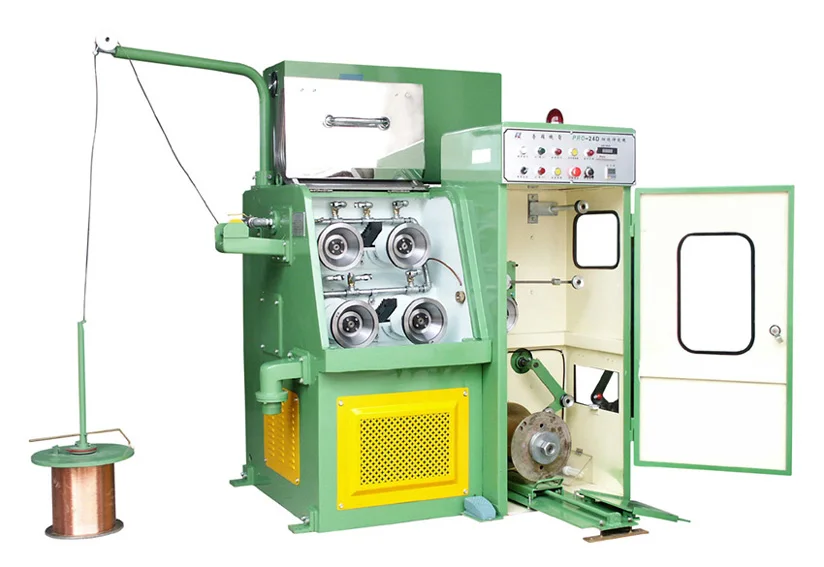

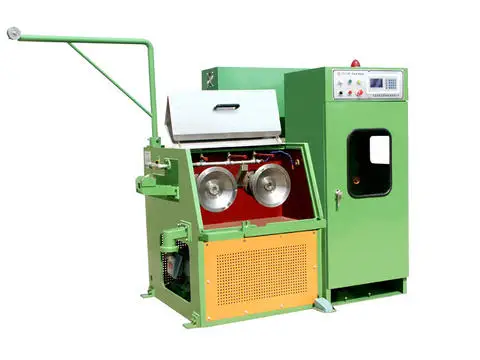

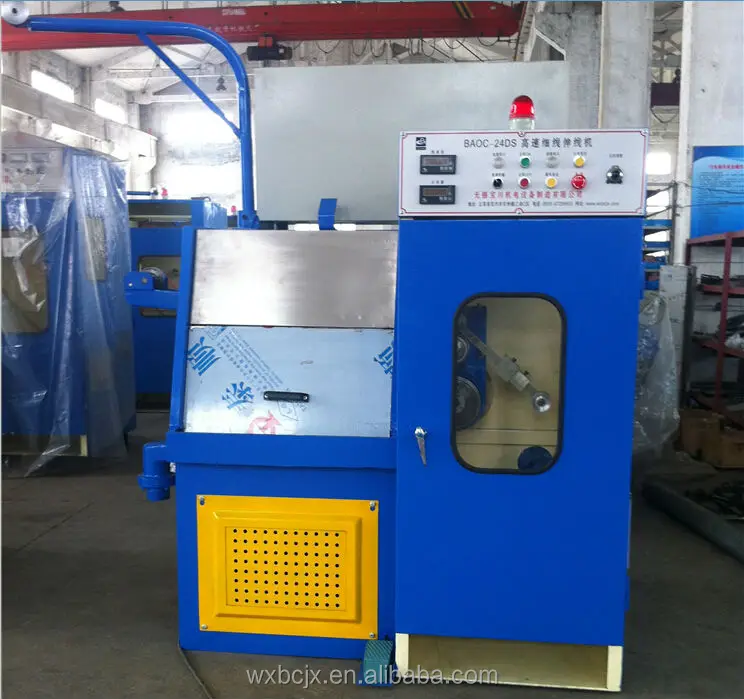

Aluminium wire drawing machine for manufacture of enamelled wire
- Category: Wire Drawing Machines >>>
- Supplier: Wuxi Baochuan Machinery Manufacture Co. Ltd.
Share on (1931833608):
Product Overview
Description
Specification
Model Number | 22D/24D |
Condition | New |
Inlet Diameter | 0.6-1.6mm |
Outlet Diameter | 0.14-0.6mm |
Place of Origin | China |
Jiangsu | |
Brand Name | BAOCHUAN |
Voltage | 380V/415V/440V |
Power | 15KW |
Dimension(L*W*H) | 1800*1250*1900 |
Weight | 1700KG |
Certification | CIQ C/O |
Warranty | 12months |
After-sales Service Provided | Engineers available to service machinery overseas |
application | aluminium for enamelling cables |
Company Profile
Aluminium wire drawing machine for manufacture of enamelled wire
fine aluminium wire drawing machine
inlet dia.:0.6-1.6mm
outlet diameter:0.14-0.6mm
production speed:25m/s
max no.of draft:24
Drive:AC drive
spool dimension: max flange diameter 300mm (depending on customized spool)
fine aluminium wire drawing machine
inlet dia.:0.6-1.6mm
outlet diameter:0.14-0.6mm
production speed:25m/s
max no.of draft:24
Drive:AC drive
spool dimension: max flange diameter 300mm (depending on customized spool)
Intermediate aluminium wire rod drawing machine
inlet dia.2.5-3.0mm
outlet dia.:0.4-1.2mm
production speed:25m/s
Drive:Ac drive
spool dimension: max flange diameter 630mm
inlet dia.2.5-3.0mm
outlet dia.:0.4-1.2mm
production speed:25m/s
Drive:Ac drive
spool dimension: max flange diameter 630mm
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2011,sell to Mid East(60.00%),Eastern Asia(20.00%),North America(20.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Drawing line,Extrusion line,Taping line,Coiling line,Bunching line
4. why should you buy from us not from other suppliers?
Our company have more than 20 years experience of wire and cable machine, we can offer you the best machine lists for you machines, at the same time, we can ensure the machine quality ,delivery time, also insallation.
5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
We are based in Jiangsu, China, start from 2011,sell to Mid East(60.00%),Eastern Asia(20.00%),North America(20.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Drawing line,Extrusion line,Taping line,Coiling line,Bunching line
4. why should you buy from us not from other suppliers?
Our company have more than 20 years experience of wire and cable machine, we can offer you the best machine lists for you machines, at the same time, we can ensure the machine quality ,delivery time, also insallation.
5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
