Product Overview

Description



Welcome to Jiangyin Haixiang Machinery Co.,Ltd
We specialize in this industy have more than 10 years.
We are professional manufacturer of mixing machine,grinding machine,drying machine and other customized machines,we accept OEM,ODM.




Products Description


GFSJ High-Efficiency Crusher
Main Application:
GFSJ Series High Efficiency Crusher portable pulverizer is developed with the method of mixed powder jetting.This process is widely applied in the industry of pharmaceutics,chemical,food and etc.

Feature:
This machine has a simple structure and is easy to install or dismantle.Since it is designed according to GMP standard and made of stainless steel,the inner side is smooth enough to avoid dregs.This machine has the characteristics of stability and reliability in operation,low noise,low power consumption and rational construction.

Operating Principle:
This is high speed running equipment.It adopts a knife with a sharp edge blade and an impact blade.There are multiple choices of the knife figure and its size to crush different raw material.Granules size can be controlled by adjusting filters and the operating speed.

Technical Parameter:


Model
Capacity
(kg/h)
Grinding Speed
(RPM)
Motor Power(KW)
Feeding Fineness(mm)
Discharge Fineness
(mesh)
Overall size(mm)
Weight(kg)
GFSJ-8
10-100
4400
3
6
12-120
1050*600*1600
150
GFSJ-16
50-300
4400
7.5
6
12-120
1100*860*1520
250
GFSJ-32
60-400
4400
7.5
6
12-120
1280*1300*1600
320


Additional configuration:
1.material:all stainless steel/contact parts stainless steel/carbon steel or other.
2.dust collector type:easy dust collector or pulse dust collector
3.grinding knife type:hammer type.knife type,turbine type.active type.knife type,air cooling type or other.
4.frequency converter:Delta,Siemens,Mitsubishi or other
5.PLC,HMI:Siemens or other.
6.frequency converter:Delta,Siemens,Mitsubishi or other
7.motor: WNM,Siemens,ABB,Sumitomo or other.
8.bearing:HRB,NSK,SFK or other.
9.cooling type:water jacket for bearing and grinding chamber,air cooling system for chamber(-10°C inlet) or Liquid Nitrogen type.
10.Platform: we build the platform for you or we design it and you build it locally.
11.other machines: including packing machine, bucket elevator, Sieve, screw conveyor and so on.

Customizing according to client’s specific requirement


FAQ


1.what's your raw material?do you know the density and packing density of your raw material?
for example black pepper,density:580g/L,packing density:450g/L
2.what capcity do you require？
for example 300kg/kg
3.what's your industry voltage in your factory?we only accept 3 phase power sullpy.
foe example 380V,50HZ,3PH;220V,60HZ,3PH;we accept customize.
4.what's the material of the grinder do you require?
for example carbon steel,contact parts stainless steel 304,all parts stainless steel 304,contact parts stainless steel 316,Titanium material.
5.how much fine of the feeding size and discharge size:
for example black pepper.feeding size:4mm,discharge size:60 mesh.


Details Images

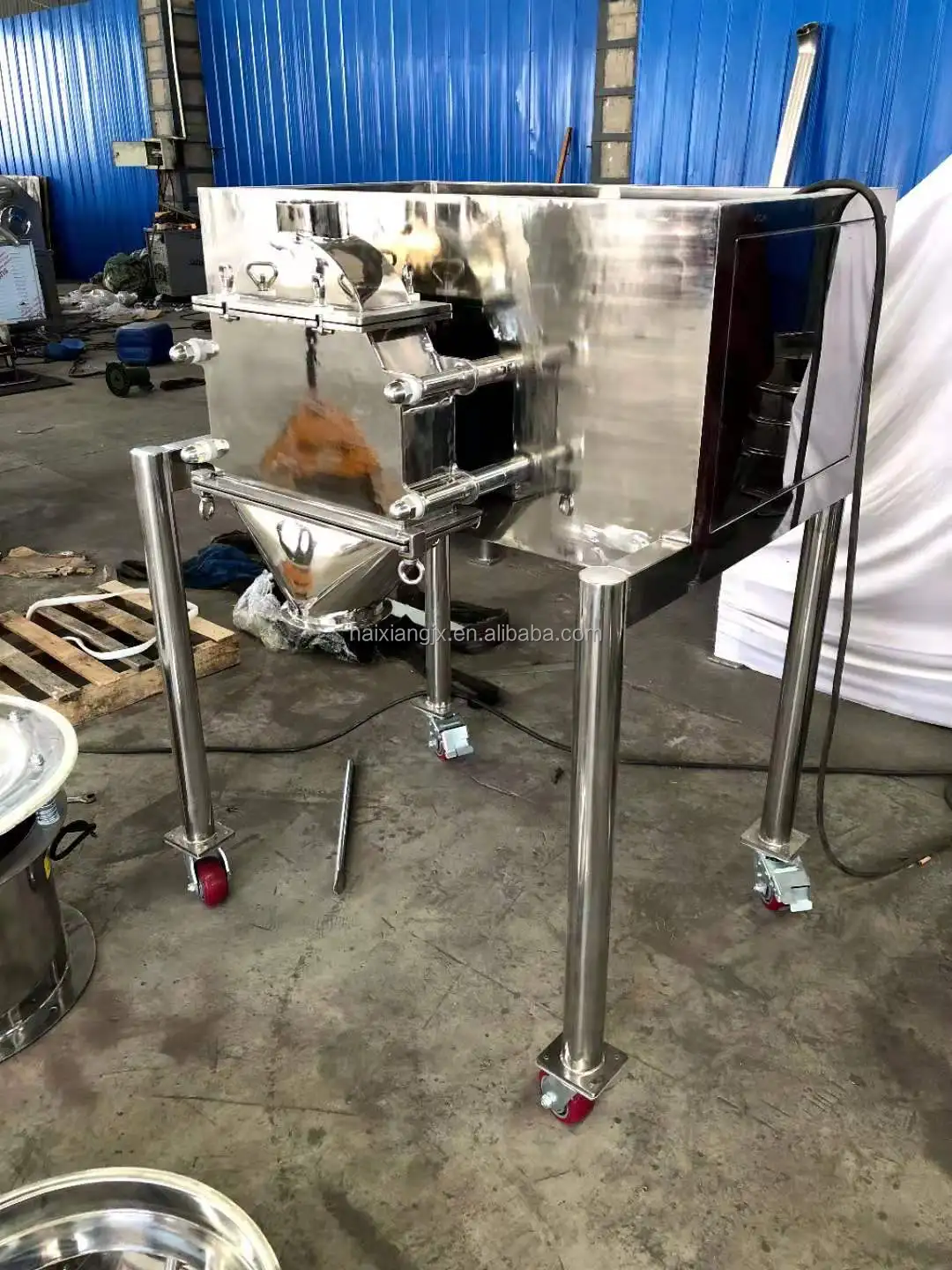

Single Machine
easy clean and easy operate


GFSJ-B type
B type,easy cleaning and operate.to meet GMP and FDA standard.

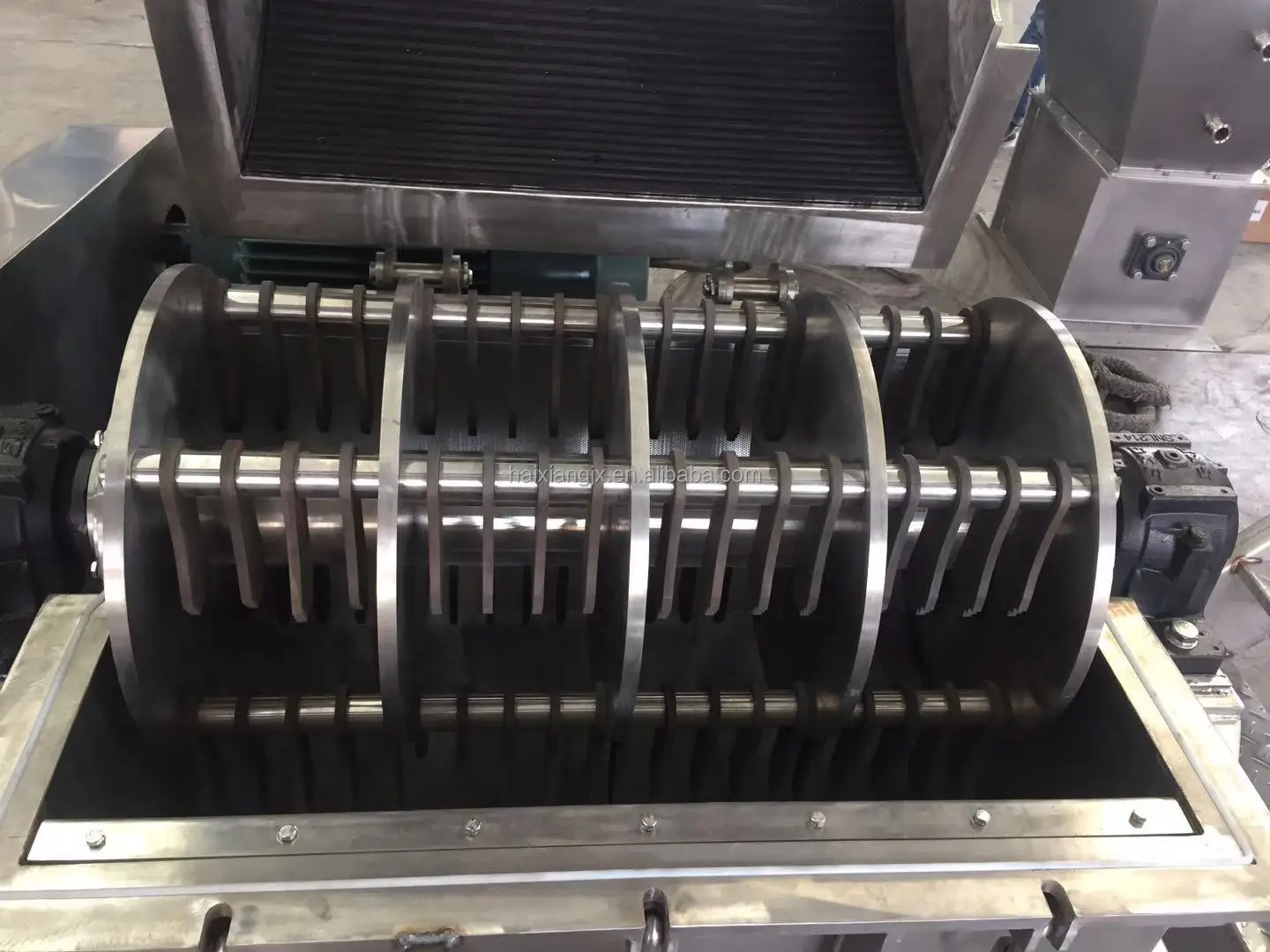

hammer type
hammer type

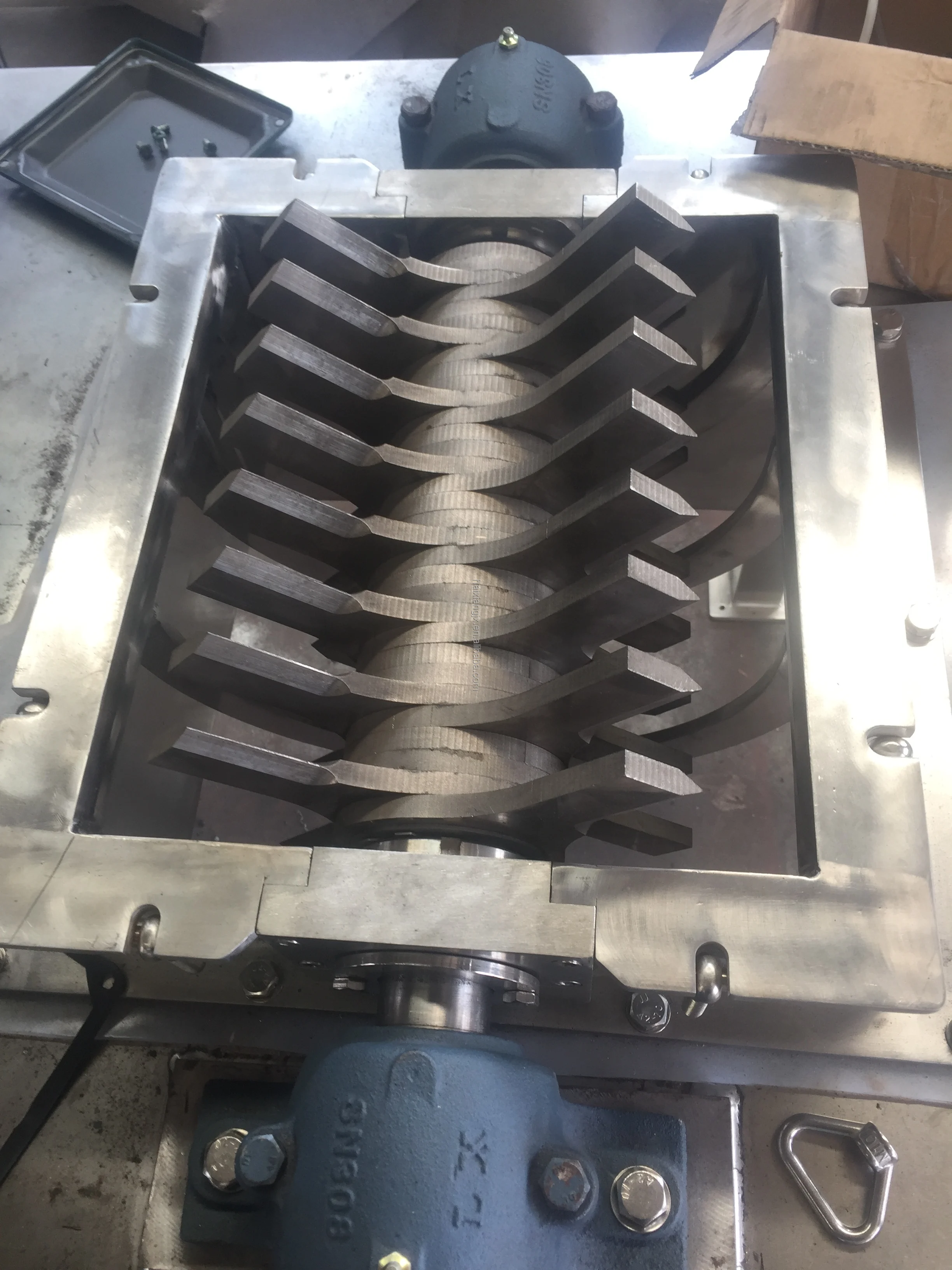

Knife type
knife type
