Used tire recycling machine tire cutter tire shredder factory price
- Category: Rubber Recycling Machinery >>>
- Supplier: Zhengzhou Harvest Machinery Co. Ltd.
Share on (1935714898):
Product Overview
Description
Used tire recycling machine tire cutter tire shredder factory price
Product Description

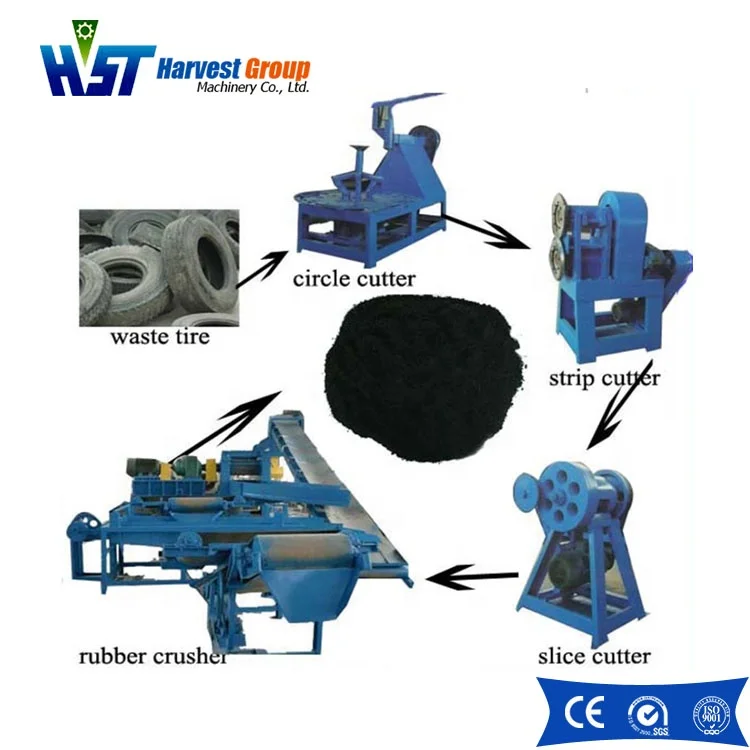

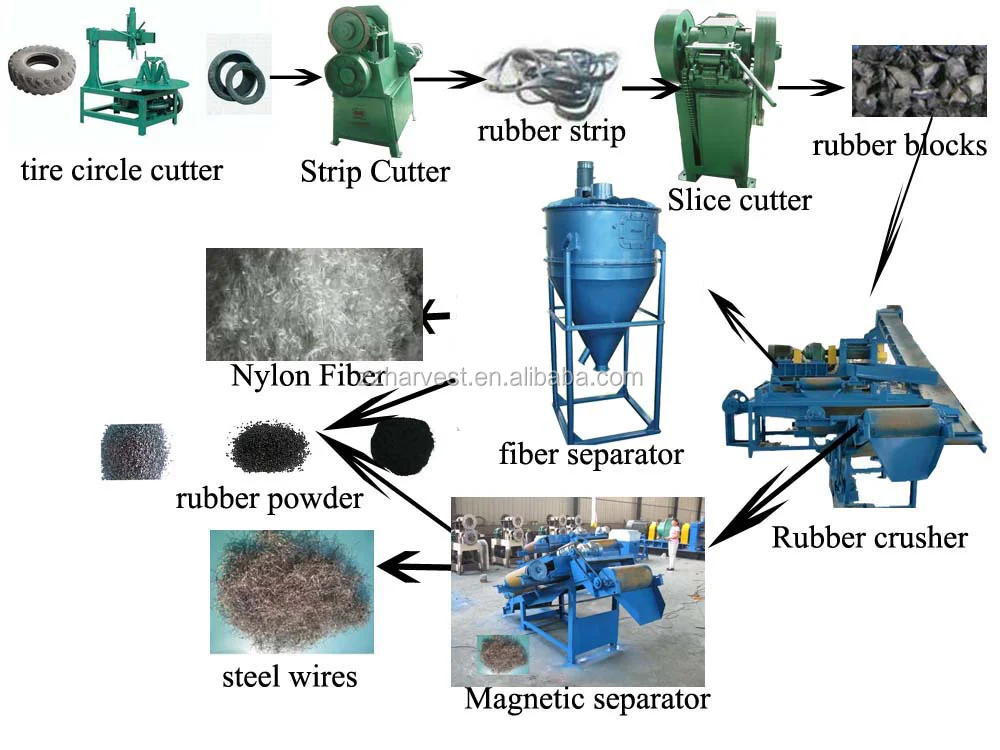

1. The progress of semi-automatic tire recycling production line:
Pre-processing machine: Tire circle cutter, Tire strip cutter, Tire slice cutter, Rim separator
Conveyor--Rubber crusher--Magnetic separator--Nylon fiber separator--Rubber powder

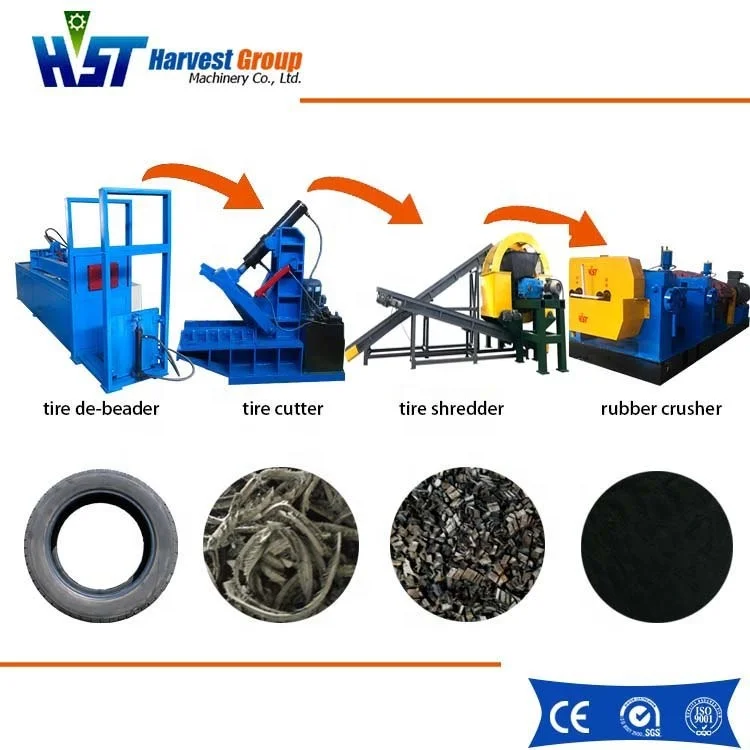

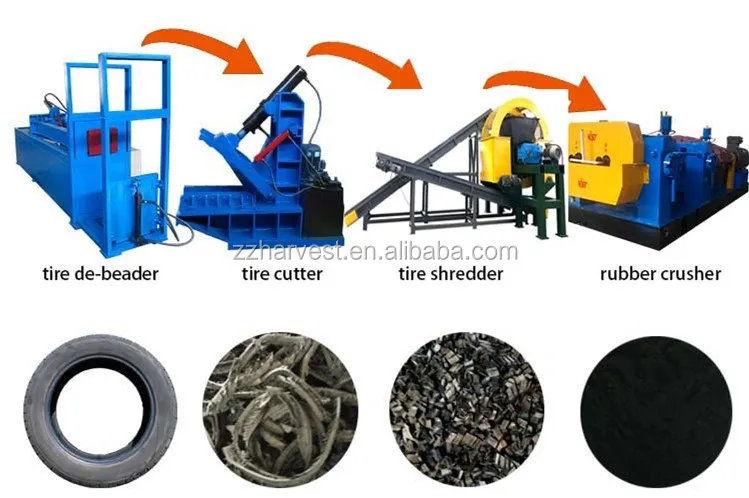

2. The progress of fully-automatic tire recycling production line:
Pre-processing machine:Tire de-beader, Tire cutter(optional)
Conveyor--Tire shredder--Converyor--Rubber crusher--Magnetic separator--Nylon fiber separator--Rubber powder
Details of pre-processing machine in semi-automatic tire recycling line:
| Name | Picture | Specifications |

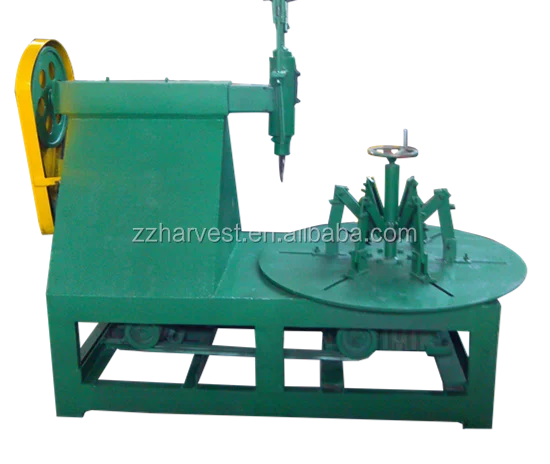

| TIre circle cutter |  | To cut open the joint of tire bead and side Tire:650-1200mm Power:4.75kw Weight:650kg Capacity:40pcs/h |

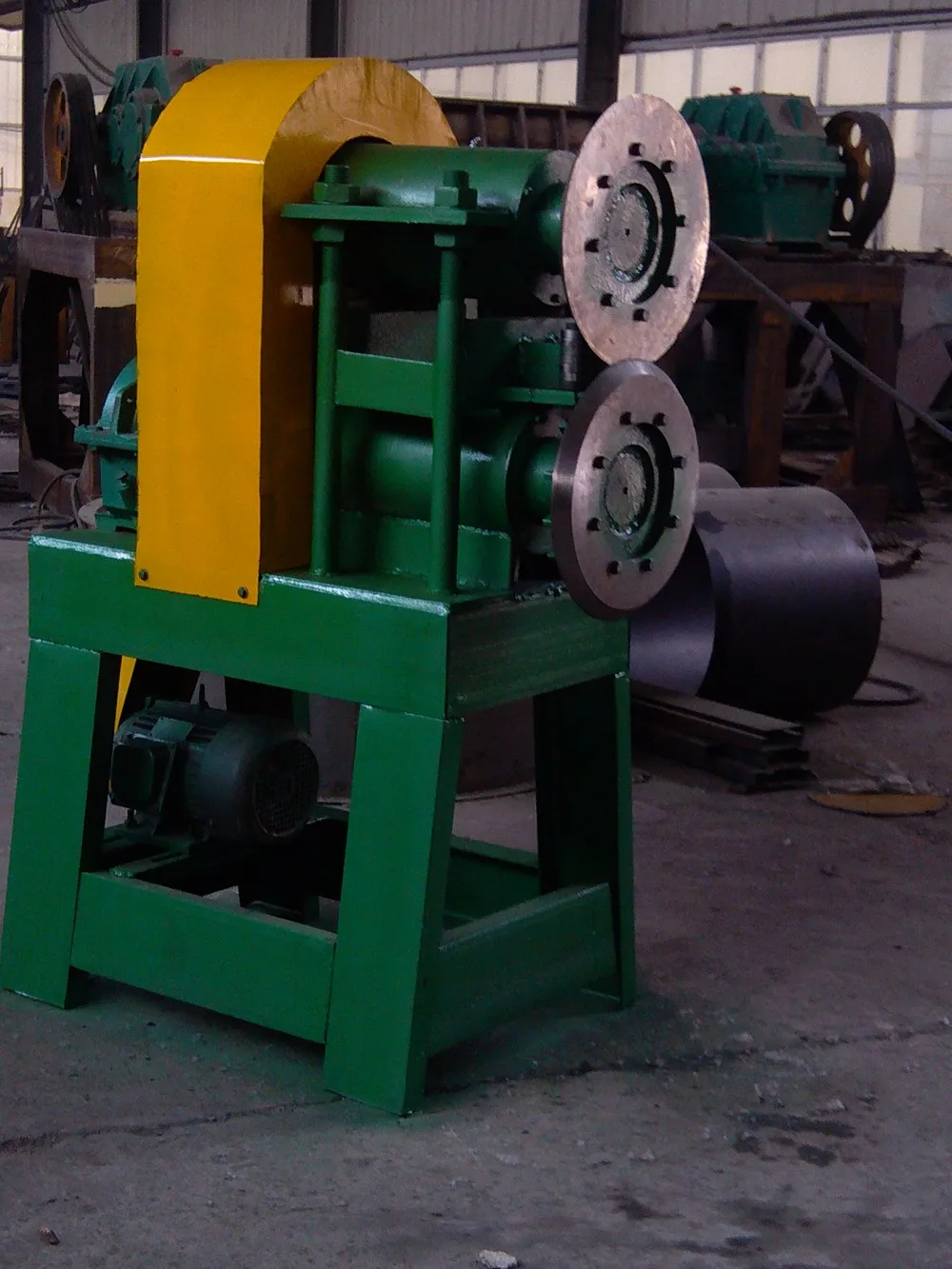

| Tire strip cutter |  | To cut tire into tire strip
Power: 4kw Weight:850kg Capacity:1t/h |

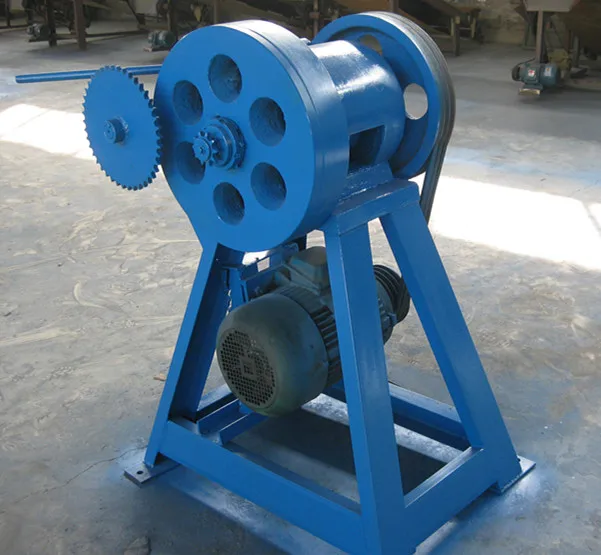

| Tire slice cutter |  | To cut tire strip into tire chips Power:18.5kw |
| Rim separator machine |  | To separate the rim steel and the rubber mouth of tire bead. Or seperate the steel from whole tire Power:18.5kw Capacity:100pcs/h |
Details of fully-automatic tire recycling machine:
| Name | Picture | Specification |

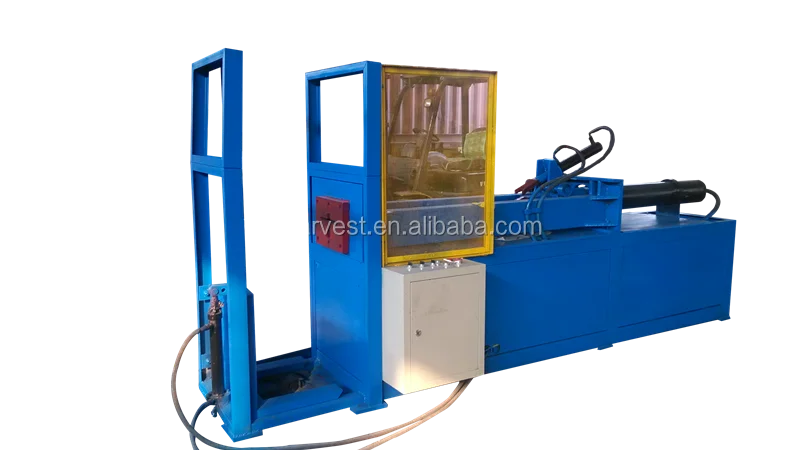

| Tire de-beader |  | To draw out the wire steel from tire
TD-1200 double tire de-beader and single tire de-beader |

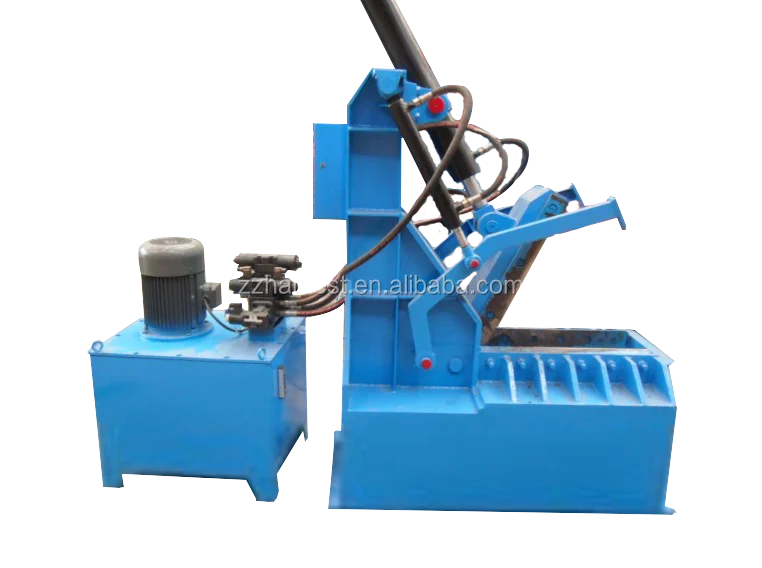

| Tire cutter |  | To cut large tire into samller pieces |

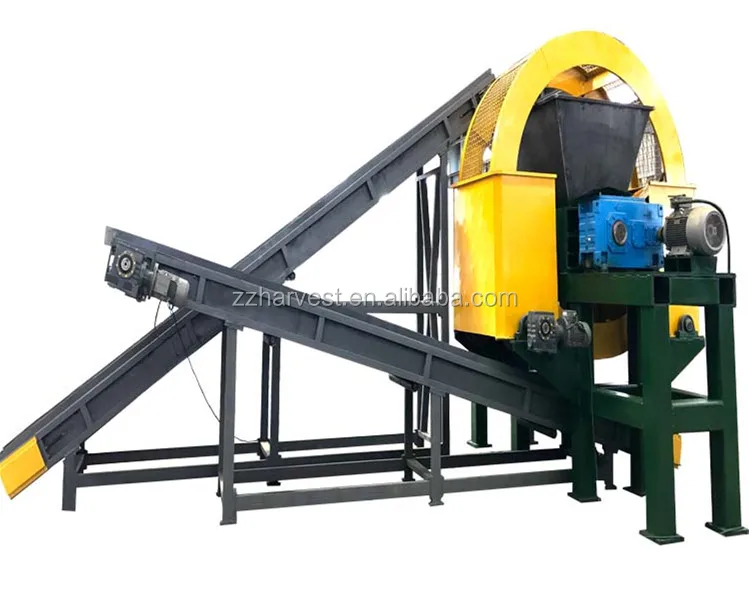

| Tire shredder |  | To shred whole tire or cut tire into tire chips |

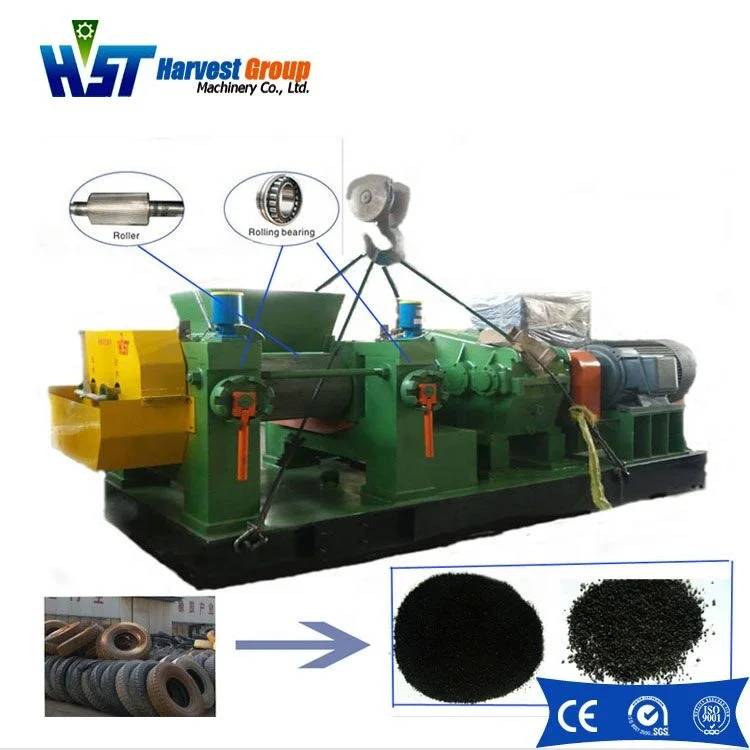

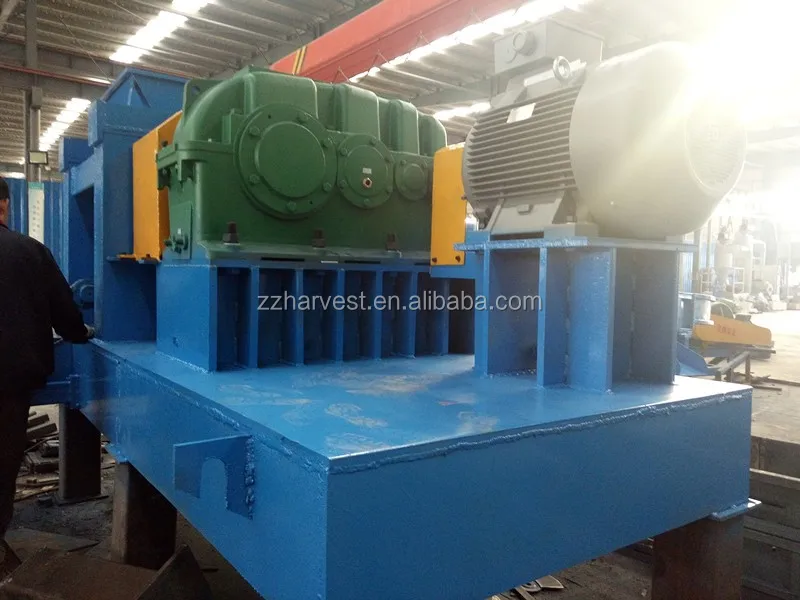

Host equipment rubber crusher: There are five models with different capacity as below. According to capacit, you can choose use semi-automatic tire recycling line or fully-automatic tire recycling line.
| Model | Drum diameter | Drum length | Front roll linear | Motor power | Roll speed ratio |
| XKP350 | 350mm | 500mm | 26.2m/min | 30kw | 1:2.5 |
| XKP400 | 400mm | 600mm | 34.5m/min | 45kw | 1:2.5 |
| XKP450 | 450mm | 760mm | 38.0m/min | 55kw | 1:2.5 |
| XKP560 | 560mm | 800mm | 38.6m/min | 75kw | 1:2.5 |
| XKP560d | 560mm | 1000mm | 42.6m/min | 132kw | 1:2.5 |
Other auxilary equipment in tire recycling plant:
FAQ:
1) Are you a factory or trade company?
We are professional recycling line machine factory, professional design engineer, experienced production team, advanced manufacturing and processing facility. You can get good technical support from us.
2) How can I trust your company?
a. famous brand component as our standard configuration, like Siemens Motor,Siemens PLC and Schneider component. All parts use high quality material and precise processing
b. Assessed by third party-national test centre. national patents,SGS, CE, ISO certificate
c. Welcome to visit our factory to check at any time
3) How about the test running & installation?
Before shipping out your machines, we will invite you to come to test your machines, when you are satisfied; we start to pack and delivery.
We will dispatch our enginne to your country to help you to install and debug the machine, as well as training your workers.
4) How about the warranty?
Under the proper usage, 1-3 year for whole machine, we provide long-time after sales service for our customer.
Any questions, please feel free to contact us:
Whatsapp/wechat: 86 18238829088
