Product Overview

Description

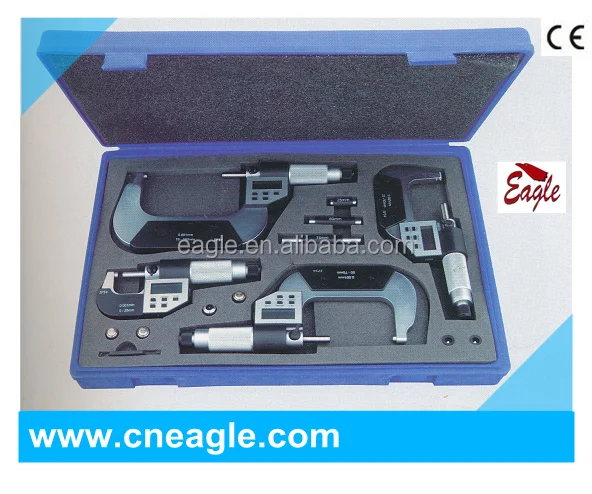

DIGITAL ELECTRONIC OUTSIDE MICROMETER SETS



Features

Protection lecel IP54.
Display data is origin data of absolute measurement after changing battery.
Painted frame.Carbide measuring faces.
Resolution:0.001mm(Metric);0.00005"(inch)



Specification



Power ON/OFF	√
Abs. and inc.conversion	√
Metric/inch conversion	√
Data Output	√
Data Hold	√
Battery	SR44
Auto Power Off	√
RS232 output port	√
Connecting cable(Optional)	P1505,P1502

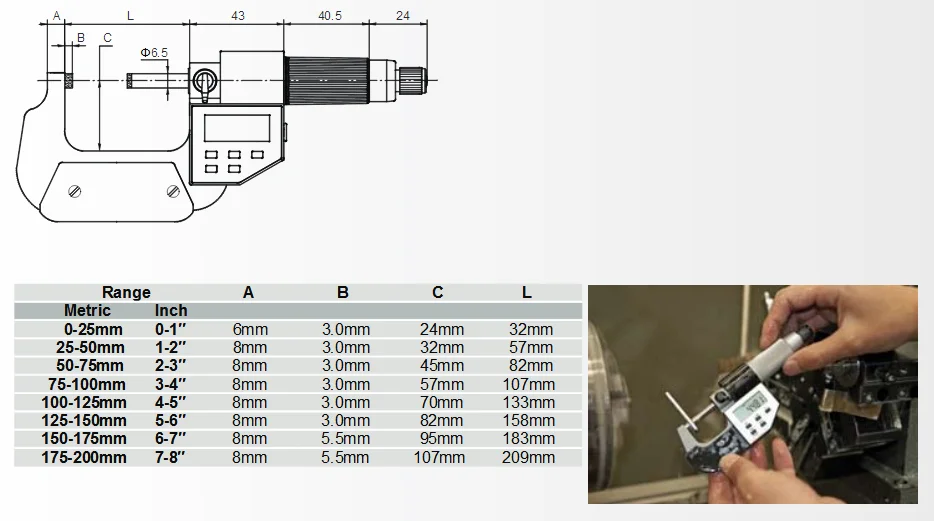

Metric		Inch
Model	Item No.	Model	Item No.	Accuracy
0-25mm	723180	0-1"	723188	±0.002mm
25-50mm	723181	1-2"	723189	±0.002mm
50-75mm	723182	2-3"	723190	±0.003mm
75-100mm	723183	3-4"	723191	±0.003mm
100-125mm	723184	4-5"	723192	±0.003mm
125-150mm	723185	5-6"	723193	±0.003mm
150-175mm	723186	6-7"	723194	±0.004mm
175-200mm	723187	7-8"	723195	±0.004mm





Item No.	Model	Pieces
723166	0-75mm	3
723168	0-100mm	4
723170	0-150mm	6
723172	0-200mm	8
723167	0-3"	3
723169	0-4"	4
723171	0-6"	6
723173	0-8"	8



Hello, our company has been in this business for more than 17 years~ We have the most professional service and high-quality products~

Welcome to visit our office and factory~
