Product Overview

Description

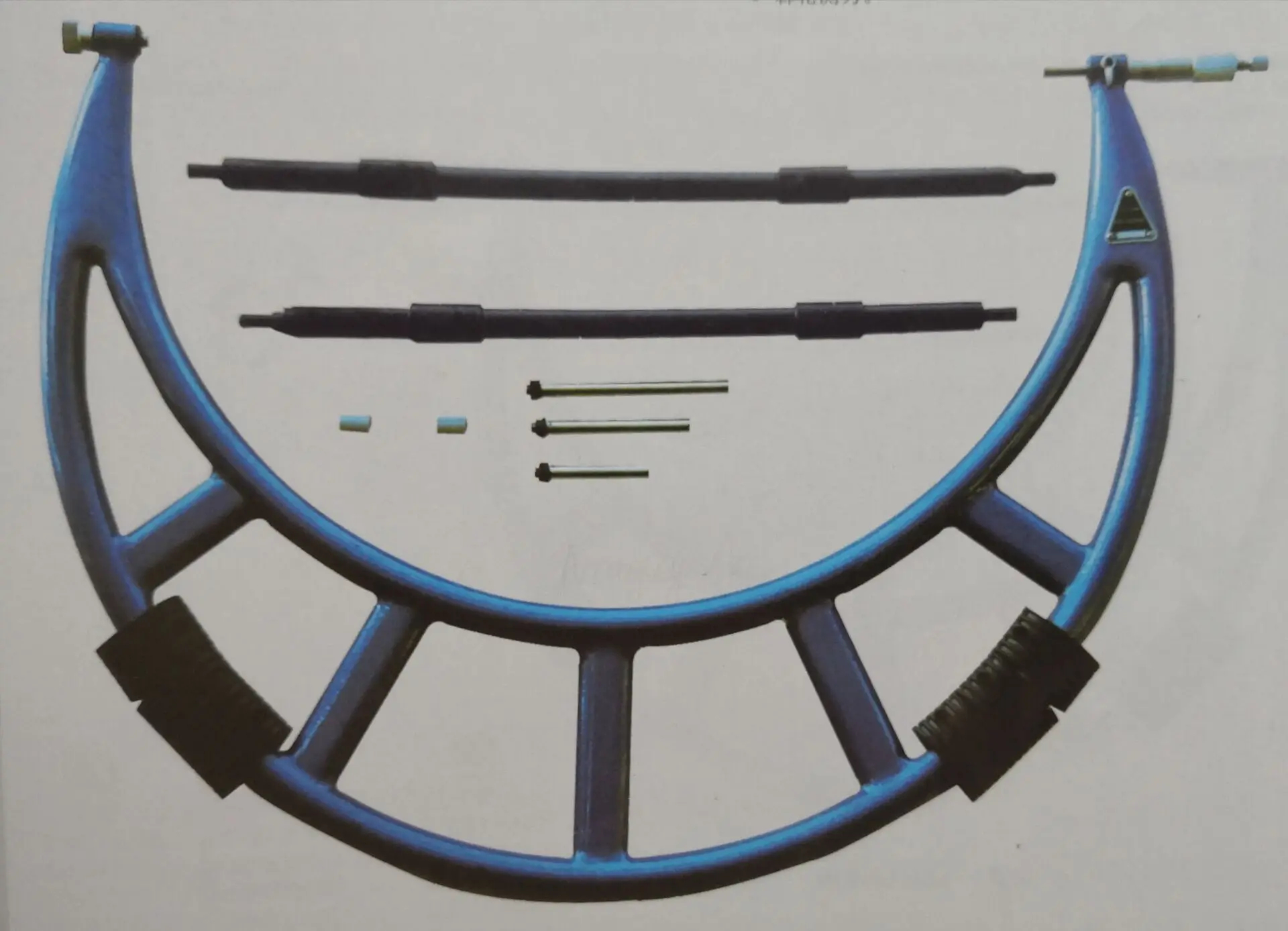

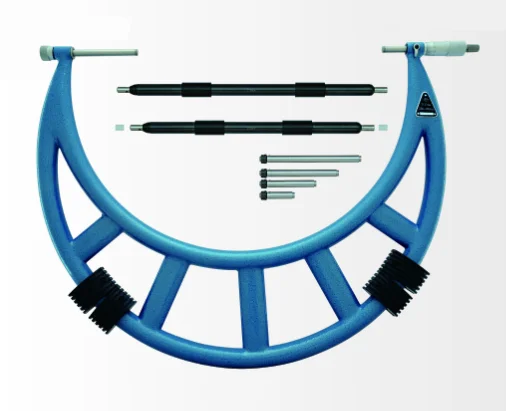

INTERCHANGEABLE ANVIL OUTSIDE MICROMETER



Basic Model

1. Ratchet stop and lock nut.

2. High accuracy interchangeable anvils.

3. Carbide measuring face.

4. Laser engraved graduations.

5. Enamel frame.







Range	Grad.	Item No.		Range	Grad.	Item No.
0-2"	.001"	724101		0-50mm	0.01mm	724201
2-4"	.001"	724103		50-100mm	0.01mm	724203
0-4"	.001"	724107		0-100mm	0.01mm	724211
4-8"	.001"	724109		100-200mm	0.01mm	724213
8-12"	.001"	724115		200-300mm	0.01mm	724215
0-6"	.001"	724111		0-150mm	0.01mm	724207
6-12"	.001"	724113		150-300mm	0.01mm	724209
12-16"	.001"	724116		300-400mm	0.01mm	724221
16-20"	.001"	724117		400-500mm	0.01mm	724223
20-24"	.001"	724118		500-600mm	0.01mm	724225
24-28"	.001"	724119		600-700mm	0.01mm	724227
28-32"	.001"	724120		700-800mm	0.01mm	724229
32-36"	.001"	724121		800-900mm	0.01mm	724231
36-40"	.001"	724122		900-1000mm	0.01mm	724233
12-18"	.001"	724123		300-450mm	0.01mm	724234
18-24"	.001"	724124		450-600mm	0.01mm	724235
24-30"	.001"	724125		600-750mm	0.01mm	724236
30-36"	.001"	724126		750-900mm	0.01mm	724237
36-42"	.001"	724127		900-1050mm	0.01mm	724238
