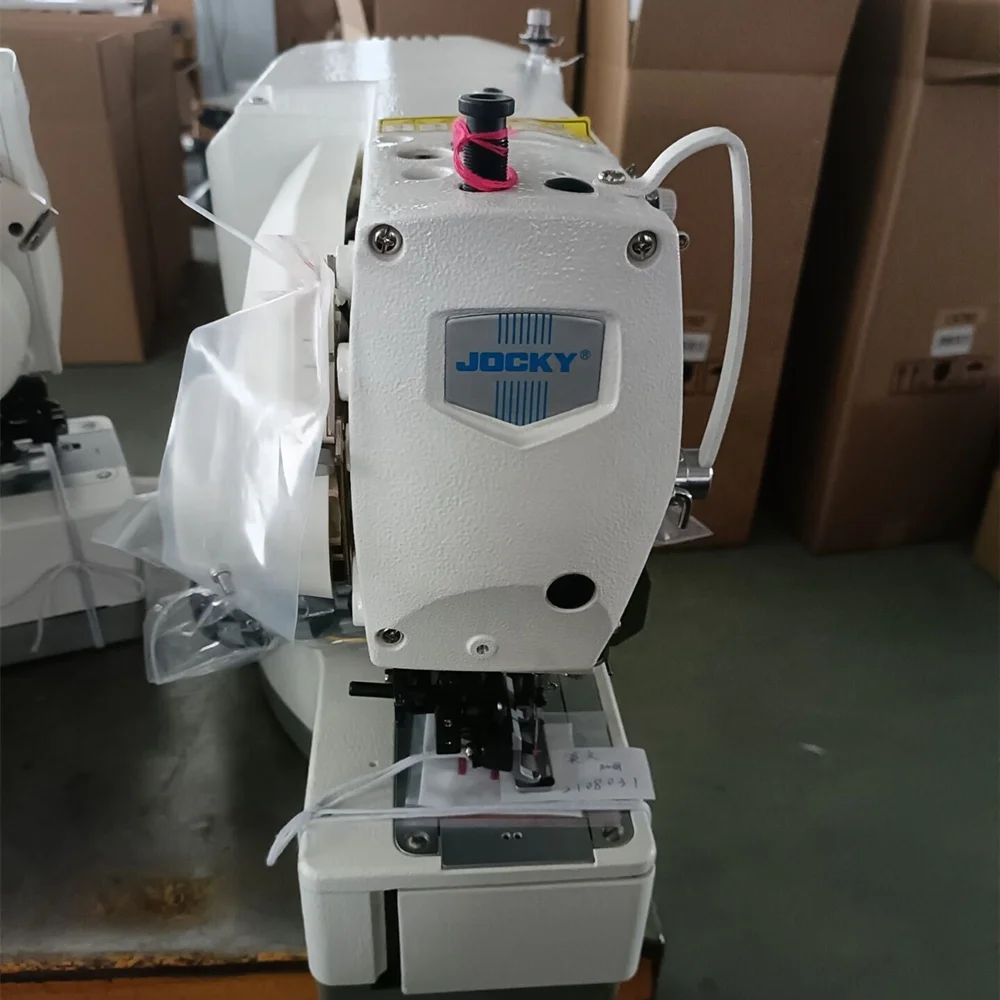

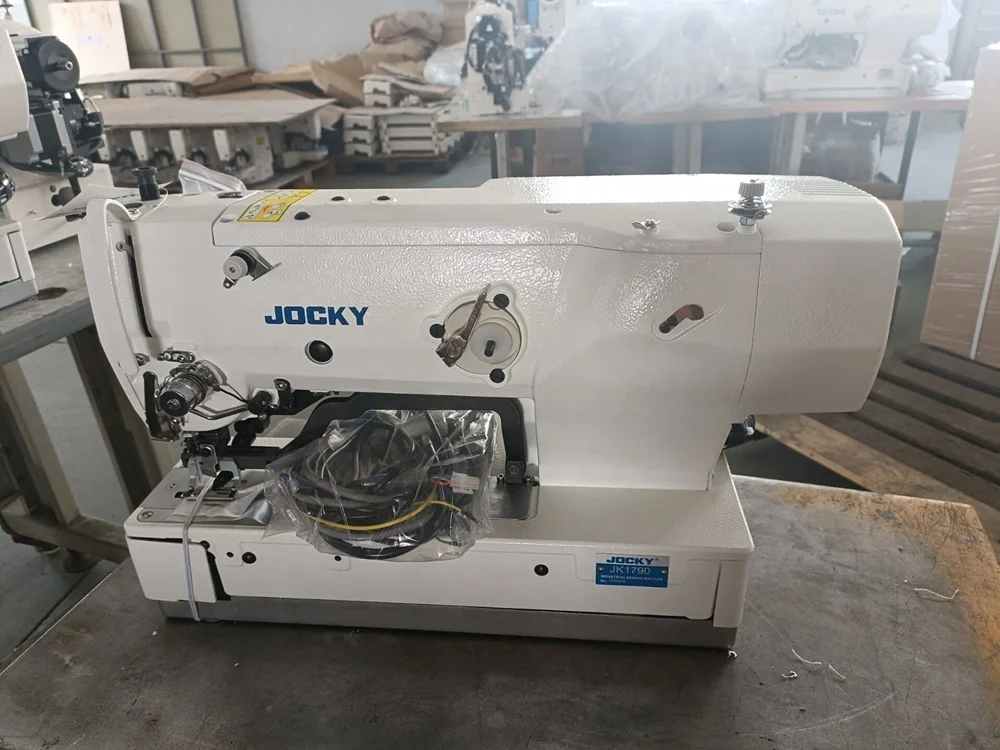

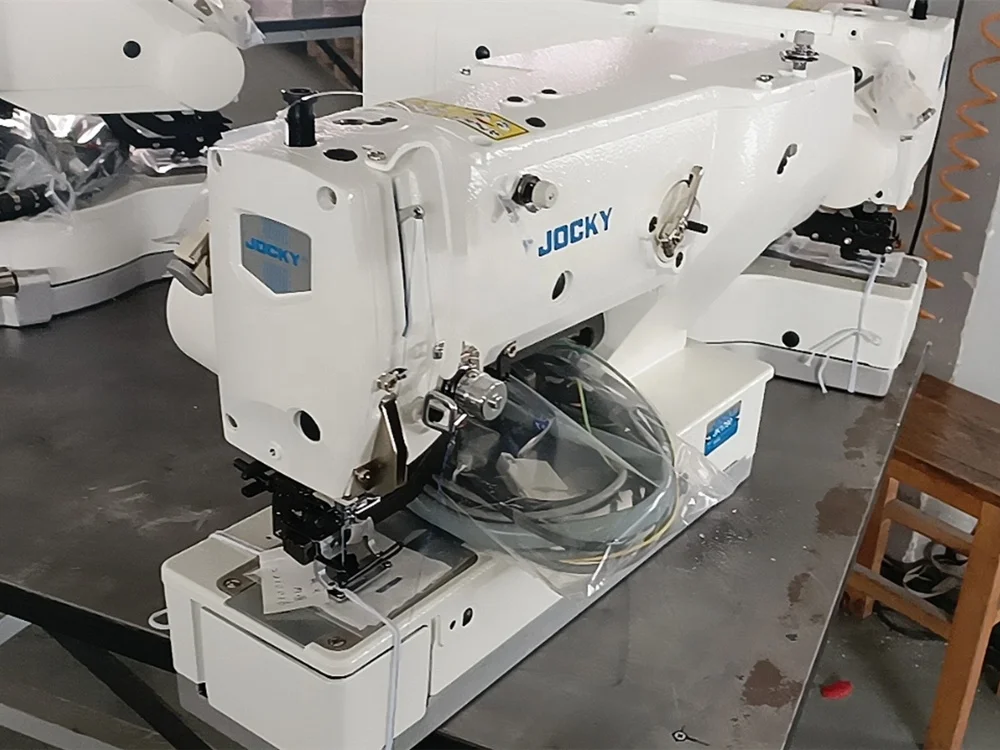

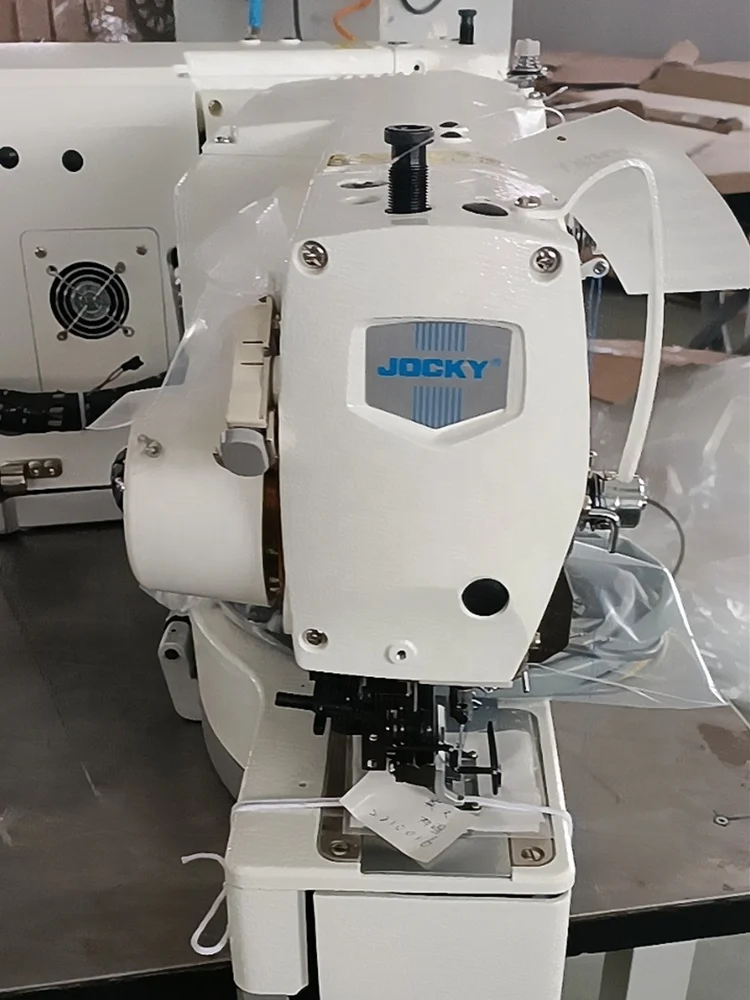

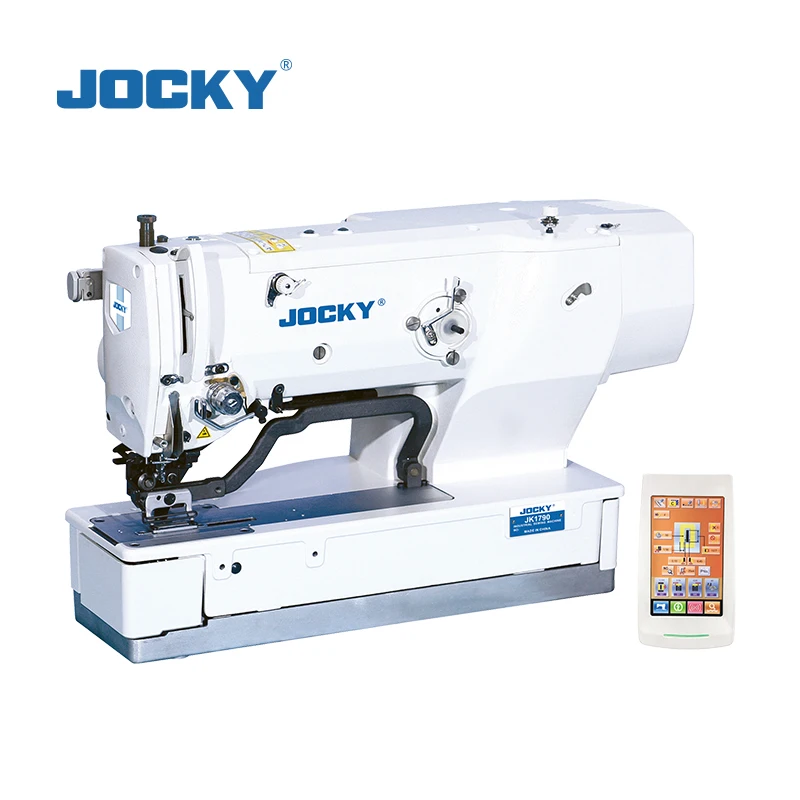

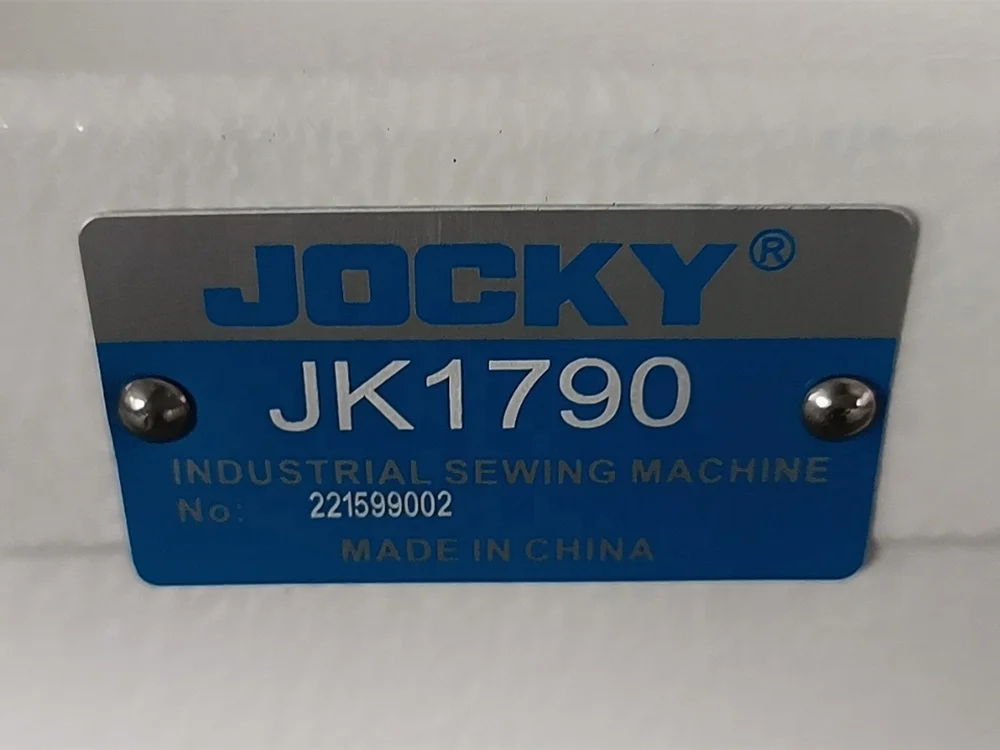

JK1790 Computerized electronic straight button hole industrial sewing machine
- Category: Apparel Machinery >>>
- Supplier: Hangzhou Meetlin Imp.& Exp. Co. Ltd.
Share on (1947234290):
Product Overview
Description
Products Description
JK1790 Electronic straight button hole machine
1. The Maximum button hole length 220mm.
2. The highest sewing speed 4200rpm.
3. The trimming devices are controlled by the individual step motor, which enable to adjust the motion of knife according to the actual condition.
4. With the adjustment of tension solenoid. It is possible to meet the needs of different tension at the parallel part and bartack part of button hole.
5. With LCD displayer, touch panel operation, the entire works of data setting, pattern editing and modification can be done via the operating board. The operating board also supports the most commonly used USB connector for transferring patterns and updating the program.
6. The system supports 30 patterns with different shapes and the format of patterns generated pattern-making software. Additionally the capacity can expand to 99 patterns, which can be selected and edited via the operating board freely.
2. The highest sewing speed 4200rpm.
3. The trimming devices are controlled by the individual step motor, which enable to adjust the motion of knife according to the actual condition.
4. With the adjustment of tension solenoid. It is possible to meet the needs of different tension at the parallel part and bartack part of button hole.
5. With LCD displayer, touch panel operation, the entire works of data setting, pattern editing and modification can be done via the operating board. The operating board also supports the most commonly used USB connector for transferring patterns and updating the program.
6. The system supports 30 patterns with different shapes and the format of patterns generated pattern-making software. Additionally the capacity can expand to 99 patterns, which can be selected and edited via the operating board freely.
Specification
Model | JK1790 |
Needle guage | DPx5 11-14# |
Needle quantity | 1 |
Thread quantity | 2 |
Hole length | 10-220mm |
Hole width | 2.5-9mm |
Volatge/Power | 220V/550W |
Height of presser foot | 14mm |
Max sewing speed | 4200rpm |
Packing size | 780x380x650mm |
Weight | 78/73kgs |
