Horizontal Automatic Continuous Foaming Production line

This foaming production line is mainly used for producing polyurethane foam,which density is 9-50kgs/m3.

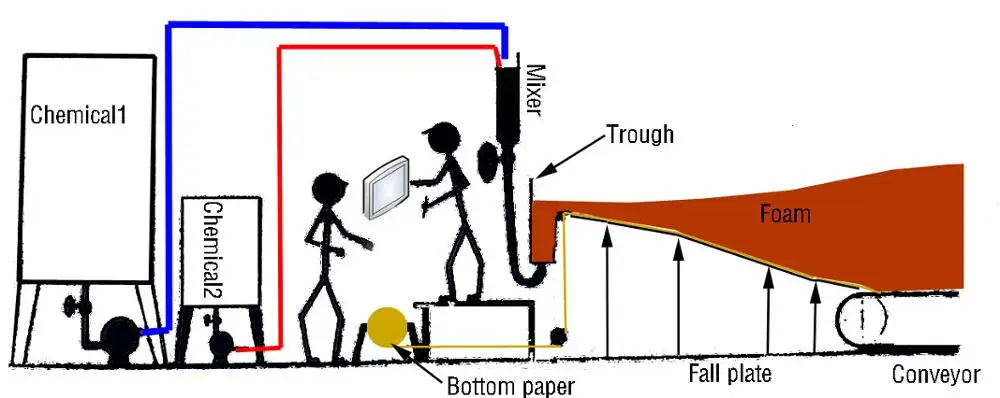

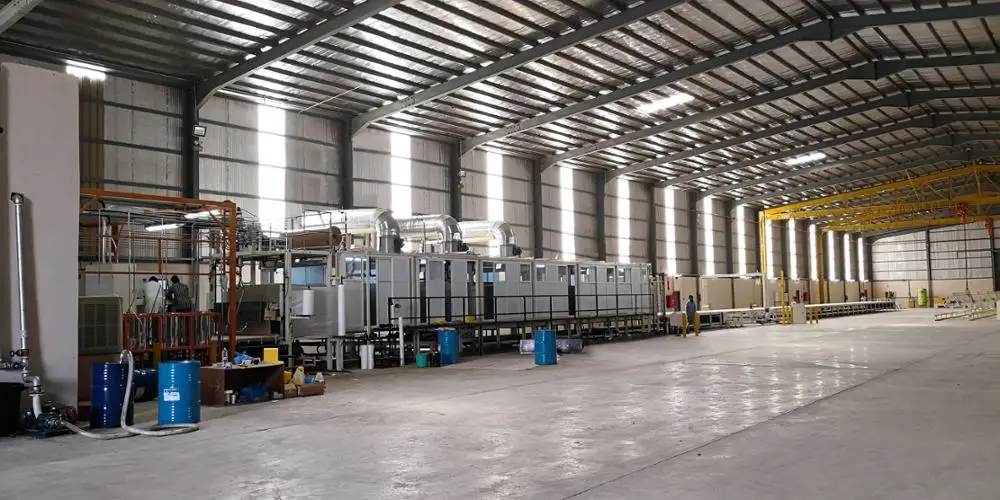

  Horizontal foaming line



   Block cutter



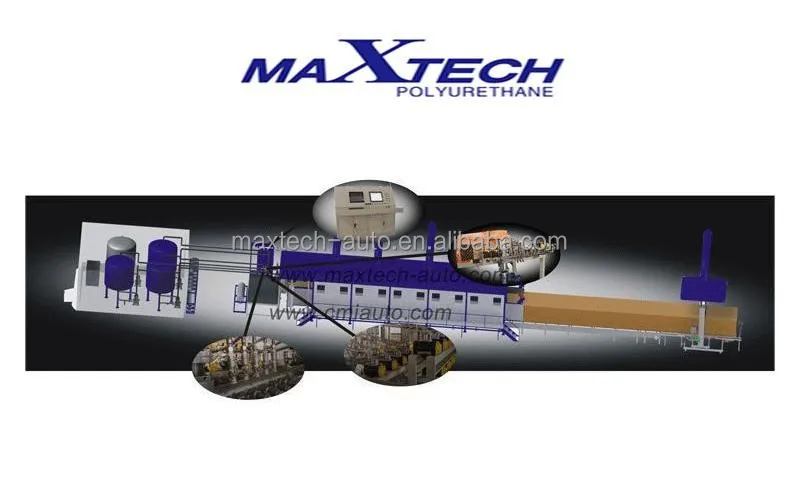

Benefits, features and functions of a Maxfoam machine:

Operating platform

Functions

• Provides the operator with a correct position to operate the machine.

• Supports the Instrument Panel and the Mixer.

• Anti-skid surface.

Benefits

• Efficient working area for the operator.

• Provide easy access to the Trough.

• Easy access to all the controls and instruments.

• Enable bottom paper to be placed behind the platform.



Control Panel

Functions:

• Controls all process variables.

•Process variables are controlled using a computer friendly interface and the adjustments can be made using analog controllers, digital ones, or a combination of both.

• Start, stop, adjust.

Benefits

• Easy to adjust and monitor variables.

• Real-time information during foam production.

• Save and secure production environment.



Additive tanks

Functions

• Volume specially designed for daily production.

• Individual tanks for each chemical.

• Stainless steel.

Benefits

• No leakage.

• Easy to clean.

• No influence on chemicals.

• Age resistant promoting longlife.

• Easy refilling.





Chemical metering

Functions

• Meters the chemicals to required quantity.

• Recirculation back to tank via pressure control.

• Pumps and transducers adapted to chemical output.

Benefits

• Accurate metering.

• Required pressure level per stream.

• Easy to calibrate.





Mixer

Functions

• Mix all chemicals.

• Adjustment of mixer pressure.

• Mixer speed adjustment.

Benefits

• Control cell size.

• Create fewer “pinholes”.

• Provide optimal mixing.

• Self cleaning.



Fall-plate

Functions

• Support the bottom paper from trough to conveyor.

• Adjustable width and angle.

• Adapted to the rise profile.

Benefits

• Make a flat top block.

• Give better density distribution.

• Using gravity force when expanding foam.



Conveyor

Functions

• Moves the foam at requested speed.

• Transports the foam slab.

• Motor,gear and transducer adjusting speed and keep constant speed when set.

Benefits

• Constant speed.

• Constant block height.

• Uniform foam structure.



Ventilation

Functions

• Remove gasses from the foaming tunnel.

• Environmental friendly.

Benefits

• Minimum gass in working area.

• Operated from the control panel.

• No disturbance of foam block surface.



Paper feed side and bottom

Function
• Supports the paper rolls during unwinding.
• Paper tension device.
• Adjustment to keep the paper in line.

Benefits
• Keeps the paper in line.
• Keeps the paper tight, flat and without wrinkles or folds.



Paper rewind Bottom-paper

Function
• Rewinds the paper used during foaming.
• Adjusts the tension of paper.
• Self locking / Reusable steel cores.

Benefits
• Ensures correct tension due to torque control of electric motors.
• Easy to remove rewinded paper during foam production.
• No cardboard cores needed.



Paper rewind side-paper

Function
• Rewinds the paper used during foam production.
• Adjusts the tension of paper.
• Self locking reusable steel cores.

Benefits
• Ensures correct tension due to torque control of electric motors.
• Easy to remove rewinded paper during foam production.
• No cardboard cores needed.



Main technical specifications

Material group	13 group
Foaming width	1.5~2.25m
Foaming height	≤1.25m
Foaming density	9~50kg/m3
Conveyor speed	≤2~8m/min
Max total output	250kgs/min
Foaming type	trough foaming
Oven length	15m
Falling plate	5steps total 5.35m
