57J1880EC-1000 Two phase Closed Loop Step Servo Motor
US $35.00-$38.00

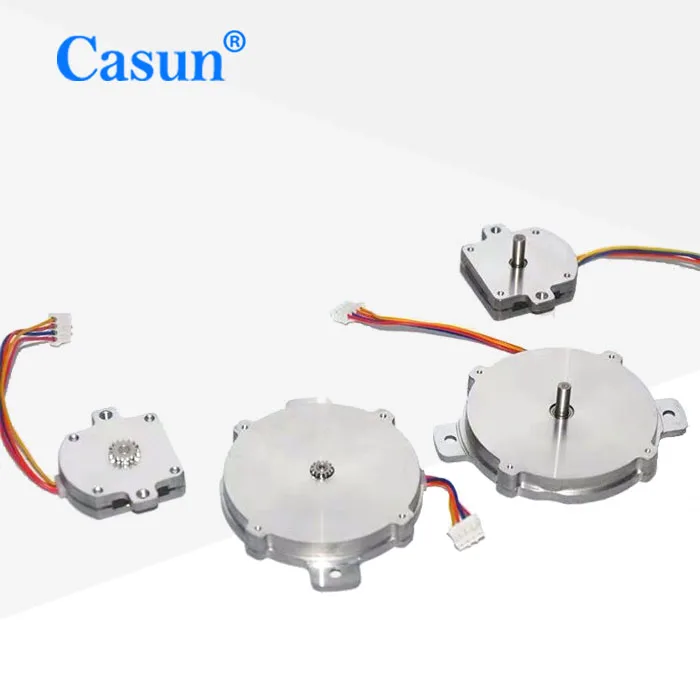

High Speed 1.8 Degree NEMA 23 Feeder Stepper Motor Hybrid with Pinion Ultra thin 57SHY4001 2A 57x9.6mm 60mn.m CN;GUA Casun 0.8A
- Category: Stepper Motor >>>
- Supplier: Guangzhou Fude Electronic Technology Co. Ltd.
Share on (1951541612):
Product Overview
Description
High Speed 1.8 Degree 2 Phase NEMA 23 Flat Stepper Motor with Pinion Ultra-thin
Product Description
Fude Manufacture is the Alibaba super V.I.P GOLDEN SUPPLIER for stepper motor
1) Over 10000+ designs
2) Over 3000+ designs for 2019
3) Small Order Welcome
| Product Name | Electric Stepper Motor |
| Dimensions | Nema8(20mm), 11(28mm), 14(35mm), 16(39mm), 17(42mm), 23(57mm), 24(60mm), 34(86mm) |
| Step Angle | Degree 0.9, 1.2, 1.8(Optional or Customized) |
| Torque(oz.in) | Up to 3.11, 5.7, 17, 41, 56, 85, 113, 425, |
| Rated Current (A/Phase) | 0.1A~10A |
| Typical Applications | Inject Printers, Analytical and Medical Instruments, Textile Equipment, Embroidery Machine, Precision Telescope Positioning Systems, High Speed Dome Camera and Robotics |

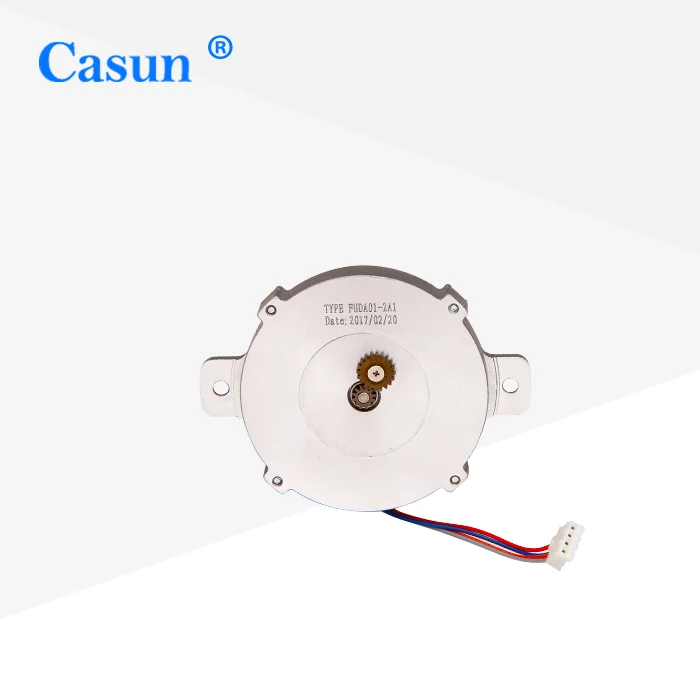

Wholesale NEMA 23 Hybrid 57*9.6mm 0.8A 2 Phase SMT Stepper Motor
| Hybrid Stepper Motor (57SHY4001-2A) | |||
| General Specification | Electrical Specification | ||
| Step angle | 1.8 degree | Rated Voltage | 2.8V |
| Number of Phase | 2 | Rated current | 0.8A |
| Insulation Resistane | 100MΩmin.(500V DC) | Resistance per phase | 3.5Ω±10% |
| Insulation Class | Class B | Inductance per phase | 1.8mH±20% |
| Rotor inertia | 15g.cm² | Holding torque | 60mN.m |
| Mass | 75g | Detent torque | 8mN.m |
Packing&payment&Delivery
| Payment Term | T/T, PayPal, Western Union, Cash, Escrow |
| Accepted Payment Currency | USD, CNY |
| Packaging Detail | cusomized packages, carton box with foam |
| Delivery Detail | 10 Day(s) |
| Delivety Port | huangpu,luogang,guangzhou |
| Accepted Delivery Terms | FOB,CIF,EXW |
Why Choose Us
1)Integrating development, production, sale and service.
2)Complete modern production machines and high-level staff members.
3)specialized in the development, manufacture stepping motors with well-equipped testing equipment and strong technical force.
4)"High quality products, competitive prices, and excellent customer services" are always our ultimate goals.
5)Creating a win-win business relationship with you in the near future.
About Us
| Business Type | Manufacturer |
| Location | Guangdong,China (Mainland) |
| Year Established | 2011 |
| Total Revenue | US$1 Million - US$2.5 Million |
| Registration No. | 440111000339089 |
| Product Certifications | A MEMBER OF ALIBABA GOLD SUPPLIER CLUB |
Packaging & Shipping
1. Carton box with foam inside;
2. Can be customized.
Rotor Structure
