Product Overview

Description

FOCUSUN SUPPLY 5 DIFFERENT KINDS OF ICE MACHINES INCLUDING BLOCK ICE MACHINE, TUBE ICE MACHINE, FLAKE ICE MACHINE, CUBE ICE MACHINE AND OTHER RELATIVE COOLING PROJECTS. If you need to build one ice plant, contact us for technical questions.



Cheap Price of 10Ton/D Direct Refrigeration Block Ice Machine

Technical specification



Subject	Unit	Technical parameter
Power supply		Voltage/Phase/Frequency	380V/3P/50Hz
Refrigerant			R22 or R404A
Capacity		Kg/day	10000
Cooling way			Water cooling
Temperature	Ambient temperature	Deg C	35
	Waterinlet temperature	Deg C	20
Operating power	Total running power	Kw	39.83
	Installment power	Kw	50
	Cooling tower fan	Kw	1.1
	Cooling water pump	Kw	2.2
	Operating power of cold water pump	Kw	0.55
Compressor	Manufacturer		Bitzer
	Refrigeration capacity	Kw	86.6
	Operating power	Kw	35.98
	Compressor COP/EER	Kw/kw	2.41
	Horse power	Hp	25×2sets
Working time	Ice making time	h	7.5
	Ice falling off time	h	0.5

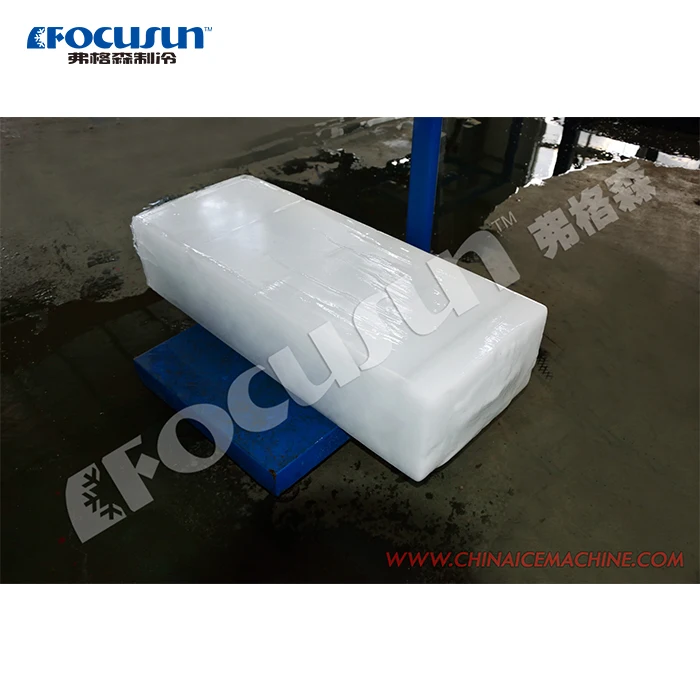

Dimension	Weight of block ice	Kg/block	50
	Size of block ice	(L×W×H)(mm)	480×160×700
	Size of unit modular	(L×W×H)(mm)	1800×1000×1450
	Number of evaporator		2 PC
	Size of evaporator modular	(L×W×H)(mm)	4800×1000×2200
	Size of cooling tower	(O.D.×H)(mm)	2000×2410
	Size of water feeding pipe of cooling tower		3/4"
	Size of cooling water pipes		2-1/2"
	Size of water feeding pipe		1-1/4"
Operating weight	Unit	Kg	1680
	Evaporator	Kg	2860
	Cooling tower	Kg	670
Water supply pressure requirement		Bar	1





1.Application:

a.Ice factory
b.Fresh preservation, seafood, fish industry
c.Ice weight, small block ice or big block ice as you need

d.Edible ice, for hotels, restaurant

e. Comparing to other forms of ice, block ice longest storage time

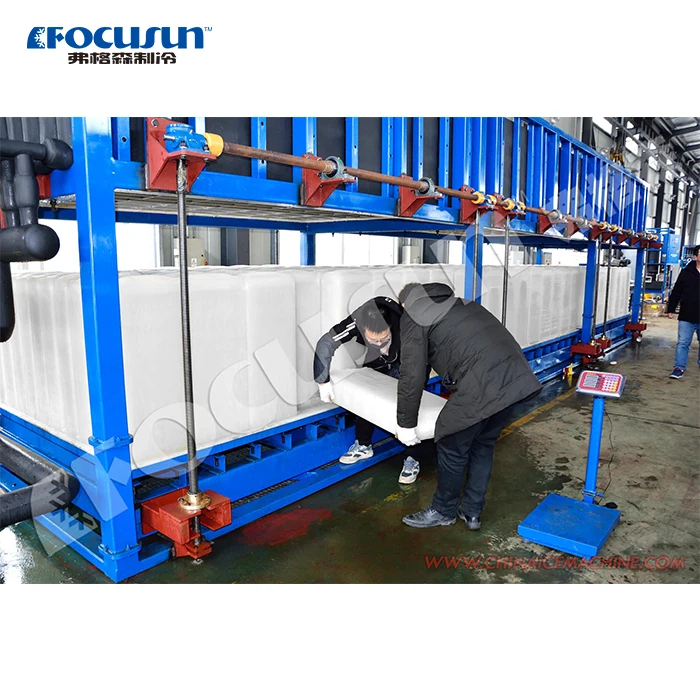

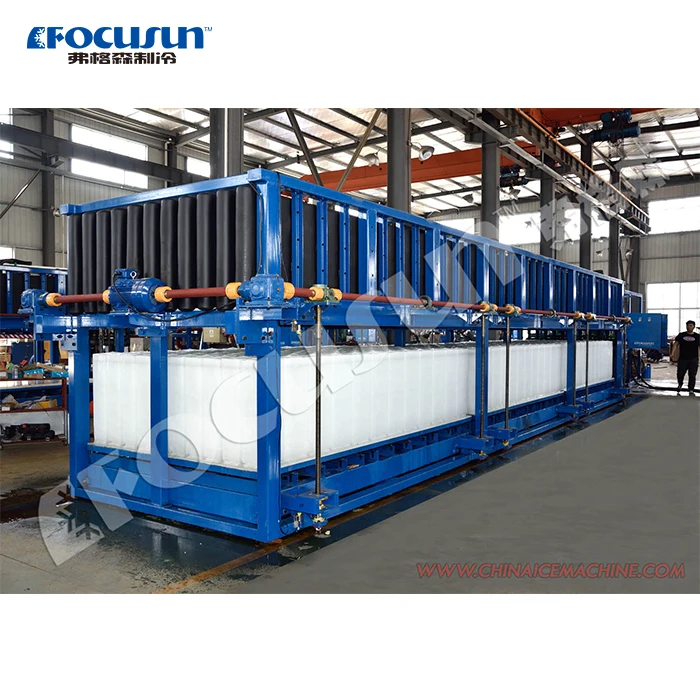

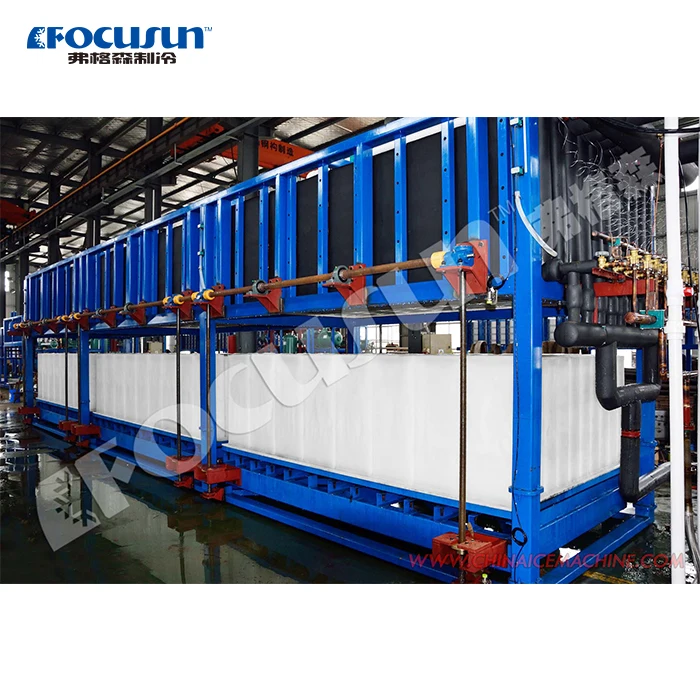

2. Direct Refrigeration Block Ice Machine ( Eatable block ice)

•


  1.   The evaporator adopts special aluminium alloy plate which is more durable and reaches food hygiene requirements.





• 2.       Ice thawing and ice doffing are fully automatic. No manual work is needed and the process is time-saving thus more efficient.




• 3.       The ice is doffed by batch and the whole ice-doffing process only takes 25 minutes.




• 4.       The whole batch of ice blocks can be moved by forklift. Quick and convenient.




• 5.       Module design makes the ice maker easy to transport, move and install.




• 6.       Every direct refrigeration block ice machine can be designed and produced according to your specific requirements.




• 7.       The direct refrigeration block ice maker machine can be installed in 20ft or 40ft brand new container with other relevant equipments.




• 8.       Bitzer refrigeration system to guarantee performance;




• 9.       Good heat isulation for water tank;




• 10.    Focusun block ice machine is Good appearance,easy opeartion and maintenance.




• 11. Machine can be made into containerized model





3. Block ice compactor



a. To get block ice, you can also buy our ice compactor, which is used to compact flake ice into different size block ice.
