Artificial Stone Production Line Construction Material Making Machinery
- Category: >>>
- Supplier: Foshan Nanhai Zhuodi Machinery Co. Ltd.
Share on (1961271448):
Product Overview
Description
Product Description
PRESSING SYSTEM PARAMETERS
| 5th Generation Press Machine | ||
| Item Code | ZYJ1700 | |
| Motor | 8*10kw | |
| Power | 4kw | |
| Air Consumption | 260L | |
| Working Size | 3250*1700mm | |
| Weight | 38Ton | |
| Dimension | 6950*3300*3000mm | |
| Airbag Press Machine | |
| Item Code | ZQNYJ1650 |
| Motor | 10*12KW |
| Power | 5.5kw |
| Air Consumption | 260L |
| Working Size | 3250*1650mm |
| Weight | 56Ton |
| Dimension | 6950*3300*300mm |
CALIBRATING & POLISHING SYSTEM PARAMETERS

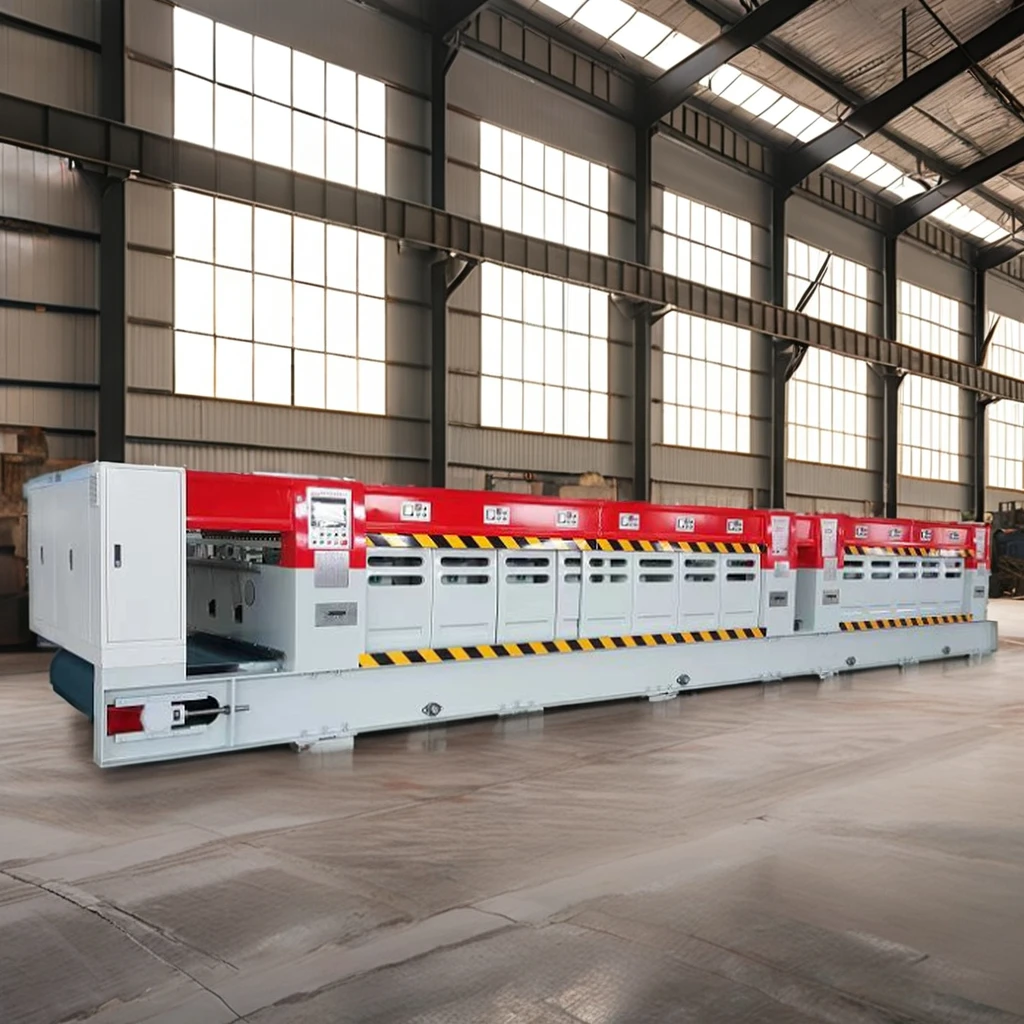

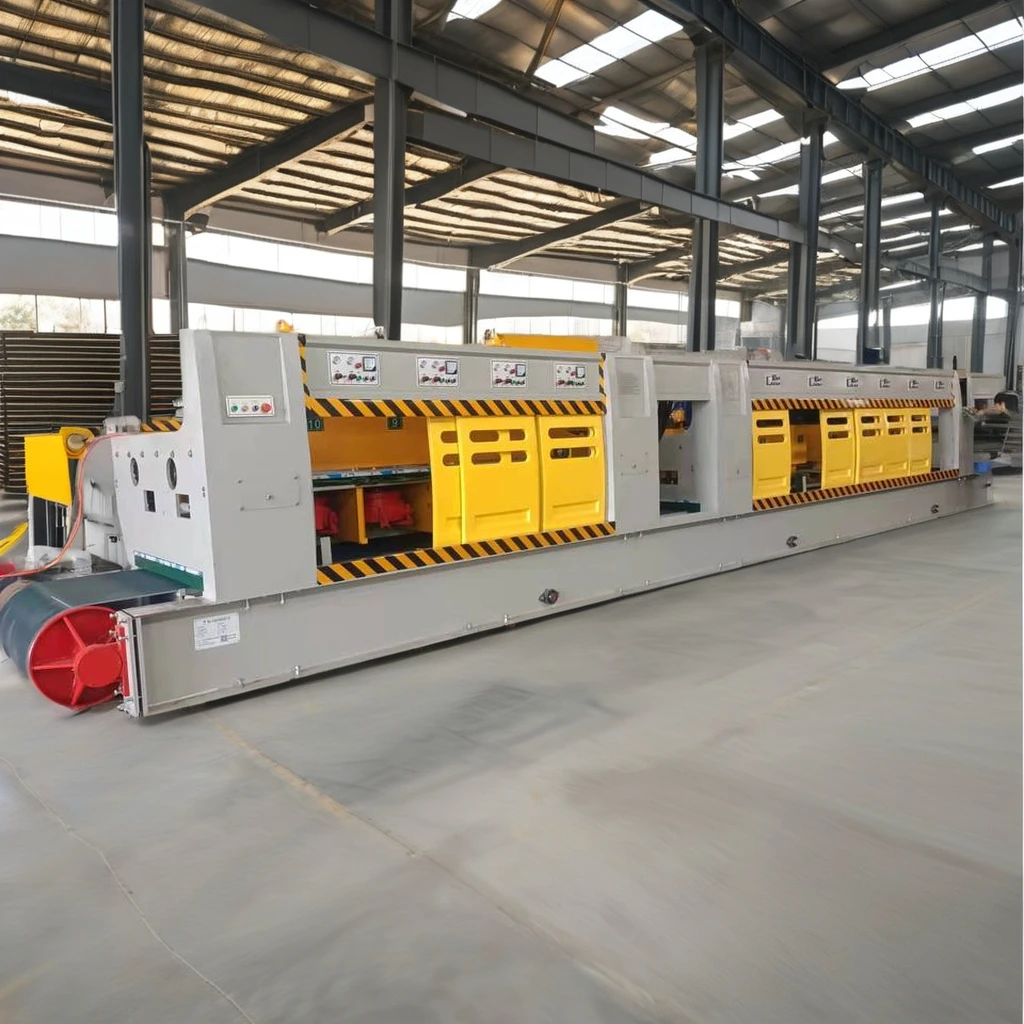

| Oscillating Calibrating Machine | |||
| Item Code | ZYD800 | ZYD1650 | |
| Grinding Segents | 4-10 | 6-12 | |
| Work Width | 600-800mm | 600-1660mm | |
| Work Thickness | 10-40mm | 10-40mm | |
| Conveying Speed | 1-3m/.min | 0.8-1.5m/.min | |
| Conveyor Motor Power | 1.5-3kw | 2.2-5.5kw | |
| Swing Motor Power | 2*4kw | 2*4kw | |
| The Grinding Head Motor Power | 22kw | 22kw | |
| Water Consumption | 210L/min | 320L/m | |
POLISHING SYSTEM PARAMETERS

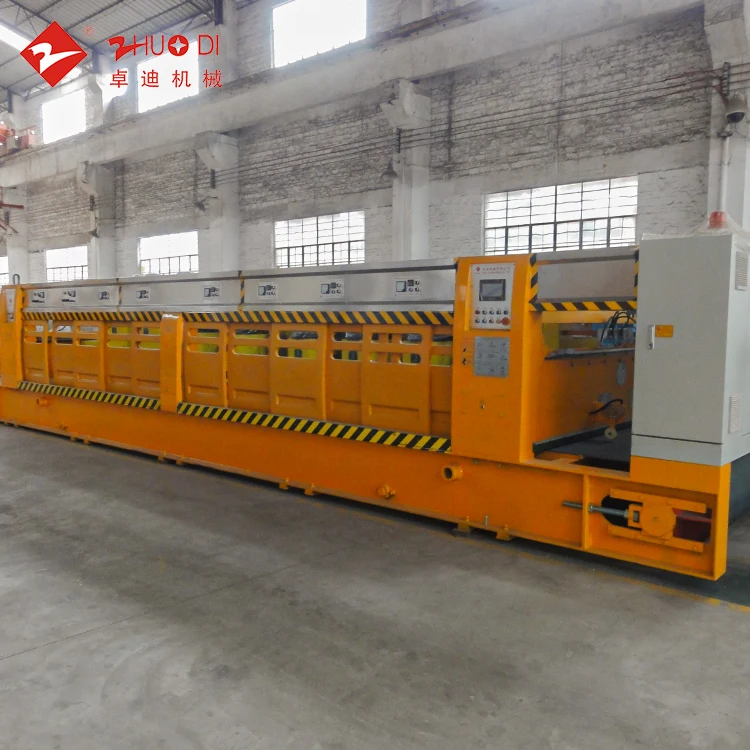

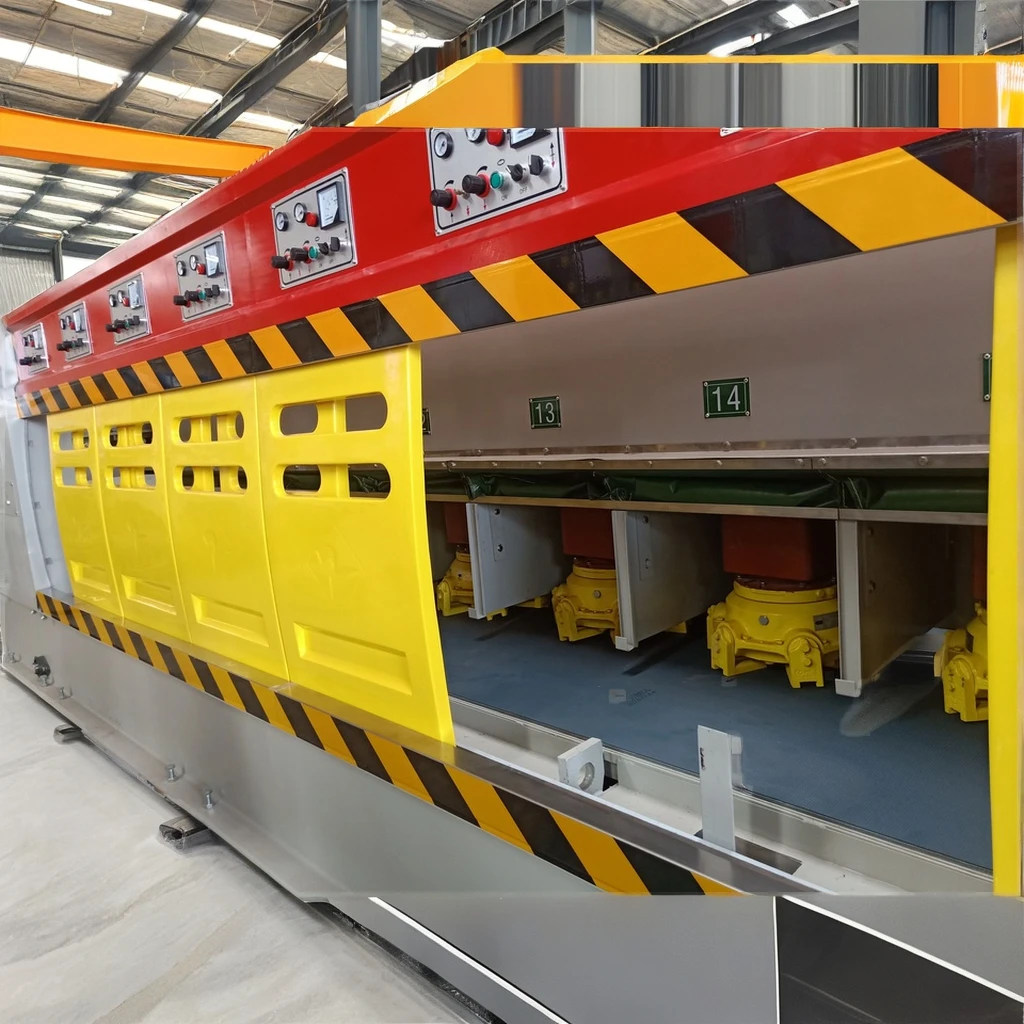

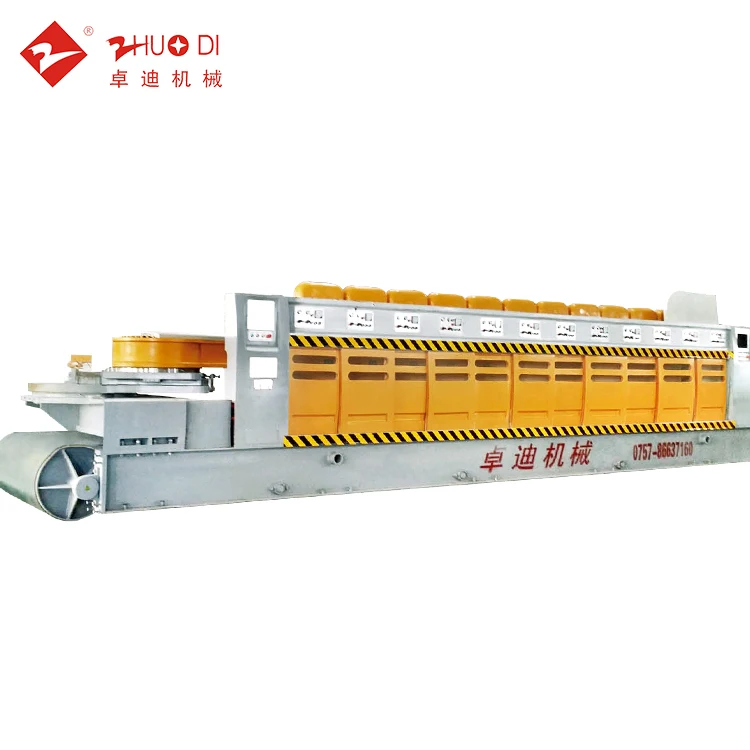

| Crank Structure Polishing Machine | ||
| Item Code | ZPSY1650 | |
| Grinding Heads | 12 | |
| Grinding Heads Power | 11kw | |
| Swing Power | 2*4kw | |
| Main Driving Power | 3kw | |
| Water Consumption | 400L/min | |
| Gas Consumption | 260L | |
| Dimension | 13210*3300*3000mm | |
HARDENING OVEN PARAMETERS
| Equipment name | Splint curing oven (iron splints) | Splint curing oven (aluminum splints) | ||
| Curing time | 45-70 Min | 45-70 Min | ||
| Curing temperature | 45-150 ℃ | 45-150 ℃ | ||
| Layers | 10-16 | 14-18 | ||
| Lifting mode | Cylinder | Screw | ||
| Curing mode | 1 slab with 2 heating plates | 1 slab with 2 heating plates | ||
| Total power | 174.7-214.7kw | 184.2-224.2kw | ||
| Dimension | 3750*3050*5000mm | 3750*3050*6000mm | ||
RELATED PRODUCT
ABOUT US
OUR CERTIFICATES
LOGISTICS & PAYMENT
FAQ
1. Can you provide me with the product parameters
one polishing line two press lines semi-Auto distribution.
full production line dimension:117800*76840*14300mm(L*W*H)
Final slab dimension:760*2440mm;800*3100mm
thickness:10-30mm
daily capacity:360 slabs/day(20 hours)
annually capacity:260.000sqm/year
3. What is the size of the whole factory
one polish line can support 2 press lines
whole line dimension:136250*98280*10500mm(L*W*H)
Final slab dimension:1600*3200mm
thickness:10-40mm
daily capacity:480 slab/day(20hours)
annual capacity:720.000sqm/year
4. Do you have a perfect after-sales service system
with professional R&D team,providing pre-sales services,and timely solution.
12 year in engineered quarts stone production experiences,we can provide full training and technical support for our customers.we will
grow with our customers and develop new products with our customers.
with zhuodi machinery ,it's possible to produce any design of quartz.we also can customize and design the machine according to the actual demand,
ensure the easy operation during the production with the low cost,high production and high quality.
