Inverter Mini VRF air condition with AHRI

Product Overview

Description



Inverter Mini VRF air condition with AHRI

R410a Full DC inverter Mini VRF AC - Multi split commercial air conditioner

DC Inverter Mini VRF

An ideal solution for residential and semi-commercial spaces









Mini VRF air condition Inverter with AHRI

1 New Fashion Design
2 R410a, DC inverter
3 AHRI, ETL certificated
4 High efficiency





Core Advantages

• Slim & Flexible design, max. piping length 100m


• Simple installation, maintenance


• Max. 9 indoor units (old version 7 indoor units)


• Smart phone control enables



Specification ( Mini VRF air condition):







Key Features ( Mini VRF air condition):

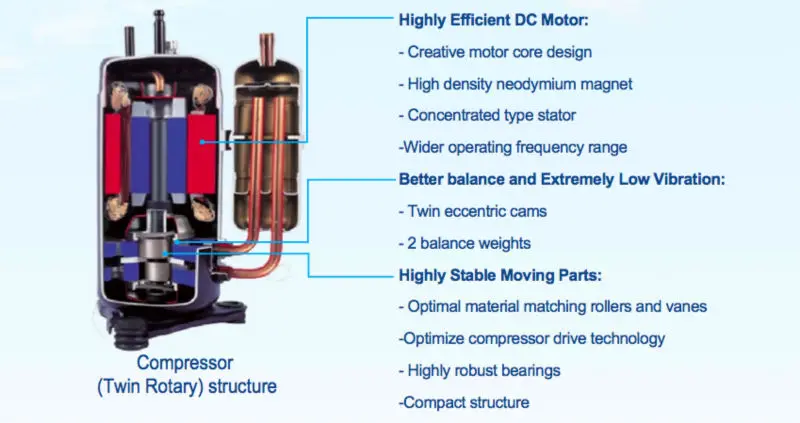

High efficiency full DC inverter compressor

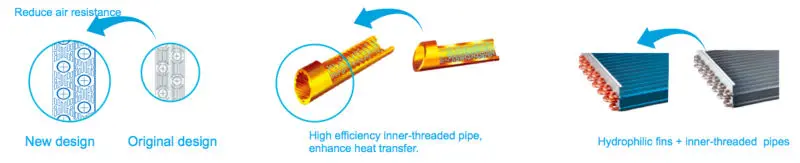

High performance heat exchanger

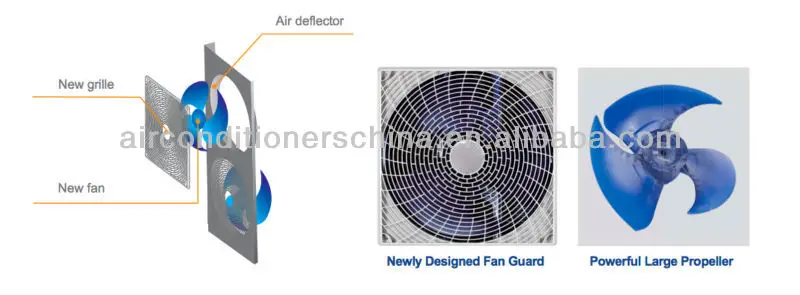

Improved noise reducing design



Optimally designed fan shape and air discharge grille increases air volume and reduces running noise.





Application flexibility - various indoor units



Mini VRF with intelligent control gives you independent zoning control with maximum flexibility.



The advantage of Midea Mini VRF is that a single outdoor unit supports up to 6 indoor units. Use your backyard more wisely with much more space available created by less number of outdoor units.



Max. 5 indoor units for a 10.5kW(36000Btu/h) outdoor unit installation

Max. 7 indoor units for a 14kW(48000Btu/h) outdoor unit installation



Wide operation temperature range



Up to 48°C(118.4°F) in cooling model and down to 15°C (5°F) in heating mode.





Flexible piping design



The Mini VRF provides a total piping length possibility of 100m(328ft), a maximum height difference between outdoor and indoor units of 30m(98.4ft). The height difference between indoors unit can be up to 8m(26.2ft). These generous allowances facilitate an extensive array of system design.

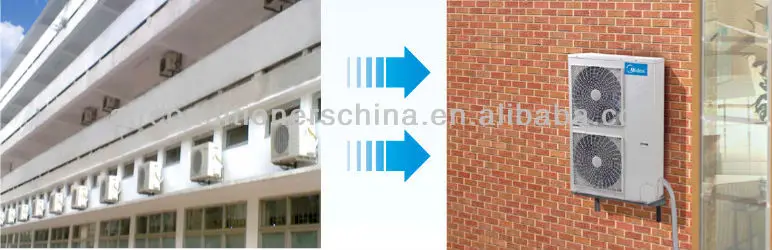

Space saving design



The Mini VRF air conditioners are slimmer and more compact, save installation space.



In some large residential and light commercial areas, such as villas, restaurants, usually it need more than one indoor unit, which in turn requires multiple outdoor units.



Midea's Mini VRF air conditioner removes this problem, and retains buildings' original aesthetics.



Auto addressing



Addresses of indoor units can be set automatically by outdoor units. Wireless controller can inquire and modify every indoor units address.

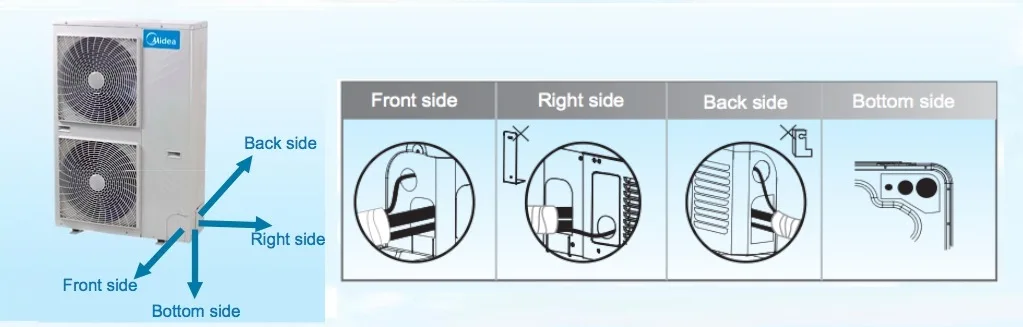

Easy installation



A four-direction space is available for connecting pipes and wiring in various installation sites.





More convenient piping connector - branch box



Easier and safer installation thanks to a branch box that simplifies piping work and the adoption of screw connection.



Both left and right pipe flare connection from outdoor unit to branch box is reserved, which greatly simplifies field installation.



New piping connection design









Introduction ( Mini VRF air condition):



The Mini VRF air condition is a highly efficient solution for small commercial buildings (such as small offices, villas, apartment and shops etc.) that requiring heating and cooling system up to 7 zones in one outdoor unit.



This Mini VRF air condition is a flexible system that bridges the capacity gap between VRF and Multi systems. Ideal for commercial and private applications.





This Mini VRF air condition support piping length up to 328ft, and longer drop difference up to 98ft., max. 7 indoor units can be connected to one outdoor unit, making it perfect for commercial and residential application.
