Algae Tubular Separator Centrifuge
US $6800
High Capacity Ethanol Stillage decanter centrifuge separator machine with reasonable price
- Category: Separation Equipment >>>
- Supplier: Liaoning Fuyi Machinery Co. Ltd.
Share on (1972438778):
Product Overview
Description
Product Description
2 Phase Horizontal Decanter centrifuge

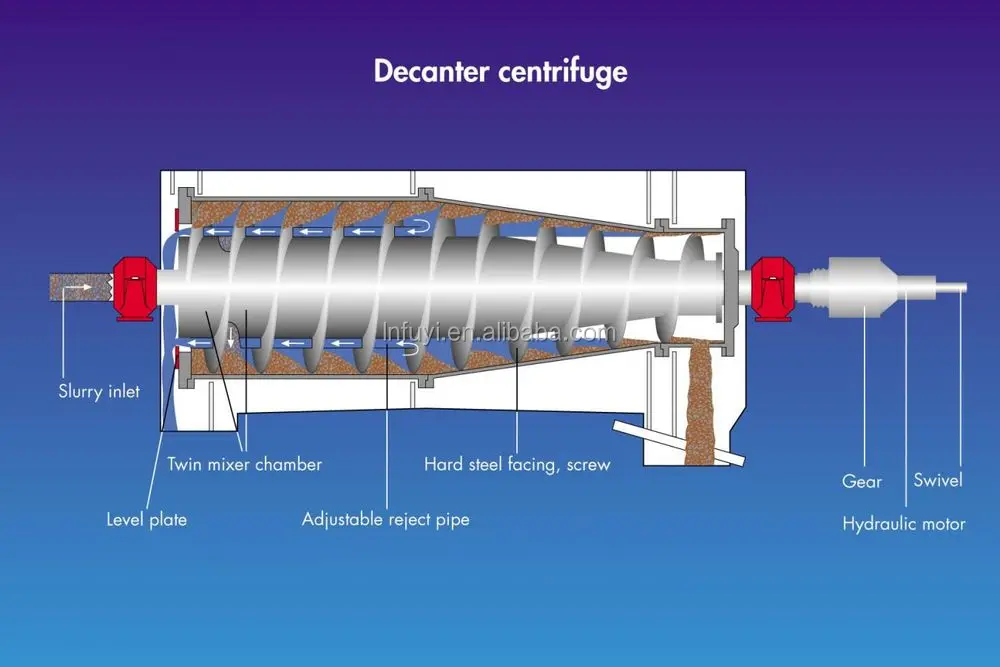

Decanter centrifuge is a horizontal centrifuge with continuous feeding and continuous discharging. The settling speed is determined by particle size,particle shape,difference in density between solids and liquids as well as their viscosity.
Decanter centrifuge is suitable for solid-phase dewatering, liquid-phase clarification and separation, liquid-liquid-solid three phase separation and size-grading of various suspensions with solid-phase particle sizes of 0.005-15mm, consistency of 1-40% and temperature of ≤ 100°C
Features:
1.All parts coming into contact with the product are made of stainless steel
2.3-phase AC motor for controlled torque starting via frequency converter
3.Approximately 80 to 90% of the oil is recovered.
4.Low personnel costs due to continuous and automatic operation.
5. Highest g-force for higher solids output
6. Adjustable bowl speed via VFD
7.Automatic adjustment of differential speed via VFD
8.Two motor drive
9.Belts for both primary motor and secondary
2.3-phase AC motor for controlled torque starting via frequency converter
3.Approximately 80 to 90% of the oil is recovered.
4.Low personnel costs due to continuous and automatic operation.
5. Highest g-force for higher solids output
6. Adjustable bowl speed via VFD
7.Automatic adjustment of differential speed via VFD
8.Two motor drive
9.Belts for both primary motor and secondary
10.NSK /SKF Bearing
The main applications of horizontal centrifuge include:
Separation and dehydration of industrial and domestic sewage, starch washing, grading and dehydration, dehydration of soybean and wheat protein, dehydration of fish meal and fish, dehydration of wine lees, purification of fruit juice and pulp fiber, separation and purification of vegetable oil and vegetable oil, separation and purification of coal tar, classification and dehydration of kaolin and graphite, classification and dehydration of dyes and pigments, Application of classifying and dewatering ore pulp.
Separation and dehydration of industrial and domestic sewage, starch washing, grading and dehydration, dehydration of soybean and wheat protein, dehydration of fish meal and fish, dehydration of wine lees, purification of fruit juice and pulp fiber, separation and purification of vegetable oil and vegetable oil, separation and purification of coal tar, classification and dehydration of kaolin and graphite, classification and dehydration of dyes and pigments, Application of classifying and dewatering ore pulp.
Technical Paramers
Model | Bowl Dia | Bowl Length | Speed rpm | Capacity | Main Motor Power | Weight | Size |
LW220 | 220 mm | 930mm | 5000 | 0.5-5 T/h | 7.5 KW | 1200kg | 2420*700*1010mm |
LW300 | 300 mm | 1200mm | 4000 | 0.5-5 T/h | 11KW | 1500kg | 2680*830*1280mm |
LW355 | 355 mm | 1600mm | 3800 | 1-10 T/h | 15 KW | 1850kg | 3490*860*1200mm |
LW400 | 400 mm | 1800mm | 3650 | 2-15 T/h | 18.5KW | 2500kg | 3890*1020*1200mm |
LW450 | 450 mm | 2000 mm | 3650 | 3-20 T/h | 22 KW | 3000kg | 4297*1080*1385mm |
LW500 | 500 mm | 2000mm | 3000 | 5-45 T/h | 30 KW | 3800kg | 4330*1140*1470mm |
LW530 | 530 mm | 2280mm | 2900 | 10-60 T/h | 45 KW | 5000kg | 4924*1170*1540mm |
LW550 | 550 mm | 2200mm | 2780 | 15-80 T/h | 55 KW | 5580kg | 4395*1370*1655mm |
LW580 | 580 mm | 2500mm | 2500 | 20-80 T/h | 55 KW | 6500kg | 5205*1270*1540mm |
LW650 | 600 mm | 2800mm | 2270 | 30-120 T/h | 75 KW | 7000kg | 4200*1900*1350mm |

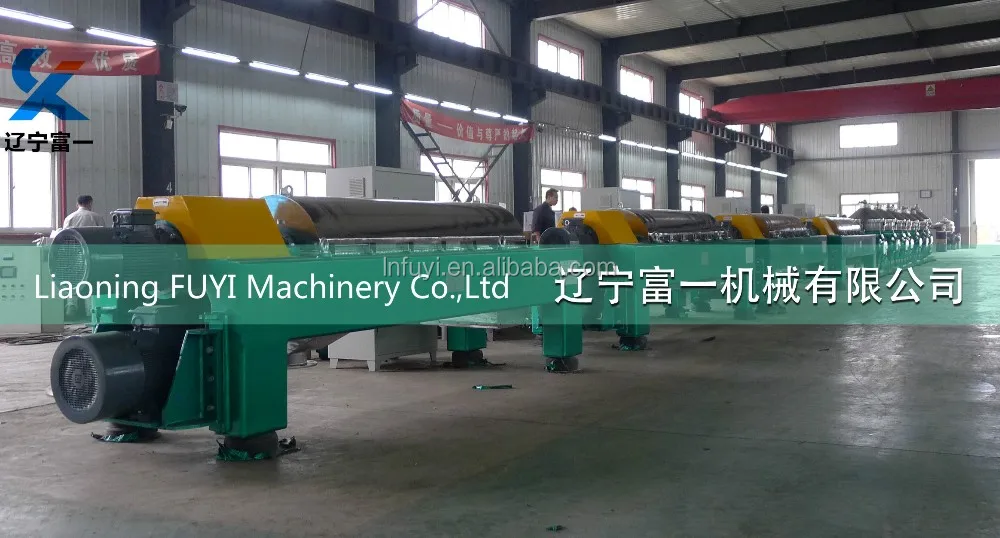

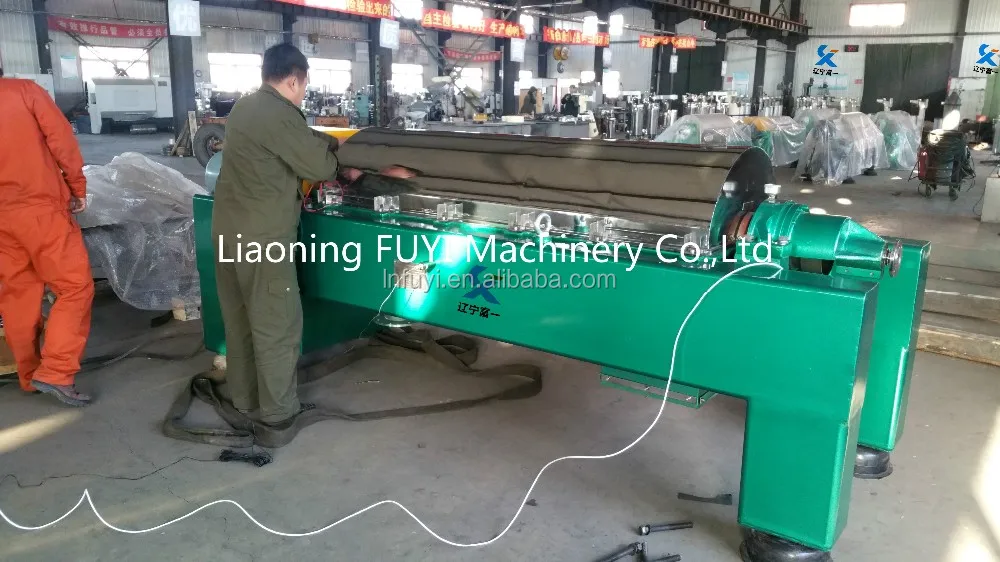

Customer factory
Details
Related products
Company
1,Liaoning FUYI Machinery Co.,Ltd was established in June 2011 formerly known as Liaoning Sunny Pharmaceutical Machinery Co.,Ltd .Specially manufacturing centrifuge over 35 years .
2,FUYI is specializing in the production and design of Disc centrifuge ,Tubular centrifuge ,Decanter centrifuge separator which are widely used in the Food and Dairy , Pharmaceutical and Medicine, Beverage,Plant Oil,Animal oil production.
3,FUYI Separator provide solution to all technological problems of liquid and solid with more than 30 years experience in the centrifugal separation market. For better separation result , every series products is
designed and manufactured based on the different liquid materials thus customer can achieve perfect separation performance.
4, FUYI separator promise to provide the most professional technology and advanced quality product for global customers.
designed and manufactured based on the different liquid materials thus customer can achieve perfect separation performance.
4, FUYI separator promise to provide the most professional technology and advanced quality product for global customers.
5,Our company stocks many kinds of trial machine for customer taking materials to test and examine .We can offer our customers free separation test, We made the Standard, we beyond it. Welcome you come to FUYI for visiting and guiding.
Factory Size: 33000 square meters
Year Established: 2011
Total Revenue : US$1 Million - US$2.5 Million
Main Markets: Central America, Mid East, Oceania, Africa, South America
Factory Size: 33000 square meters
Year Established: 2011
Total Revenue : US$1 Million - US$2.5 Million
Main Markets: Central America, Mid East, Oceania, Africa, South America
FAQ
Q1: Where is your factory? How can I visit there?
A1: Our factory location is Liaoyang City , Liaoning Province, China.If want to visit our company , you can fly to Shenyang
Taoxian Airport .
Q2: Do you have technicians for installation?
A2: We are responsible for the installation in your country, you can also arrange your staffs to our factory to learn how to
operate the machines, after purchased ,we offer English manual book and operation videos.
Q3: What's your advantages compared to your competitors?
A3: Quality and experience, as evidenced by 40 patents and over 35 years of experience.
Q4: What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc
A1: Our factory location is Liaoyang City , Liaoning Province, China.If want to visit our company , you can fly to Shenyang
Taoxian Airport .
Q2: Do you have technicians for installation?
A2: We are responsible for the installation in your country, you can also arrange your staffs to our factory to learn how to
operate the machines, after purchased ,we offer English manual book and operation videos.
Q3: What's your advantages compared to your competitors?
A3: Quality and experience, as evidenced by 40 patents and over 35 years of experience.
Q4: What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc
