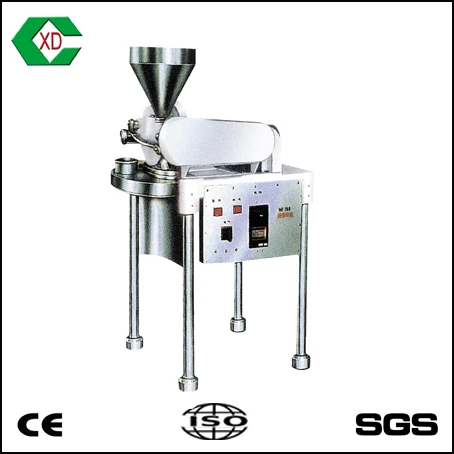

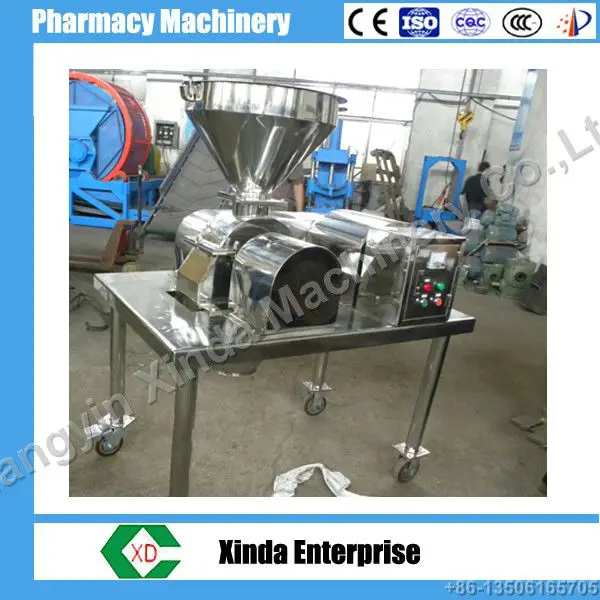

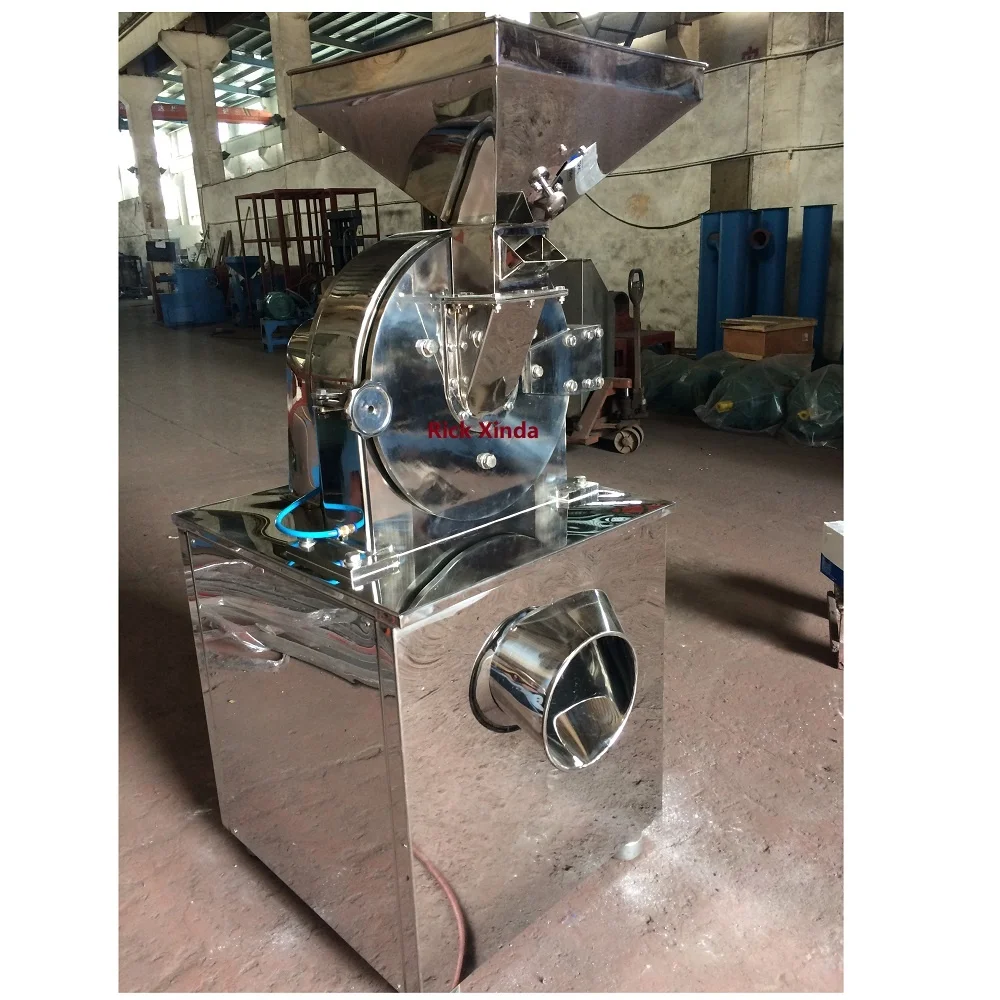

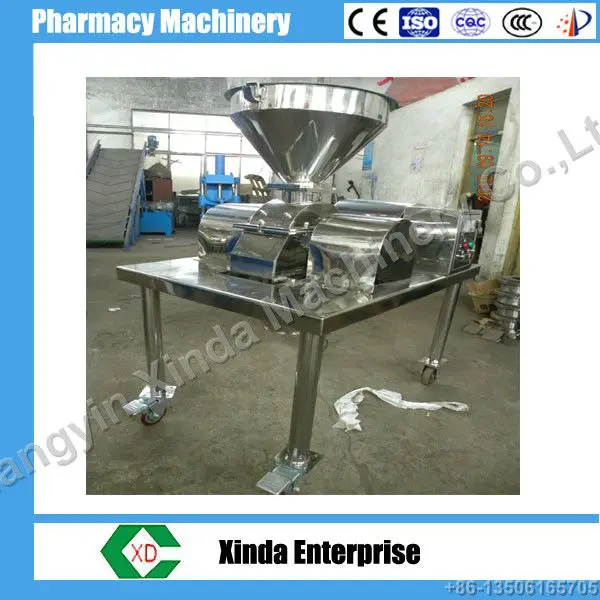

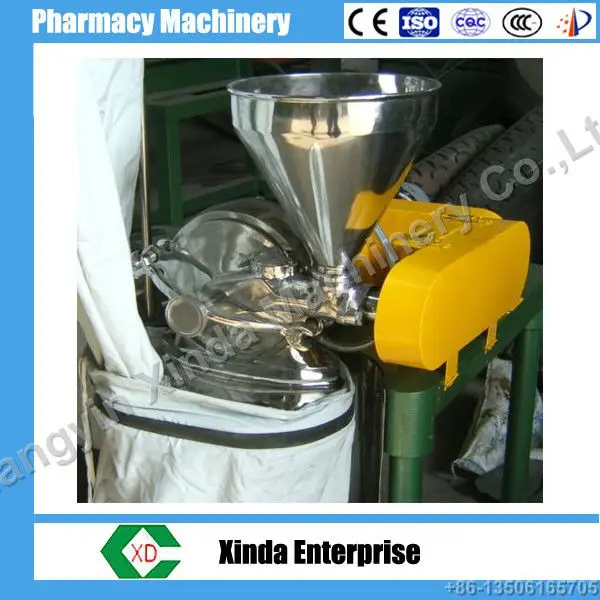

CF Food Spice Powder Chemical Hammer Mill pulverizer

Product Overview

Description



The machine is applied in industries such as pharmaceutics, chemical and foodstuff, etc, representing a new generation combining pulverization and dust absorption.

Working Method

As a hammer style pulverizer , the machine . with cool water jacket in crushing chamber ,util-izes

High speed rotary hammer to crush the raw material fed from feeding funnel and rotary convey-er. The whole machine, with easy structure, is made of stainless steel, thus to make the pulverized material meet the “GMP” requirement. The pulverizing chamber is easy to dismantle and clean.

Technical Data

Model	180	320
Capacity	10-90	50-300
Size of input granules	≤3	≤5
Fineness of products(Mesh)	40-200	40-200
Speed of principal axis	10000	6800
Main power	2.2	7.5
Feeding power	0.18	0.18
Weight	250	380
Overall size(L×W×H)	800×550×1126	1100×650×1550
