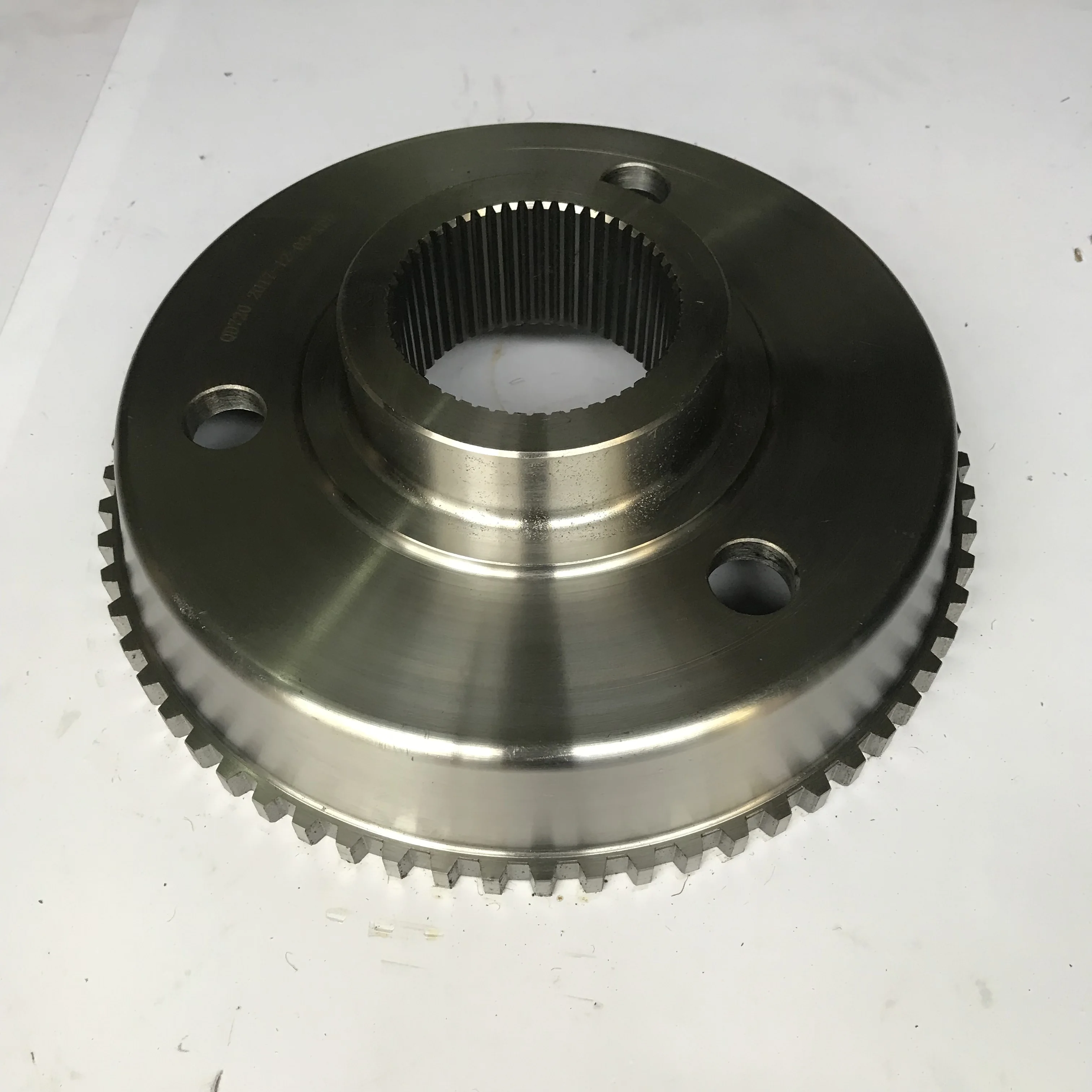

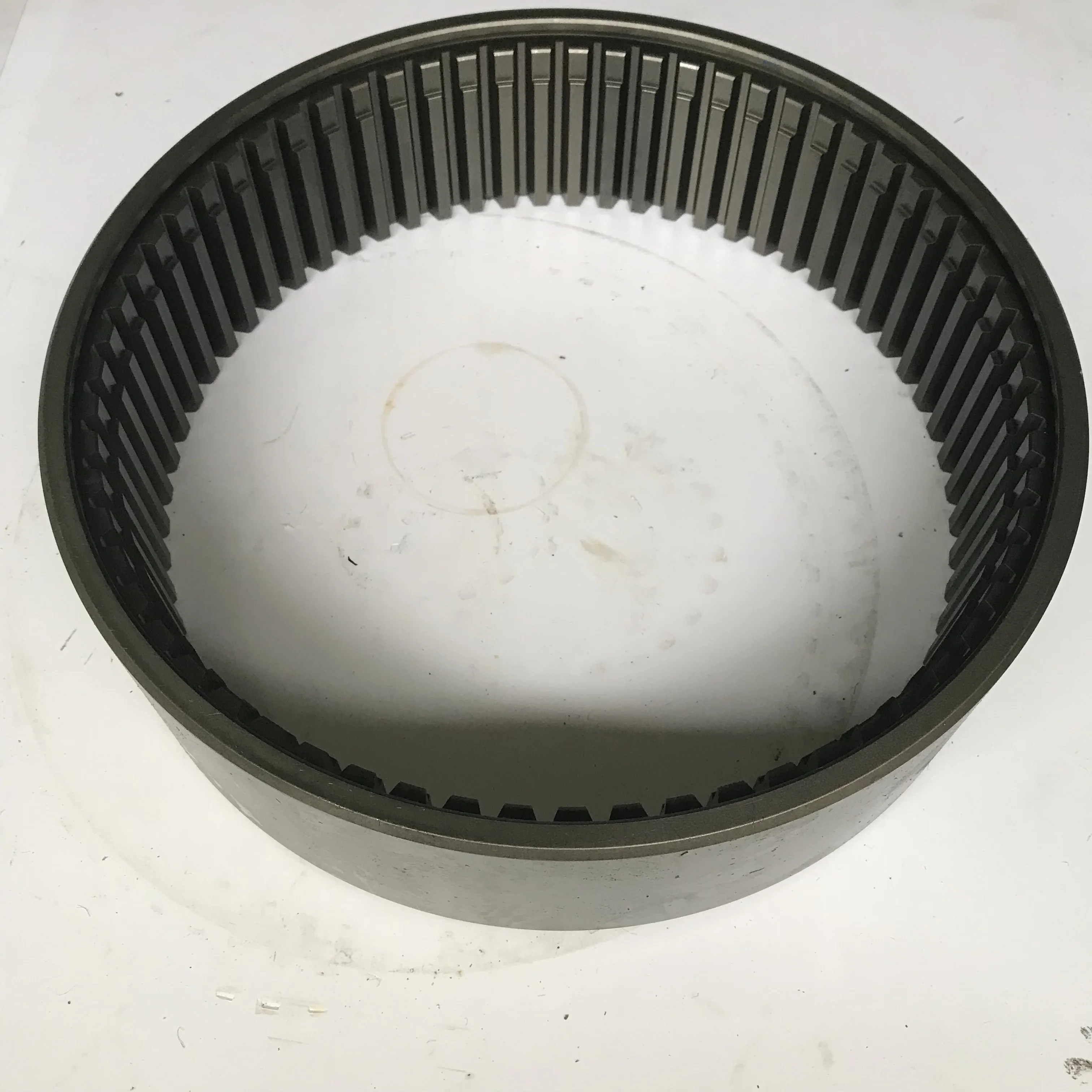

XGMA Wheel Loader Parts XG962 XGMA Inner gear bracket of wheel edge 71A0043 Internal gear 48A0001
- Category: >>>
- Supplier: XIAMEN DOOLIN MACHINERY CO LTD
Share on (1977696164):
Product Overview
Description
Products Info:
XGMA Loader Parts XG962 Sprocket Supporting 71A0043

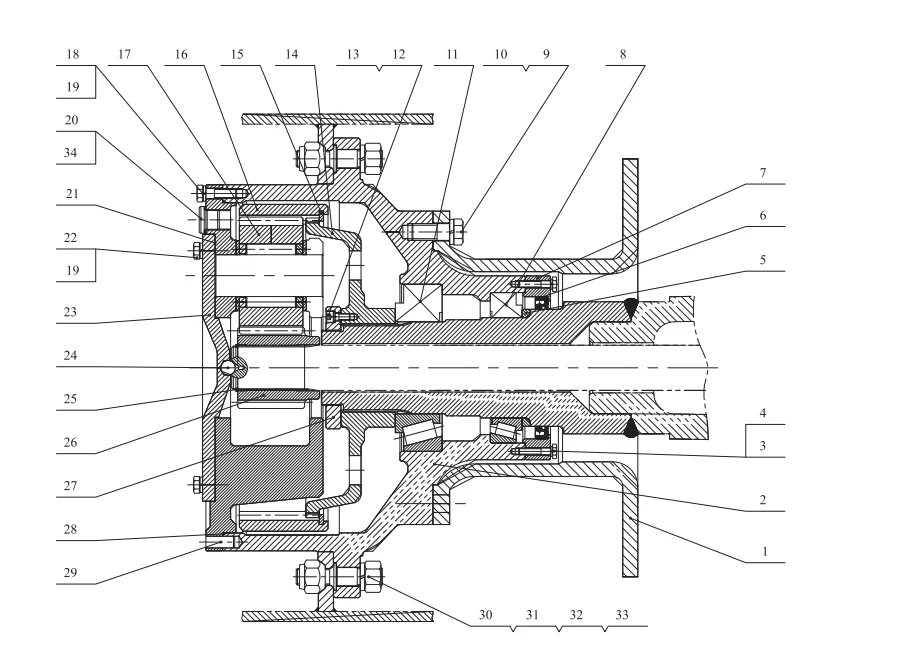

More Models for ref:
| NO. | Part No. | Part Name | NO. | Part No. | Part Name |
| 1 | 52A0024 | disc | 18 | 00B0128 | bolt |
| 2 | 24A0092 | hub | 19 | 06B0013 | washer |
| 3 | 01b0064 | bolt | 20 | 03B0715 | plug |
| 4 | 06B0009 | washer | 21 | 07B0069 | shims |
| 5 | 06B0048 | washer | 22 | 01B0376 | bolt |
| 6 | 12B0013 | seal | 23 | 24B0093 | cover |
| 7 | 52A0019 | cover | 24 | 30B0003 | ball |
| 8 | 33B0005 | bearing | 25 | 07B0015 | snap ring |
| 9 | 01B0049 | bolt | 26 | 41A0038 | sun gaer |
| 10 | 06B0001 | washer | 27 | 00B0241 | nut |
| 11 | 33B0019 | bearing | 28 | 10B0129 | o ring |
| 12 | 06B0034 | washer | 29 | 08B0055 | pin |
| 13 | 04B0095 | screw | 30 | 03B0071 | nut |
| 14 | 71A0043 | ring hub | 31 | 02B0069 | rim bolt |
| 15 | 07B0070 | snap ring | 32 | 06B0065 | washer |
| 16 | 48A0001 | snap ring | 33 | 03B0057 | nut |
| 17 | 51C0193 | shims | 34 | 06B0007 | washer |
More Parts:
Company Introduction:
Xiamen DooLin Construction Machinery Co., Ltd, with years of professional providing in a wide range of construction machine spare parts. We have a stock of wheel loader and road roller parts.
Quality Control:
Using advanced technology, experienced engineer and professional management system,high efficiency. The products are controlled by international quality standard.
