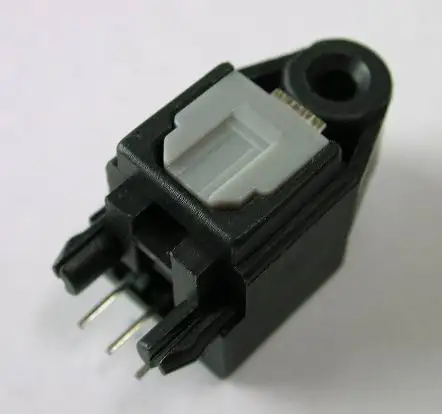

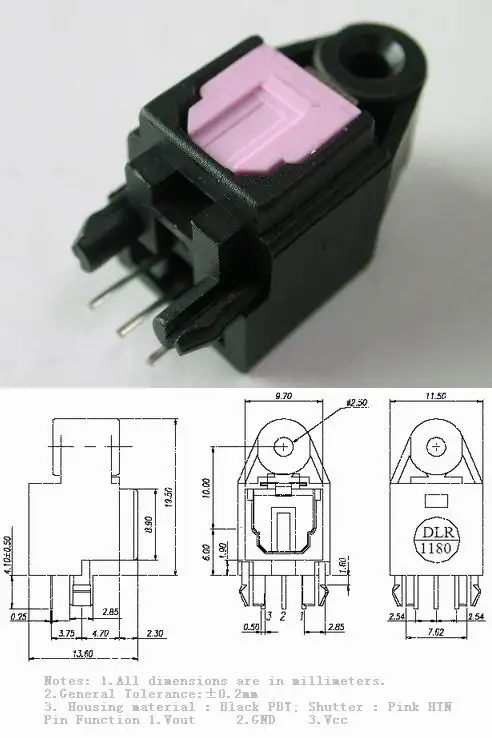

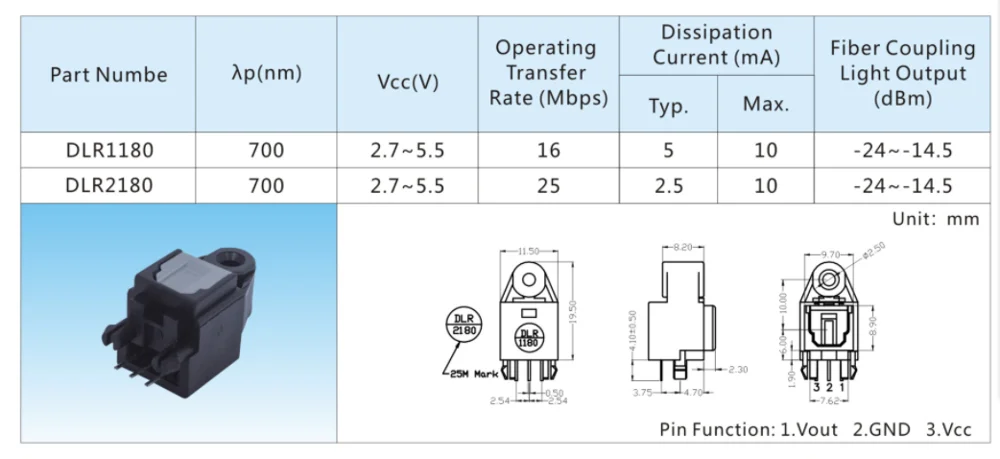

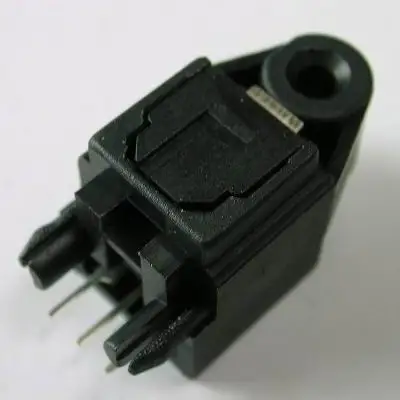

16M optical audio toslink spdif jack DLR1180

Product Overview

Description

Features

· High PD sensitivity for red light

· High speed up to 16 Mbps

· Low power consumption and current dissipation

· +5V power source

Descriptions

The light receiving unit is a standard-package product with connector and opto-electric component packaged with PD and I/V amplifier IC. The function of unit changes the light signal into electric signal.

The unit is operated at +5V and the input signal is TTL compatible. The DLR1180 has a maximum operating speed of 16 Mbps.

Applications

· Audio equipment

· Digital optical data link

· MD

· Sound card

 Optical Fiber Connector Receiver
