Фабричный карьер, одноразовый горный штемпельный камень, стальной гидро мешок

Product Overview

Description

    Factory Quarry Disposable Mining Striping Stone Steel Hydro Bag





Products Feature:

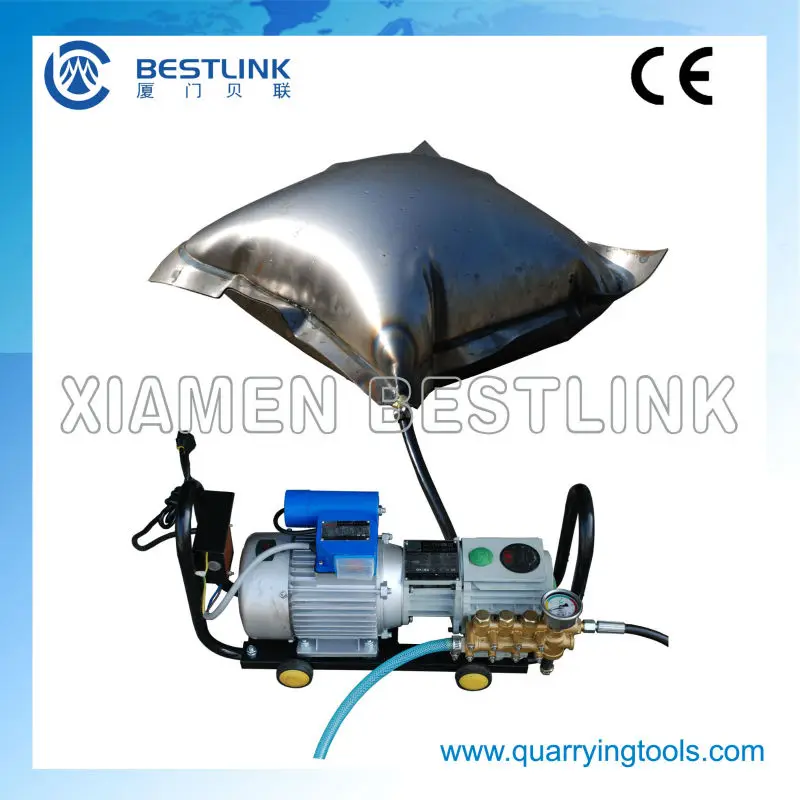

The steel cushion Hydro Bag is widely used in the marble and stone quarrying industry,specially for stripping blocks from the mountain. The revolutionary aspect of the HYDRO BAG equipment lies basically in the possibility of stripping blocks up to 1000 tons or more, without the need to prepare slots to house the jacks since the HYDRO BAG has an original thickness of just 2 mm (0.08") and can be easily slipped into the wire saw cut.



A complete HYDRO BAG equipment consists of:

1. Electric or pneumatic pump unit to create the pressure for the cushions;

2. Safety valves and distribution valves;

3. Pipes, cocks and inlet filters;

4. Quick couplings;

5. A series of HYDRO BAG cushions.



Main Technical Data:



Specification	Theoretical Pushing Capacity	Net weight (kg)
50*50cm	75 tons	2.5 kgs
100*50cm	150 tons	5.0 kgs
100*100cm	300 tons	10.0 kgs
100*200cm	600 tons	20.0 kgs
150*150cm	675 tons	22.5 kgs

More specification according to your demand!



Pump Unit:



Item	Power	Specification	Weight
High Pressure Water Pump	Electric	2 phase, 220V/50Hz	25.0 kgs
High Pressure Water Pump	Pneumatic	air consumption 2 cbm/min, 5-7 bar	25.0 kgs





For more info.:



More photos for this steel hydro bag, and show you how it working.





Package for the quarry stone Hydro bag:



This Quarry Stone Pushing Tools Steel Hydro Bag will be packing into the wooden case, if the qty is enough. If you only need a few quatities, those hydro bag will be packed with a steel packing belt.
