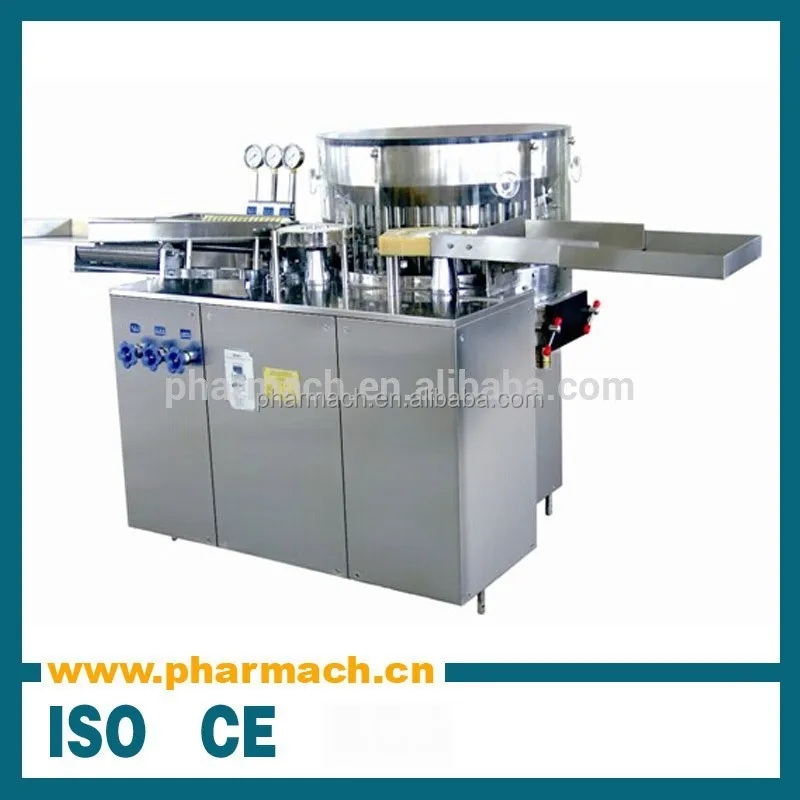

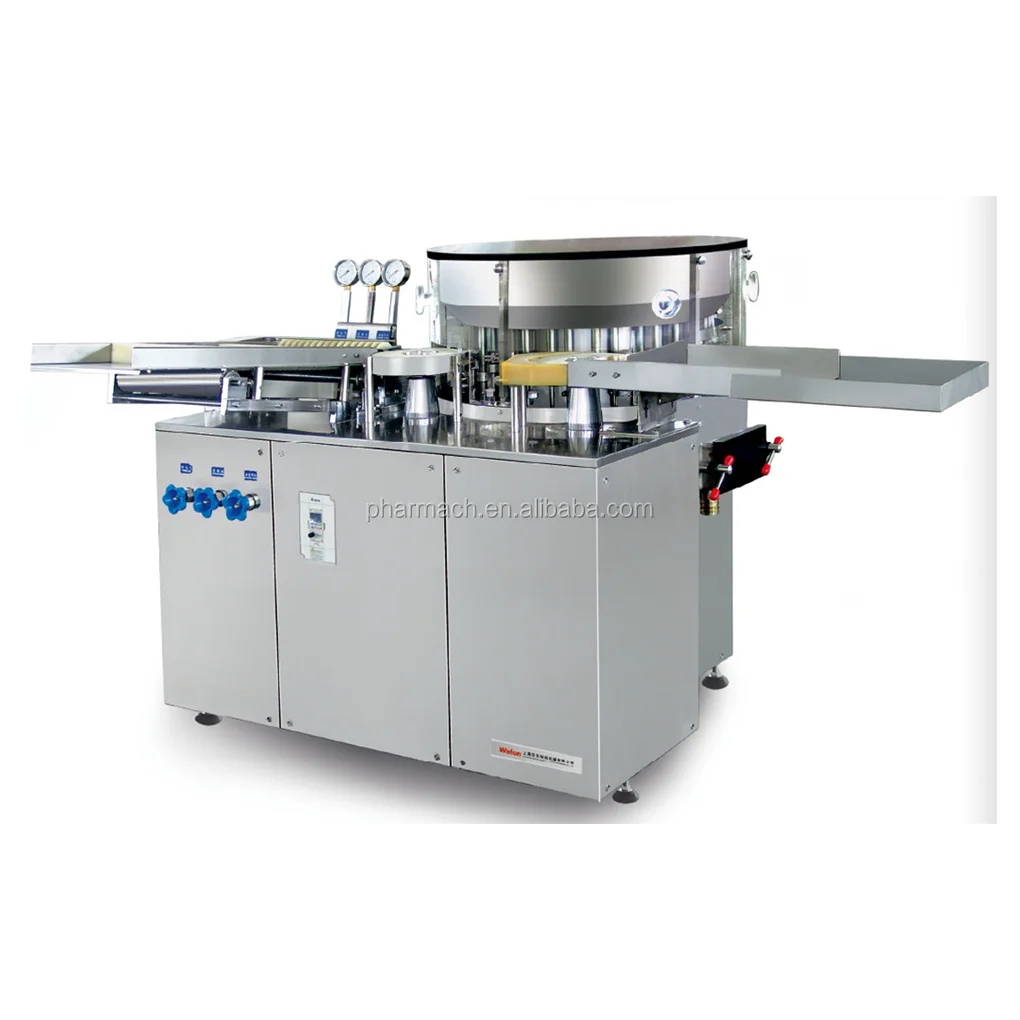

Fully automatic Ampoule Vial washing machine

Product Overview

Description

KAQ Series Ampoule washing machine

1. Brief introduction:

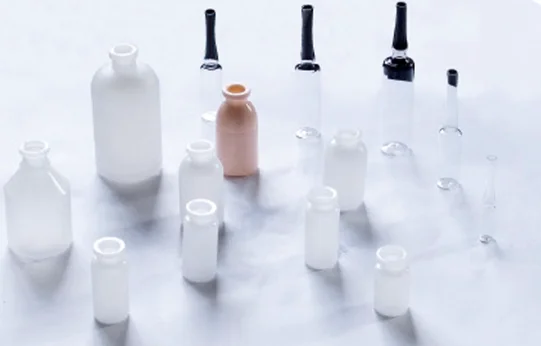

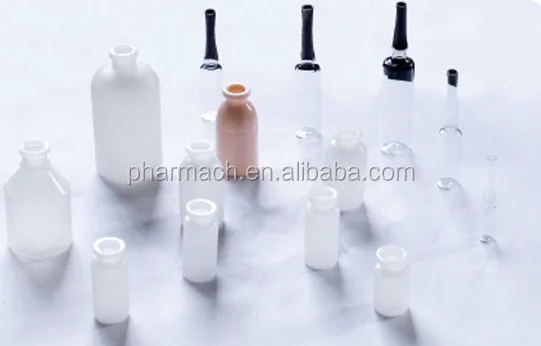

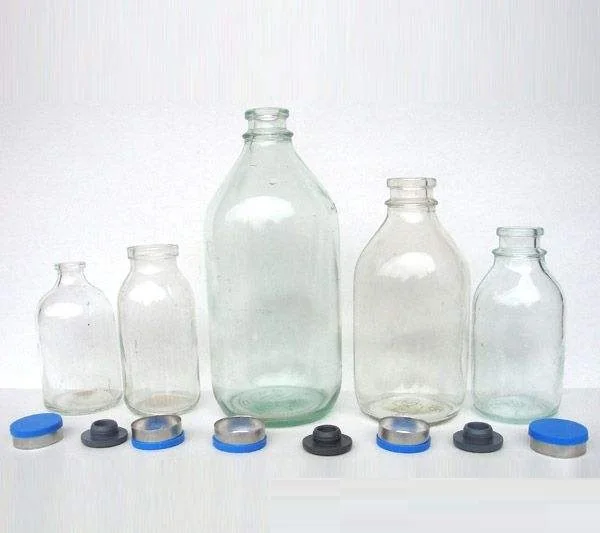

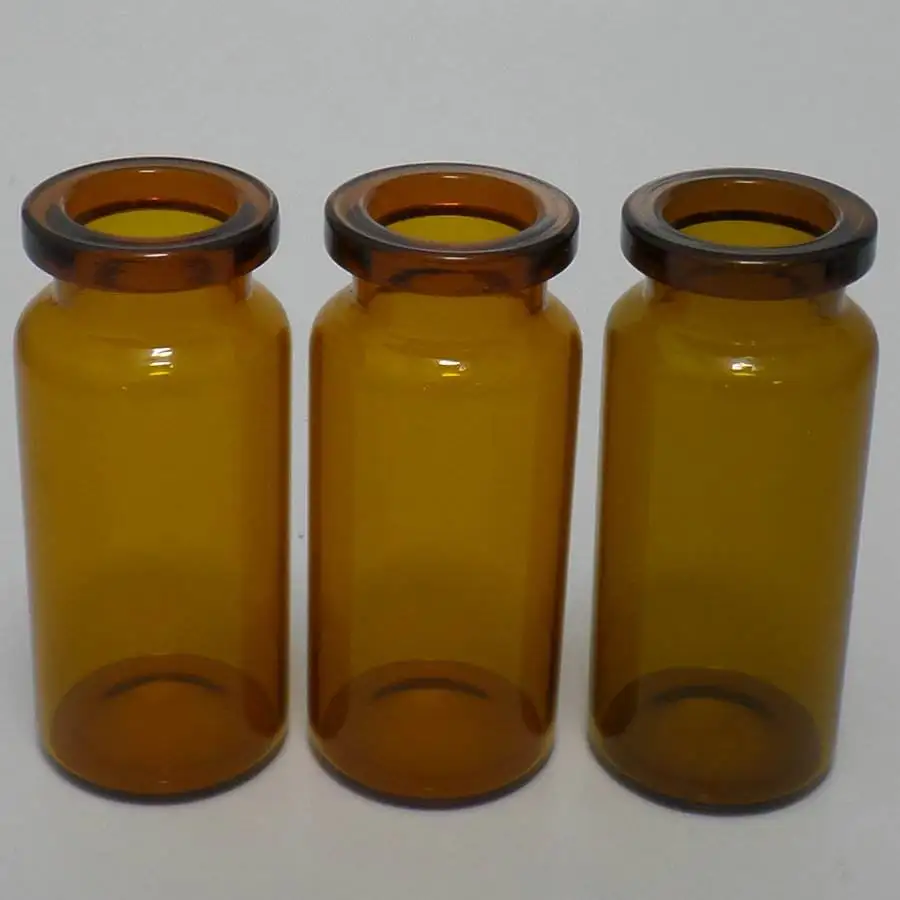

Kaq series rotary vial washing machine is small washer which our company recommends to our customer in recent years. It is suitable for small batch production and sample drug production in laboratory. The suitable bottles are ampoules, vials, plastic bottles and straight bottles.



2. Technique parameters:

Voltage	380V 50Hz
Power	0.65Kw
Water pressure	0.25Mpa     consumption:0.35m3/h
Pure water pressure	0.25Mpa     consumption:0.7m3/h
clean air pressure	0.15-0.25Mpa  consumption:40m3/h
Noise	≤70dB
Weight	approx. 600Kg
Dimension(L×W×H)	1450×1560×1300mm



3. Capacity:

1-2ml	100-120bottle/min
5-10ml	100bottles/min
20ml	60bottles/min



4. Working principle:
This machine consists of conveyor, bottle feeding manipulator, water and air filter and washing needle. Coarsely washing is conducted by the first 2 working station to wash the inner and outer wall of the bottles. Finely washing use purified water, wfi and compressed air to wash the inner and outer wall of the bottles alternately. It reaches the qa standard of pharmaceutical company for packing bottles.

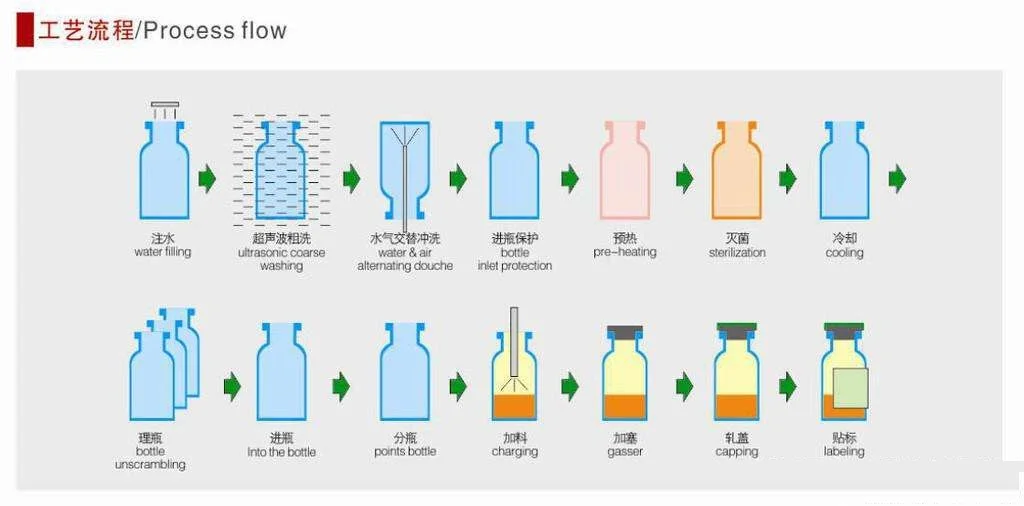

Washing process: the bottles come through conveyor, screw conveyor, star wheel and then to the pliers in the turntable. The manipulators will rotate the bottles by 180 degree, and then the needle will spray water and air alternately by tracing the bottles. Finally, the manipulators will rotate the bottle by 180 degree again and then push them to the bottle reclaiming tray.


5. Characteristic:
Small volume, easy operation.

Water and air come through separate 0.2Μ and 0.45Μ filter, clean degree is high.

“3 Water,3 air”alternated rinser designing more reasonable.

Contact part with water and air is made of stainless steel or silicone rubber and ptfe, no peel off or contamination.

Wfi water consumption is low, can used as circulation water.

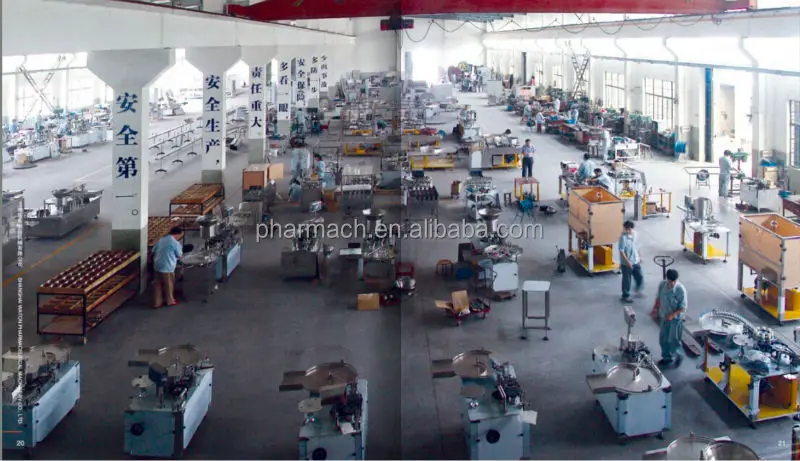

6. Working room:
