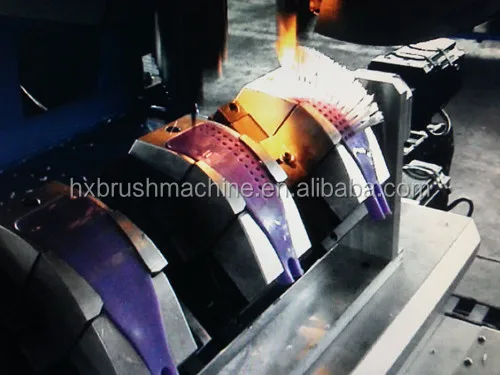

automatic high speed flat wire brooms brush making machine

Product Overview

Description



  brush machines/tuft brush machines/dourble head tuft brush machines



 Machine Feature:

1. This machine is a brush tufting machine, suitable for all kinds’of flat brushes, the diameter of the hole from 1.8-4.0mm and the max fiber height is 40mm(outside the hole)

2. Bored with single head, high speed processing, high volume, cost effective
3. Used CNC controller with finger touch screen, Chinese and English display, easy to understand and operate
4. Wearing parts and spare parts are standardized designs easy for engineer to adjust and set up



Technical Paremeters for 2 Axis Double Heads Brush Anchor Tufting Machine:

Item	Model	GS402T
1	Tufting Style	Anchor tufting
1	NO. of Axis	2 Axis
3	Max Length of The Fiber (Outside The Hole)	40mm
4	Max Speed:	1200 Hole/Min two heads
5	Diameter of The Hole	1.8-4.0mm
6	Journey of X Axis	300mm
7	Journey of Y Axis	300mm
9	Max Program Quantity	100 Pcs
10	Air Pressure:	6 Mpa
11	Power Voltage:	220V, 50HZ
12	Machine Power:	2 KW
14	Size:	1100*1150*1830mm
16	Weight:	950KG



Control System	CNC Controller
Disturbance Display	English edition
Safty Protection	Overload,Short circuit protection
Lubrication	Auto Lubrication System
Main Speed Control	Frequency inverter
Fiber box	Frequency inverter





FAQ

1.Q: Are you factory?

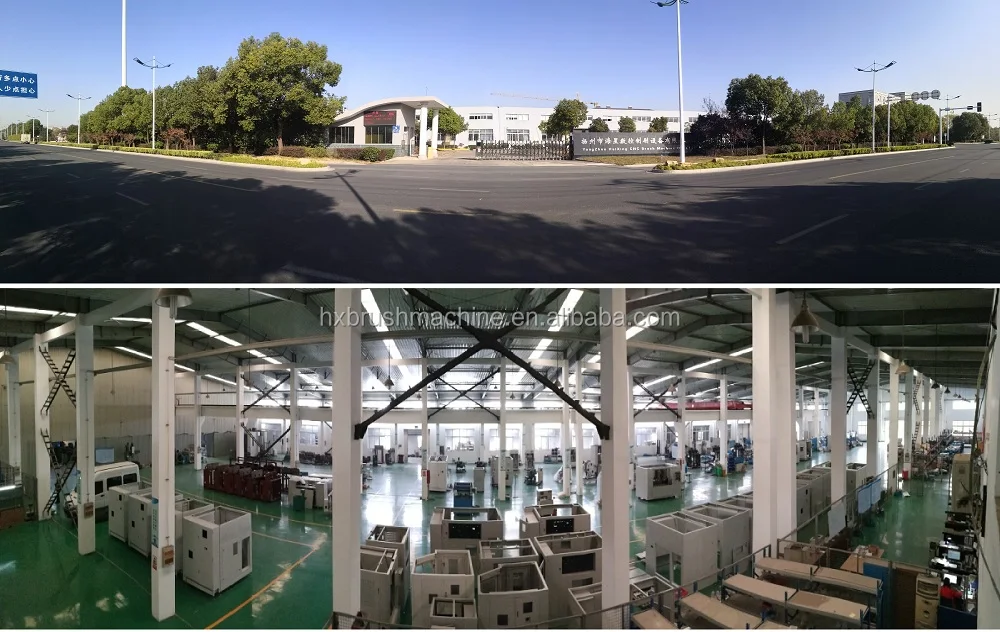

A: yes, sure, you can see our factory picture, and welcome to visit our factory.





2. Q:How to visit your factory?

A: our factory is about 2 hours from shanghai by train.





3. Q:Can you teach us how to use the machine?

A: yes, sure.





4.Q: How can we know if your machine can make the brush which we need?

A: you can send us brush picture or brush samples, then we can check and give you reply quickly.





Any query, please contract us. let us know what can we do for you.
