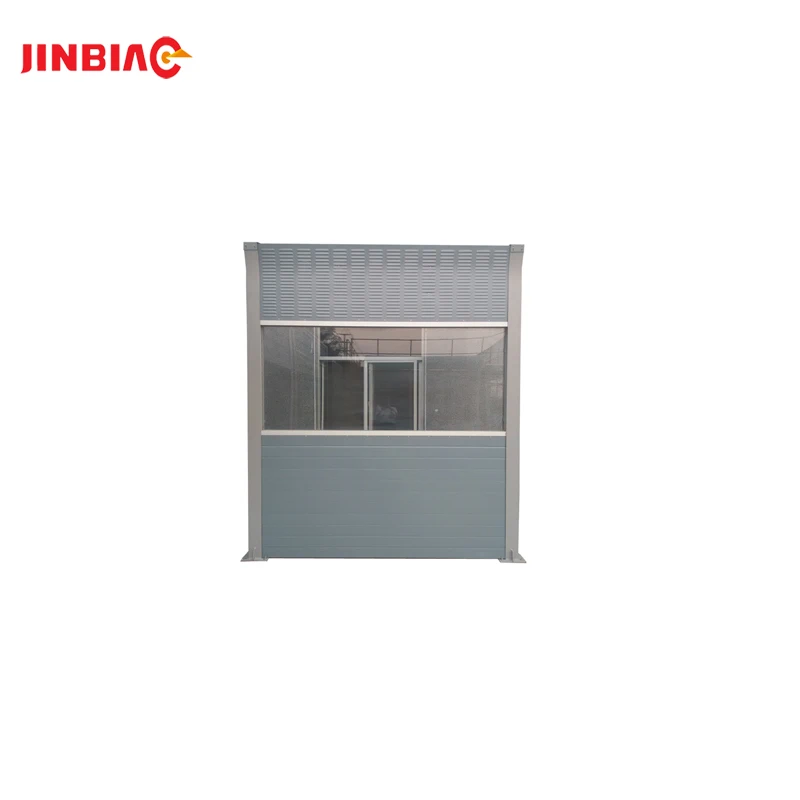

High speed road Noise Barrier/ sound insulation barrier/ wall Noise barrier

Product Overview

Description

Sound barrier/ Wall Noise Barrier/ Highway Noise Barrier





Wall Noise Barrier Specifications:

Wall Noise Barrier Thickness: 6 to 16mm
Wall Noise Barrier Maximum width: 2,100mm
Wall Noise Barrier Length: any dimension
Wall Noise Barrier Specific gravity: 1200kg/cbm
Wall Noise Barrier Colors: clear, blue, green, opal, brown,bronze,etc.



Wall Noise Barrier Technical features:
Impact strength: 850J/m ,the impact strength of solid PC sheets is 250 times
that of glass, 20-30 times of PMMA sheet
Light transmission: 80%-90% for different thickness of clear color

UV resistance:with our 50μm thickness UV layer ,the sheet can filter 99% ultraviolet radiation in sunlight
Specific gravity: 1.2 g/cm
Coefficient of thermal expansion: 0.065 mm/m^oC

Temperature: -40^oC to 120^oC

Heat conductivity: 2.3-3.9 W/m^{2   oC}
Tensile strength: >60N/mm²
Flexural strength: 100N/mm²
Modulus of elasticity: 2,400mPa
Tensile street at break: >65mPa
Elongation at break: >100%
Specific heat: 1.16J/kg^k
Heat deflection temperature: 140^oC
Soundproof index:6mm--29dB,8mm--31dB,10mm-32dB 12mm--34dB



	LSE 1000	LSE 2000
Length	38.75”	73.00”
Width	6.00”	6.00”
Height	10.50”	10.50”
Stack Height	9.87”	9.87”
Area	2.5sf	5.0sf
Weight/SF	5.0lbs.	5.0lbs.
Panel Weight	11.75 lbs.	23.25 lbs

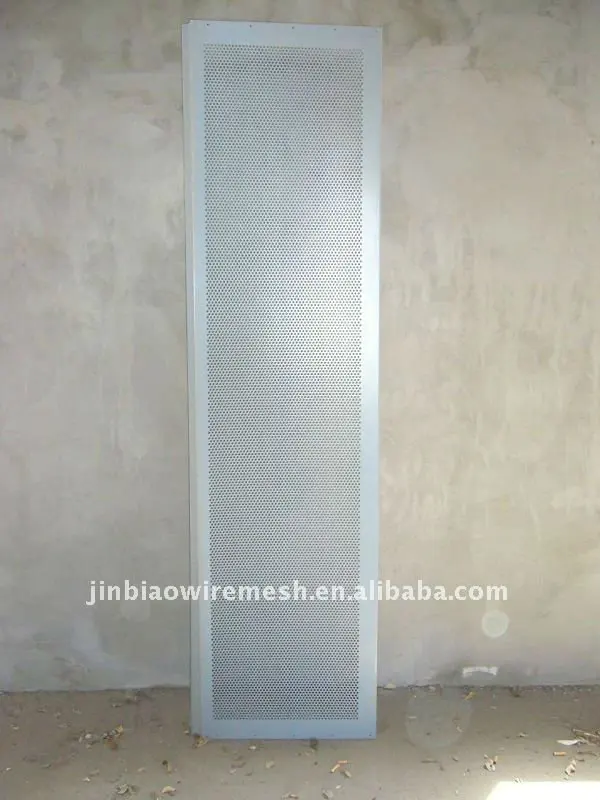

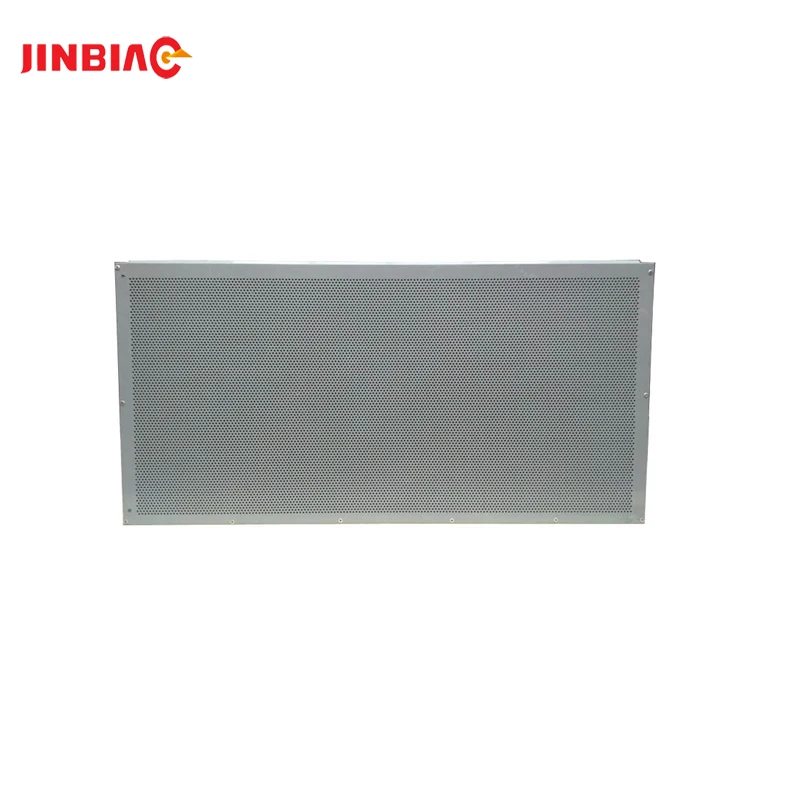

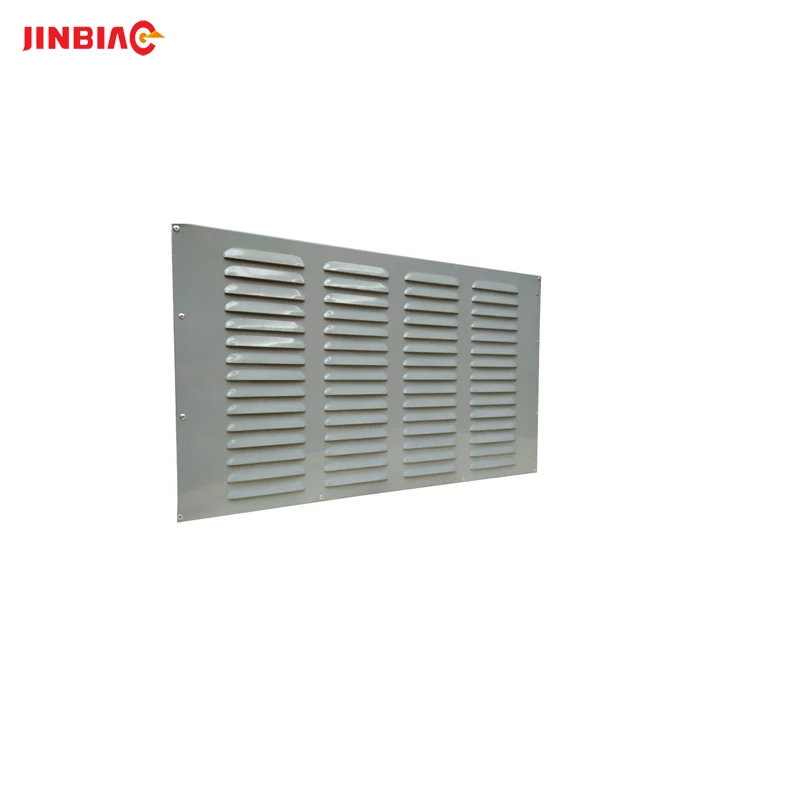

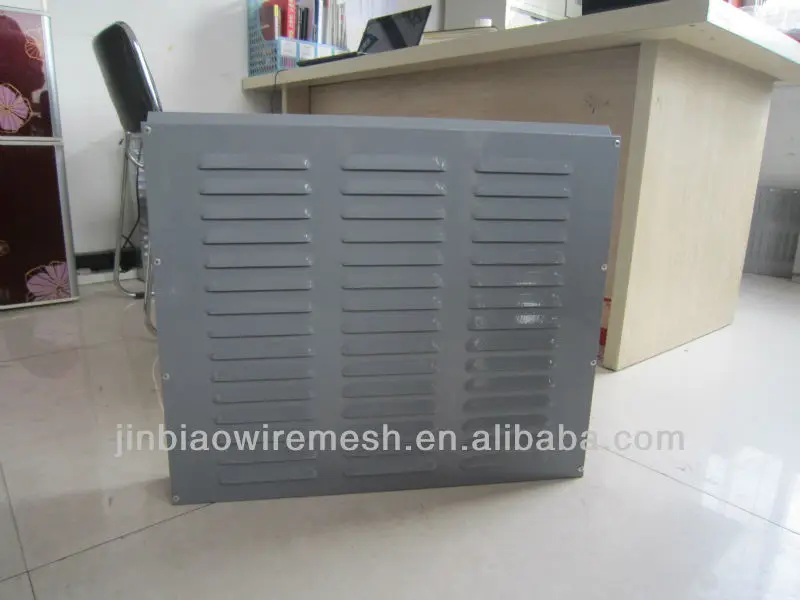

Wall Noise Barrier Panels

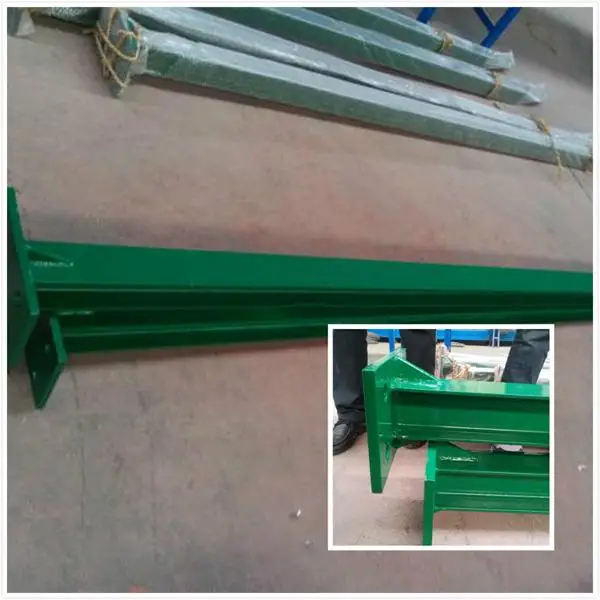

Wall Noise Barrier H Steel Post

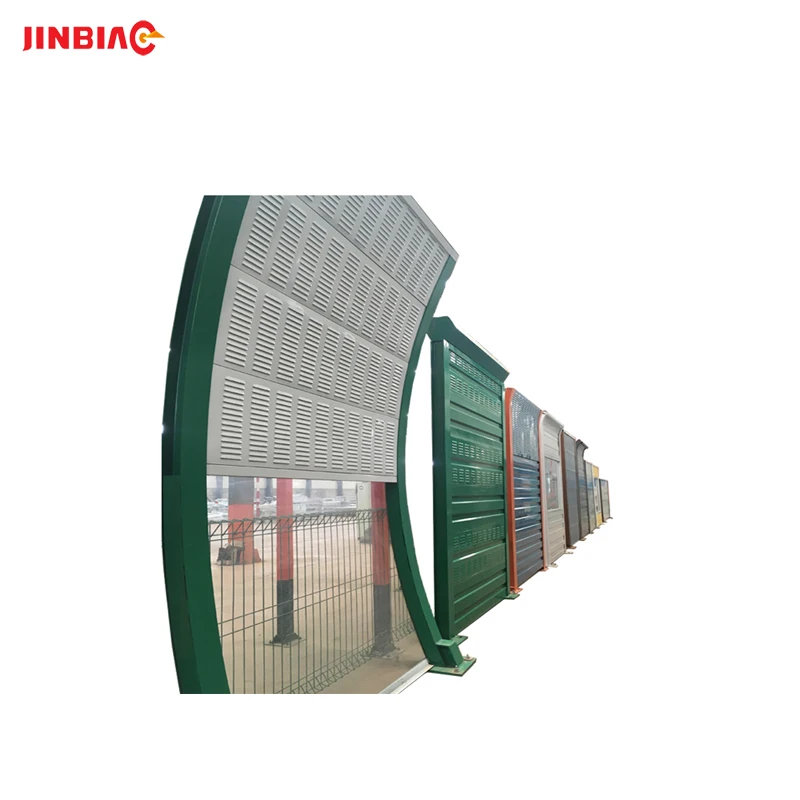

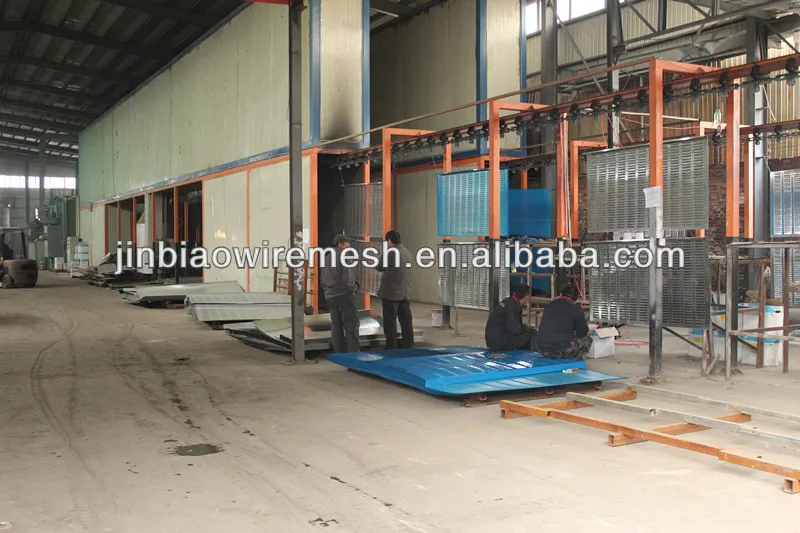

Wall Noise Barrier Workshop

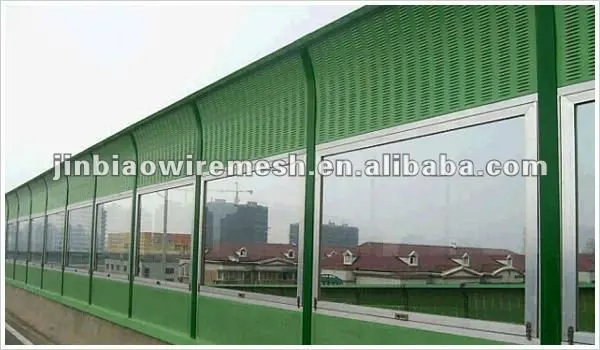

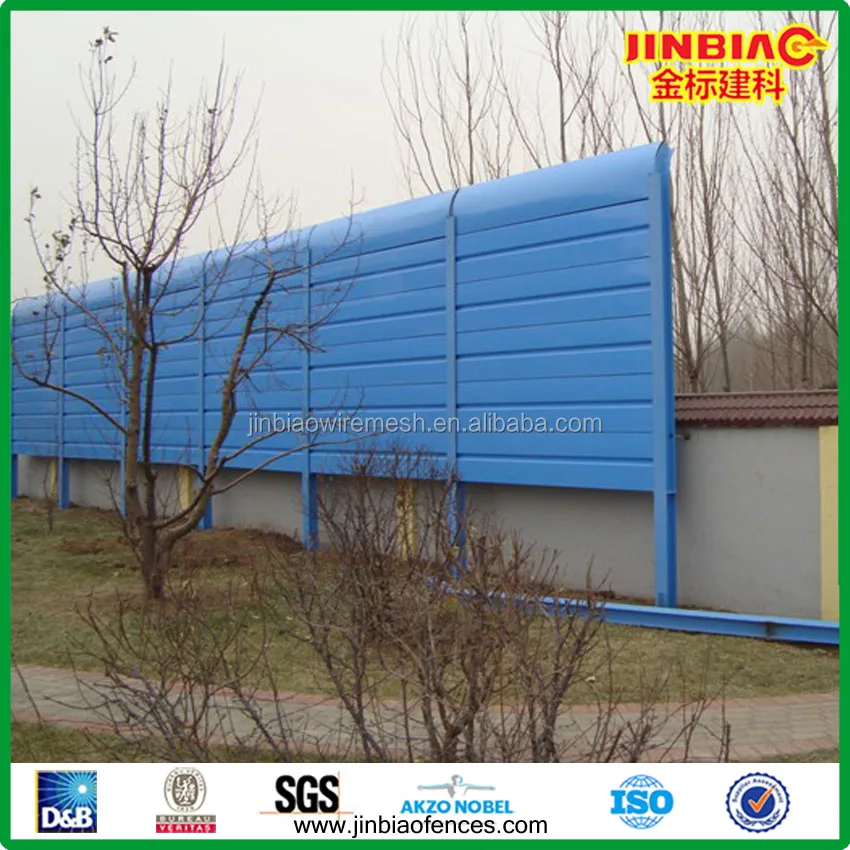

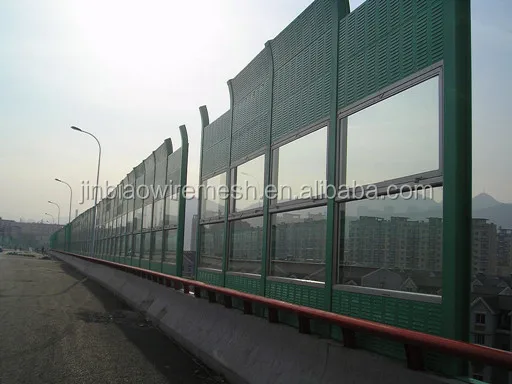

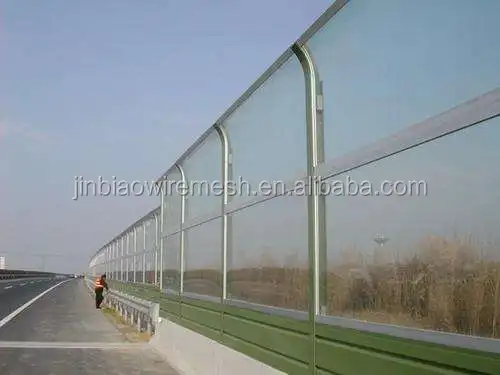

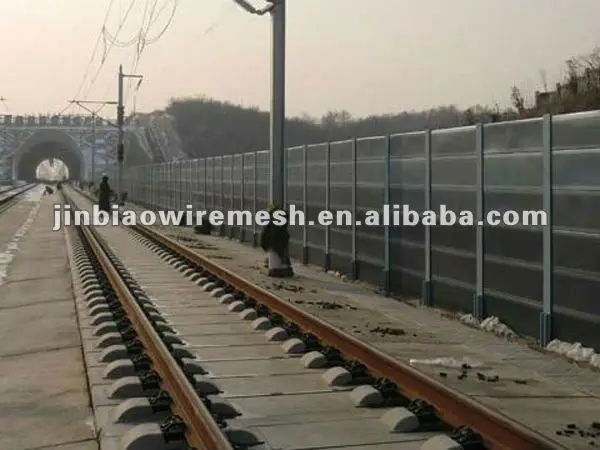

Wall Noise Barrier Application
