Product Description
Ritai is a professional manufacturer for all kinds of stainless steel tanks, such as mixing tank, reactor, storage tank, fermentor, bioreactor and CIP tank.
Ritai, which has three factories, is one of the biggest manufacturers of stainless steel tanks in China.

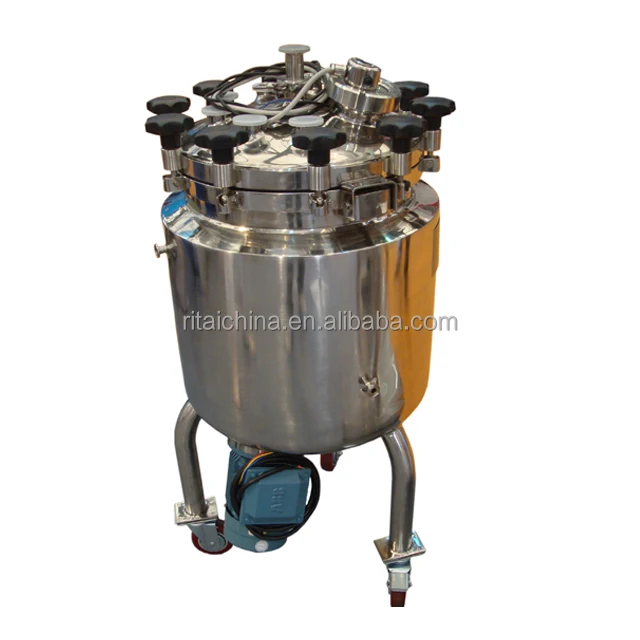

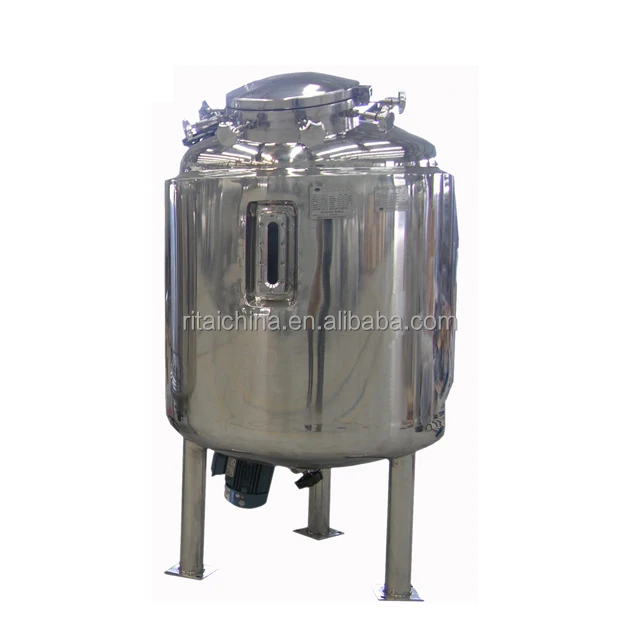

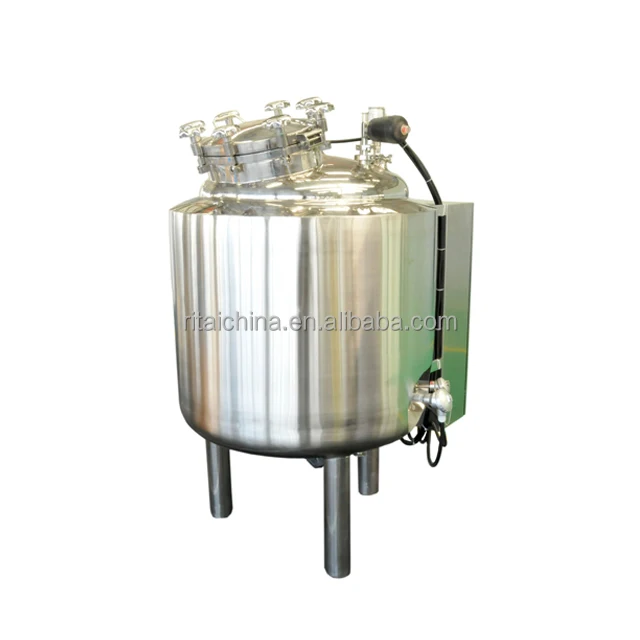

Name: stainless steel magnetic mixing tank with coil jacket/dimple jacket/full jacket
Application:
It is applied to liquid preparation and various water treatment process in purgative area,such as infusion
solution, injection solution, eye drop, oral liquid and blood preparation. It is used for mixing liquid
products in pharmacy, chemistry, biology, food and drinks fields.
solution, injection solution, eye drop, oral liquid and blood preparation. It is used for mixing liquid
products in pharmacy, chemistry, biology, food and drinks fields.
We have different kinds of agitators.
Bottom magnetic agitator with propeller impellers. The range of its rotating speed is 50-400rpm or 50-800rpm. It is applied to many products, such as eyedrop, injection, CIP liquid, and water, media culture, or simialr products , etc.
Top mechancial agitator with propeller impellers. The range of its rotating speed is fixed 71rpm or adjustable 20-200rpm, or we can make it according to your special requirements. This kind of agitator is applied to mix syrup, injection, blood, oral liquid, and culture media, etc.
Top mechanical agitator with anchor or frame impellers, its rotating speed is from 10-70rpm. It use for mixing higher viscosity, supension and it can be used for sediment or oral liquid, etc.
Top emusification homogenizer, its max speed is 2900rpm for small vessels, 1480rpm is
for bigger tanks. This kind of agitator has the highest viscosity, and it is used for suspension, oil, fat
emulsification, etc.
Bottom emusification homogenizer, its parameters are the same as the top emusification homogenizer. Certainly, it is used for suspension, oil, fat emulsification, etc.
One tank can install one agitator, if our clients have special requirements, the tank can install two
agitators together.
Product technical description:
Specification: 30L~50000L
Material: SS316L or SS304
Surface finish: inside surface is Ra0.28~0.4μm by mechanical polish. (passivation or electropolish are optional). Outside surface is Ra0.6~0.8μm by satin finish.
Agitator: bottom magnetic agitator
Pressure: ATM or pressure vessel (-0.1~1Mpa)
Structure: Single layer vessel, vessel with jacket, vessel with jacket and insulation
Jacket type: dimple jacket, full jacket, or coil jacket
Insulation material: rock wool
Components: vent filter, temp. gauge, level gauge, manhole, sight glass with lamp and cleaning ball or according to clients‘ detailed requirements.
Manufacture standard for pressure vessel: ASME, PED 97/23/EC, GB150-2011
Company Information
FAQ
Frequently Asked Questions:
1.Where are your production locations?
1.1 No.39, Xinjin Road, Qingpu District, Shanghai, 201712, China
1.2. No.3766, Qingzhao Road, Qingpu District, Shanghai, 201712, China
2. List of your manufacturing machinery:
Cutting machine, rolling machine, polishing machine, welding machine, detecting machine, etc.
3. How is the machinery servied and maintained?
By professional engineer
4. Is measuring and inspection equipment continuously calibrated?
Yes
