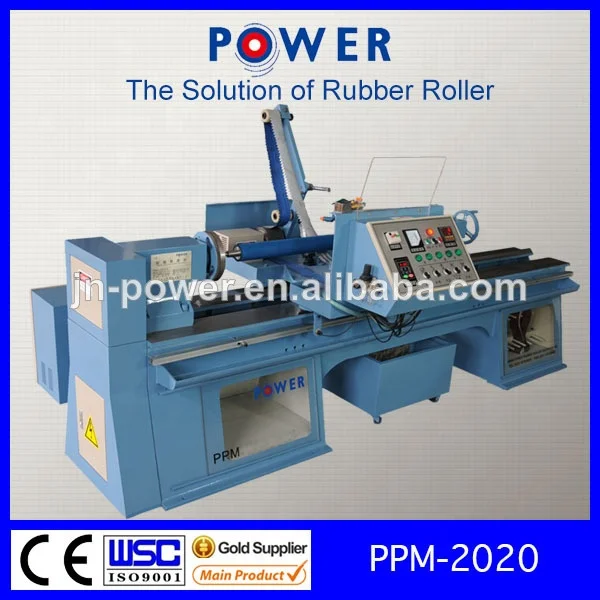

PPM 2020/26 Rubber Roller Polishing Machine

Product Overview

Description

PPM Series Polishing Machine

    Base on the basic PSM series general grinding machine, Power Company produces follow up working procedure equipment. It is also the important equipment for the finish machining of the rubber roller. It can enable the roller surface to reach the needed roughness by choosing the abrasive band with different granularity on the premise of not changing the geometric size.



MODEL	SPECS	DIA METER	LENGTH	CUBAGE	POWER
SMALL	PPM-2080/16	8" 200mm	63" 1600mm	158"*63"*55" 3.0m*1.4m*1.4m	1.5KW
MEDIUM	PPM-2080/26	10" 200mm	103" 2600mm	158"*63"*55" 4.0m*1.4m*1.4m	2.2KW
LARGE	PPM-3080/30	12" 300mm	118" 3000mm	315"*79"*71" 4.5m*2.4m*1.8m	3.0KW
HEAVY DUTY	PPM-3080/36	14" 300mm	142" 3600mm	433"*95"*71" 5.0m*2.4m*1.8m	3.7KW
HEAVY DUTY	PPM-608040	24 600mm	158 4000mm	433"*95"*71" 6.0m*2.4m*1.8m	4.0KW
