CHINA HUAYIN Plastic Rockwell Hardness Tester XHRD 150

Product Overview

Description

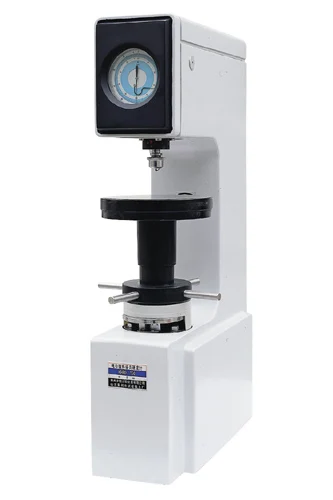

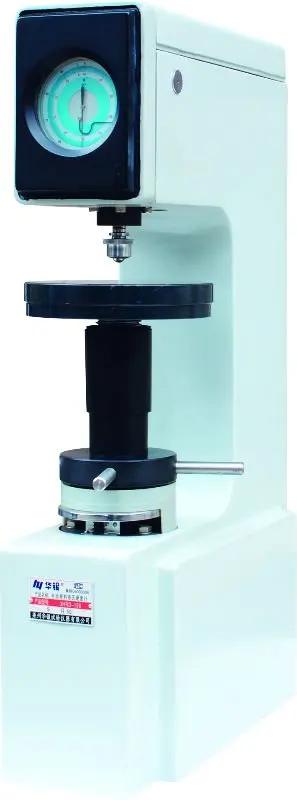

Plastic Rockwell Hardness TesterModel XHRD-150 Motor-driven Plastic Rockwell Hardness Tester



Feature & Use:

• Frictionless loading shaft, high precision testing force

• Automatic testing process, no human operating error

• Precision conforms to the Standards of JB/T 7409

     It's suitable to determine the Rockwell hardness of plastic, composite materials, all kinds of friction materials, soft metals and non-metal soft materials.





Specifications

   Measuring range: 70-100HRE, 50-115HRL, 50-115HRM, 50-115HRR

   Test force: 588.4, 980.7, 1471N (60, 100, 150kgf)

   Max. height of test piece: 150mm

   Depth of throat: 135mm

   Min. scale value: 0.5HR

   Power supply: 220V AC or 110V AC, 50 or 60Hz

   Dimensions: 505 x 250 x 700mm

   Weight: approx. 70kg





Standard accessories

   Large flat anvil: 1 pc.

   Small flat anvil: 1 pc.

   V-notch anvil: 1 pc.

   Steel ball penetrator: 1/8", 1/4", 1/2", 1 pc. each

   Plastic Rockwell standardized block: 4 pcs.
