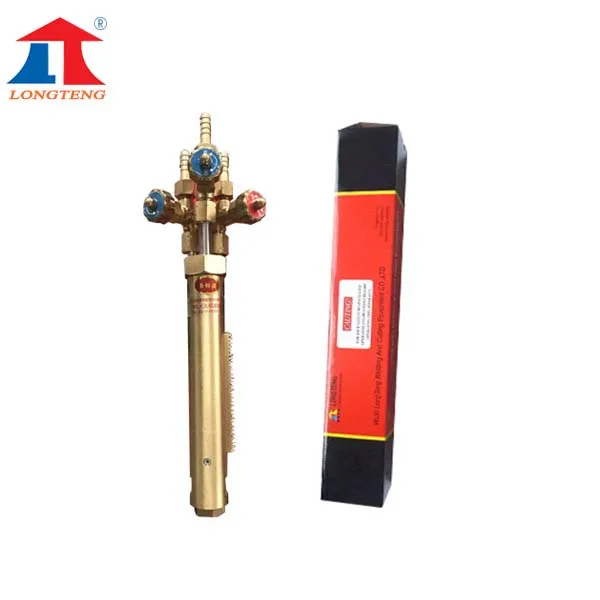

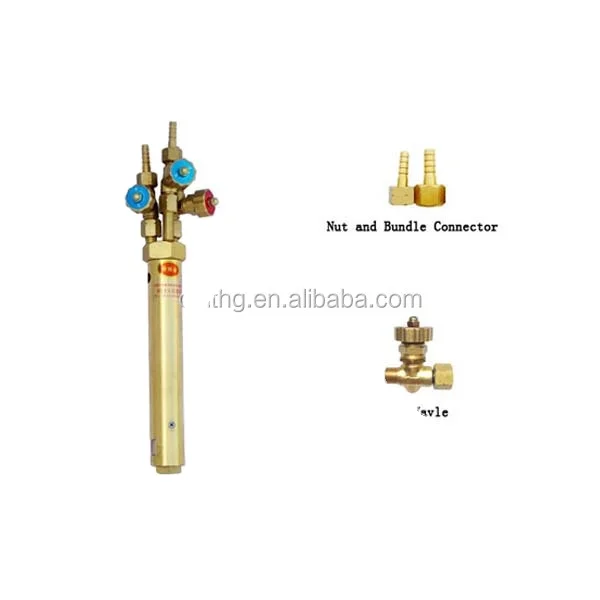

Propane Acetylene Gas Welding Torch
1) Quick Detail:
1. Machine use cutting torch
2. Use for Potable CNC flame cutting machine
3. Balanced pressure structure design
2) Description:
1> Structural Features
1. It is made of high quality forging brass.
2. Balanced pressure structure design.
3. It adopts silver solder, which can effectively avoid leakage.

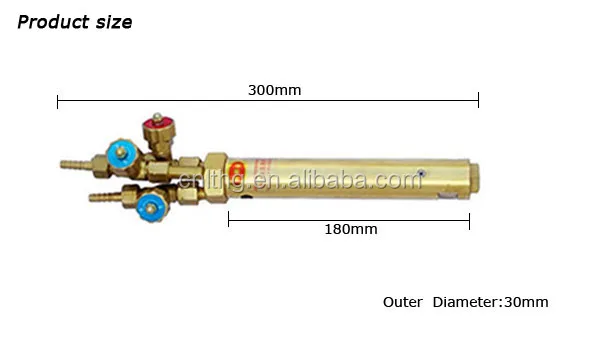

4. O.D.of the tube:30 mm
5. The length of the tube:85mm,180mm,250mm,370mm,450mm.
6. The gear rack can be installed at 4 different position with 90 degrees between two positions.
7. It is suitable for balanced pressure cutting nozzle with cone of 30 degrees.
3) Applications:

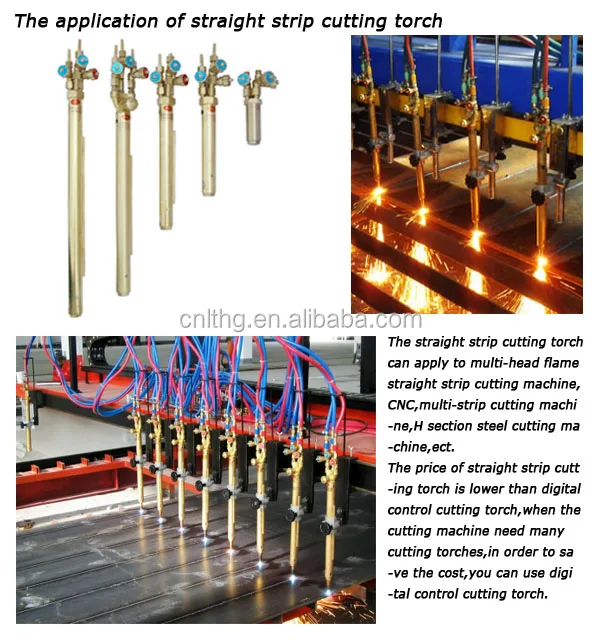

Oxy-fuel cutting torch is suitable for use in in multi-head flame straight strip cutting machines, digital control multi-strip cutting machines and H section steel cutting machines,and is used to connect the cutting nozzle, cutting steel and other metal materials. Cutting Torch is the main tool of gas cutting machine, also known as the torch. the fuel gas and oxygen mixture in the cutting torch, in the form of heat and has a preheating flame shape, in center of the preheating flame, the high pressure oxygen flow is injected for flame cutting work.
4) Specifications:
Model Number | LT-ZJ-02 |
Brand Name | Longteng, OEM |
Place of Origin | Wuxi, China (Mainland) |
Certification | CE,ISO |
Loading Port | FOB Shanghai |
Payment Terms | T/T, L/C, Western Union |
Material | Brass |
Working form | other |
Driving form | Automatic |
Electric current | Direct(A) |
Type | Injection-type torches |
Woking pressure | 254 KN |
Thimble Length (mm) | Cutting Thickness (mm) | Rack Length/Modulus | Acetylene Cutting Tips | Propane Cutting Tips | Inlet connection |
85 | 300 | / | G02#0-#5 | G03#0-#5 | M12*1.25 |
180 | 300 | 150/1 | G02#0-#5 | G03#0-#5 | M12*1.25 |
250 | 300 | 210/1 | G02#0-#5 | G03#0-#5 | M12*1.25 |
370 | 300 | 210/1 | G02#0-#5 | G03#0-#5 | M12*1.25 |
450 | 300 | 310/1 | G02#0-#5 | G03#0-#5 | M12*1.25 |
