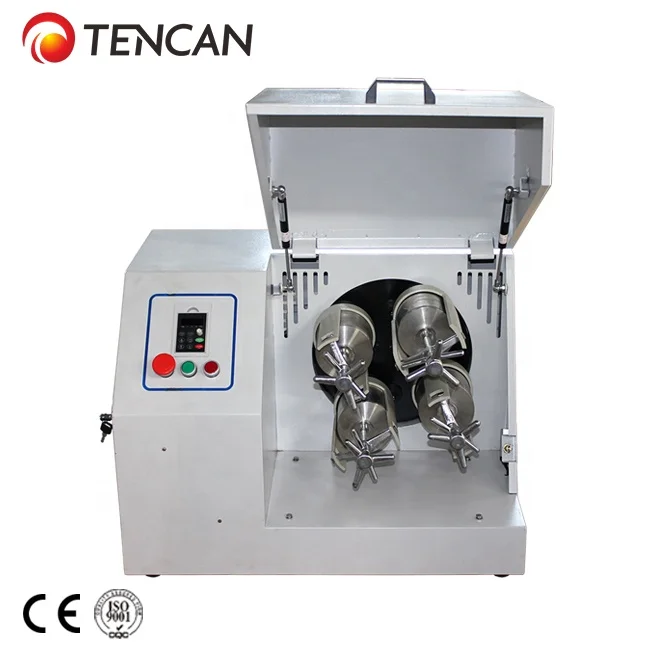

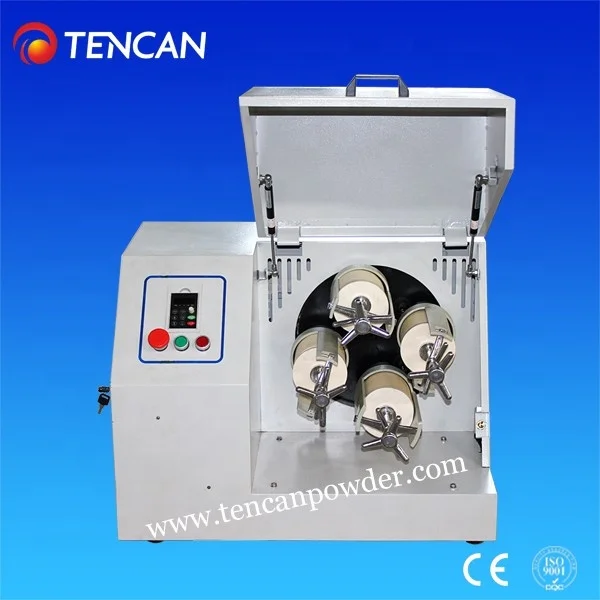

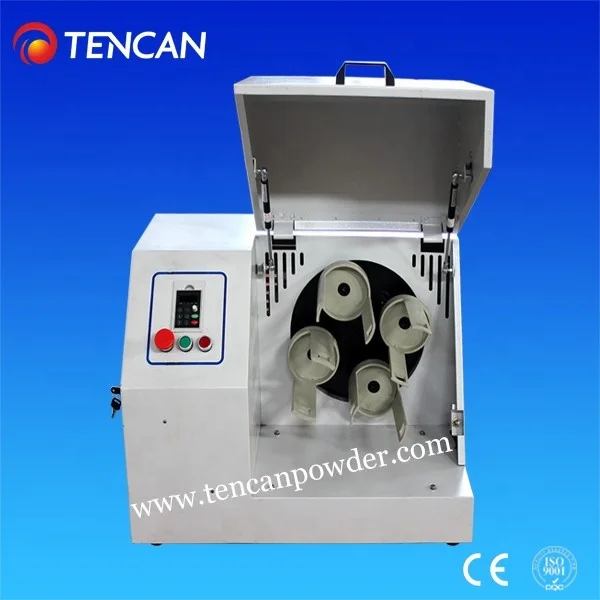

China Tencan 2L micron scale powder grinding horizontal lab ball mill

Share on:

Price in USD:Details


Product Overview


China Tencan WXQM-2 nano fitness powder making lab medical ball mill
1. Lab medical ball mill introduction:

Overview:WXQM series planetary ball mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements and the balls in the tanks grinds and mixes samples in high speed movement. The product can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of grinded products can be as small as 0.1 micron (i.e.) 1.0×10-4mm).





 2. Lab medical ball mill technical specifications:

Ball mill jar volume0.05L-50L/pc, totally 0.2L-200L
Feeding particle sizesoil ≤10mm, other material ≤3mm
Discharge particle sizeMin. As 0.1um
Speed ratio (revolution: rotation)1:2 (20-200L productive planetary ball mill can be 1:1.5)
Rotating speed0-810rpm( normal), 0-1400rpm (high-speed)
Speed regulationstepless speed regulation, 0.2rpm
Program controlOur ball mill adopts high-tech microcomputer chip control,it can runs by set up the forward and inversion alternately repeatedly program(0-999 min) and forward, pause, inversion, pause, forward (0-999 min) alternating operation program, especially suitable for cooling or intermittent operation.
Max. Continuous working time (full load)72 hours( timer 0-9999h)
Motor powermain power is 0.55kw, 0.75kw, 1.5kw, 2.2kw, 3KW, 4KW, 5. 5KW, 7.5 KW, 11 KW, 15 KW, 18.5 KW, 22KW as per the model and ball mill loading weight. The motor is made by pure cupper.
Ball mill environmentsVacuum, inert gas, low temperature, high temperature




3. Lab medical ball mill tanks



4. Lab medical ball mill media


5.Package for coffee powder making machine



Packaging Details:

One piece one wooden case plus styrofoam.

Delivery Detail:

Stock is available, some larger sizes need to take 20 days


After Sales Service for planetary ball mill/ ball milling machine
1)One year guarantee for whole machine except of ball mill jars and

balls.Some accessories we have 18-36 months warranty.
2) We shall make prompt response to any problem about the machine within 24 hours if you have.
3) We shall provide 6-day 8-hour services for all our clients and subscribers, and shall provide

    trouble-shooting solutions until the fault is completely eliminated.
4) If the machine is found any fault or problem, please do not hesitate to notify us the details about

    faults, caused reasons and status. We shall do our great efforts to solve according to following


a. Common faults:

Common faults refer to failure of non critical parts or improper configuration that effects partial

operation or leads to Inconvenience of machine operation. We shall solve such problems by email

or posting parts by courier.


b. Serious faults:

Serious faults refer to failure of key parts or improper configuration that influence running or

operating of machine widely. We shall firstly diagnose reasons of faults by email or phone, then,

shall send replacement of parts by courier, until solve the problems. Courier freight shall be for

our account within quality warranty period.








Before ordering,could you kindly share with us:

1.What material do you want to grind?

2.What’s the purpose of your grinding?For laboratory research or industry?

3.How about the input size(mm or mesh) of your grinding materials?

4.How about the output granularity(um or mesh) you expect?

5.How about the capacity(litres) for each time?


After your confirmation,we shall send you suggestions & quote for you immediately.If any other doubts,please contact us directly,we’ll be gladly to answer your questions as soon as possible.
