  • newest! LY IR8500 BGA Rework Station,IR model, bga repair system infrared bga welding machine for mobile chips repair
newest! LY IR8500 BGA Rework Station,IR model, bga repair system infrared bga welding machine for mobile chips repair
newest! LY IR8500 BGA Rework Station,IR model, bga repair system infrared bga welding machine for mobile chips repair
newest! LY IR8500 BGA Rework Station,IR model, bga repair system infrared bga welding machine for mobile chips repair
newest! LY IR8500 BGA Rework Station,IR model, bga repair system infrared bga welding machine for mobile chips repair
newest! LY IR8500 BGA Rework Station,IR model, bga repair system infrared bga welding machine for mobile chips repair
newest! LY IR8500 BGA Rework Station,IR model, bga repair system infrared bga welding machine for mobile chips repair
newest! LY IR8500 BGA Rework Station,IR model, bga repair system infrared bga welding machine for mobile chips repair

newest! LY IR8500 BGA Rework Station,IR model, bga repair system infrared bga welding machine for mobile chips repair

Share on (2005795064):


Price:$492.00 - $574.00

Quantity:


Product Overview

Description






Product Description

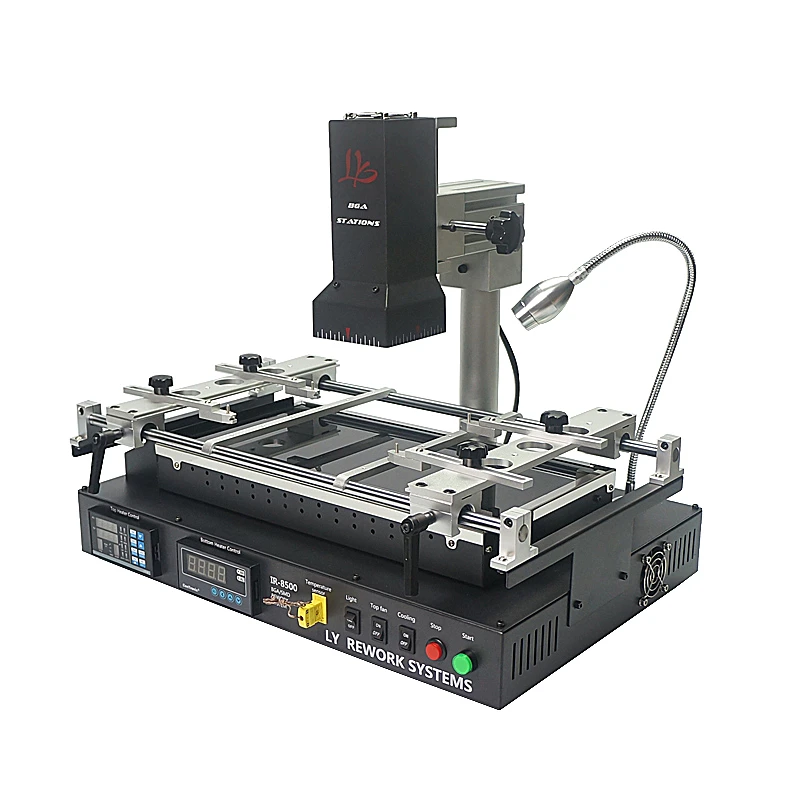

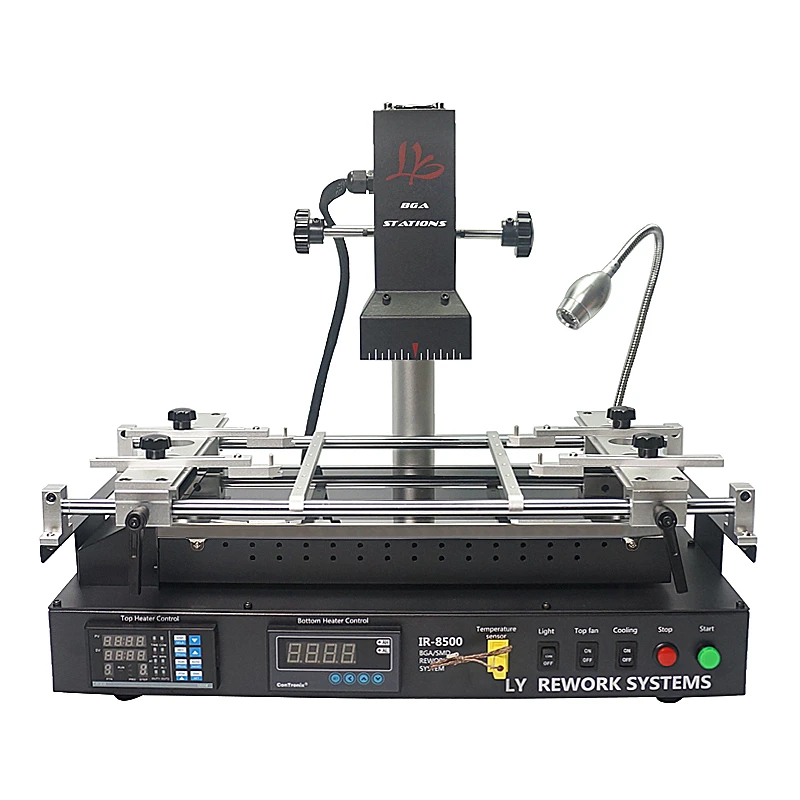

LY IR8500

BGA Rework Station


CE Certification
can be connected to a computer
8 constant temperature segments
It can easily rework the variety of CPU's seat

Video:

https://www.youtube.com/watch?v=8wTTk9LEnf8&feature=youtu.be

LY IR8500 (1).jpg



Introduction

LY IR8500 Rework station for laptop motherboards, desktop computer motherboards, server boards, industrial computer boards, all kinds of game boards, communications equipment motherboards, LCD TVs and other large circuit board BGA rework.

LY IR8500 innovative designs an effective solution to general of infrared rework station vulnerable to the impact of air flow. will lead an inaccurate of temperature control can easily deal with lead-free soldering rework.


Technical Parameters

Basic Parameters

Heating

IR

Dimension

L780mmx W450mmx H260mm

Weight

18kg

Total weight

About 21 kg, vary with the  differen need of the users

Electrical Parameters

Power

220V AC

Upper Heating

IR

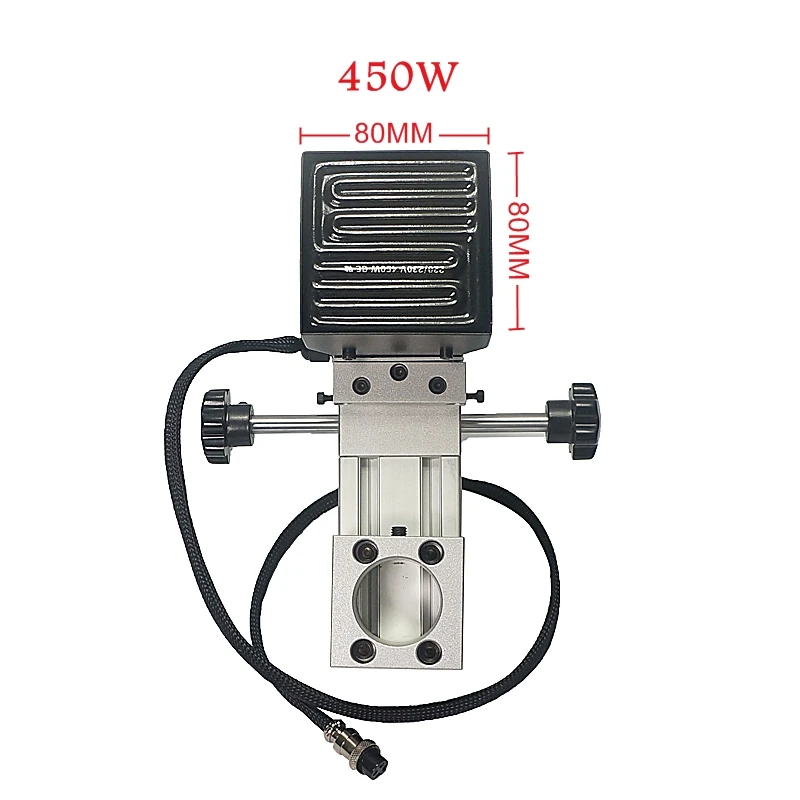

Size of Upper heating

80mm x 80mm

Consumption of upper heating

450W

Bottom Heating

IR

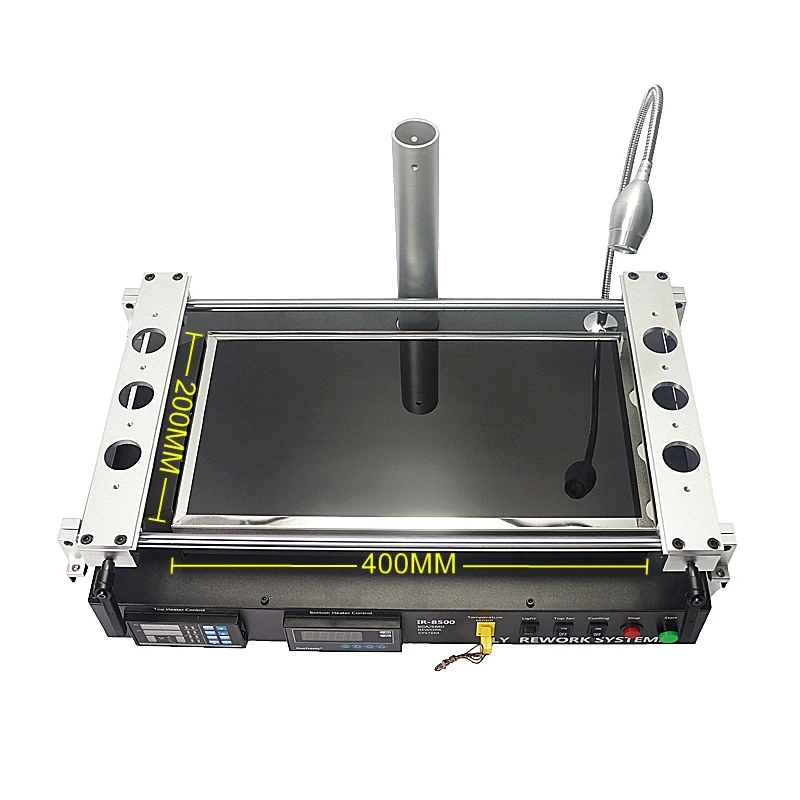

Size of Bottom heating

400mm x200mm

Consumption of Bottom heating

1600W

General power

2050W

Temperature Control

Control mode of Upper

Independent temperature control, high-precision closed-loop
control, precision ± 0.5%, Alarm

Control mode of Bottom

Independent temperature control, high-precision closed-loop
control, precision ± 0.5%, NO Alarm

Rework Function

SMD

Suit for welding, remove or repair packaged devices
such as BGA,PBGA,CSP,multi-layer substrates, EMI
metallic shield product and solder/lead free Reworkwelding

Size of applicable chips

≤70mm x70 mm

Size of applicable PCB

≤400mm x305mm



Packing list:

1× IR8500 BGA rework station

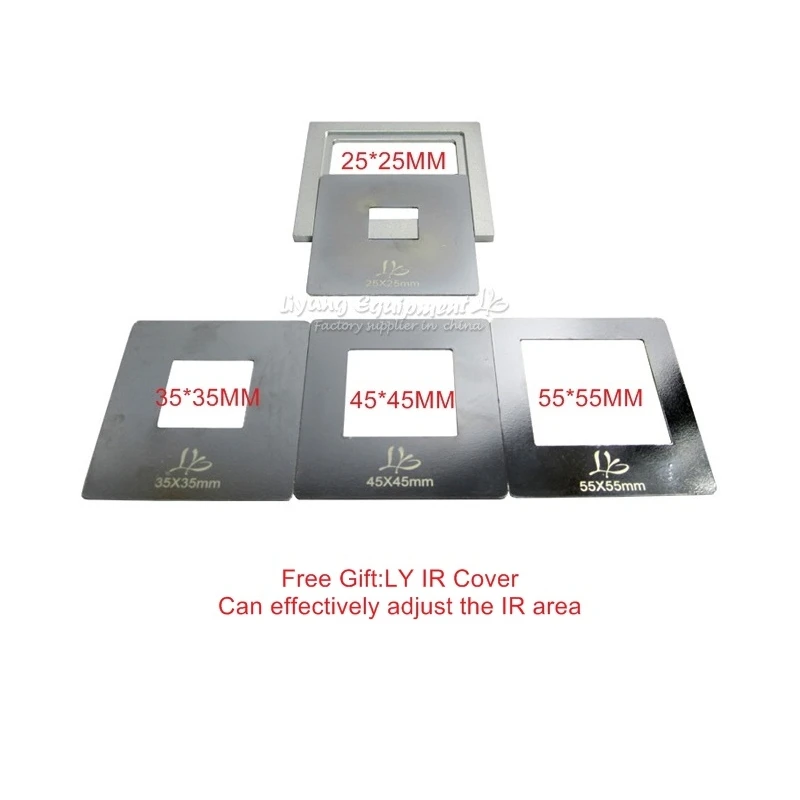

1x LY IR cover set

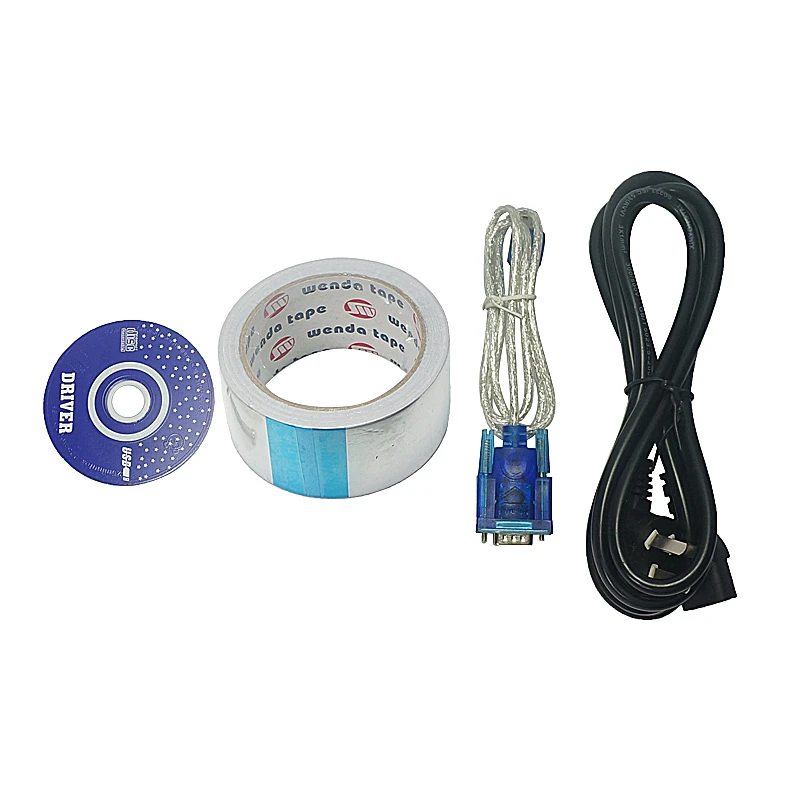

1× power cable

1× usb to rs232 port cable (with CD)

1× thermocouple

4x pcb jig with screw

1 x bottom support

1× CD of manual and software (if not get, may be lost in customs, please contact us)

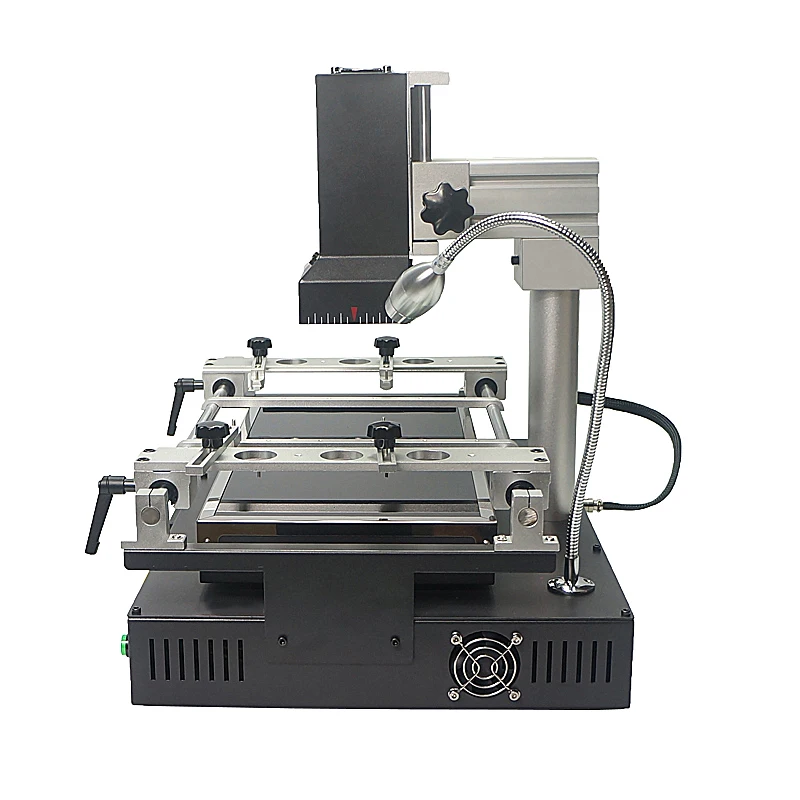

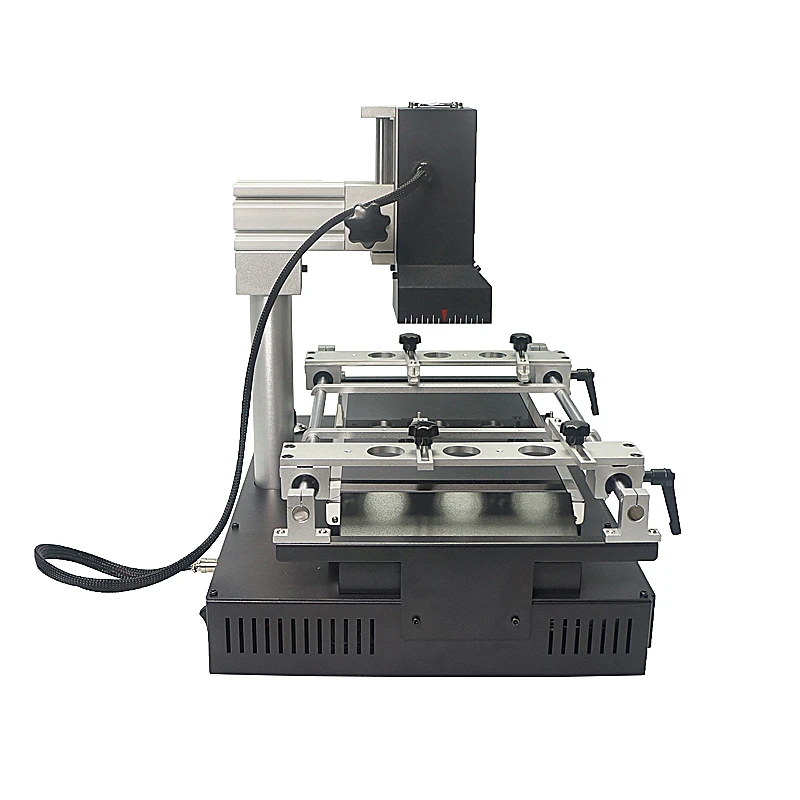

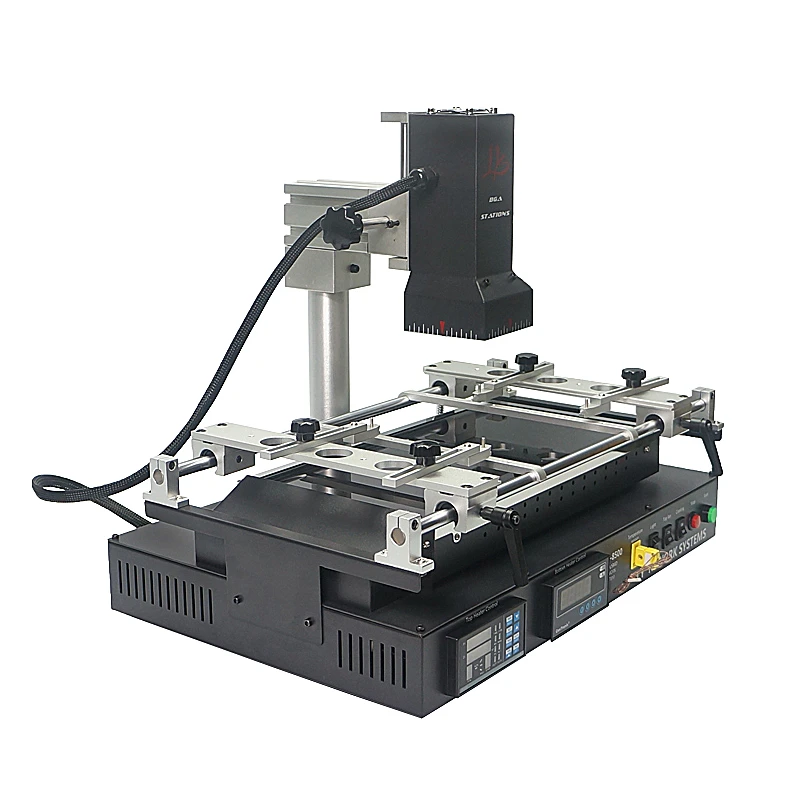

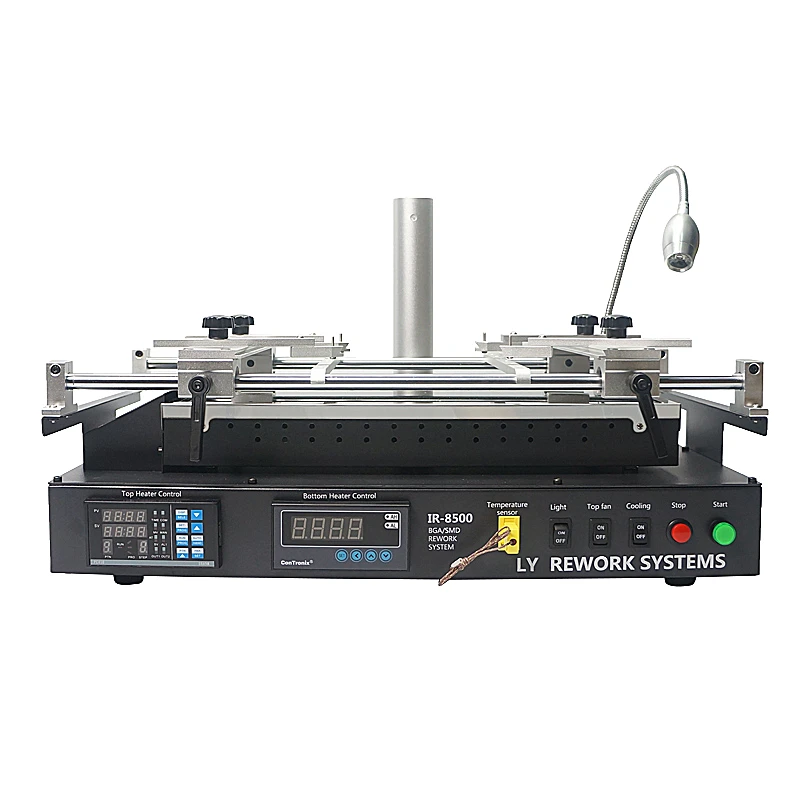

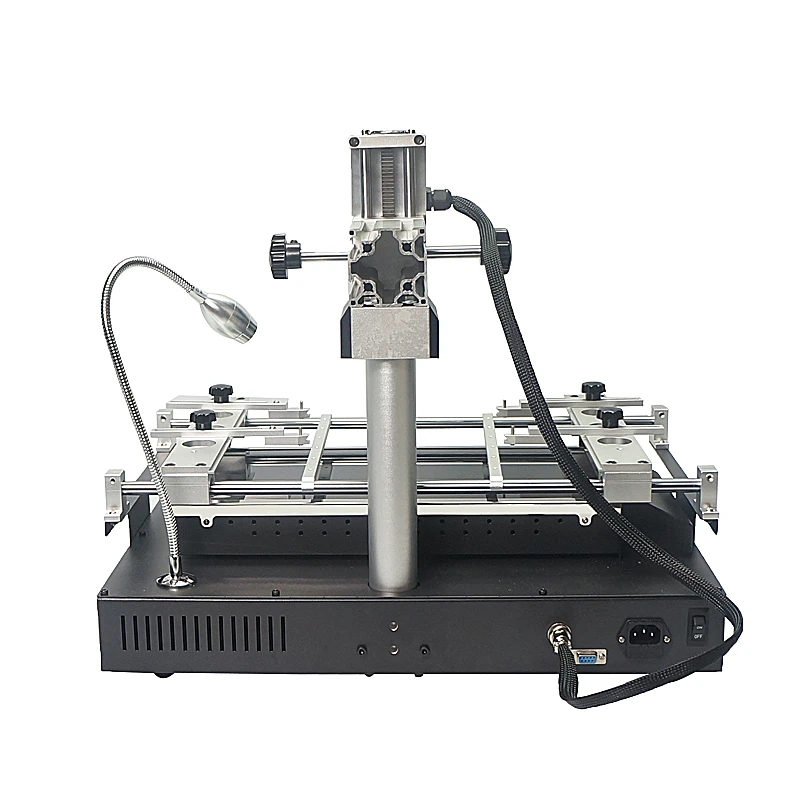

 LY IR8500 (2).jpgLY IR8500 (3).jpgLY IR8500 (4).jpgLY IR8500 (5).jpgLY IR8500 (6).jpgLY IR8500 (7).jpgLY IR8500 (8).jpgLY IR8500 (9).jpgLY IR8500 (11).jpgLY IR8500 (12).jpgLY IR8500 (13).jpgLY IR8500 (14).jpg

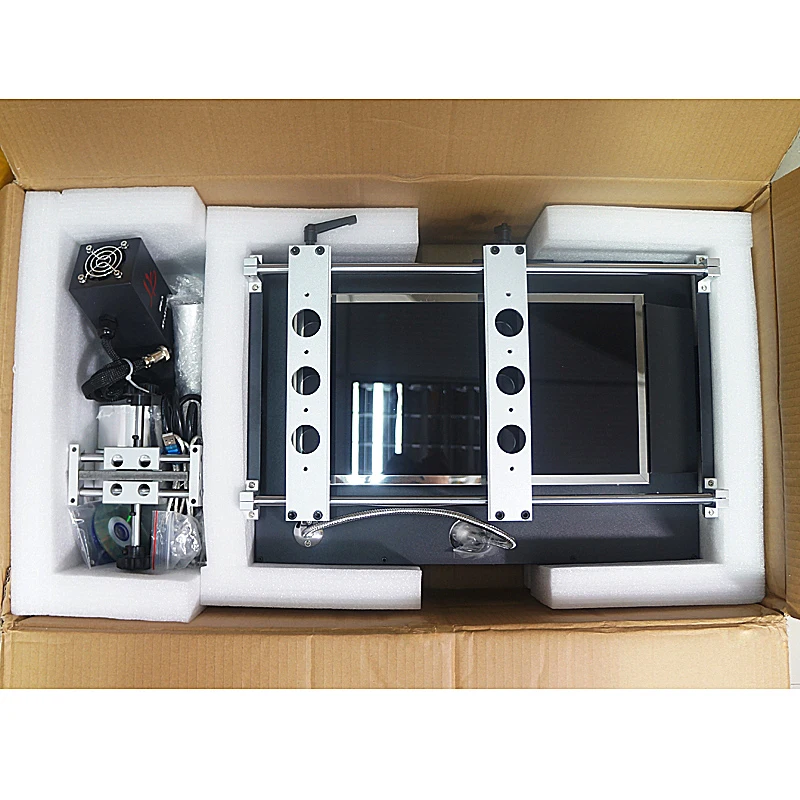

Packaging & Shipping

Packaging:

Packaging material: Carton/Wooden case with foam inside.

Shipping:

A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)

C. 25-30 workdays shipping from China to Russian customers.

D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM

Our Services

1.We provide you the friendly English User manual or operating videos for free.

2.24 hours technical support by email or calling.

3.Warranty: 1 year free, 2-3 years cost price and free technical support always.

4.Free training to make sure you master the operating of our products.

5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.

FAQ

1) This is the first time I use this kind of machine, is it easy to operate?

There is english manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.

5)Why choose us ?

A. 6 year gold supplier on Alibaba !

B. Trade assurance to US$54,000 !

C. Best price & Best shipping & Best service !

Company Information

USBearth business group is located in Shenzhen, China.

Our factory owns 2 brands , Ly and Bauer , and Shuttle,ZM,KIDI,HonTon … Factory agent .

We has 10 years experiences in manufacturing and foreigh trade

Our BGA rework stations , such Ly IR6000, Ly IR6500, Ly IR9000,Ly IR-PRO-SC, Ly IR8000, Ly HR560, Ly HR560C, Ly HR500, Ly SV550C, Bauer IR-PRO-SCC ,Bauer OMEGA XD …

CNC machines like cnc 3020/4030/6040/9060 …series products ,Mobile LCD separating stationslike 946D /947B /950V/948V/948B…are hot sale in the world, especially in these countries from North and South American,European and Asian.
