CE 630mm workshop  welding machine for pe pipe fitting



Product Description

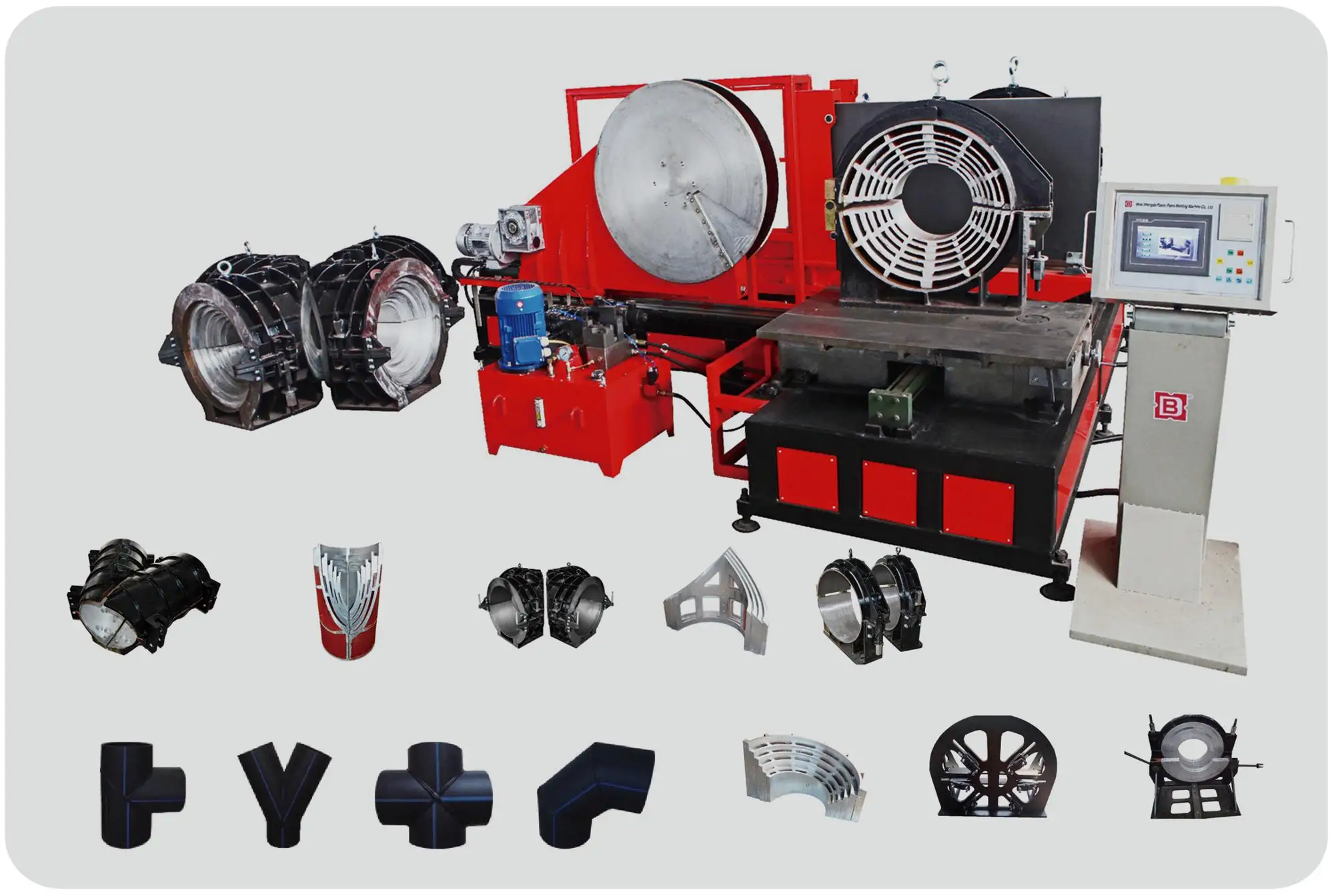

SHG450 630 800.jpg







Application and features :



♦ Suitable for fabricating elbow, tee, cross and Y shape (45° and 60 °) fittings of PE PP PVDF in workshop. Also used to lengthen the injection moulded fitting and make an integrated fittings
♦ Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fitting
♦ Removable PTFE coated heating plate
♦ Electric planing tool with safety limit switch
♦ Low starting pressure and high reliable seal structure

♦ Separate two-channel timer records times in soaking and cooling phases





.







Model

SHG630

Pipe sizes (mm)

315,355,400,450,500,560,630

Application

0~90°Elbow, tee, cross, 45° and 60° wyes(optional parts should be used)

Heating plate Max. Temp.

270°C

Temp. deviation in surface(170~250°C)

<±7°C

Pressure adjustable ranges

0~16MPa

Working voltage

380V,50Hz

Heating plate power

22KW

Hydraulic unit power

2.2KW

Planing tool power

4.0 KW

Total power

28.2KW

Weight

4830KG(Don`t include optional parts )

Packing

Cases

9 Plywood Cases

Volume

22.7 CBM



Optional parts:

Special clamps for welding flange stub







Special clamps for short spigot fitting







Special clamps for welding Y shape (45° and 60 °) fittings







Company Information

Our company ROTHENBERGER (Wuxi) Pipe Technologies Co., Ltd   is the leader manufacturer of butt fusion equipment in China.  We occupy the 70% domestic market and export to more than 45 countries. We specialize in producing a complete range of international standard butt fusion equipment including field welding machine, workshop fitting machine, pipe saw, all the optional parts and tools required under the ISO9001 system and approved to CE standards by SGS.

In 2015, my company joined German ROTHENBERGER tools group, becoming one of the more than 50 companies under the first European big pipe tool production and sellers. with the German headquarters and subsidiaries throughout the world to work together, we will further development of domestic and international market.


factory-5

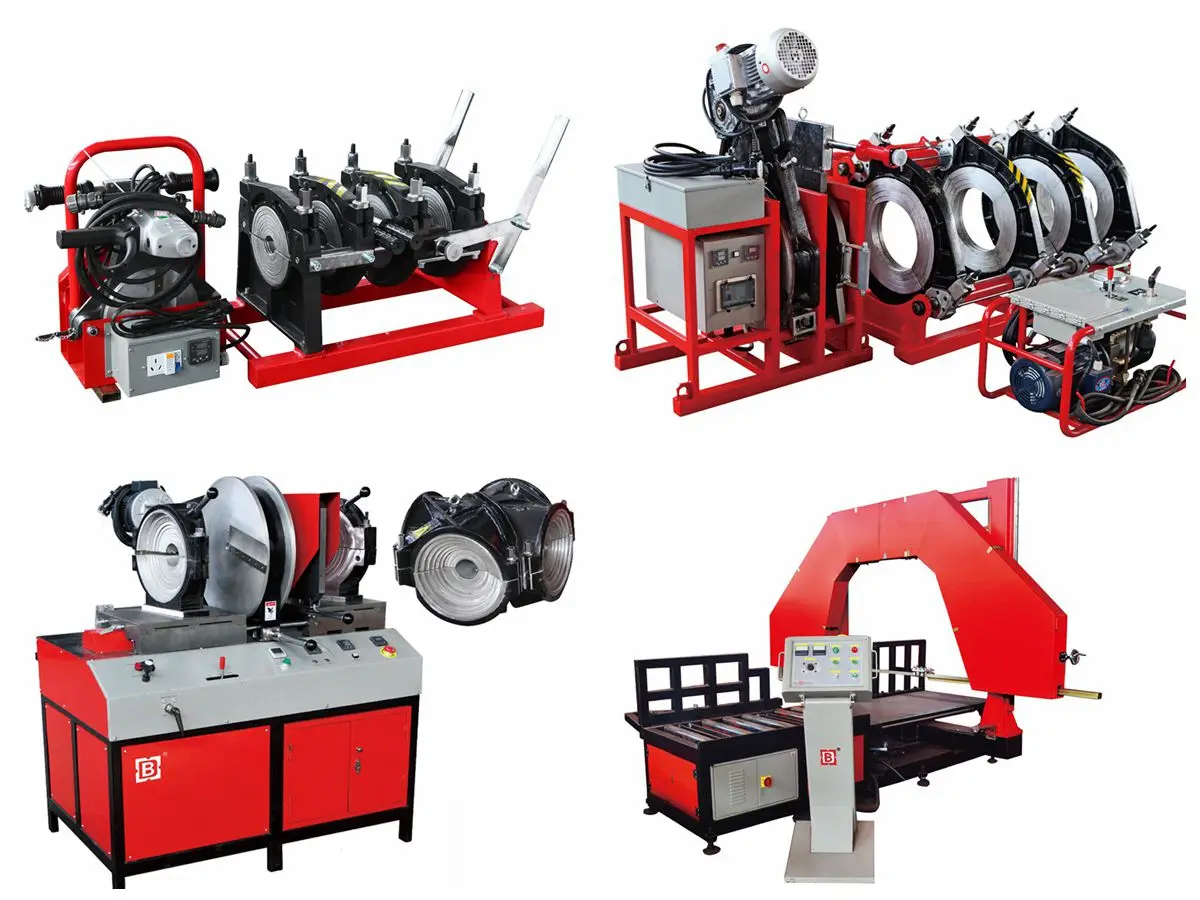

More productions



Our business scope includes as below,
1. HDPE pipe butt fusion machine(welding range:20mm-2000mm)
2. Fitting making machine to fabricate elbow,tee,cross and wyes fittings(welding range:63mm-2000mm)
3. Pipe saw to cut the pipe with different angle(cutting range: max:3000mm)
4. Saddle fusion machine to make reducing tee fitting
5. Electrofusion machine

6. Customization:Can be specially designed for inch size and other special specifications of the pipe welding
