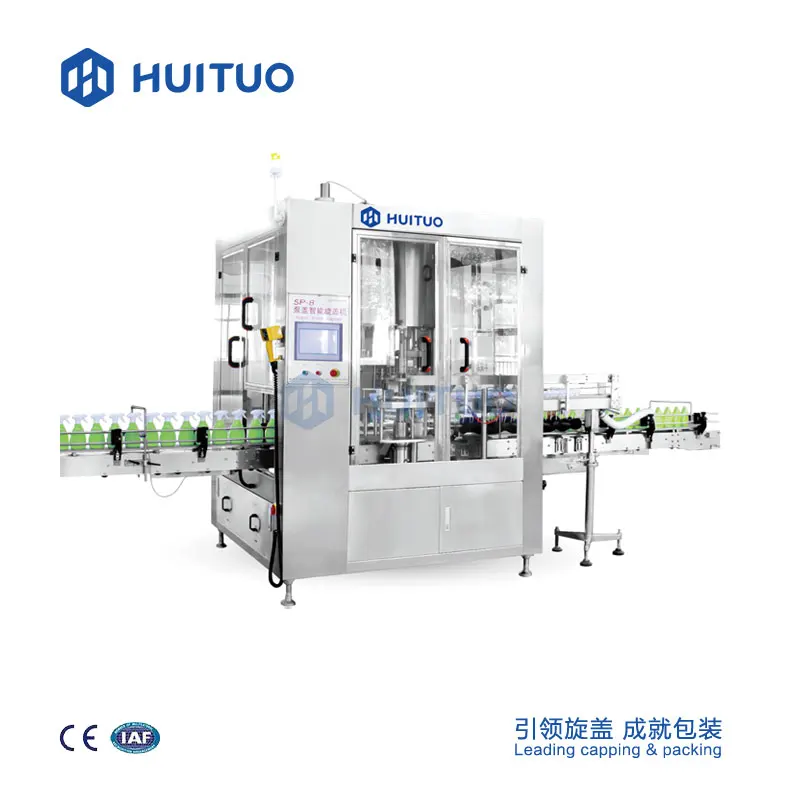

Alibaba express wholesale Plastic bottle capping machine new inventions in china

Product Overview

Description

  Major Characteristics:

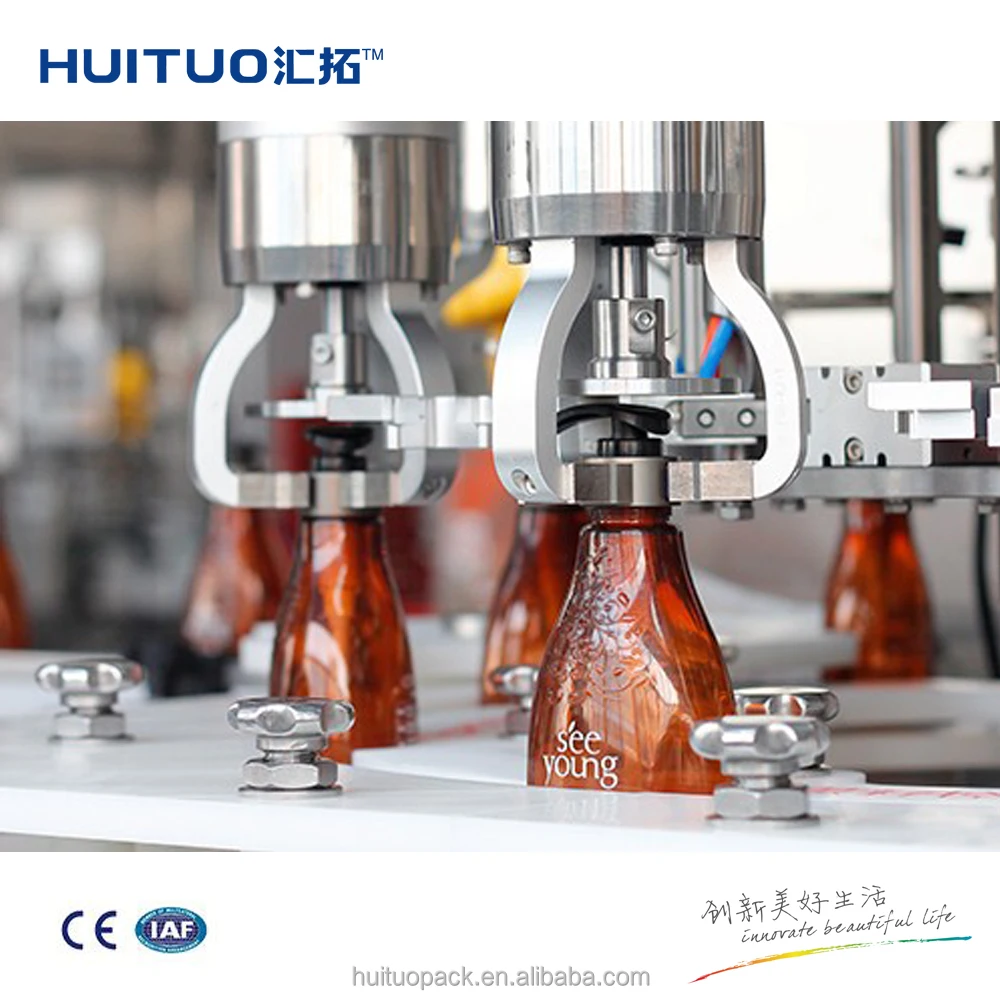

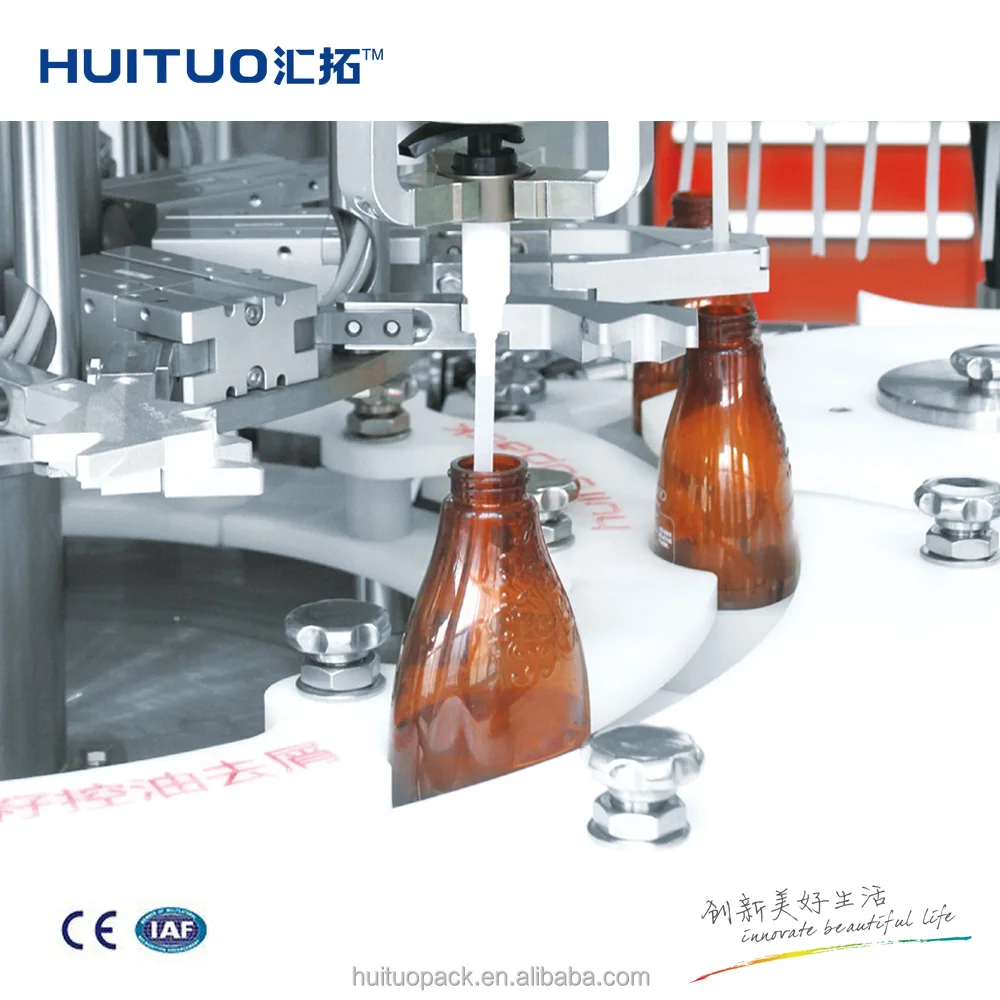

     - Claw structure, obtained many patent on technology, suitable for pump caps with the function of

        liquid diversion and inserters.

     - PLC controlled , integrated cap sending ,grasping ,capping

     - Automatic inlet cap and bottle position-setting and orientation, adjustable torque control.

     - Gentle manipulation, no scratch and injury to caps and containers

     - Easy changeovers, one line capable of several products

     - Connected with filling machine and labeling machine easily

     - Module structure, manipulate on the touch screen, easy maintenances

     - Suitable for containers made of PET/PP/PE/HDPE and so on

     - Production capacity can achieve 4000-8000b/h, higher speed can be customized

     - Applicable in laundry detergent and many other daily chemical products.



Technical Parameters:



Machine Dimension(L*W*H):   2m*1.6m*2.6m	Air operated source: 0.6Mpa clean and stable compressed air
Suitable caps : inner plunger	Diameter of pump cap: can be customized
Power suply: AC 380V, 50Hz	Number of capping heads:4/8/12
Length of pump cap: shorter than 250mm	Weight: 4500Kg
Machine power:4Kw(8 capping heads)	Torque control: around 0.3 Nm
Production capacity	About 5000 BPH





After-sales Service:
(1)     Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2)     Long time technology will be supplied.
(3)     We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets,accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD50.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
