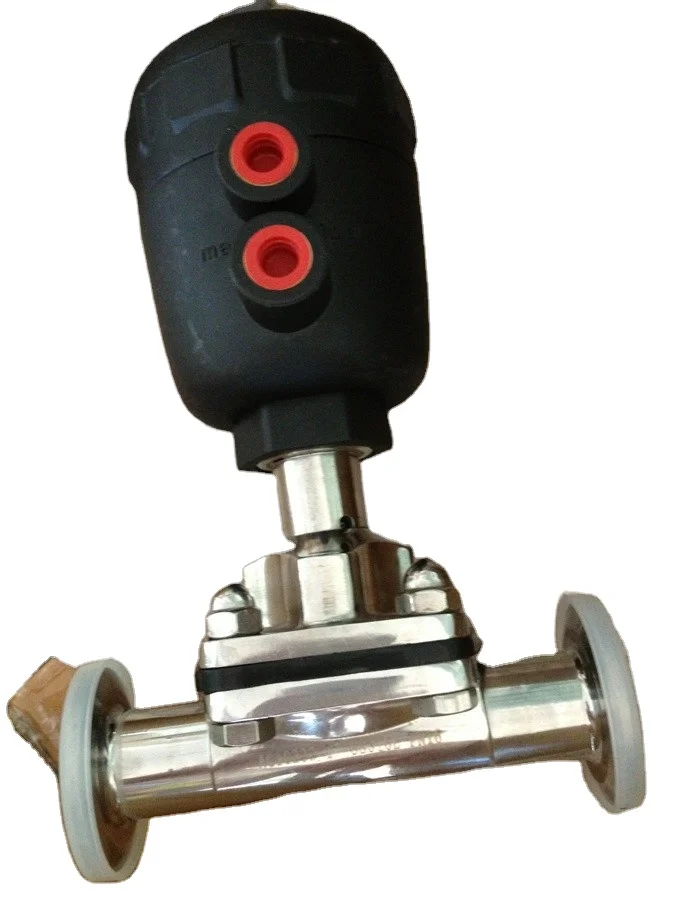

SS316L Hygienic Forged Sanitary Stainless Steel Pneumatic Diaphragm Control Valve
- Category: Diaphragm Valves >>>
- Supplier: Wenzhou Kasin Valve Pipe Fitting Co. Ltd.
Share on (2014678610):
Product Overview
Description
SS316L Hygienic Forged Sanitary Stainless Steel Pneumatic Diaphragm Control Valve
Product Properties
Product name | Pneumatic Diaphragm Control Valve |
Application | |
| A sanitary diaphragm valve with u type design, which is speclally designed For using on food,beverage,dairy.brewing.phamaceutical industries.etc.It isexcellent for flowcontrol aswell asforopen/close duties | |
| Materials | |
| Body: | AISI-316L |
| Membrane: | EPOM+PTFE or EDPM |
| The seal matenals Using propnetary technology.the diaphragm uses a combination of EPOM and PTFE,which is secured using SS bolls.The seal ng part where contact with the medium is of PTFE material,it has good cold resistance-13?F (-25"C),excellent heat-resistance 4829F (+250"C).tolerance to most chemicals,and excellent abrasion resistance to medium flow. | |
| standard Design | |
| Standards: | DIN,SMS,ISO/IDF.BS/RUT.ASME/BPE. |
| End connections: | Butt-welded,sanitaryclamp.orothers upon request |
| Body type: | T-type tee,u type tee,Mini type,tank bottom type,etc. |
| Technical specification | |
| Max.workingpressure: | 147psi(10bar) |
| Temperature range: | 14- 248*F (-10- 120℃).EPDM |
| Inside polishing: | Ra 16. 32& mic ro in (0 4~ 0 .8um) |
Available for CIPi SIP. | |

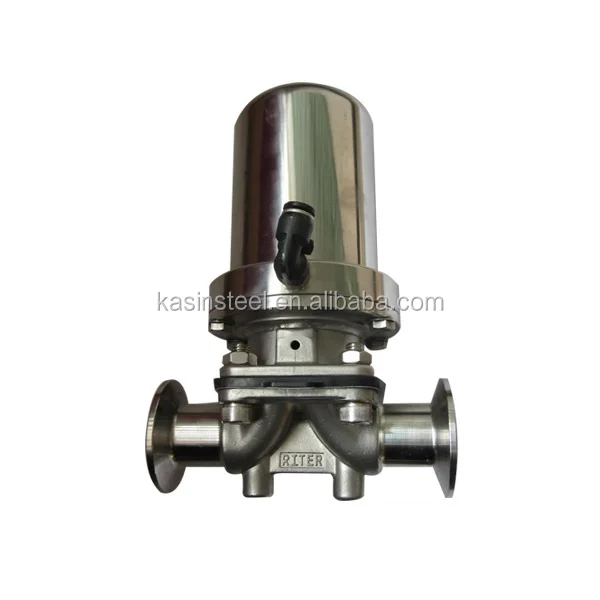

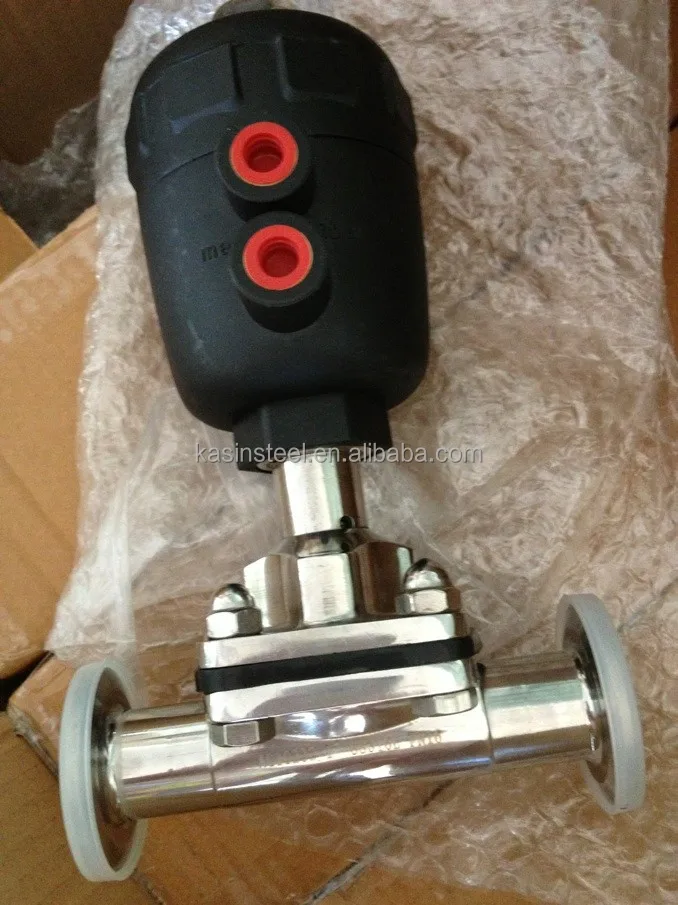

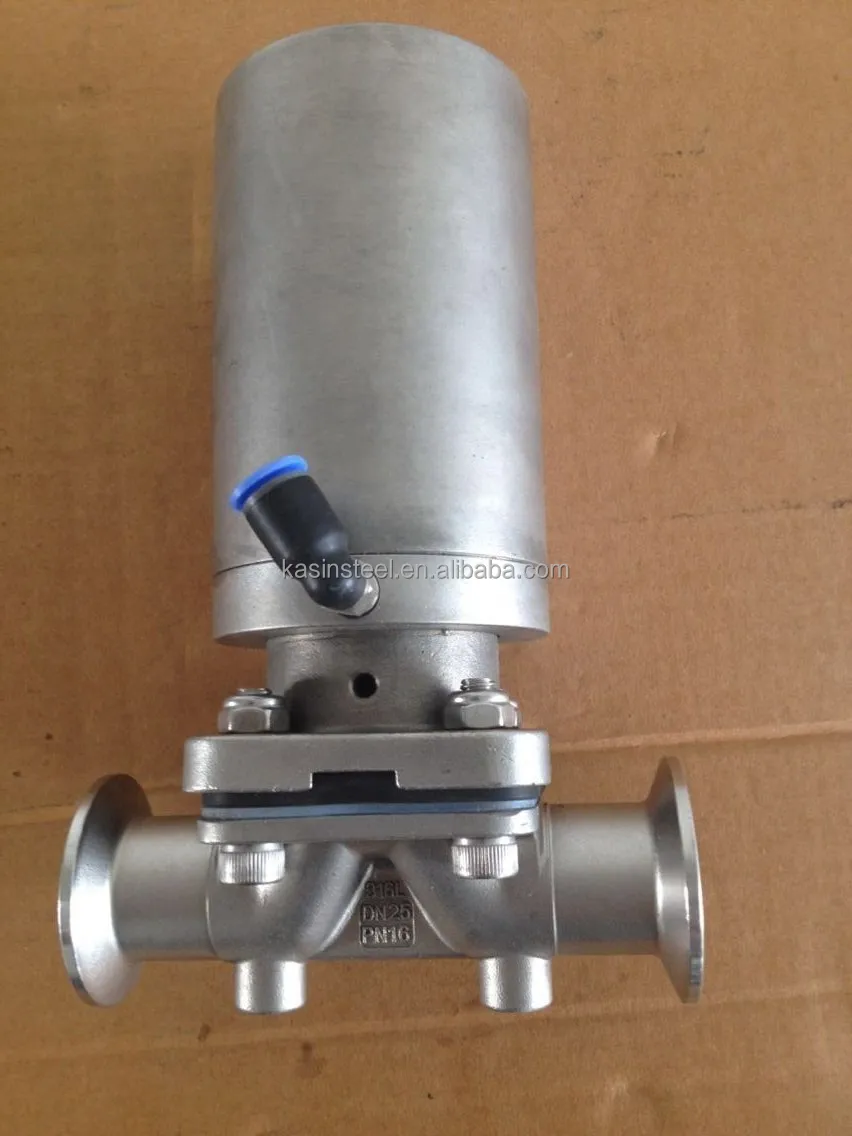

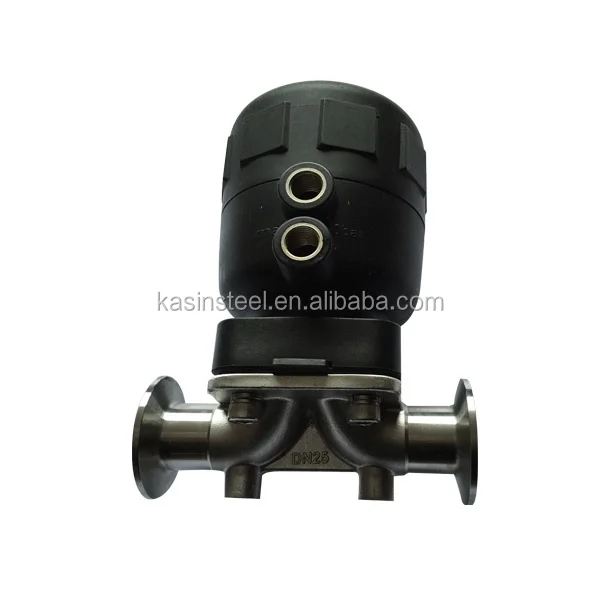

Product Show
Company Application
Company Profile
EXHIBITION
FAQ
1. Design & Engineering
A.Experienced and skilled team of designers including CAD designers and 3D designers has the capacity to deliver outstanding designs for your project.
B. We look forward to delivering exceptional designs and advice for your project.
2. How to buy your ideal products?
A: You can provide us your drawing, and we will produce as your drawing. Or we can design as your requirements if you do not have a clear plan.
3. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated.30% deposit before producing, 70% balance before loading by TT.
4. What is the delivery time?
A: It depends on order quantity.Generally, the delivery time will be within 15 to 30 days.
5. Package information?
A:For inner box and master carton are made as per international standards,and we can make special designed for you if need.And if necessary,will be packed in pallet to avoid any damage.
B:Not more than 35kg per carton box,about 1000kg per pallet.
6.How long to make a sample?Is it free?
A:Generally we have stock for general sizes, so we always can send it within 1-3 days. Generally the buyer pay the sample fee and freight fee.
7.How to cantact us?
A:Send your inquiry details in the below,Click “send” now!
