High speed industrial lock stitch quilting and embroidery machine for home textile

Share on (2016660738):


Price:

Quantity:


Product Overview

Description

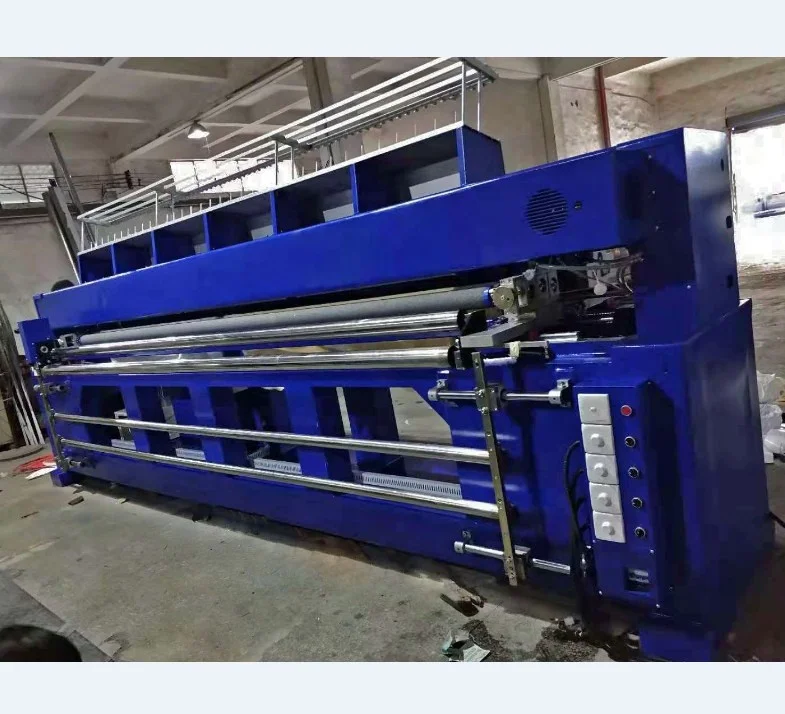

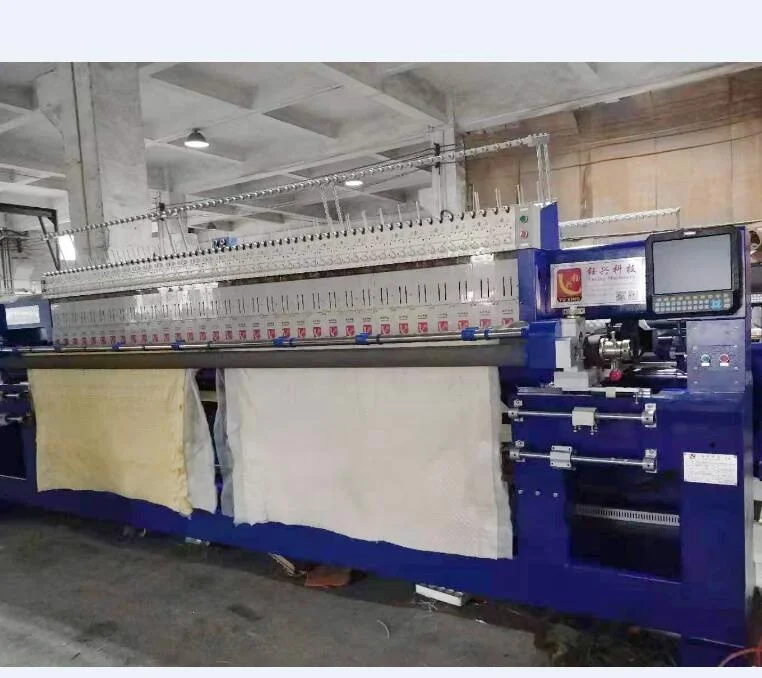

Computerized quilting and embroidery machine

 YXH-128-50.8C


Product Description







USES: garments,home textile,chiffon,bags,cushion,ottomans and mark quilting and


embroidery production.



Patterns and Usage








Compare with common embroidery machine, quilting and embroidery machine have


following advantages:


1.High efficiency and more function and the quilting design connect no line,jump stitch,leak stitch.


2.It can quilting and embroidery both together.


3.Leather fabric also can quilted.


4.High output.


5.The machine operation in double side and easy threading.


6.Auto stop system when thread is broken,auto and manual fill-stitch function.


7.Automatic lubrication system.





Specification:










































































Product Name



Computer Quilting and Embroidery Machine



Model



             YXH-128-50.8C



Size(L*W*H)



5400*1400*2000mm



Weight



4200kg



Quilting width



3352mm



Needle space



50.8mm



X-axis movement



260



Head quantity



33 pieces



Rotating shuttle



Big rotating shuttle



Quilting thickness



20-300g



Stitch



Binary system:0.15-12.7mm



Needle storage capacity



120,000



Pattern storage capacity



960



Needle type



#14,#16



Principal drive



Servo motor drive



Rated voltage(AC)



As required



Power



5KW






Special feature:



  1. Unique quilting and embroidery drawing and plate making function, and immediately drawing and proofing efficient function.Compatible with the general embroidery machine function and embroidery machine plate reading function in the same industry.

  2. Precision finishing,and no need to modify the pattern,the difference between the finished patterns with the computer-ready patterns is tiny.

  3. Advance computer control and mechanical manufacturing technology,to ensure that the noise of the machine is very small.

  4. The head of quilting and embroidery machine has a simple structure,reliable performance and easy maintenance features.

  5. Taking the big rotating shuttle,the max high speed can reach 850r/min.

  6. Saddling rack, roller and principal motors are driven by servo equipment.

  7. 360° quilting and embroidery,limitless multi-span and independent quilting and embroidery.

  8. Stitch can be adjusted and pattern compensation function,an effective solution for graphical variant when quilting and embroidery thick material.

  9. Auto-stop system when thread is broken,auto and manual fill-stitch function.

  10. Automatic lubrication system.

  11. Machine head can be chosen randomly for quilting and embroidery.

  12. Ringing notice when start machine.

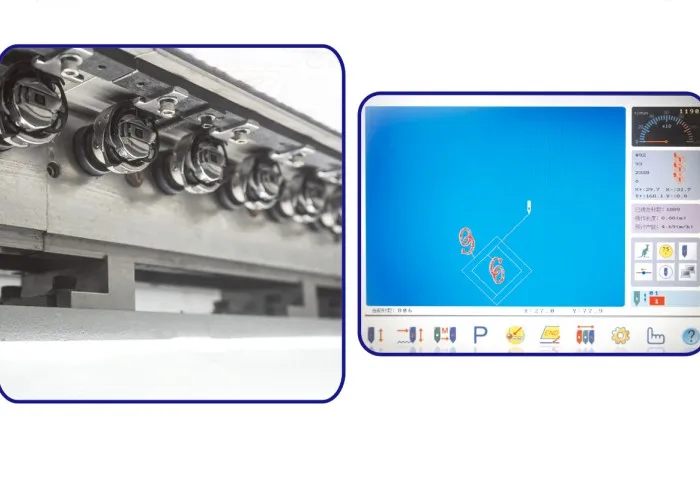

Core machine parts:



Our Services


Guarantee: 1 year.


After-sale service: Engineer can send to customer factory for installation, and customer staff can come our factory for training for free.


CE approved.





Packaging & Shipping


All our machines are packed in elastic film or wooden case as required before shipping.The goods can be shipped 20 days after receiving advance payment.





Certificates:


CE certificate of computerized multi needle quilting machine





FAQ



  • Voltage:Our country's voltage is 380v/50HZ,220v/60HZ. Please be sure to tell us your country's rated voltage before shipping.

  • Payment terms: TT:30% in advance,70% was paid off before delivery.





Company Information


Our company is specialized in manufacturing computerized multi-needle quilting machine,


computerized non-shuttle multi-needle quilting machine,cutting machine and bobbin winding


machine,more than 10 kinds of products.





It passed the ISO9001 Quality Management System,and was honored as "Private Scientific and


Technological Enterprises" by Dongguan city Science & Technology Bureau and Dongguan City


Intellectual Property Bureau.Yuxing machines get a high credit standing at the correlative industry.





We always insist the tenet of "Honest Business,Credit First".In the condition of fierce competitive


market,we make progress and get innovation constantly.We firmly believe high quality and good


service are the best support for users' trust.







                            Welcome to visit our factory any time!!^_^
