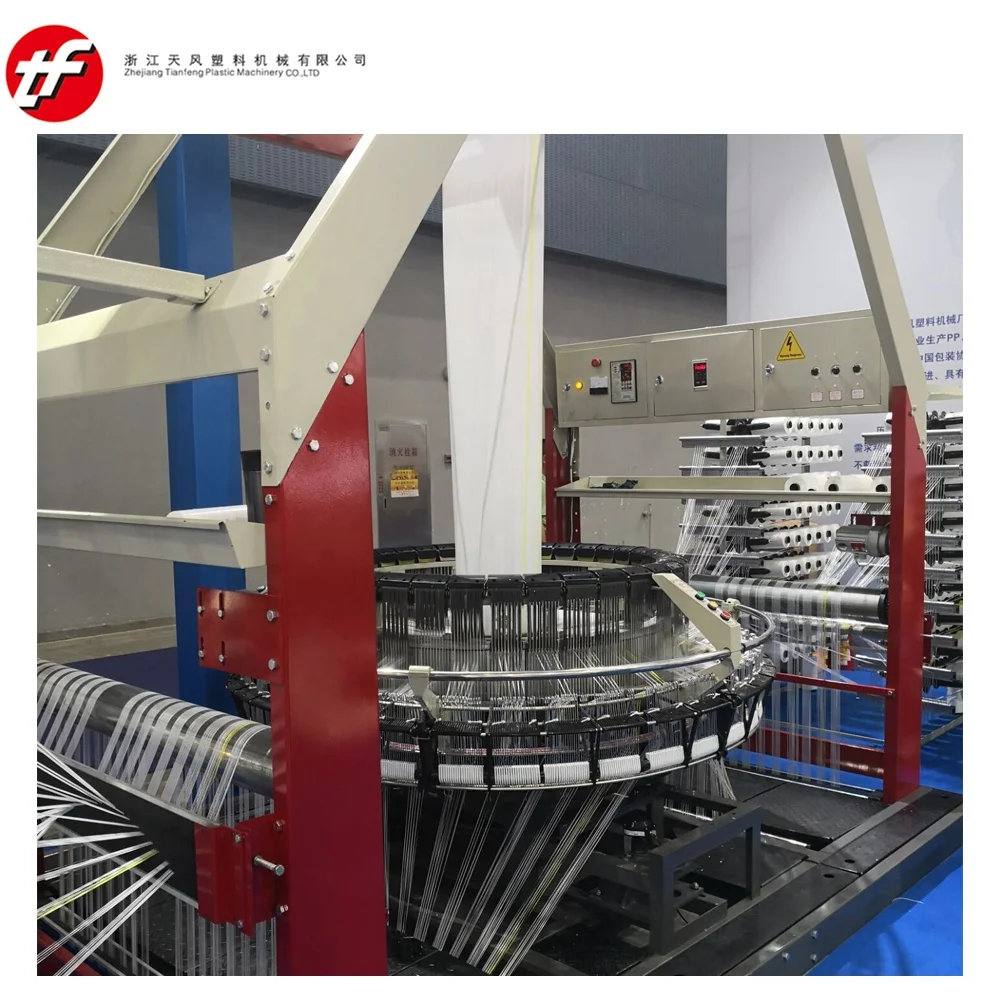

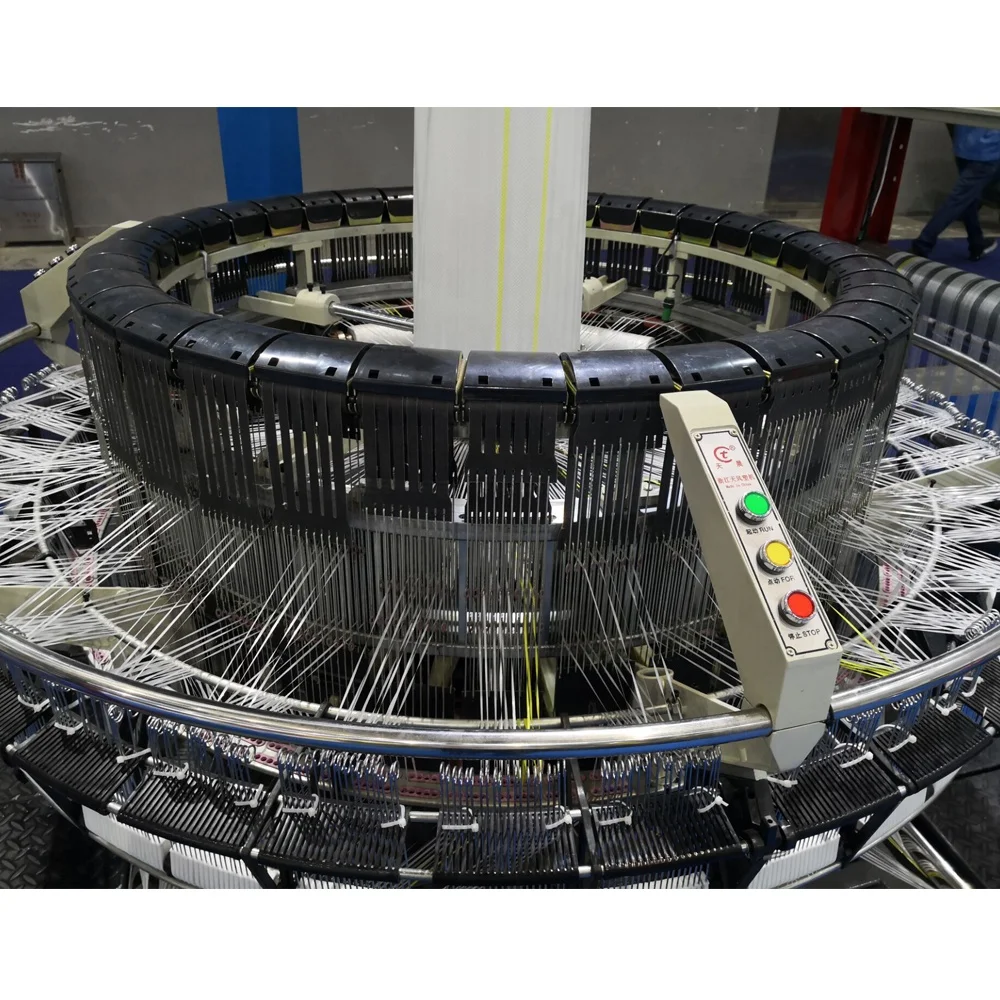

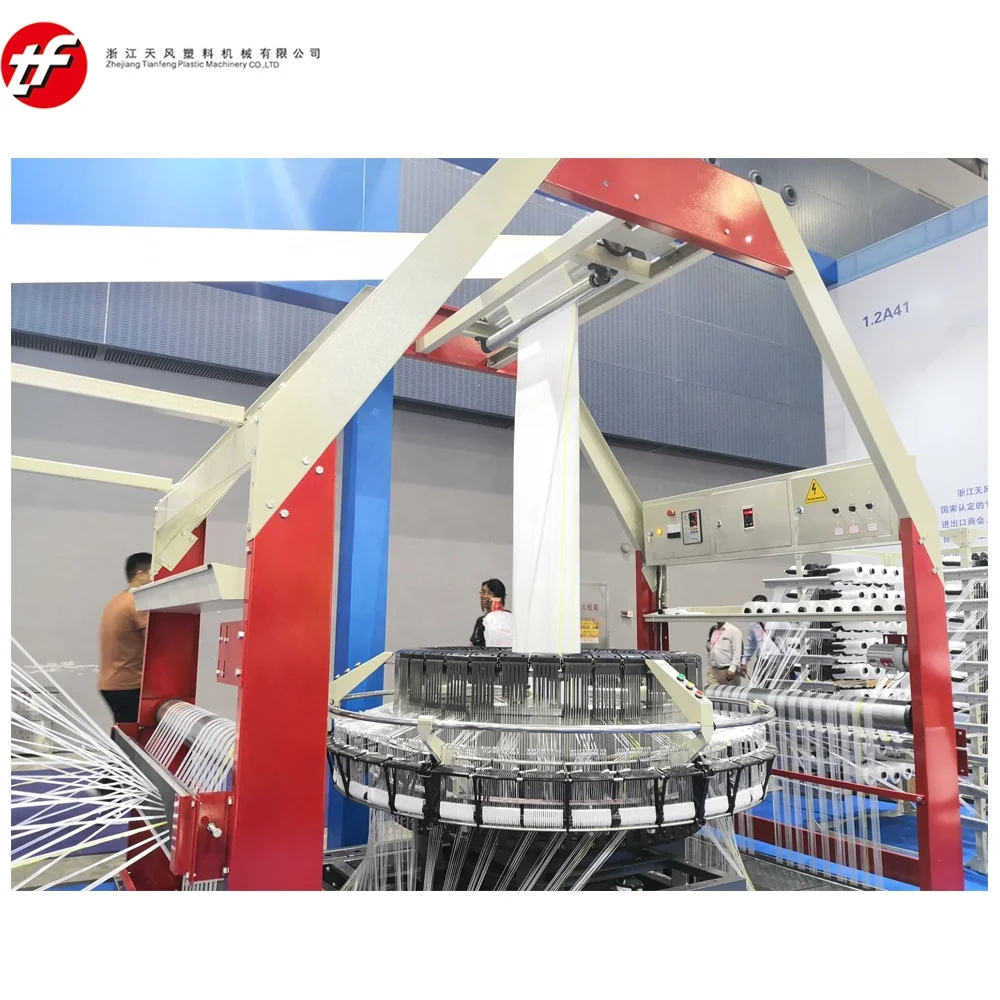

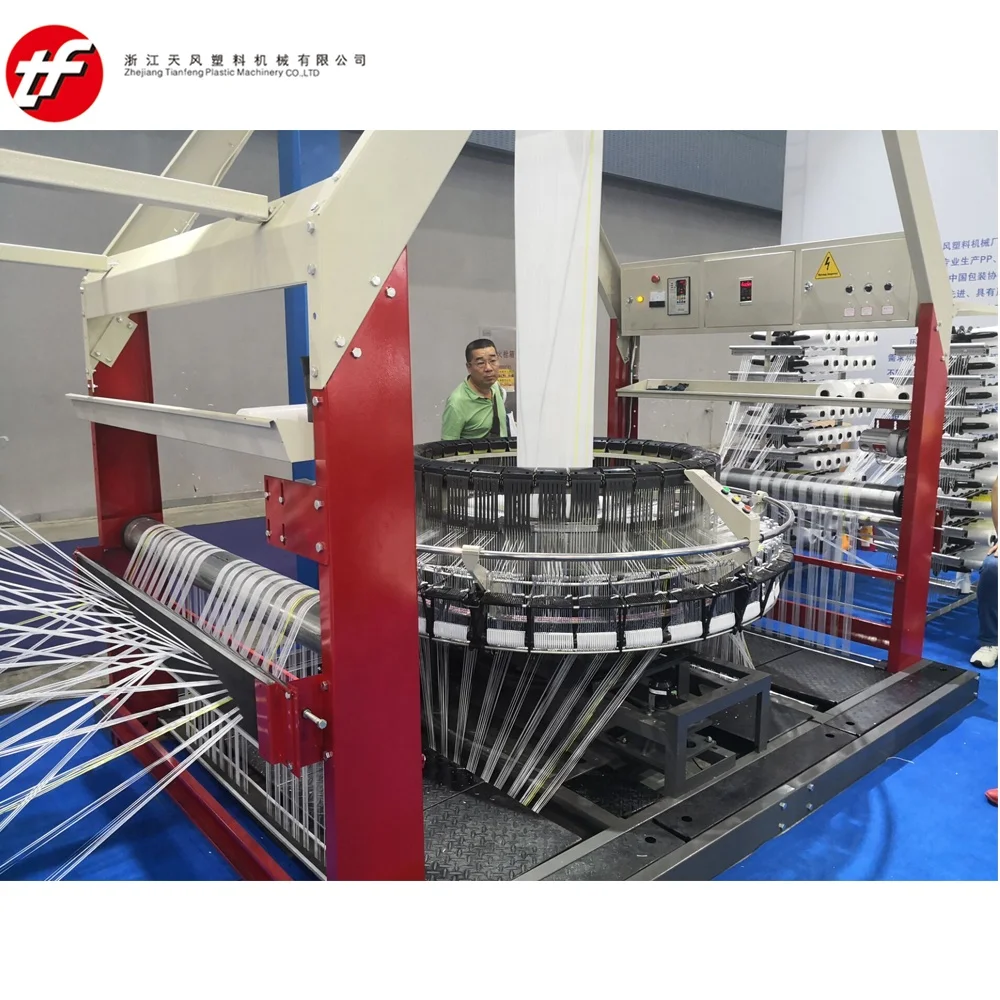

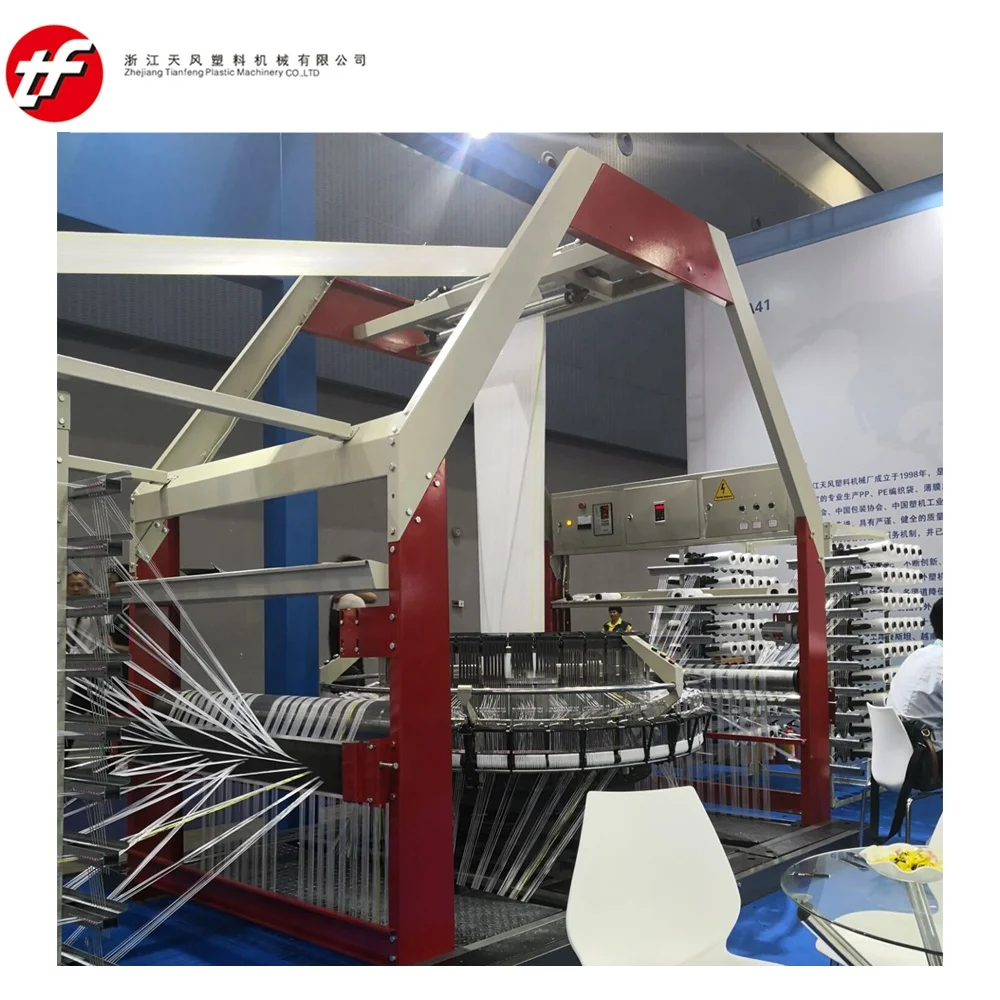

Круговой ткацкий станок для цементного химического порошка, соль, пищевые минеральные гранулы, машина для производства мешков и производственной линии
- Category: Packaging Material Making Machines >>>
- Supplier: Zhejiang Tianfeng Plastic Machinery Co. Ltd.
Share on (201708901):
Product Overview
Description
Circular Loom for cement chemical powder salt food mineral granule PP woven bag sack making machine and production line
Application
Performances and Features
Suitable for PP/HDPE tape from various materials, such as, PP/HDPE granule material, powder material, 100% recycled material, mixed material, etc.
Inverter control, central small cam structure, more energy-efficient.
Easy operation and maintenance, stable running, long working life. Suitable for producing woven fabric for various PP woven bag.
Main Technical Parameters
Model | S-YZJ-850/6S |
Number of shuttles | 6 pcs |
Rotational speed | 120-180 r.p.m. |
Weft density | 20-55wefts/100mm |
Max. number of warp | 720 pcs (360 pcs×2) |
Working width, double-flat | 350-850mm |
Inner dia. of core | Ø38mm |
Length of core | 230mm |
Max. dia. of warp bobbin | Ø120mm |
Max. dia. of weft bobbin | Ø110mm |
Length of warp/weft bobbin | 200mm |
Driving main motor and control Warp infeed motor and control | 3kw, inverter control 2sets, torque control |
Fabric haul-off and control | By mechanical drive, 1 set |
Winder motor and control | torque control |
Length of winding core | 950mm |
Max. dia. of winding roll | Ø1200mm |
Over dimensions (L×W×H) | 9100×2410×3100mm |
Composition of the Standard Loom |
|
Frame | 1set |
Creels stand | 2unit |
Central drive system (small cam, A.C. motor) | 1unit |
Positive warp infeed system with torque motor | 2unit |
Warp break detecting system | 1unit |
Weft break detecting system | 1unit |
Weft pre exhaust detecting system | 1unit |
Shuttle assembly | 6units |
Shuttle motion guide | 1unit |
Weaving size ring | 1unit |
Bobbin storage above the intake | 2units |
Manual operation control unit | 3units |
Fabric haul-off system | 1unit |
Electronical meter counter | 1unit |
Standard width surface winder | 1unit |
Loom control system | 1unit |
Main Electric Elements List |
|
Loom controller | Wenzhou, China |
Warp monitoring sensor | China or India |
Central main motor | Wannan Motor, China |
Motor for warp feeding | Changzhou or Wenzhou, China |
Motor for fabric winding | Changzhou or Wenzhou, China |
Inverter | China |
Breaker | DELIXI, China |
Other low-voltage electric | DELIXI, China |
Wire terminal | Wenzhou, China |
