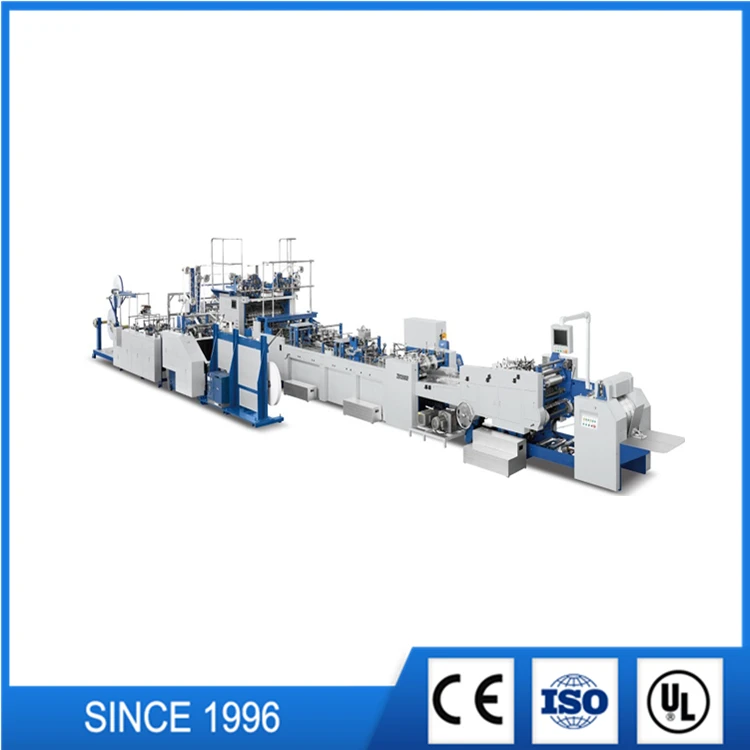

CZB 1260S 450 полностью автоматическая машина для производства бумажных пакетов для покупок

Product Overview

Description

Introduction

CZB1260S-450Fully automatic paper bag making machine adopts sheet paper , reel reinforced paper and twist rope paper as material to produce paper bags in one time.The process contains handle making, handle pasting,top folding(or without top folding),tube forming,gusset folding,bottom pasting,compaction output or reinforced paper pasting,top folding,tube forming,gusset folding,eyelet punching,bottom pasting and compaction output.Three bag types are all available on this machine.Based on the traditional machine mechanical handle/patch cutting unit,this machine updated to servo cutting system which has a much more compact structure.Shorter setup time,safer working condition,bigger and convenient operation space are all its advantages.

Applicable Paper

Suitable Paper:Kraft paper,art paper(including film laminated paper)

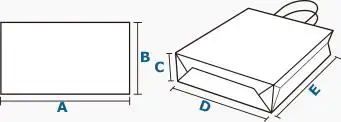

	A	B	C	D	E
Max.Size Min.Size	1200 600	620 350	170 80	450 220	490 250



















Main Technical Parameters

This machine can produce 3 kinds of different paper bags

Main Technical  Parameters
Max.sheet(L*W)	1200*600	1200*600	1200*600
Min.sheet(L*W)	620*350	620*350	620*350
Sheet weight	120g-190g	120g-190g	120g-190g
Bag width	220-450mm	220-450mm	220-450mm
Bottom width	80-170mm	80-170mm	80-170mm
Bag length	250-490mm	250-490mm	260-540mm
Top turn in width	40-60mm	40-60mm	---------
Handle patch length	188.5mm	188.5mm	188.5mm
Handle patch width	30-50mm	30-50mm	30-50mm
Handle patch weight	140g-200g	250g-350g	140g-200g
Handle patch roll diameter	Ø1000mm	Ø1000mm	Ø1000mm
Handle patch roll width	60-100mm	60-100mm	60-100mm
Paper rope diameter	4-6mm	---------	4-6mm
Handle rope height	170-195mm	---------	170-195mm
Speed	40-70 bags/min	40-70 bags/min	40-70 bags/min
Total Power	25kw	25kw	25kw
Total Weight	22T	22T	22T
Machine Size	16450*5300*3100mm	16450*5300*3100mm	16450*5300*3100mm
Glue type	Water soluble cold glue(hot-melt glue)
