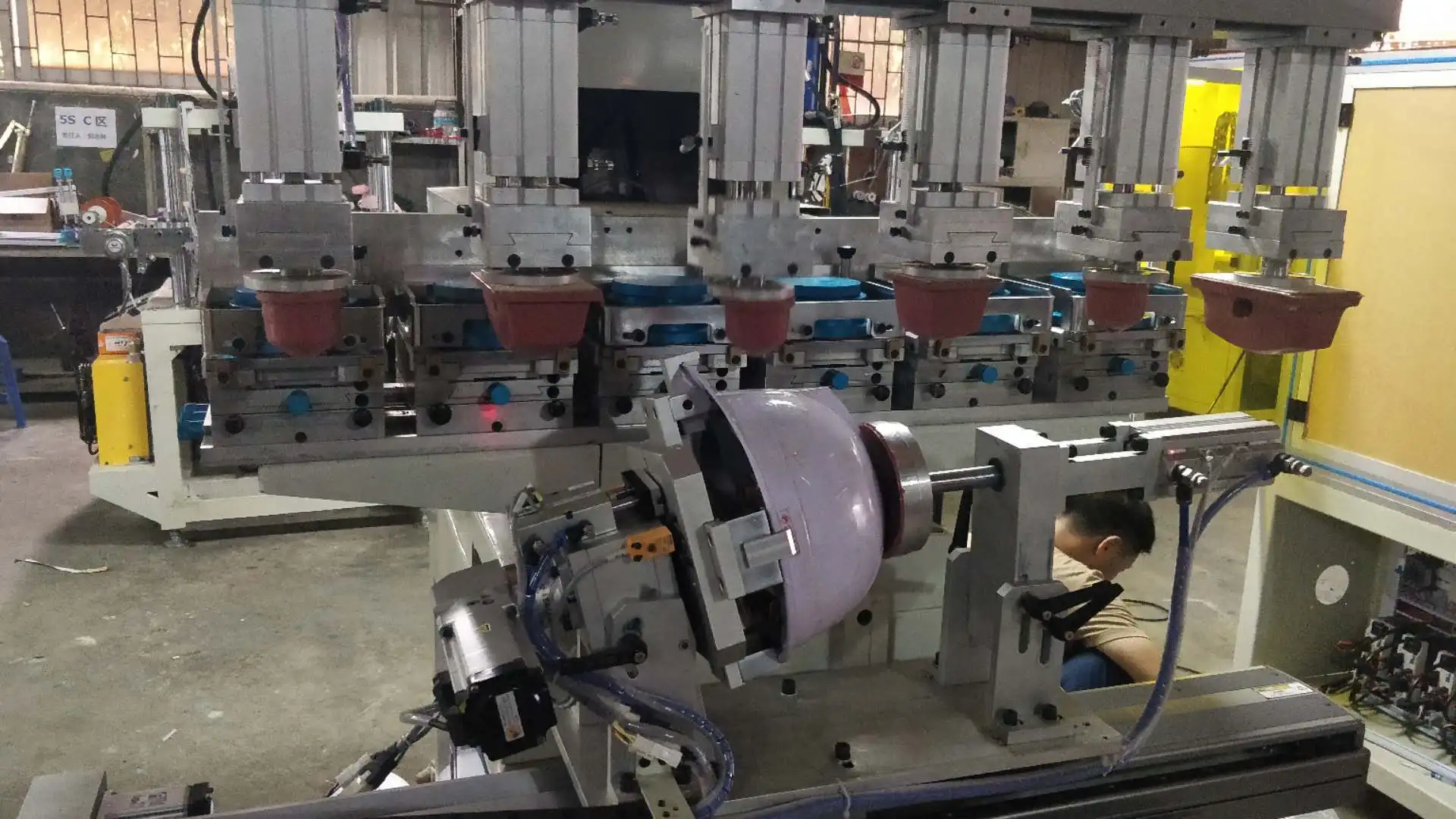

HP 300 FY 6 colors helmet Logo pad printing machine for safety products

Product Overview

Description

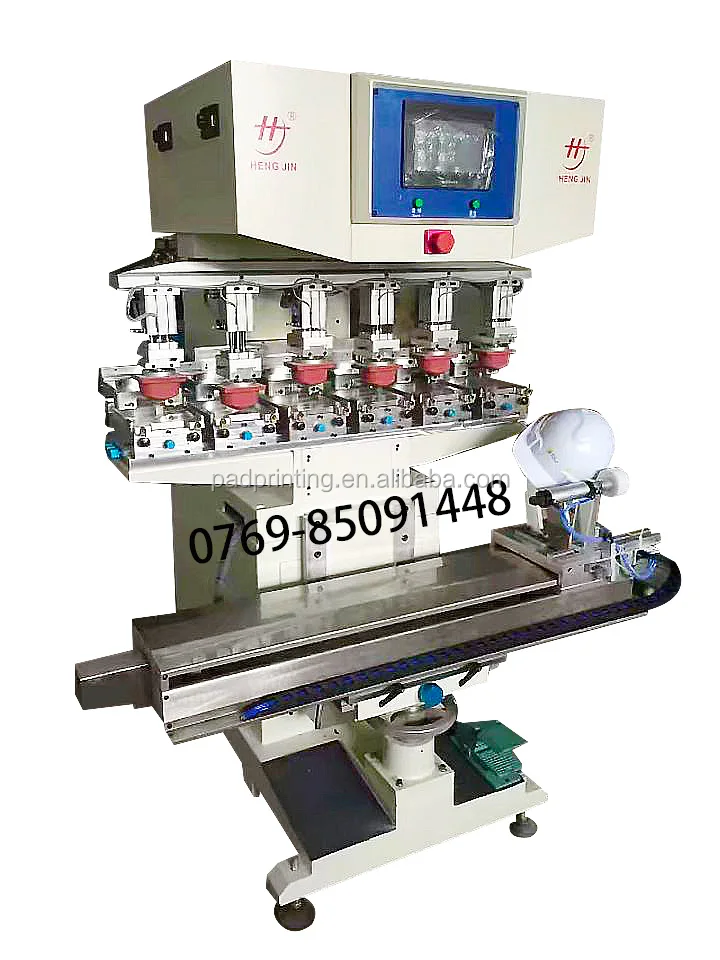

Hengjin 6 colors ink cup pad printer for helmet HP-300FY

1.alloy cast auminm body
2.CE approval
3.Germany FESTO cylinder
4.Manufacturer in Dongguan

5 Worktable shuttle with servo motor and PLC control







1 Fast printing speed .Per time printing 4 colors



2 Kindly human-computer interface opersition systerm



3 Controled by advanced PLC



4 High speed servomotor as the motive power for worktable, drived by ball screw, has strong action and accurate position, resetting accuracy is 0.01mm



5 The pads track up/ down controled by rotary encoder, and the height of pads fall managed by NC



6 All the position is reaction by electric eyes, has accurate position and optimal performance



7 All of the position has the delayed fuctions and the printing speed is adjustable to satisfy differents requirments



8 The travel of pads is adjustable independent which is more connvient and felx



9 Once set the fuction program, it could keep memory



10 According to customer needs, set single cycle of printing and automatic printing;



11 Pneumatic components from Germany FESTO, which power is smoother and strong durabling;



pad printer  Parameter:



Item Number:	HP-300FY	Printing colors:	6
Printing Speed	600pcs/ hour	Max height of products	240mm
Max metalic plate:	150x300mm(6”x12”)	Sealed ink cup size :	Dia 135mm
Work table size:	220*285mm	Track of pad	300mm
Adjustabe to pads size on target products	10-80 mm	Adjustabe to pads size on the metallic plate	10-80 mm
Voltage of source	220 VAC/ 1 Phase 300W	Air supply	6 Bar
Dimentsion:	1350mm X 1160mm X 1680mm	Net Weight	560 KGS







2. One year guarantee for whole machine except of consumable

3.24 hours technical support by e-mail

4. Calling or door-to-door service if need

5. Elaborate English manual and detailed Videos/ CD
