HVAC systems best price bimetallic radiator manufacturers china
HVAC systems best price bimetallic radiator manufacturers china

HVAC systems best price bimetallic radiator manufacturers china

Share on:


Price:$4.30 - $4.50
Price in USD:Details

Quantity:


Product Overview

Description


  "   Wall Mounted Hot Water Bimetallic aluminum

radiator manufacturers china

Specification of Bimetal Radiator Steel Tube:

Model

Demension

(W*D*H mm)



Central

Distance

(mm)

Working

Pressure

(MPa)

Water

Capacity

(L/PC)

Weight

(KG)





Thermal

Output

T=64.5℃

(W)

UR7002-300

80*85*366

300

1.5

0.26

1.31

128

UR7002-500

80*85*566

500

1.5

0.36

1.97

178

UR7002-600

80*85*666

600

1.5

0.39

2.21

196

UR7002-800

80*85*866

800

1.5

0.43

2.37

230

UR7002-1000

80*85*1066

1000

1.5

0.59

2.76

284

UR7002-1200

80*85*1266

1200

1.5

0.62

3.18

311

UR7002-1600

80*85*1666

1600

1.5

0.79

3.98

411

UR7002-1800

80*85*1866

1800

1.5

0.85

4.35

466

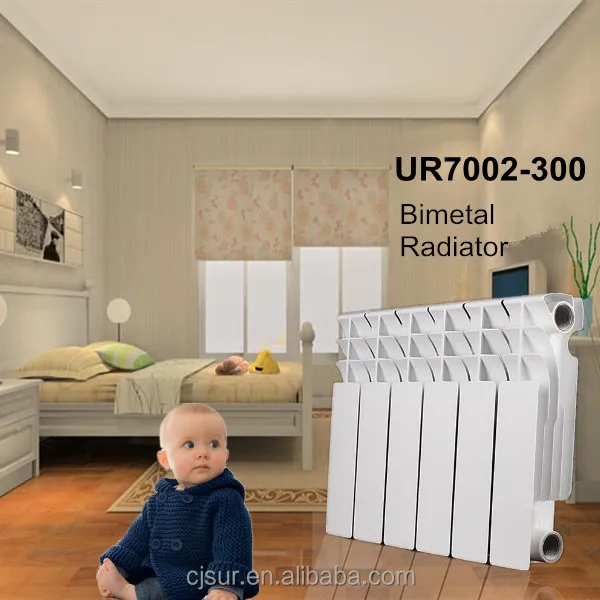

UR7002 Bimetal_radiators_home_heater_hot_water_heater.jpg



UR7002



Advantages of hot water heating bimetal radiator:

1.Fashion design in Europe .

2.Quick warming, high thermal efficiency, low enery consumption .

3.730°C liquid aluminum, die cast by 800 Tons die casting machine in one step .

4.The testing pressure is 24bars , the working pressure is 20bar, the Max pressure is

more than 38bars .

5.300-metre electrophoresis painting line, global top level technology .

6.Automatic thermal film and sealing system for packing .

7.Thermal output is counted according to European manufacturer’s standard EN442 .

8.Conceated water channel design can protect elderly and children from being hurt .

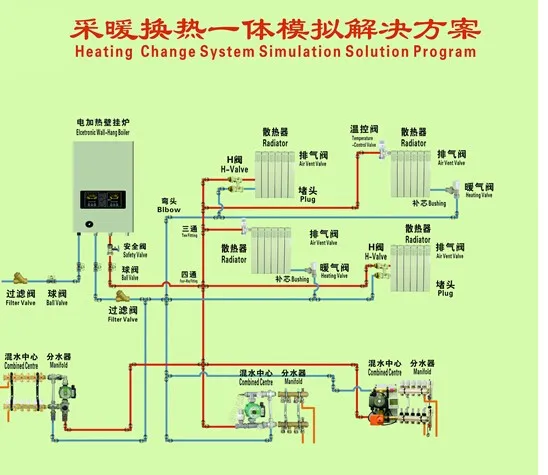

Heating System :

Home Central Heating

_





Certificates:



CE EN442.jpg



GOST



Packing details :



packing



Electrophoresis Painting Line From Germany BASF :

Electrophoresis Painting.jpg



Spraying Processing



3 Times' Water Pressure Leakage Test :

leakage test



Fittings for our water bimetal radiator :

.jpg



Our service :



-1



We also offer Electric and Water Radiator:

Electric : //preview.alibaba.com/product/511857436-220512299/Wall_Mounted_Flat_Dessigner_Electric_Wire_Heating_Aluminum_Radiator.html



Bimetal : //preview.alibaba.com/product/1991502751-212463411/HVAC_System_Water_Heating_Radiator_Import_ADC12_Aluminum_Ingots.html



003



              Welcome your inquiry and visit !
