CF56II Offset Printing Machine

Product Overview

Description

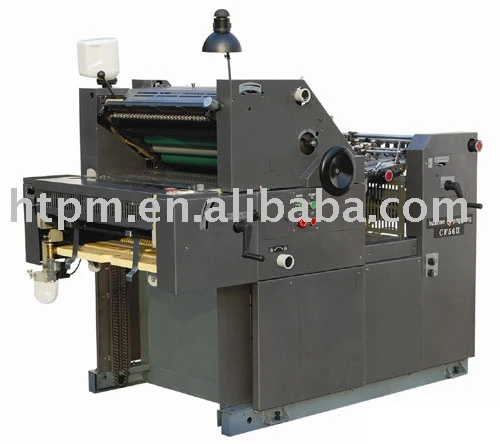

CF56II Offset Printing Machine,Offset Press



A Main function



Model CF56II offset press are made with fine workmanship on the basis of high quality 56-series,in addition to all the functions of 56series,they have improved inking system,more form rollers and vibrating rollers,uniform ink distribution can ensure high printing quality needed for full printing, make short run color printing simple,easy and smooth,the printed products are more beautiful.So they are economical and practical printing machines.



B Paramter



Maximum printing area	544 x 380mm
Maximum paper size	560 x 390mm
Minimum paper size	200 x 148mm
Paper type	17-250g/m2
Number of ink rollers	14 pieces (3 form rollers)
Number of dampening rollers	4 pieces (1 form rollers)
Registration mechanism	Roller type side lays
Printing speed	2000-8000 sheets/hour
Motor power	Main motor: 0.75KW/380V	Air pump moto:0.55KW/380V
Machine size	1869L×1129W×1219H mm
Weight	610KG

C printed sample

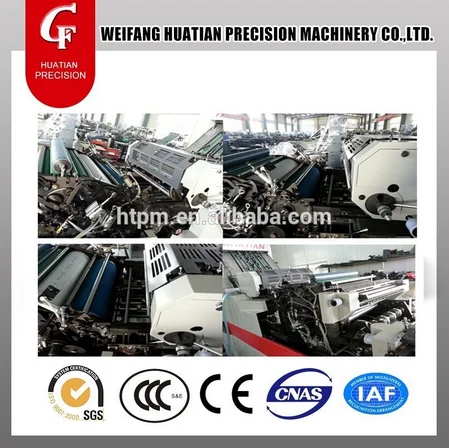

D Factory and delivery











     Contact person:Niki    tel:0086-13793642280
