Oilfield equipment,API F Series Pumping Units with.
- Category: Other Mining Machines >>>
- Supplier: Rugao Yaou Import Amd Export Trade Co. Ltd
Share on (204115264):
Product Overview
Description
Product Description
Brief Introduction

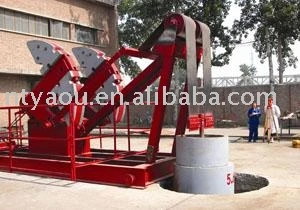

API F series Pumping Units is a new kind of non-beam energy-saving pumping units, its a power equipment on the ground used in sucker rod oil extraction.
The products conform to API Spec.11E Specification for Pumping Units and other relative API standards, acquired the authorization to use Official API Monogram
Technical Performances
Use roller and belt to form flexible drive, improve impulsive load, prolong service life of gear reducer.
Abnormally design of crank arm make it balanced completely.
Gear reducer is involute herring-bone gearing, work smoothly and reliably.
Small cubage, light weight, the complete machine can be folded totally, its convenient for installation and transportation...
No | Type | Polished Rod Capacity | Stroke Length | Rated Torque |
1 | F-320D-256-120 | 25,600 | 12010285 | 320,000 |
2 | F-320D-256-100 | 25,600 | 1008570 | 320,000 |
3 | F-320D-246-86 | 24,600 | 867156 | 320,000 |
4 | F-228D-256-100 | 25,600 | 867156 | 320,000 |
5 | F-228D-213-86 | 21,300 | 867156 | 228,000 |
6 | F-228D-246-86 | 24,600 | 867156 | 228,000 |
7 | F-228D-246-74 | 24,600 | 746453 | 228,000 |
8 | F-160D-173-86 | 17,300 | 867462 | 160,000 |
9 | F-160D-200-74 | 20,000 | 746453 | 160,000 |
10 | F-160D-173-74 | 17,300 | 746453 | 160,000 |
11 | F-114D-173-64 | 17,300 | 645444 | 114,000 |
12 | F-114D-143-54 | 14,300 | 544434 | 114,000 |
13 | F-114D-109-54 | 10,900 | 544332 | 114,000 |
Packaging & Shipping
According to the volume and weight of the product and export requirements, provide multi-layer boxes and iron box packaging.
Transportation is based on customers in different regions using steam, rail, road and air transportation.
FAQ
Q1. How to get an accurate quotation?
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machine
