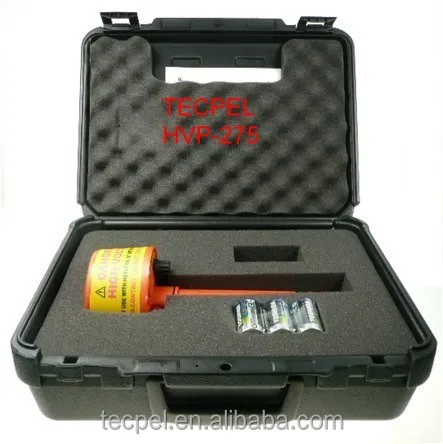

TECPEL High Voltage Proximity Detector HVP 275

Product Overview

Description

High Voltage Proximity Detector

HVP-275 Features

-Sealed by " O" Ring.
-8 voltage settings: 240Vac, 2kV, 6kV, 11kV, 22kV, 33kV,
 132kV, and 275kV
-High bright LEDs visual indication
-Sound indication
-Easy-to-proov method
-Self-test selection
-Use 3 x 1.5V C batteries
-High impact nylon casing
-Non-contact work by proximity
-Compatible with most link sticks
-Light weight, robust, & compact
-Suitable for indoor and outdoor use
-Detect low voltage on any systems
-Easy access to batteries
-No special parts needed
-Three-year warranty
-Simple and efficient to use

• Introduction:

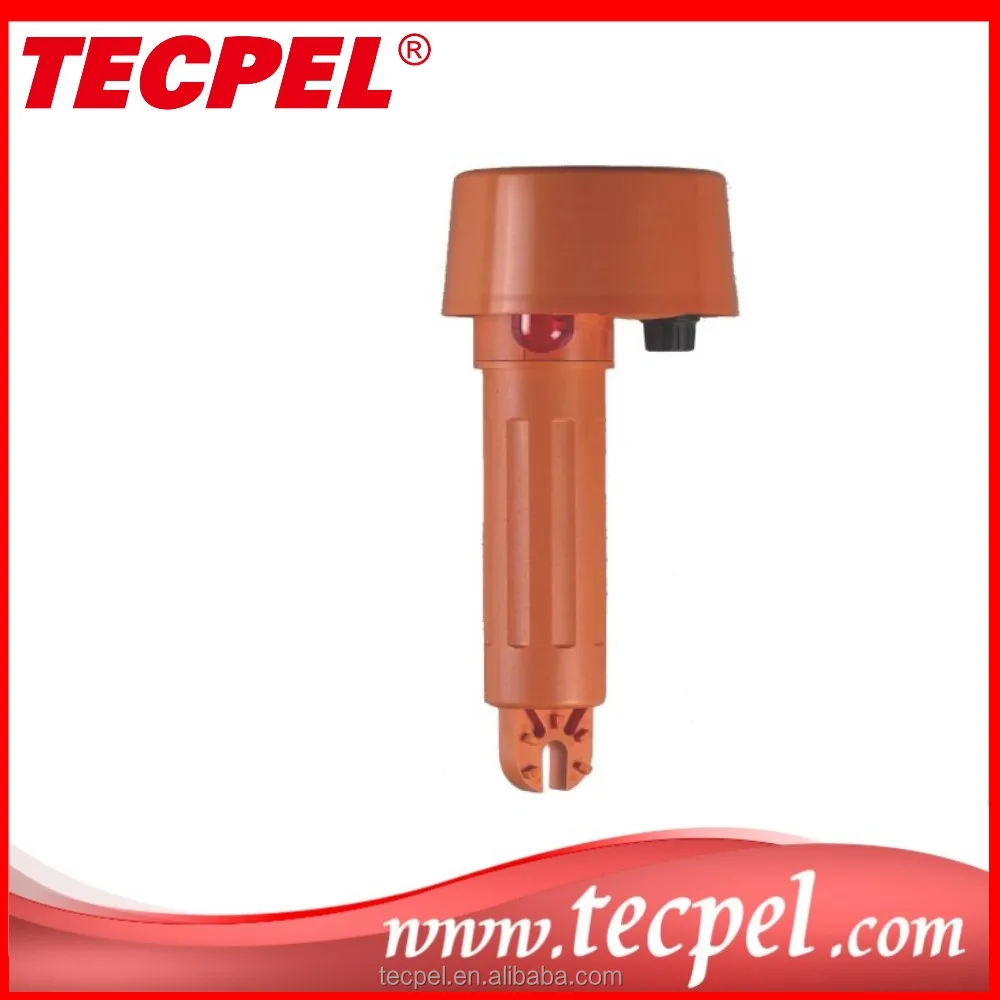

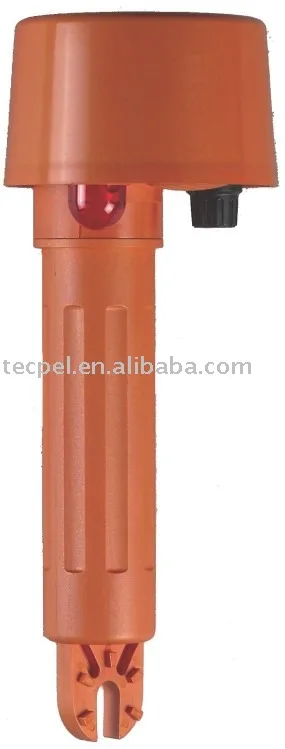

  • The TECPEL HVP-275 is a high voltage proximity detector.


  • It has eight voltage detection settings from 240Vac to


  • 275kVac. The HVP-275 consists of an internal pickup


  • sensor plate, a sensitivity selector, a visual and a


  • sound annunciator. With the HVP-275, physical contact


  • with electrical conductors is not necessary when


  • testing for live lines. This tester works by proximity.


  • Its sensor senses the radiated field which surrounds


  • live conductors. Radiated field strength increases


  • with voltage and decreases quickly with distance or


  • earth shielding. The radiated field from a cable of


  • closely bunched conductors supplied by three phase


  • power tends to cancel (See Limitations of use


  • paragraph). Detecting distance of a 250Vac single


  • live wire is approximately 10cm. With a bunched


  • neutral and earth cable, as in a flexible cable, the


  • distance is reduced to 5cm.


  • Some of the typical uses are : identify and check live


  • cables; find fault in flexible cables; check earth


  • equipment; service neon lightning; trace live wires;


  • check high frequency radiation; detect residual or


  • induced voltages. For example, faults in damaged


  • flexible cables are found by applying low voltage to


  • each conductor. Earthing the remainder and moving


  • the tester along the cable until the change in condition


  • is obtained. (Flexible cables which are used in mining


  • and building industries, are readily repairable when


  • the break in the cable is located.)


  • When testing for high voltage, the rotary switch


  • (attenuator) is used to identify and differentiate


  • various HV live cables. The tester must be used in


  • conjunction with a long and insulating rod when


  • measuring high voltage (kV). However, the HVP-275 is


  • a non-contact tester and it is advised that the tester


  • should never come into contact with cables (kV) as


  • this tester is merely a non-contact AC proximity tester.


  • Checking or proofing the tester is easy. Switch the


  • sensitivity to 240V and place the dome against a low


  • voltage live conductor or rub the dome with a cloth or


  • against an item of clothing as this generates a static


  • DC which triggers the detection of circuit. The light


  • and beeper should go on as if a live wire is being approached. Approaching the dome near a computer screen or a TV screen should also trigger


  • the tester while on the 240V selection. The power consumption of the 275HP is very low, and the


  • tester should always be tested as described above before using it.






• Specifications:



  • Expected test results ( laboratory testing ) :


  • Range


  • 240V


  • 2kV


  • 6kV


  • 11kV


  • 22kV


  • 33kV


  • 132kV


  • 275kV


  • Typical observation of test results made in the field :


  • Range


  • 11kV


  • 22kV


  • 33kV


  • 132kV


  • 275kV


  • Operated from


  • Variable from 80V


  • or depending on the type of source


  • 250V


  • 500V


  • 1000V


  • 1500V


  • 4000V


  • 8000V


  • 22kV


  • Min. Detection MDV as % of


  • Voltage (MDV) Line Voltage


  • 1kV 9.1%


  • 2kV 9.1%


  • 3.1kV 9.4%


  • 12.5kV 9.5%


  • 22.5kV 8.2%






• Limitation of usage.



  • Limitations of use :


  • It is recommended that the 275HP is not used in HV yards of mixed voltages.


  • In the presence of mixed voltages, the tester can become unreliable.


  • Problems can arise when the tertiary circuit of a 275/133/11kV transformer is


  • tested. The electric field of the HV and MV bus bars can trigger the detector when


  • it is about 3m above the ground. This is common with most of the electric field


  • voltage detectors, and the users should be aware of it. The tester can pick up


  • adjacent circuit to the one being tested and indicate the wrong information to the


  • user. Limitations of use :


  • It is recommended that the 275HP is not used in HV yards of mixed voltages.


  • In the presence of mixed voltages, the tester can become unreliable.


  • Problems can arise when the tertiary circuit of a 275/133/11kV transformer is


  • tested. The electric field of the HV and MV bus bars can trigger the detector when


  • it is about 3m above the ground. This is common with most of the electric field


  • voltage detectors, and the users should be aware of it. The tester can pick up


  • adjacent circuit to the one being tested and indicate the wrong information to the


  • user.
