ACJ Series Bottom Magnetic mixerOperating PrincipleTechnical ParameterInstalling DimensionDocuments Downloads 1.Product Desciption:
ACJ and BCJ series is New design which is an improvement based on the CJ series.
ACJ: BOAO makes disassemble of separation sleeve and tank available. Connection by the welding flange ,which is more conform with “Pressure Vessel standard” and much easier for maintenance when any trouble shooting.
The sealing style between of separation sleeve and welding flange also keeps cleaning without any dead spot.
Application
Bottom entry magnetic agitator ,which is also call magnetic mixer, which presents a highly hygienic solution for the applications of dispersion, dissolution, homogenization and mixing of a wide range of media in the pharmaceutical industry.
The magnetic agitators are especially useful in sterile processes; absence of mechanical seals prevents any contact with the exterior environment.
The most common applications are dissolution of glucose in dematerialized water, maintenance of vaccine suspensions homogeneity and agitation of blood fractions, also for pharmaceutical such as vaccine mixing. 2.Working principle:
Operating principle
1. The mixing impeller produce a vortex ,which sucking the soluble powder or liquid towards to the impeller
2. After reaching the impeller, the fluid flows in a radial direction rush to the tank wall by the centrifugal force of impeller.
3. After reaching the tank wall ,the fluid travels upwards and then circulation down to the suction end of impeller.
4. The overall bulk movement and the mixing action around the mixer ensure that a homogeneous ,mixing ,dissolving, dispersing, is achieved.
High blending capacity with low shear. Magnetic coupling. No risk of leakage. CIP/SIP design. Bayonet coupling for easy assembly/disassembly of the drive unit. Low power consumption. Effective blending even of small volumes. Very low particle generation. Bottom mounted. Excellent for suspensions. Practical when there is no much space at the top of the tank. Frequency converter recommended. Autoclavable agitating element (with previous disassembly of the drive unit).
Materials
Rotor AISI 316L or 304 Welding plate AISI 316L Bearing SIC Surface finish Ra< 0.5
Options
Bearing: SiC. Parts in contact with the media: special materials Electropolished. Speed sensor. Control panel.

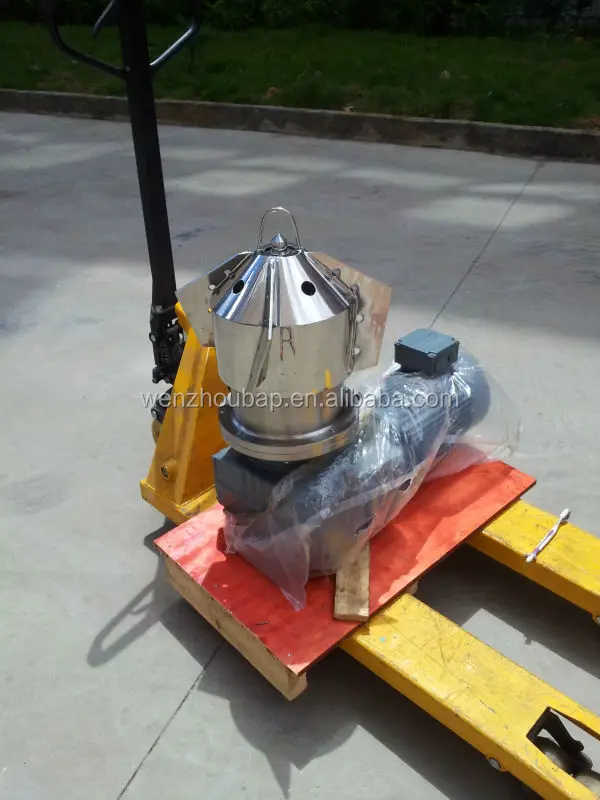

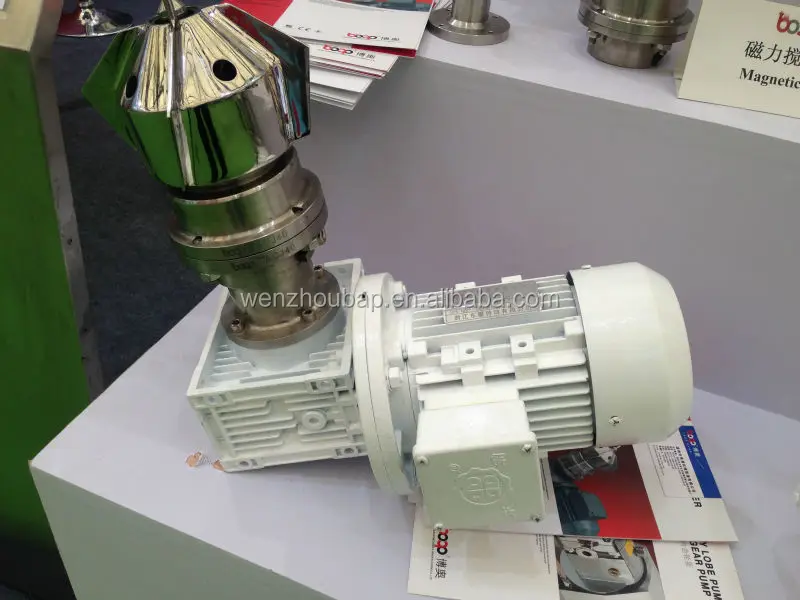

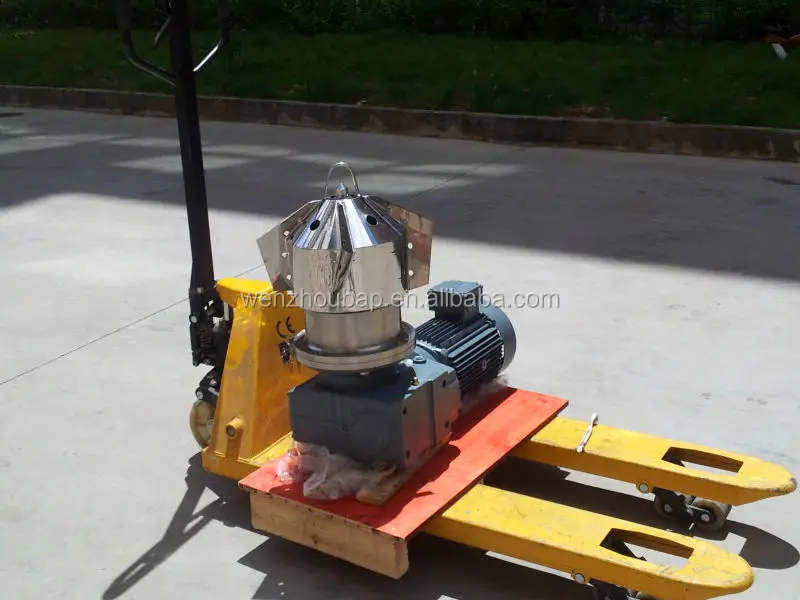

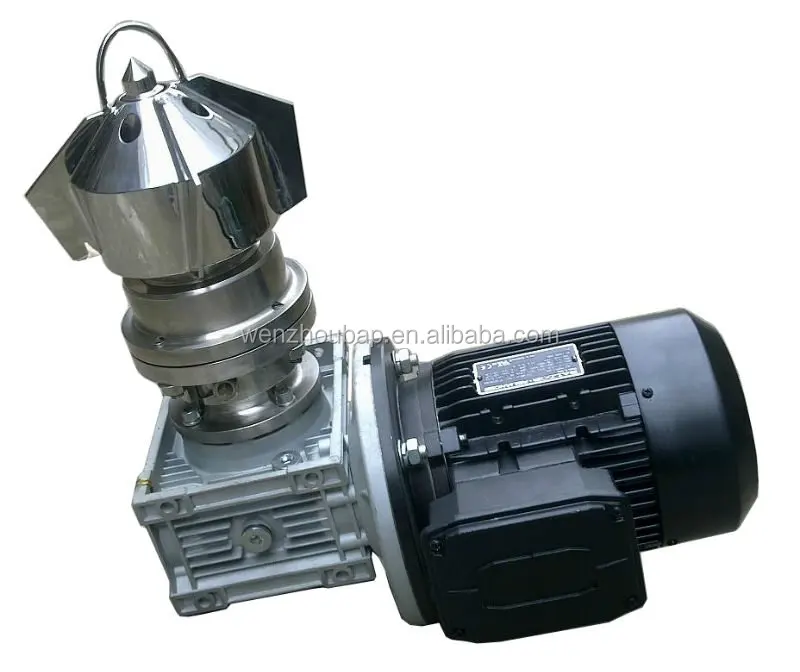

With warm speed reducer: Fixed speed range from 50-186rpm (according to different process)
Wish gear speed reducer: Fixed speed range from 150-600rpm (according to different process)

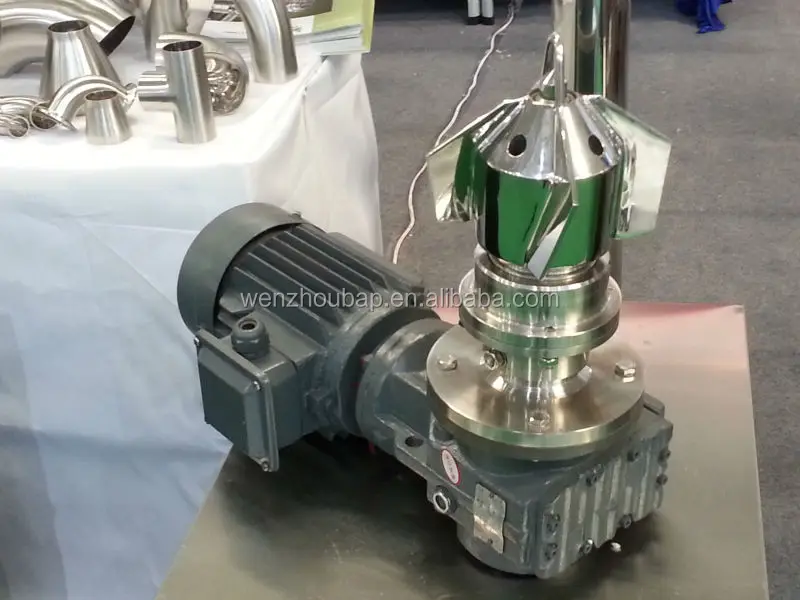

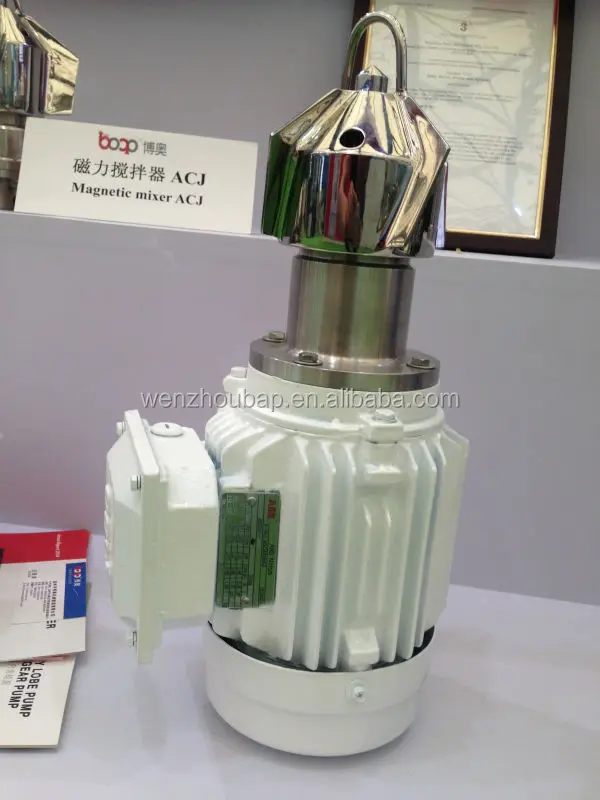

With 6-pole motor: Fixed speed at 960 rpm , which can be equipped with frequency converter, to control the speed. 4.Installation dimensions:
