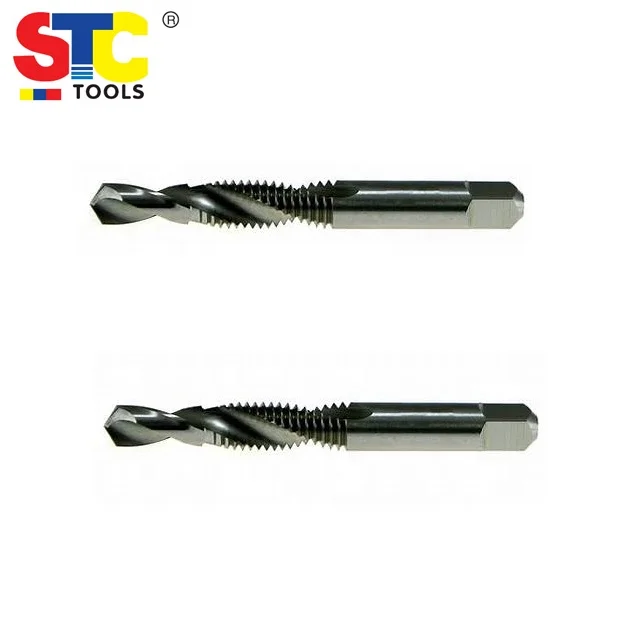

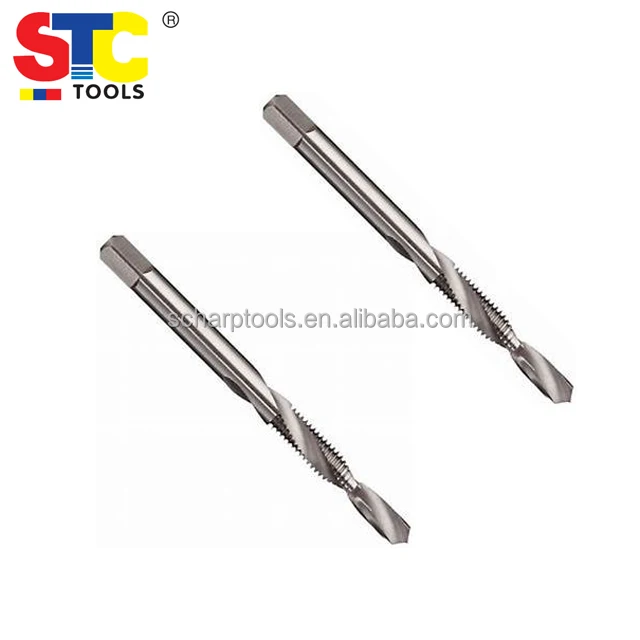

Комбинированное сверло и Метчик из быстрорежущей стали

Product Overview

Description

Combined drill and tap high speed steel HSSCoalt

• Also Known as drill and tap combo,combination drill and taps.


• Standard: DIN,ANSI


• Material: HSS,HSSE


• These combined drills and taps will do two operations at one time. They are designed so that through-holes up to times the tap diameter can be drilled and tapped at high RPM.


• Titanium nitride coating reduces heat and increases lubricity for extended life


• Fully ground M2 HSS raw material for extended life


• 135 degree split point cuts faster and reduces wandering


• Working thickness: 3.5mm


• Shank: 1/4" quick change


• Suits: Cordless drills & impact drivers


• Recommended RPM: 500 600



Nominal  size	Drill size	Thread length	Overall length
M3 X .5	0.1015	13/32	1-15/16
M3.5 X .6	0.1181	7/16	2
M4 X .7	0.1339	1/2	2-1/8
M4.5X.75	0.152	7/8	2-3/8
M5 X .8	0.1695	5/8	2-3/8
M6 X 1	0.2031	25/32	2-1/2
M7 X 1	0.242	15/16	2-27/32
M8 X 1.25	0.2735	15/16	2-27/32
M10 X 1.5	0.3445	1-1/16	3-3/8
M12 X 1.75	0.4134	1-3/8	4-1/16



Nominal  size	Drill size	Thread length	Overall length
1/4-20	.2080	13/16	2-1/2
1/4-28	.2200	23/32	2-1/2
5/16-18	.2660	31/32	2-27/32
5/16-24	.2770	7/8	2-27/32
3/8-16	.3225	1-1/8	3-3/8
3/8-24	.3395	1	3-3/8
7/16-14	.3770	1-5/16	3-3/4
7/16-20	.3955	1-3/16	3-3/4
1/2-13	.4350	1-15/32	4-1/16
1/2-20	.4580	1-15/16	4-1/16
5/8-11	.5750	1-3/4	5
3/4-10	.7200	2	6
