320mm Welding electrode / welding rod with bottom price
US $0.89-$1.09

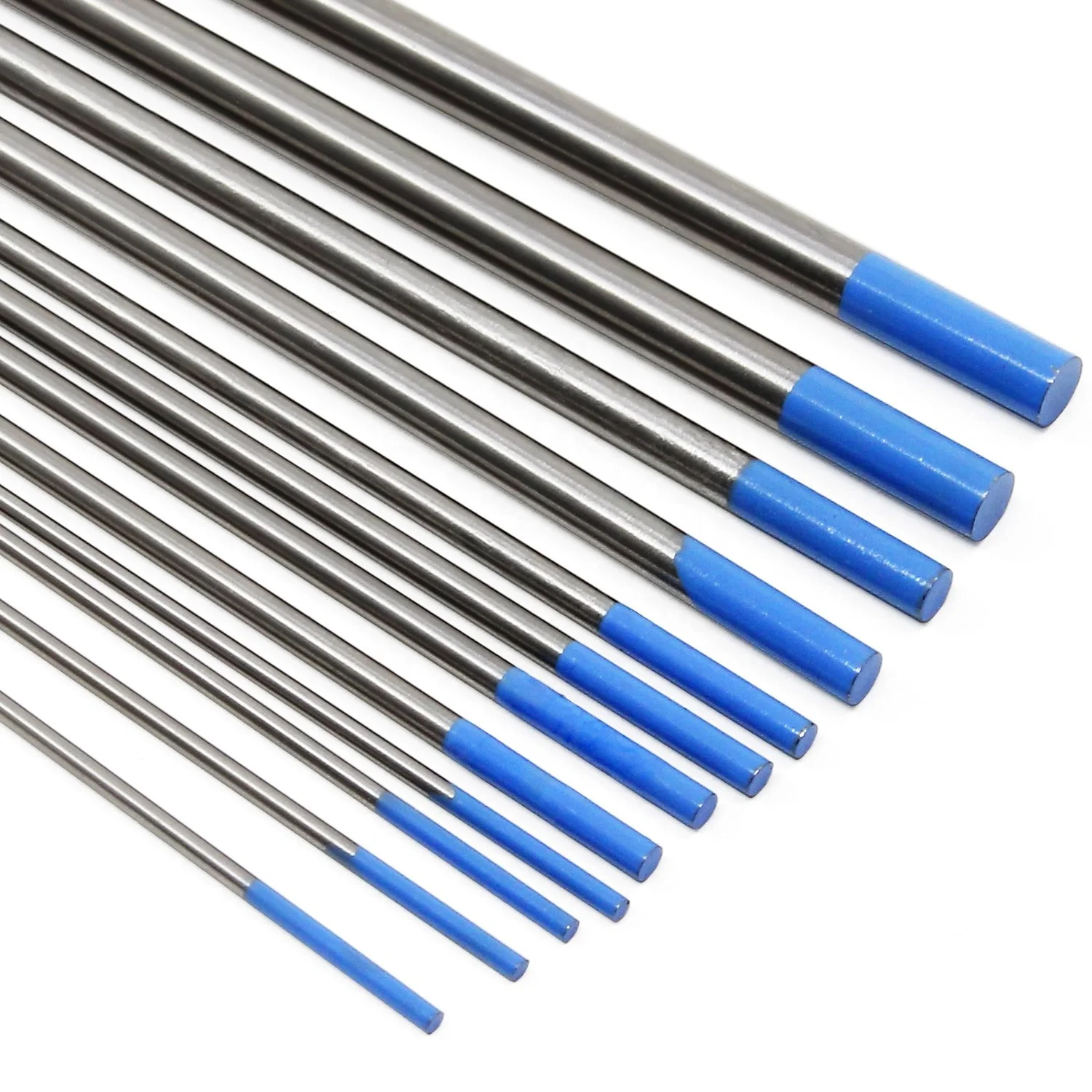

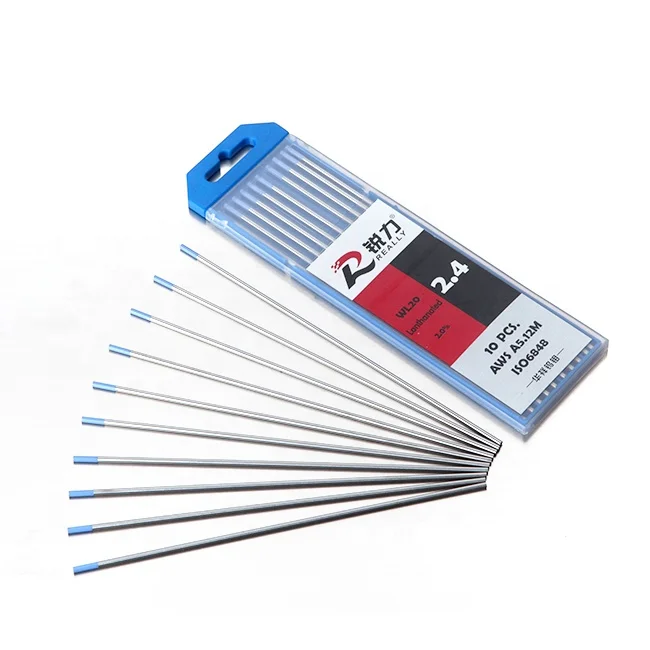

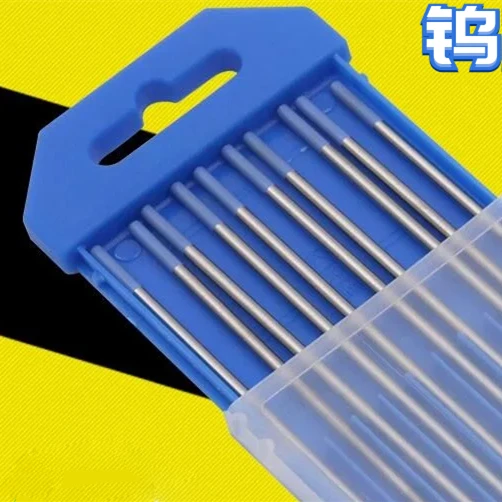

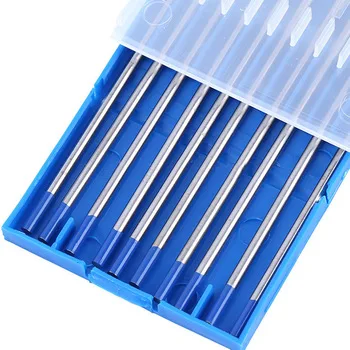

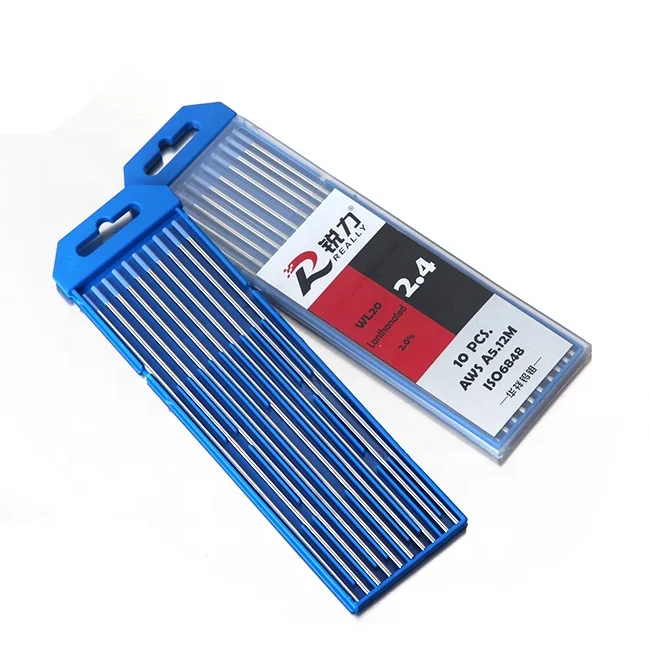

Lanthanum Tungsten Welding Electrode (2.4mm*175mm) ANSI/AWS A5. 12M 98
- Category: Welding Rods >>>
- Supplier: Zibo Huaxiang Tungsten Molybdenum Products Co. Ltd.
Share on (215725862):
Product Overview
Description
Product Description
The lanthanum- tungsten welding electrode has outstanding welding performance without radiation hazard. And its electric conductivity is the most close to that of 2% thoriated tungsten electrode. It enable welders to replace the thoriated tungsten electrode by lanthanum- tungsten welding electrode easily and conveniently without any change in welding procedure. Therefore, lanthanum-tungsten welding electrode is the most popular replacement of 2% thoriated tungsten welding electrode in Europe and Japan.
Lanthanum tungsten welding electrode is normally applied in DC(Direct Current) welding, it also works well in AC(Alternate Current) welding.
1) WL10,WL15,WL20 lanthanum tungsten welding electrode can be able to bear high current and have the lowest burn-lost rate, it is a popular tungsten electrodes in the circle of welding.
2) color mark: WL10(black)WL15(gold) WL20 (blue)
3) other impurity: <0.20%
4) diameter: 1.0 - 12.0mm
5) length: 50.00, 75.00, 150.00, 175.00mm
6) quality of surface: Ground finish, polish finish
Technical Data
Trade mark | Oxide Additive | Impurities Content%
| Tungsten %
| Electric Discharged Power
| Color sign
| |
Varieties | Content % |
|
| |||
WL10 | La203 | 0.8~1.2 | <0.2 | Balance | 2.8-3.2 | black |
WL15 | La203 | 1.3~1.7 | <0.2 | Balance | 2.8-3.0 | Gold |
WL20 | La203 | 1.8~2.2 | <0.2 | Balance | 2.6-2.7 | Sky blue |

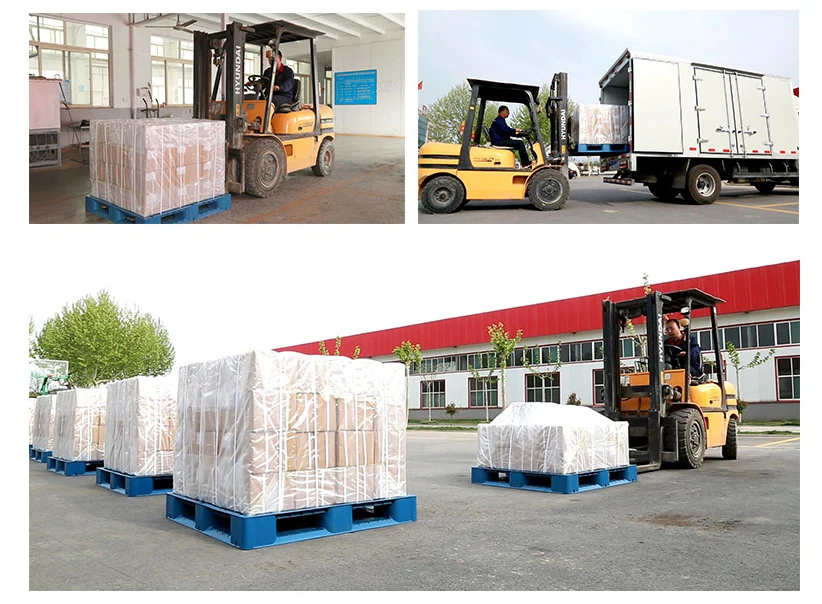

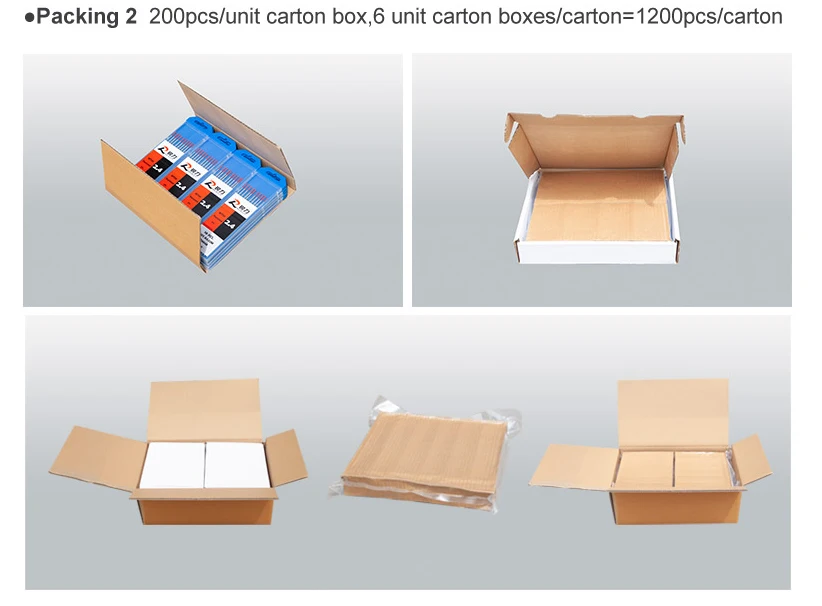

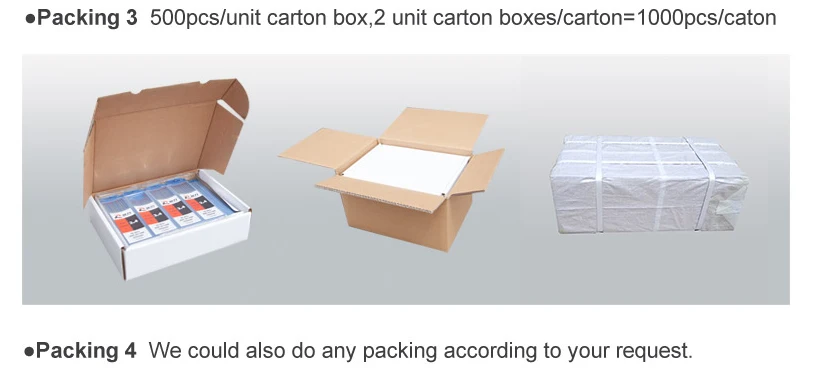

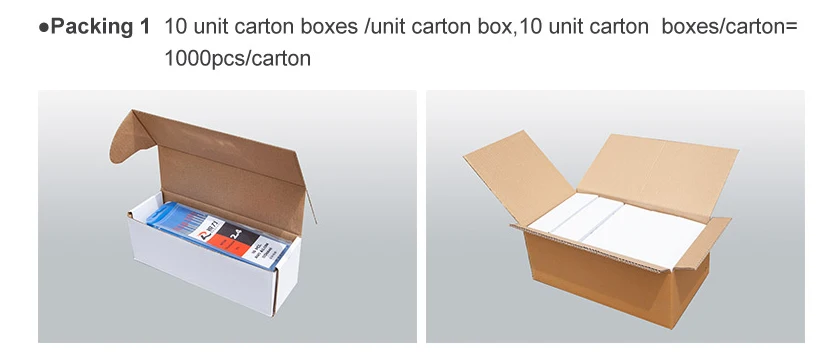

Packaging & Shipping
Company Information
Huaxiang Tungsten Molybdenum Products Co.,Ltd. was founded in 2007,Zibo city , Shandong Province, over 35000 sq.m. The area of Workshop is over 18,000 sq.m.. With convenient transportation, our company is only 3 kilometers away from Zibobei High-Speed Railway Station and takes only two hours to arrive in Qingdao port.
We have international advanced production equipment and exquisite processing technology to ensure that the product design, research, production inspection, sales and service are all in strict accordance with the IS09001 quality certification system. We have been specializing in developing and manufacturing the product series of Thorium-tungsten electrode, Lanthanum-tungsten electrode, Cerium-Tungsten Electrode Zirconium-tungsten electrode, Yttrium-tungsten electrode, Pure tungsten electrode, composite tungsten electrode,etc.

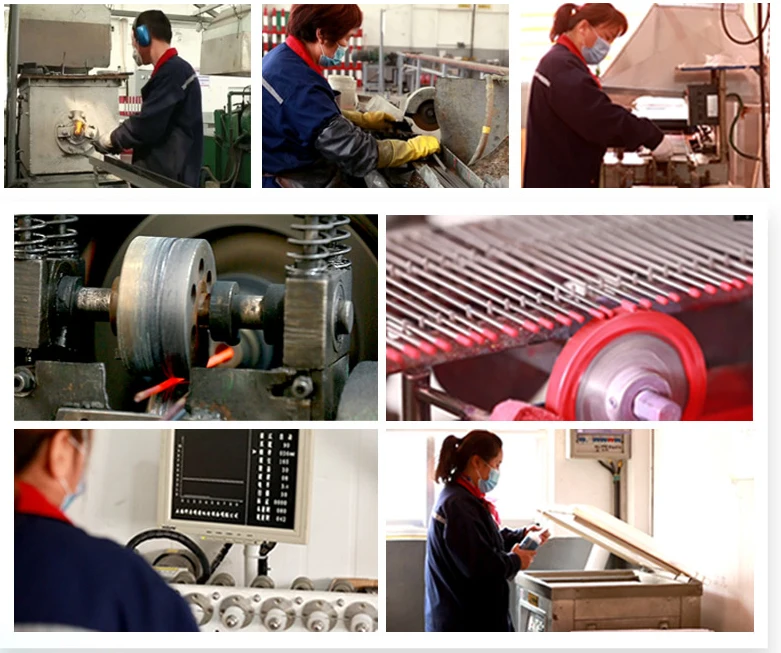

Fine production of multiple processes such as (spinning, stretching, straightening, grinding, cutting,annealing) was qualified by advanced eddy current inspection equipment to ensure that the products meet the ISO6848 (AWS A5.12)standard. With an annual output of about 300 tons tungsten electrodes, we export to more than 50 countries all over the world such as the United States, Germany, Brazil, South Korea, India, Russia, Thailand etc. We have more than 300 dealers and agents at home and abroad.
FAQ
Q: Are you trading company or manufacturer?
A: We are a factory and exporter for tungsten electrode.
Q: Can I get some samples before the order?
A: Yes, we could offer few samples to you for free if you could afford the freight cost.
Q: What's your MOQ?
A: We are a manufacturer that we have our own factory, we could produce any quantity of product as your request. But as you know, the more the quantity of your order is, the lower the price will be.
Q: How is the quality control?
A: Strict quality control is performed in every procedure from material sourcing, processing and testing to packing.
Q: Is OEM and ODM service available?
A: Yes, the packing of product could be attached with your logo or customized by new design.
Q: How long is the lead time?
A: Generally, the lead time is as follows. The specific lead time depends on the quantity you need and the stock.
Quantity | Lead Time |
1-1000pcs | ≤ 3 days |
1000-10000pcs | ≤ 5 days |
10000-30000pcs | ≤ 7 days |
30000-50000pcs | ≤ 14 days |
50000-100000pcs | ≤ 21 days |
≥ 100000pcs | To be negotiated |
Q: What is your payment terms?
- A: The first payment of 30% deposit, the end of the 70% should be paid by the customer upon seeing the copy of B/L.
- Pay first 100% T/T.
- The first payment of 30% deposit, the end of the 70% will be paid after the customer receive the picture of the complete goods of you order.
